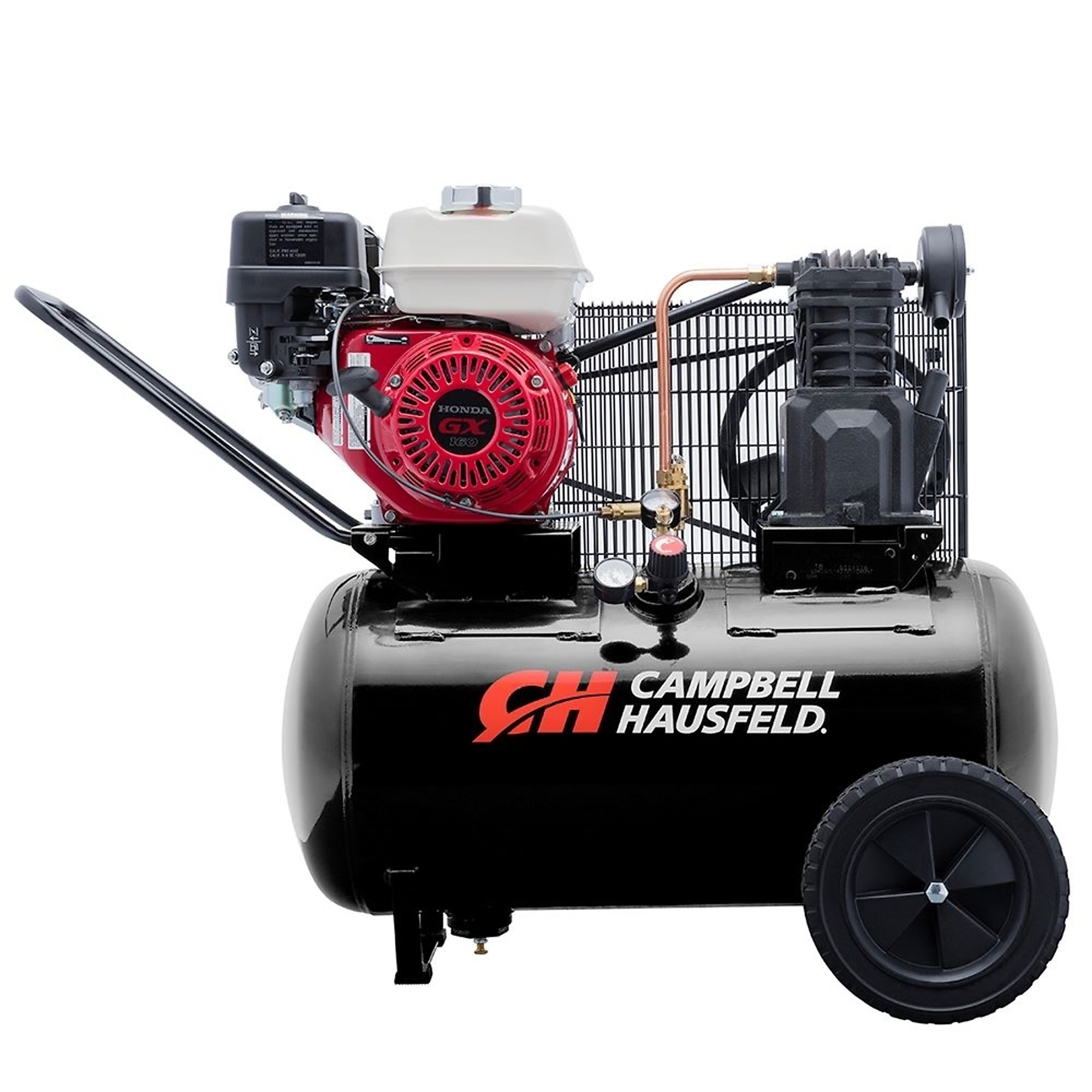

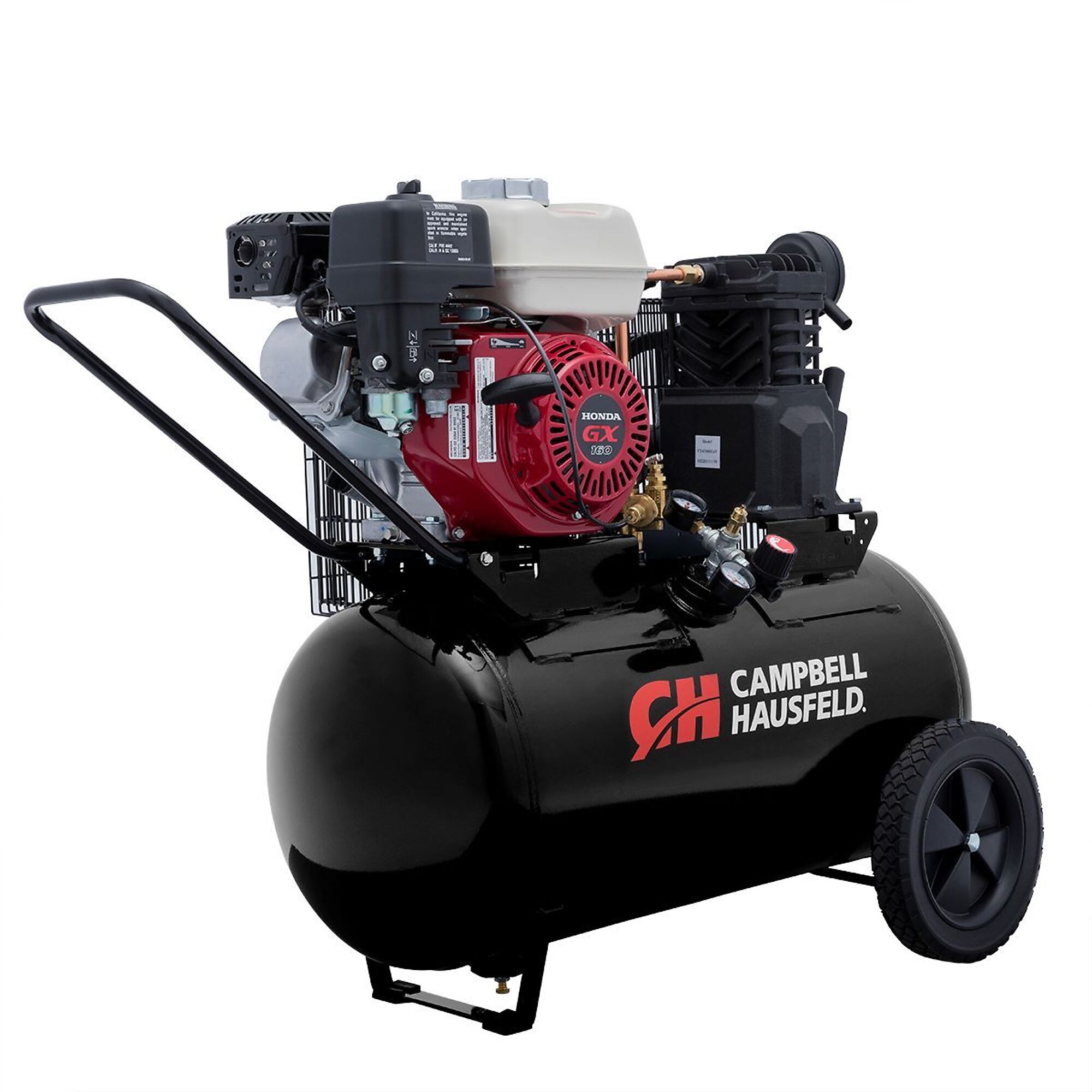

Campbell Hausfeld, Campbell Hausfeld 20gal Honda Power Air Compressor, Horsepower 5.5 HP, Air Tank Size 20 Gal, Model# VT6171X

Item# 6507929
"Campbell Hausfeld, Campbell Hausfeld 20gal Honda Power Air Compressor, Horsepower 5.5 HP, Air Tank Size 20 Gal, Model# VT6171X"
Campbell Hausfeld, Campbell Hausfeld 20gal Honda Power Air Compressor, Horsepower 5.5 HP, Air Tank Size 20 Gal, Model# VT6171X

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Campbell Hausfeld, Campbell Hausfeld 20gal Honda Power Air Compressor, Horsepower 5.5 HP, Air Tank Size 20 Gal, Model# VT6171X

Click or Tap image to Zoom

$1499.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Heavy Duty Cast Iron, Oil-Lubricated, Two Cylinder Single Stage Pump
  • Powerful GX160 Honda Engine
  • Fully enclosed metal belt guard for safe operation
  • 20 Gallon Portable Tank
  • 10.2 CFM @ 90 PSI

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Campbell Hausfeld 20-gallon, 5.5 hp, gas-powered, portable air compressor (VT6171X) is ideal for working where electric power is unavailable. Its Honda GX160 engine provides reliable power, driving a heavy-duty, cast-iron, oil-lubricated, two-cylinder pump. The large semi-pneumatic wheels make this unit easy to move from one job to the next. This air compressor delivers 10.2 CFM of air at 90 PSI to power a wide variety of air tools for serious DIY user, professional or contractor.

What's Included

    (1) Air compressor

Features + Benefits

  • Heavy Duty Cast Iron, Oil-Lubricated, Two Cylinder Single Stage Pump
  • Powerful GX160 Honda Engine
  • Fully enclosed metal belt guard for safe operation
  • 20 Gallon Portable Tank
  • 10.2 CFM @ 90 PSI

Key Specs

AttributeSpecification

item#

6507929

Brand

Campbell Hausfeld

Manufacturer's Warranty

2 year limited warranty

Ship Weight

165.0 LB

Horsepower

5.5 HP

Air Tank Size

20 Gal

Engine Brand

Honda

CFM at 90 PSI

10.2

Max. PSI

135

Stage

1

Air Outlets (qty.)

1

Fuel Capacity

1 Gal

Working Pressure

90 PSI

Engine Displacement

163 cc

Engine Start Type

Recoil

Pump Life

5,000 hr

Pump Material

Cast Iron
AttributeSpecification

Pump Drive

Belt

Air Outlet Size

3/8 in. NPT

CFM at 40 PSI

11.5

CFM at Max. PSI

9.8

Noise Level

95 dB

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Petcock

Tank Orientation

Horizontal

Engine Model

GX160

Product Weight

156.0000 lb

Dimensions L x W x H (in.)

32.0 x 19.5 x 30.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
