Industrial Air Contractor, IA 9GAL WHLBRRW W/HONDA AIRCMP, Horsepower 9 HP, Air Tank Size 9 Gal, Model# CTA9090980.ES.SAN

Item# 43517
"Industrial Air Contractor, IA 9GAL WHLBRRW W/HONDA AIRCMP, Horsepower 9 HP, Air Tank Size 9 Gal, Model# CTA9090980.ES.SAN"
Industrial Air Contractor, IA 9GAL WHLBRRW W/HONDA AIRCMP, Horsepower 9 HP, Air Tank Size 9 Gal, Model# CTA9090980.ES.SAN

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Air Contractor, IA 9GAL WHLBRRW W/HONDA AIRCMP, Horsepower 9 HP, Air Tank Size 9 Gal, Model# CTA9090980.ES.SAN

Click or Tap image to Zoom

$2799.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Super High Airflow portable produces 18.1 CFM @ 90 PSI
  • 155 PSI maximum pressure for optimum tool performance
  • Wheelbarrow tank design with two 4.5-gallon tanks
  • High-performance cast iron 3-cylinder oil-lubricated single stage pump
  • Durable 1-piece cast iron crankcase handles tough jobs

See full description

Complete Your Solution

  • Industrial Air Contractor, IA 9GAL WHLBRRW W/HONDA AIRCMP, Horsepower 9 HP, Air Tank Size 9 Gal, Model# CTA9090980.ES.SAN
  • RapidAir Filter Regulator with Gauge, 3/8in. NPT, 100 CFM, Model# K93215
  • GDI, HOUR METER W/TACHOMETER, Model# N111-0100-1005
  • Honda Engines, HONDA MAINT. KIT, Pieces (qty.) 4 Model# HONDAKIT4
Price for all four:

$2960.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

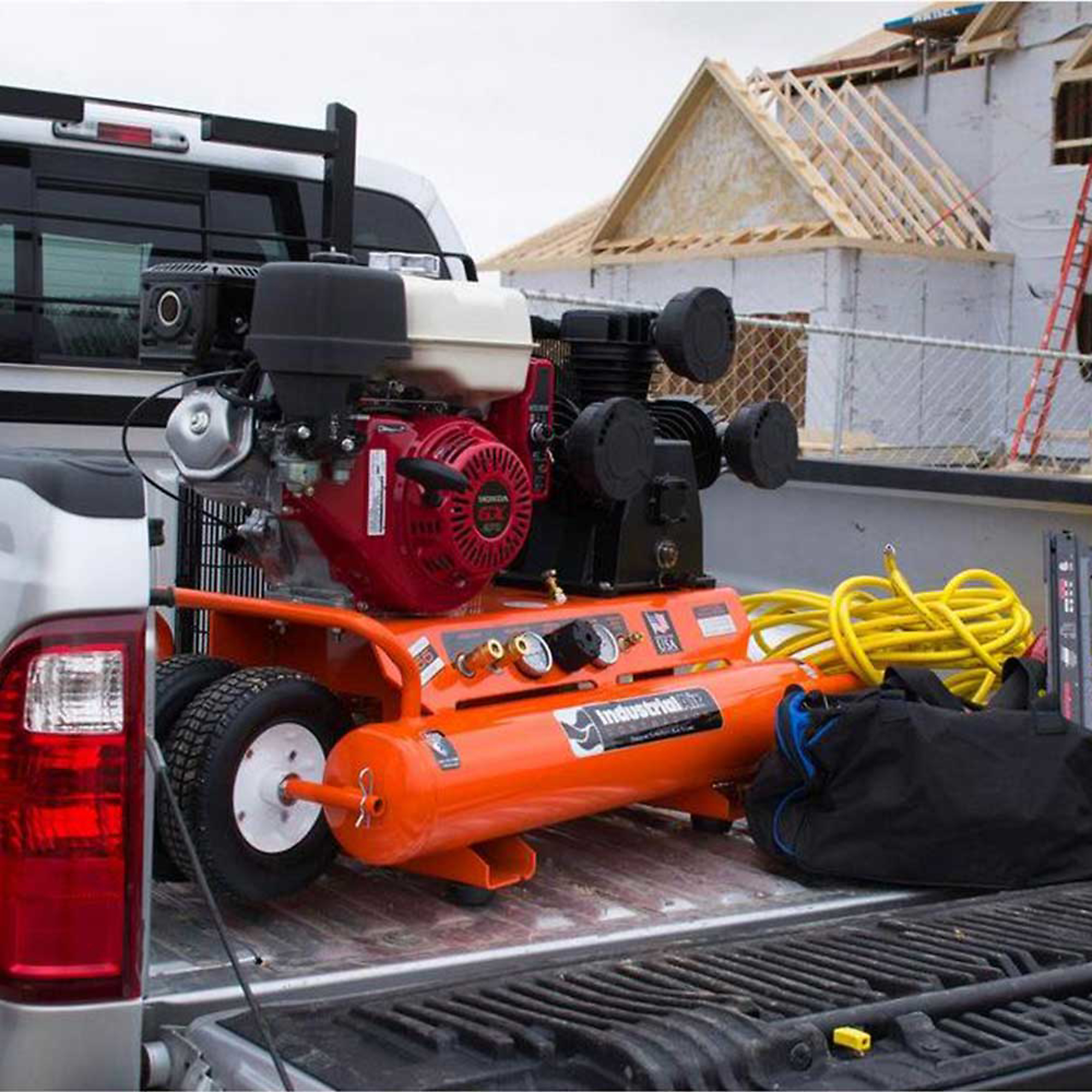

The hardworking Industrial Air 9-Gallon Gas-Powered Wheelbarrow Air Compressor is specifically designed for the demanding jobsite performance contractors require. This portable wheelbarrow compressor features a durable cast iron 3-cylinder pump with super high airflow, a reliable Honda GX270 OHV gasoline engine with electric start, cast iron flywheel, easy-access controls and more. Ships with synthetic oil for optimum performance and long life. Dual tires and easy-grip handles offer easy mobility. This heavy-duty compressor delivers long life that customers demand.

What's Included

    (1) 9 HP, 9-gallon gas-powered wheelbarrow air compressor

Downloads

Product Manual
Additional Product Info Additional Product Info2

Features + Benefits

  • Super High Airflow portable produces 18.1 CFM @ 90 PSI
  • 155 PSI maximum pressure for optimum tool performance
  • Wheelbarrow tank design with two 4.5-gallon tanks
  • High-performance cast iron 3-cylinder oil-lubricated single stage pump
  • Durable 1-piece cast iron crankcase handles tough jobs
  • Durable Swedish stainless steel flex leaf valves
  • Shipped with synthetic oil for optimum performance and long pump life
  • Splash-lubricated oil system for pump
  • Heavy-duty Honda GX270 OHV 9 HP gasoline engine with electric start is reliable, easy-starting and quiet running
  • Engine meets CARB emissions requirements
  • Overhead valve design offers cooler, fuel-efficient operation
  • Cast iron cylinder sleeve provides longer service life
  • Automatic low oil shutdown
  • Automotive-style air cleaner
  • Integrated battery tray compartment (battery sold separately)
  • Air throttle cylinders
  • 16in. cast iron flywheel is balanced for maximum performance

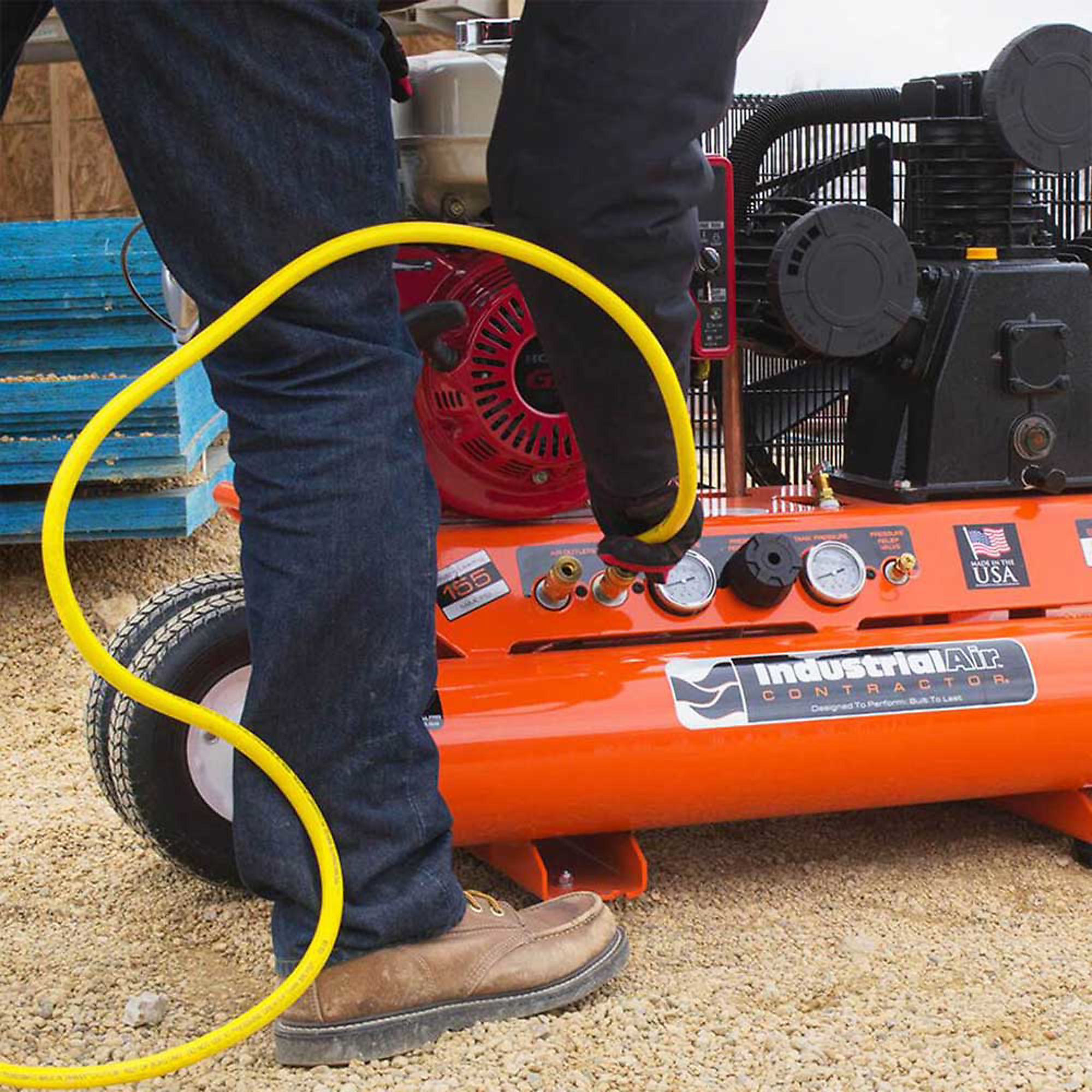

  • Easy-access controls include regulator with oversized knob, tank and tool pressure gauges
  • Integrated control panel
  • Two 1/4in. quick-connect air outlets run two tools at same time

Key Specs

AttributeSpecification

item#

43517

Brand

Industrial Air Contractor

Manufacturer's Warranty

2 year limited warranty

Ship Weight

360.0 LB

Horsepower

9 HP

Air Tank Size

9 Gal

CFM at 90 PSI

18.1

Max. PSI

155

Stage

1
AttributeSpecification

Working Pressure

155 PSI

Engine Displacement

270 cc

Air Outlet Size

3/8 in. NPT

CFM at 40 PSI

20.6

After Cooler Included

No

Drain Type

Manual

Tank Orientation

Horizontal

Product Weight

lb

Dimensions L x W x H (in.)

48.5 x 244.5 x 33.0 in

Reviews

Questions & Answers

489 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. is battery included

    1. No

      Helpful?

    2. The battery is sold separately.

      Helpful?

  2. HOW THIS COMPRESSOR CAN BE TURN ON

    1 answer

    1. The unit will use electric and recoil start.

      Helpful?

  3. Does this unit come with Auto Engine Idle Control? Can the auto idle be easily install if necessary?

    1 answer

    1. This air compressor does not have auto idle control. There is no option to add this feature.

      Helpful?

  4. Where does the battery mount

    1 answer

    1. The battery mounts between the tanks near the handles.

      Helpful?

  5. How many CFM at 175psi will this compressor produce?

    1 answer

    1. This Industrial Air Gas-Powered Wheelbarrow Air Compressor has a maximum working pressure of 155 PSI. It is unable to reach 175 PSI.
