Caloritech, Control Panel Pump House Heater, 125W, Heat Type Forced Air, Heat Output 427 Btu/hour, Model# PXFT12511

Item# 5092291
Caloritech, Control Panel Pump House Heater, 125W, Heat Type Forced Air, Heat Output 427 Btu/hour, Model# PXFT12511

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Caloritech, Control Panel Pump House Heater, 125W, Heat Type Forced Air, Heat Output 427 Btu/hour, Model# PXFT12511

Click or Tap image to Zoom

$359.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Control Panel & Pump House Heater c/w T'stat - 120V 1Ø 125W
  • The PXFT heater uses a high surface area aluminum heat emitter to eliminate the need for a fan while providing low radiation and high convection heating to the enclosure.

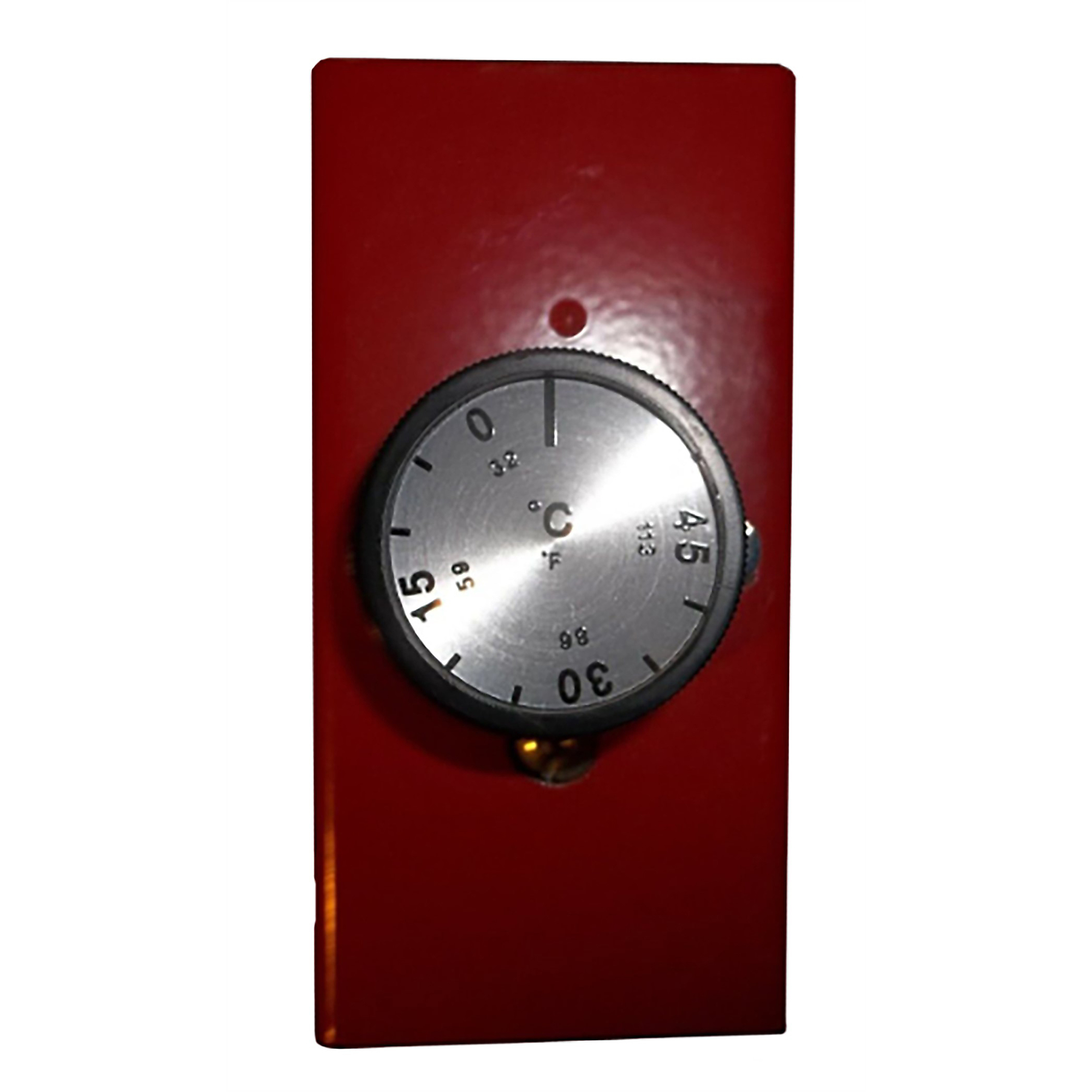

  • The thermostat rating is 25 A at 240V, Single Pole, Single Throw, adjustable from 30°F to 120°F (0°C to 50°C).
  • A movable bracket allows the heater to be floor or wall mounted with the terminal box located on the left or right side, top or bottom.
  • Wire guards are provided standard with the PXFT-300, PXFT-400 and PXFT-600-watt heaters, and are available as an option on the PXFT-050, PXFT-125, and PXFT-200-watt units.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Application - Caloritech PXFT heaters are designed to maintain a stable temperature inside control enclosures, pump houses or similar spaces. The standard units are not suitable for use outdoors, unprotected from the weather. All heaters have a built-in thermostat. The heater is also available without a thermostat on special order. Features - The PXFT heater uses a high surface area aluminum heat emitter to eliminate the need for a fan while providing low radiation and high convection heating to the enclosure. The thermostat rating is 25 A at 240V, Single Pole, Single Throw, adjustable from 30°F to 120°F (0°C to 50°C). A movable bracket allows the heater to be floor or wall mounted with the terminal box located on the left or right side, top or bottom. Wire guards are provided standard with the PXFT-300, PXFT-400 and PXFT-600-watt heaters, and are available as an option on the PXFT-050, PXFT-125, and PXFT-200-watt units. Moisture-resistant heaters (shown below) are available on special order. Selection - The wattage requirement is determined from a consideration of the surface area, insulation properties of the enclosure or space and the temperature difference between the ambient and the enclosure. For small enclosures (less than 100ft.2 (9.3 m2) surface area) conservative values for heat losses are as shown in Table 4 page C6. Installation - Caloritech PXFT heater is approved for horizontal or vertical mounting on the floor or lower wall of the enclosure. Heaters must be installed using the mounting bracket provided to ensure minimum spacing between the heater and the wall or floor. Try to maximize the spacing between the heater and temperature sensitive components. Surface temperatures of the 50 -watt and 125-watt units are about 212°F (100°C) and 338°F (170°C) respectively. The other units listed operate around 410°F (210°C).

What's Included

    (1) Control Panel & Pump House Heater c/w T'stat - 120V 1Ø 125W

Downloads

Additional Product Info

Features + Benefits

  • Control Panel & Pump House Heater c/w T'stat - 120V 1Ø 125W
  • The PXFT heater uses a high surface area aluminum heat emitter to eliminate the need for a fan while providing low radiation and high convection heating to the enclosure.
  • The thermostat rating is 25 A at 240V, Single Pole, Single Throw, adjustable from 30°F to 120°F (0°C to 50°C).
  • A movable bracket allows the heater to be floor or wall mounted with the terminal box located on the left or right side, top or bottom.
  • Wire guards are provided standard with the PXFT-300, PXFT-400 and PXFT-600-watt heaters, and are available as an option on the PXFT-050, PXFT-125, and PXFT-200-watt units.
  • Moisture-resistant heaters (shown below) are available on special order.
  • The wattage requirement is determined from a consideration of the surface area, insulation properties of the enclosure or space and the temperature difference between the ambient and the enclosure.
  • For small enclosures (less than 100 ft² (9.3 m²) surface area) conservative values for heat losses are as shown in Table 4, page C6.
  • Installation - Caloritech™ PXFT heater is approved for horizontal or vertical mounting on the floor or lower wall of the enclosure.
  • Heaters must be installed using the mounting bracket provided to ensure minimum spacing between the heater and the wall or floor.
  • Try to maximize the spacing between the heater and temperature sensitive components.
  • Surface temperatures of the 50 -watt and 125-watt units are about 212°F (100°C) and 338°F (170°C) respectively.

Key Specs

AttributeSpecification

item#

5092291

Brand

Caloritech

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4.0 LB

Heat Type

Forced Air

Heat Output

427 Btu/hour

Hardwired

Yes

Indoor-Outdoor Use

Indoor

Volts

120

Watts

125

Amps

1.1
AttributeSpecification

Assembled Width

8.5 in

Assembled Height

5.75 in

Assembled Depth

4.25 in

Needs Direct Venting

No

Remote Included

No

Tip-Over Safety Switch

No

Blower Included

No

Oscillating

No

Product Weight

3.0000 lb

Dimensions L x W x H (in.)

4.25 x 8.5 x 5.75 in

Reviews

Questions & Answers

Questions

  1. How big an area will it heat?

    1 answer

    1. The pump house heater is 125 watts. The heater is designed for small enclosures and does not have a specific listing of the size of area it will heat. The heater will have a built in thermostat to allow the user the ability to adjust the temperature setting.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
