  • Caldwell, Full Cantilevered Jib Crane, Mount Type Wall, Capacity 4000 lb, Overall Boom Length 120 in, Model# E180-2-10
  • OZ Lifting Products Manual Plain Trolley, 2-Ton Capacity, 3.46-12in. Flange Width, Model# OZ2PBT
  • Strongway Manual Chain Hoist, 4400-Lb. Capacity, 20ft. Lift
Price for all three:

$7469.97

Frequently Bought Together

Product Summary

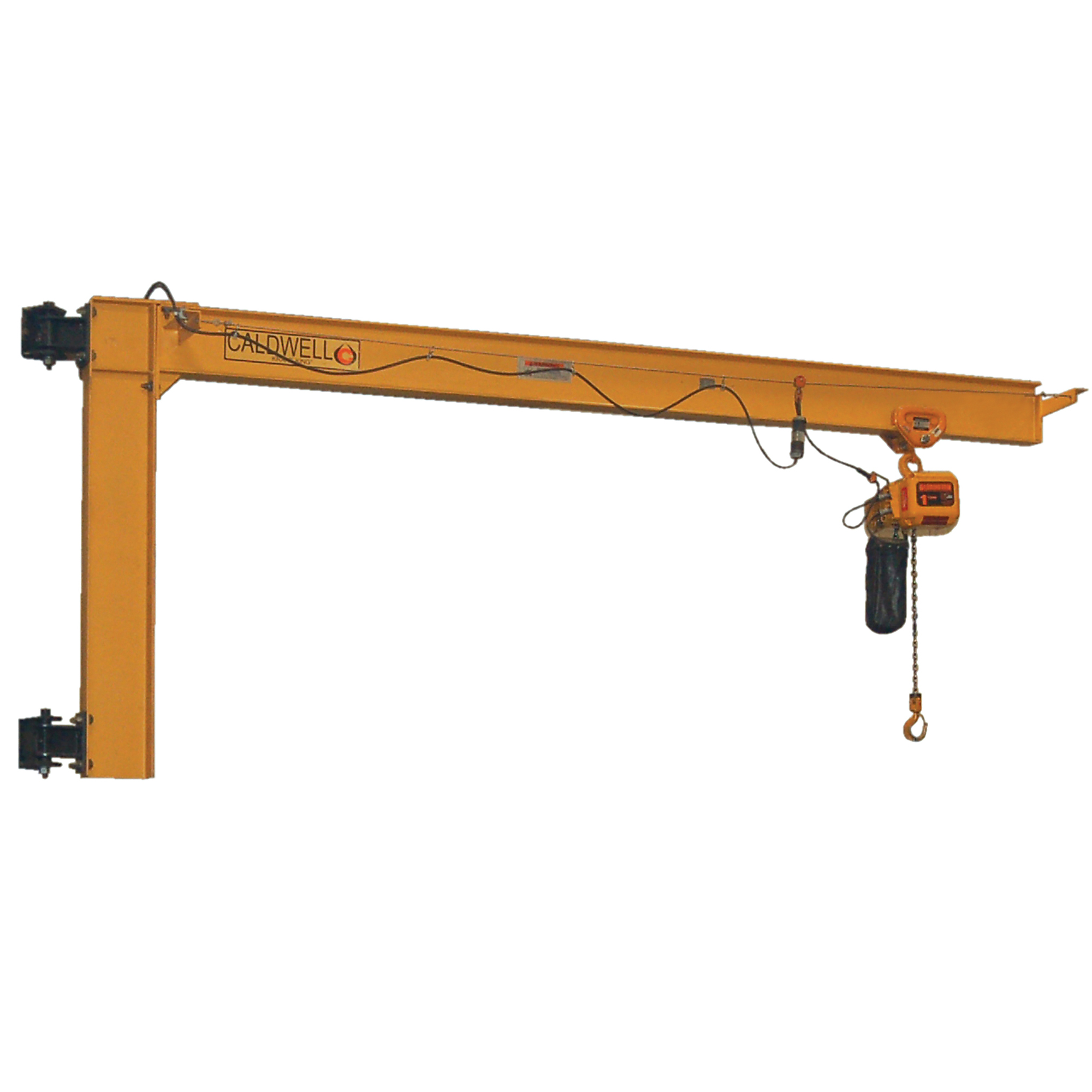

This crane puts the economy back into this column mounted unit. This inexpensive jib crane provides a fast and easy to install solution to a localized material handling problem. Our unique design follows the same engineering criteria as all of our quality products and is ideal for applications where headroom is limited. Easy to install fittings simply bolt to the column and beam. This "friction free" 180 degree rotating crane can also be pushed out of the way when not in use. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Boom Assembly (2) Cantilever Fittings (4) Angle (20) Bolts (20) Lock Washers (20) Nuts (1) Touchup Paint (1) Assembly Drawing (1) Assembly Drawing

Features + Benefits

  • Fittings are heavy duty steel weldments, jib welded to insure proper bearing alignment.
  • Axles are Grade 8 bolts with lock washers and nuts. Lubricated bronze shoulder bushings are used.
  • American Standard Wide Flange beams, selected to properly handle all forces and loads imposed upon it.
  • End stops provide a positive and permanent hoist/trolley stop allowing for the maximum in trolley travel.

Key Specs

AttributeSpecification

item#

4389033

Brand

Caldwell

Manufacturer's Warranty

2 year limited warranty

Ship Weight

715.0 LB

Mount Type

Wall

Capacity

4,000 lb
AttributeSpecification

Overall Boom Length

120 in

Overall Height

60 in

Degree of Rotation

180

Product Weight

665.0000 lb

Dimensions L x W x H (in.)

120.0 x 8.0 x 60.0 in

Accessories We Recommend

Warranty

Manufacturer's Warranty

2 year limited warranty
