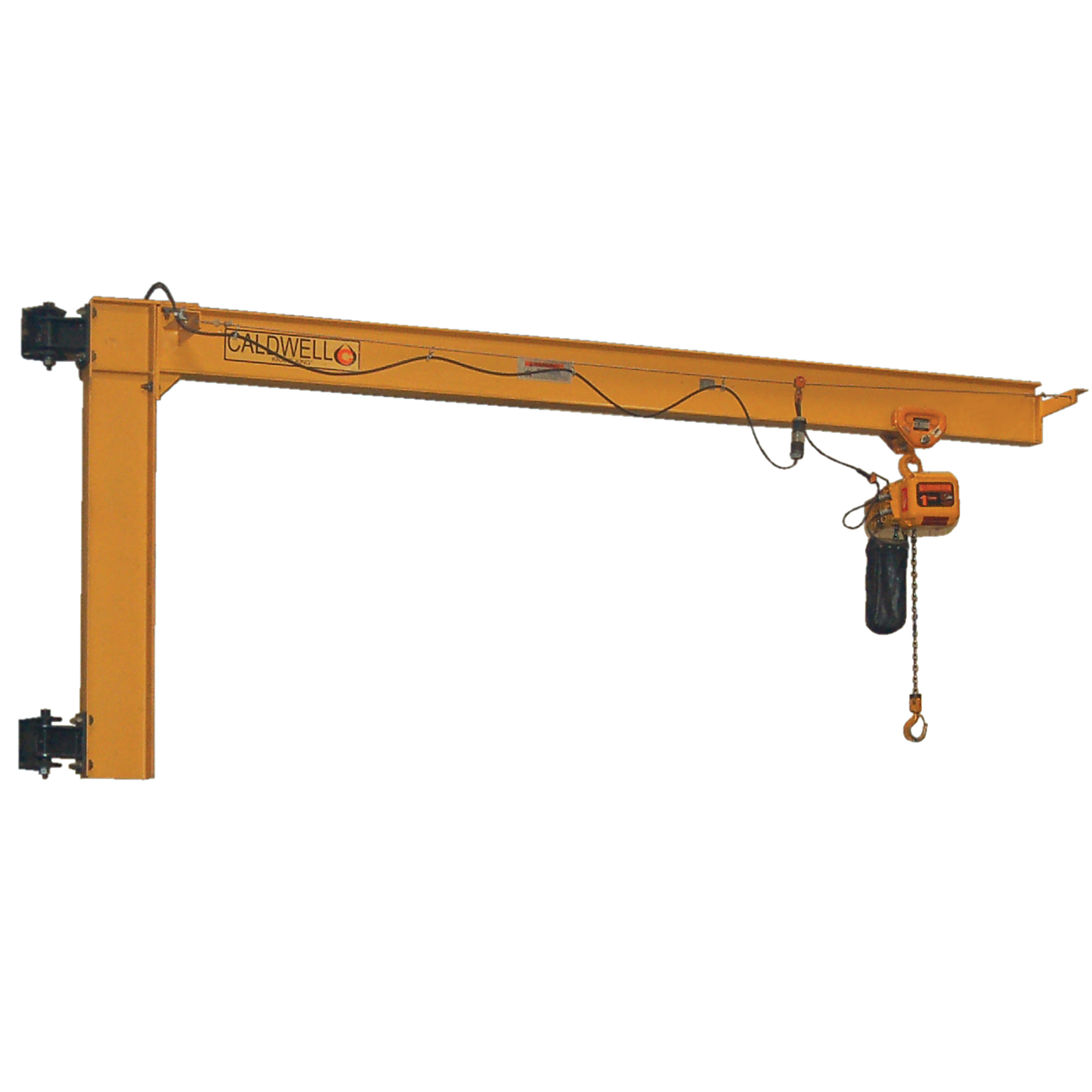

Caldwell, Full Cantilevered Jib Crane, Mount Type Wall, Capacity 2000 lb, Overall Boom Length 96 in, Model# E180-1-8

Item# 4388719
Caldwell, Full Cantilevered Jib Crane, Mount Type Wall, Capacity 2000 lb, Overall Boom Length 96 in, Model# E180-1-8

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Caldwell, Full Cantilevered Jib Crane, Mount Type Wall, Capacity 2000 lb, Overall Boom Length 96 in, Model# E180-1-8

Click or Tap image to Zoom

$3979.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Fittings are heavy duty steel weldments, jib welded to insure proper bearing alignment.
  • Axles are Grade 8 bolts with lock washers and nuts. Lubricated bronze shoulder bushings are used.
  • American Standard Wide Flange beams, selected to properly handle all forces and loads imposed upon it.
  • End stops provide a positive and permanent hoist/trolley stop allowing for the maximum in trolley travel.

See full description

Complete Your Solution

  • Caldwell, Full Cantilevered Jib Crane, Mount Type Wall, Capacity 2000 lb, Overall Boom Length 96 in, Model# E180-1-8
  • OZ Lifting Products Manual Plain Trolley, 2000-Lb. Capacity, 2.52-8in. Flange, Model# OZ1PBT
  • Strongway Manual Chain Hoist, 2200-Lb. Capacity, 20ft. Lift
  • OZ Lifting Products Industrial Series Manual Lever Hoist, 1 1/2-Ton Capacity, 15ft. Lift, Model# OZIND150-15LH
Price for all four:

$4584.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This crane puts the economy back into this column mounted unit. This inexpensive jib crane provides a fast and easy to install solution to a localized material handling problem. Our unique design follows the same engineering criteria as all of our quality products and is ideal for applications where headroom is limited. Easy to install fittings simply bolt to the column and beam. This "friction free" 180 degree rotating crane can also be pushed out of the way when not in use. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Boom Assembly (2) Cantilever Fittings (4) Angle (20) Bolts (20) Lock Washers (20) Nuts (1) Touchup Paint (1) Assembly Drawing (1) Assembly Drawing

Features + Benefits

  • Fittings are heavy duty steel weldments, jib welded to insure proper bearing alignment.
  • Axles are Grade 8 bolts with lock washers and nuts. Lubricated bronze shoulder bushings are used.
  • American Standard Wide Flange beams, selected to properly handle all forces and loads imposed upon it.
  • End stops provide a positive and permanent hoist/trolley stop allowing for the maximum in trolley travel.

Key Specs

AttributeSpecification

item#

4388719

Brand

Caldwell

Manufacturer's Warranty

2 year limited warranty

Ship Weight

300.0 LB

Mount Type

Wall

Capacity

2,000 lb
AttributeSpecification

Overall Boom Length

96 in

Overall Height

48 in

Degree of Rotation

180

Product Weight

250.0000 lb

Dimensions L x W x H (in.)

96.0 x 5.0 x 48.0 in

Reviews

Questions & Answers

Questions

  1. can this be welded off to a column or does it have to bolt? If it has to bolt what is the bolting pattern>

    1 answer

    1. The bolt pattern is 1.5" L x 3.5" W.
