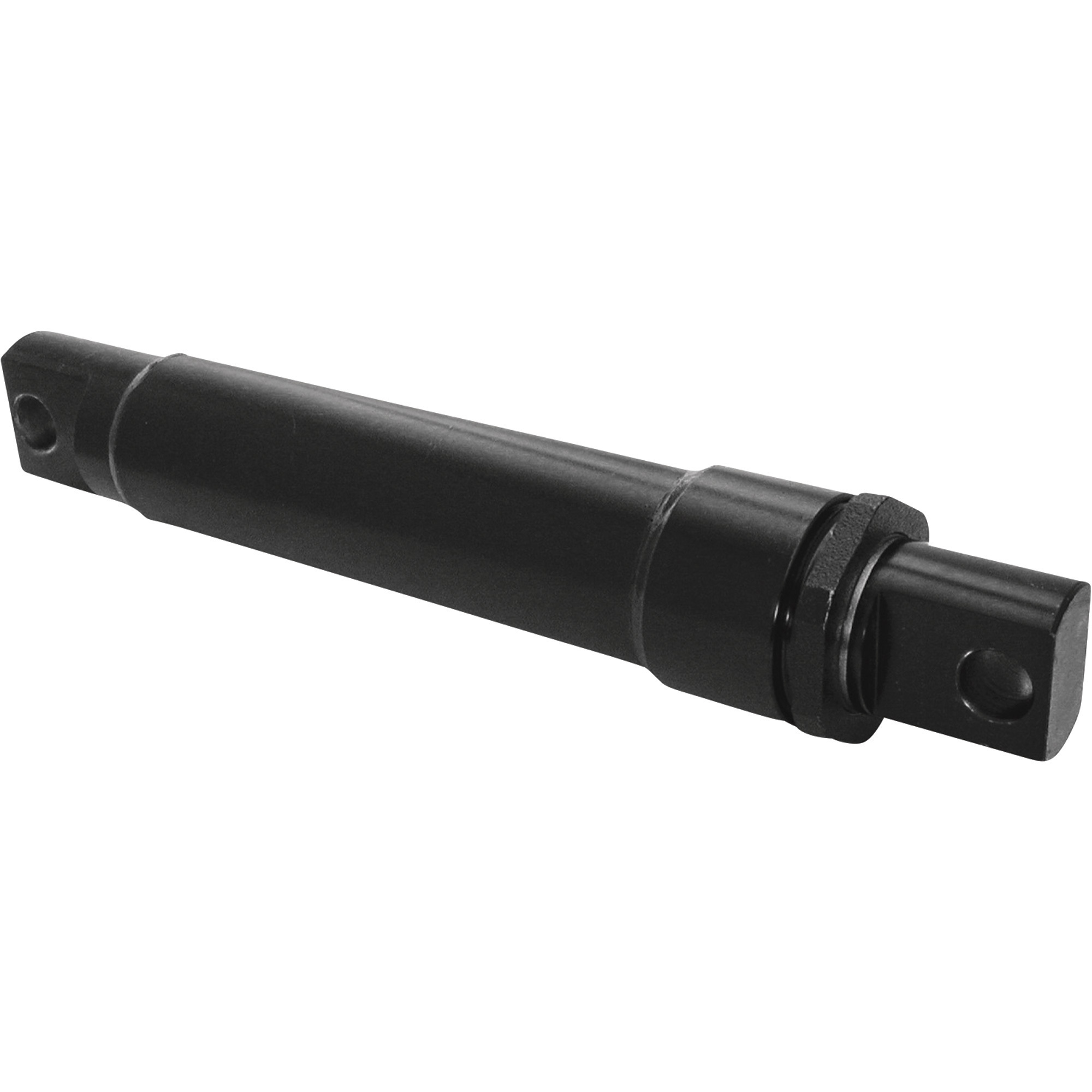

Buyers SAM, SAM Lift and Angle Cylinders to fit Boss Snow Plows, Bore Diameter 1.125 in, Stroke 10 in, Rod Diameter 2.13 in, Model# 1304701

Item# 128322
Buyers SAM, SAM Lift and Angle Cylinders to fit Boss Snow Plows, Bore Diameter 1.125 in, Stroke 10 in, Rod Diameter 2.13 in, Model# 1304701

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers SAM, SAM Lift and Angle Cylinders to fit Boss Snow Plows, Bore Diameter 1.125 in, Stroke 10 in, Rod Diameter 2.13 in, Model# 1304701

Click or Tap image to Zoom

$169.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • OEM Part # HYD07013

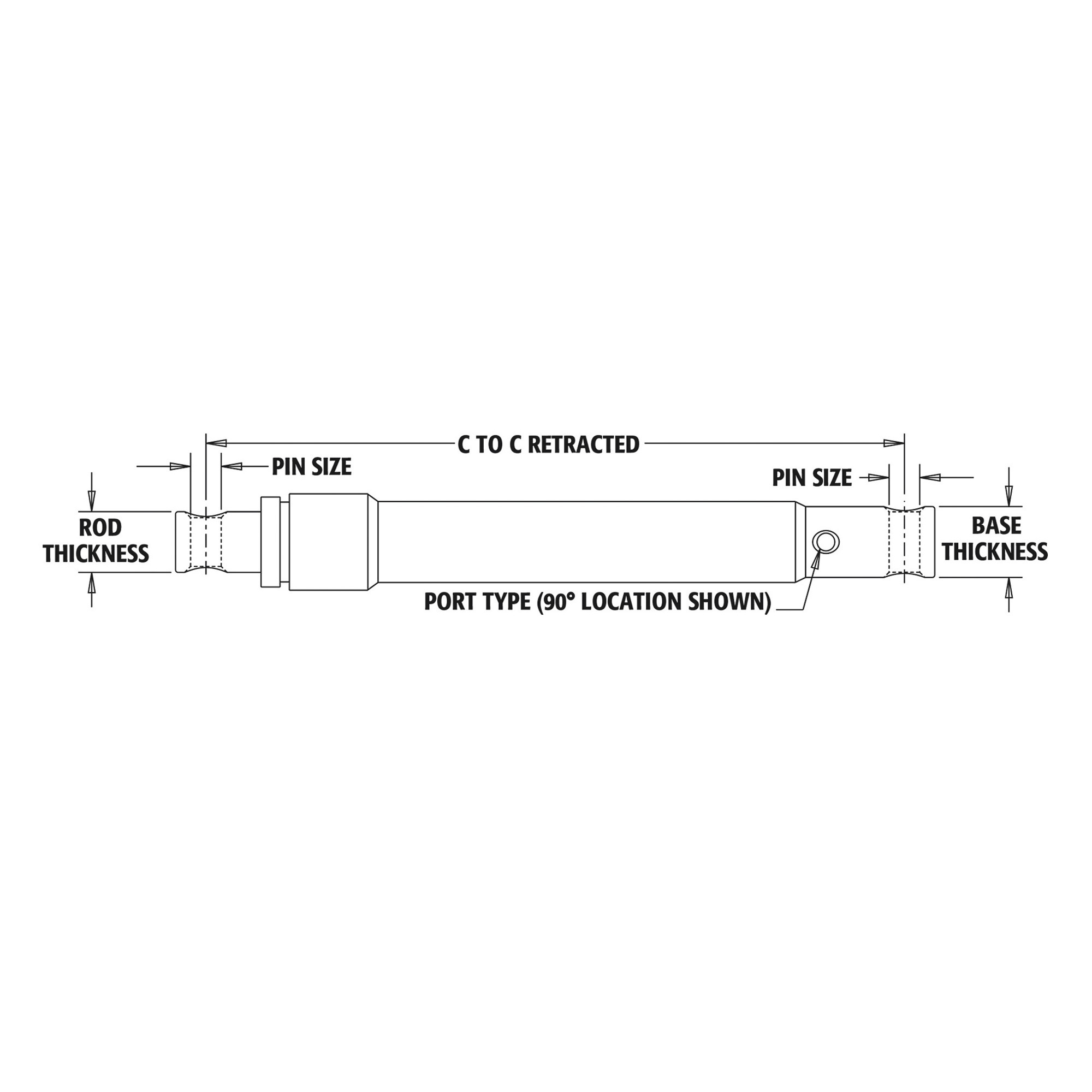

  • Center to Center retracted distance: 17in.
  • Center to Center extended distance: 27in.
  • Rod diameter thickness: 1 7/16in.
  • Base diameter thickness: 1 3/4in.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Keep your plow in power with one of these replacement hydraulic cylinders. Replaces Boss Part# HYD07013.

What's Included

    (1) Replacement cylinder

Features + Benefits

  • OEM Part # HYD07013
  • Center to Center retracted distance: 17in.
  • Center to Center extended distance: 27in.
  • Rod diameter thickness: 1 7/16in.
  • Base diameter thickness: 1 3/4in.
  • Pin size: 5/8in.
  • Port type: 3/8in. NPT
  • Port location: 90 degrees

Key Specs

AttributeSpecification

item#

128322

Brand

Buyers SAM

Manufacturer's Warranty

1 year limited warranty

Ship Weight

12.52 LB

Bore Diameter

1.125 in

Stroke

10 in

Rod Diameter

2.13 in

Compatible With

Boss Plow
AttributeSpecification

Extended Length

25.75 in

Retracted Length

15.75 in

Max. PSI

0

Closed Pin Center

0 in

Cylinder Action

Double Acting

Pin Diameter

0.63 in

Pin Length

0 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. what is the retracted length? is this a two way cyl. ?

    1. The retracted length of this cylinder is 15 3/4". This is a double acting cylinder.

      Helpful?

    2. 15 3/4 inches retracted distance between hole centers. Yes, this is a double acting cylinder.

      Helpful?

  2. do not see where the hose screws in for hydraulic fluid. Does it come with the fittings to attach the hose?

    1 answer

    1. The replacement plow cylinder has fittings that are 1/4 inch NPT in size, the fittings are not included. The fitting holes are located on the top of the cylinder on the rod end and on the bottom of the cylinder on the base end.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
