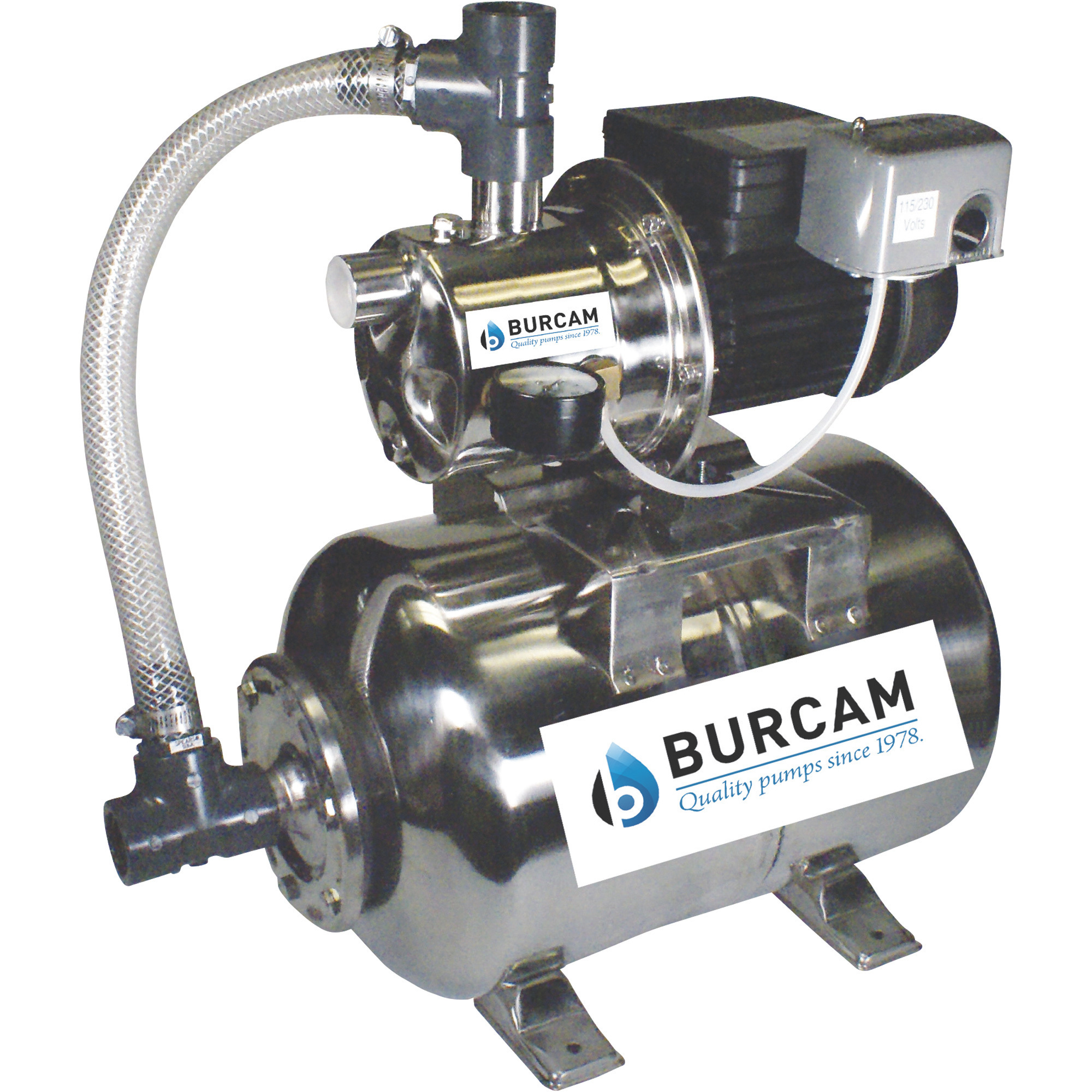

BurCam Stainless Steel Shallow Well Jet Pump with 6.6-Gallon Tank, 3/4 HP, 900 GPH, Model# 506547SS

Item# 42069
BurCam Stainless Steel Shallow Well Jet Pump with 6.6-Gallon Tank, 3/4 HP, 900 GPH, Model# 506547SS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BurCam Stainless Steel Shallow Well Jet Pump with 6.6-Gallon Tank, 3/4 HP, 900 GPH, Model# 506547SS

Click or Tap image to Zoom

  • Stainless steel construction resists corrosion and provides cleaner drinking water
  • 6.6-gallon stainless steel tank
  • Built-in ejector
  • High-performance impeller
  • Easy priming

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This BurCam Stainless Steel Shallow Well Jet Pump is ideal for pumping in depths 25ft. or less. Stainless steel construction prevents rust contamination and ensures cleaner, healthier drinking water.

What's Included

    (1) Shallow well jet pump with tank

Downloads

Product Manual Product Manual2

Features + Benefits

  • Stainless steel construction resists corrosion and provides cleaner drinking water
  • 6.6-gallon stainless steel tank
  • Built-in ejector
  • High-performance impeller
  • Easy priming
  • Totally enclosed fan-cooled continuous-duty 3/4 HP motor
  • Pre-assembled for quick, easy installation
  • Compact design

Key Specs

AttributeSpecification

item#

42069

Brand

BurCam

Manufacturer's Warranty

2 year limited warranty

Ship Weight

30.2 LB

Max. Flow

900 GPH

Volts

115/230
AttributeSpecification

Amps

9

Housing Material

Stainless Steel

Max. PSI

60

Horsepower

0.75

Product Weight

lb

Dimensions L x W x H (in.)

20.0 x 12.0 x 23.0 in

Reviews

Questions & Answers

11 Reviews This action will navigate to reviews.

Questions

1–10 of 18 Questions
Sort by:

  1. What is the max/min pressure and is it adjustable?

    1. Mine came set at 20/40; manual says it is adjustable to 30/50.

      Helpful?

    2. My pump came set to provide 30-50 PSI. The pump comes with instructions for adjusting the max pressure setting and I easily adjusted it down to provide 20-40 PSI. The instructions caution against changing the 20 PSI differential between cut-on and cut-off pressure, but it is possible.

      Helpful?

    3. The pressure switch setting (start/stop 20/40 or start/stop 30/50) has been set at the factory but can be adjusted to other settings with a maximum of 60 psi and a minimum of 20 psi.

      Helpful?

  2. Is there a check valve built into the pump section?

    1. No. You must provide a check valve on the suction line to the pump.

      Helpful?

    2. This shallow well jet pump doesn't have a built-in check valve.

      Helpful?

  3. Will this pump run either single phase 110 or two phase 220

    1 answer

    1. This pump is not designed for 3-phase electricity. It will run on 110V or 220 Volt single phase electricity.

      Helpful?

  4. Does this come with a power cord

    1 answer

    1. The pump does not arrive with a power cord. This model must be hardwired to the power supply with no smaller than a 14-gauge wire. A licensed electrician is recommended to connect to power supply.

      Helpful?

  5. is this pump rated for drinking use

    1 answer

    1. This pump is rated for use with drinking, or potable, water.

      Helpful?

  6. I have a pump already, can the tank be purchased separately?

    1 answer

    1. The 6.6 gallon tank only is part #BCP600650B. To order, please call our parts department at 1.800.657.0516.

      Helpful?

  7. Can this pump be installed under cover on an outside deck, or must it be installed inside a building? It would be seasonal (summer) use and be drained and brought inside for the winter.

    1 answer

    1. The well pump is designed for indoor use only.

      Helpful?

  8. can it be used as on demand service?

    1 answer

    1. This well pump would operate as an on demand type of pump. It has a built in pressure switch that automatically turns on to re pressurize the water line as needed. The attached pressure tank will prevent the pump from rapidly cycling on and off which can damage the pump.

      Helpful?

  9. can I use this pump to feed my whole house I will be drawing from a 2500gal tank , it will gravity feed the pump

    1 answer

    1. This could be used to supply water to a whole house. Care should be taken to ensure the pump does not run dry if the water tank empties of water.

      Helpful?

  10. I would like to use this pump to water my garden by pumping the water from a 275 gallon IBC. I would hook the hose up to two sprinklers. Would this pump be good for that purpose and would the pump shut off if it ran out of water without harming the pump?

    1 answer

    1. This pump can be used to supply water to a sprinkler system. It can be hooked up to a tank to supply water. There is no automatic shut off feature if the water runs out. Special care needs to be taken to ensure the pump will not run dry.

      Helpful?
