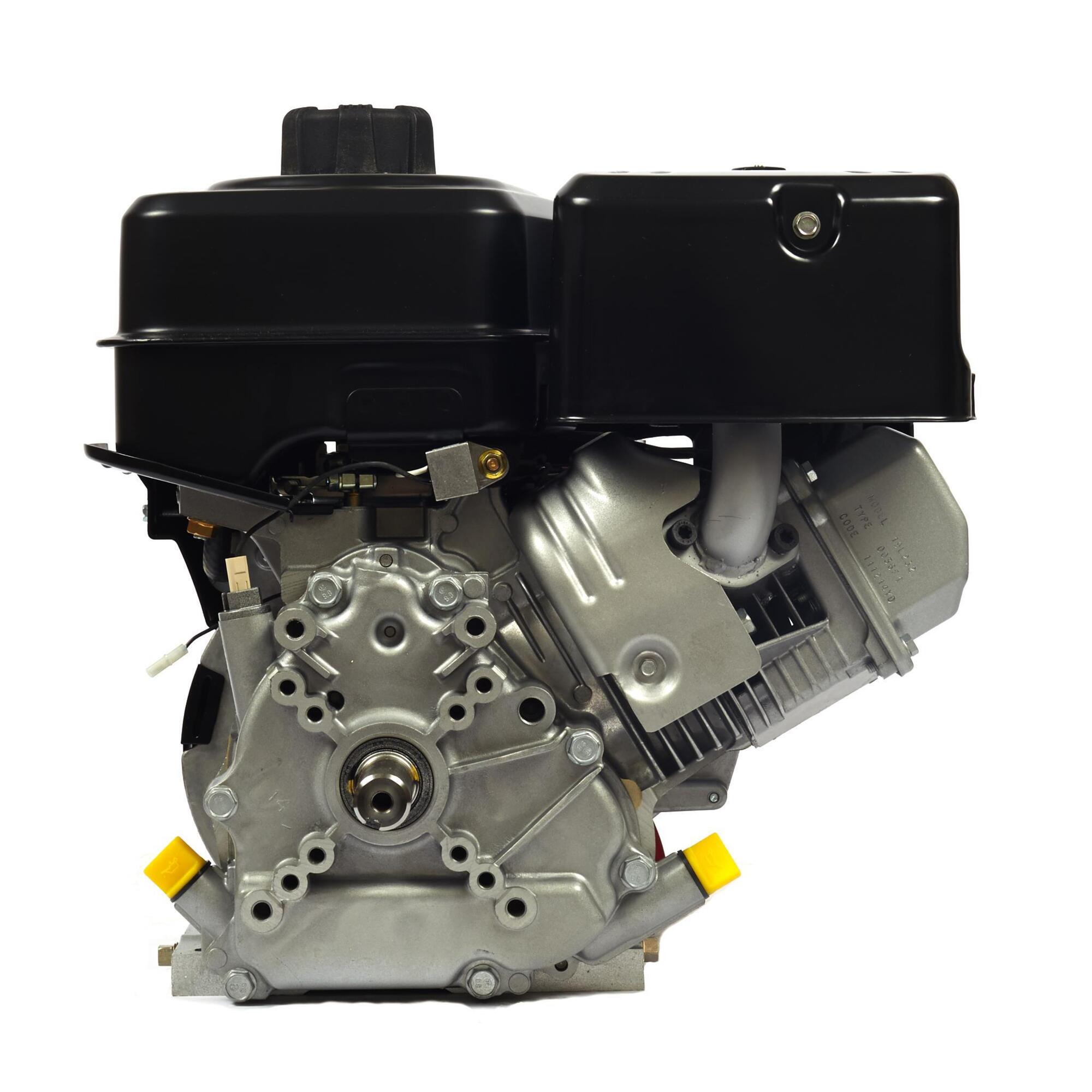

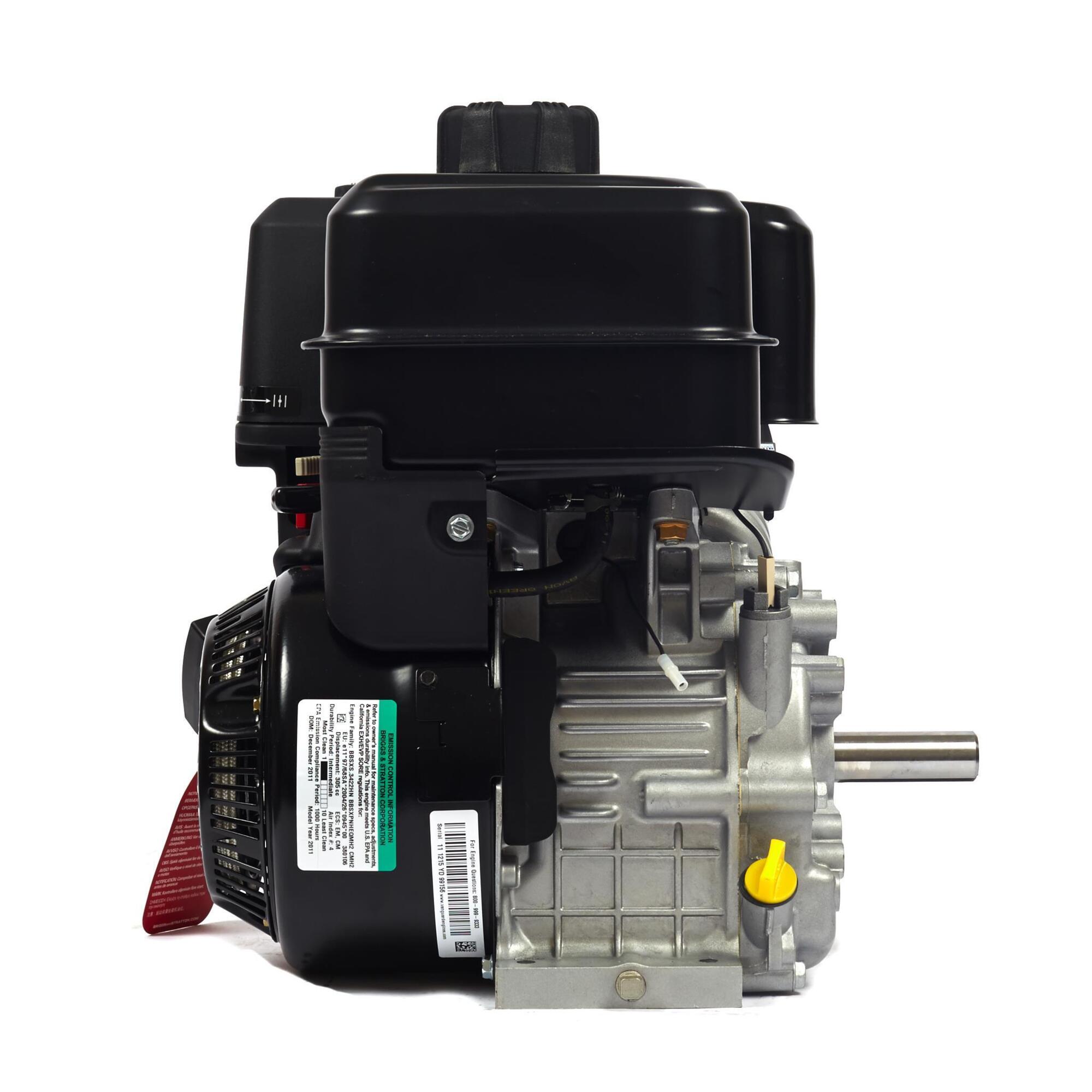

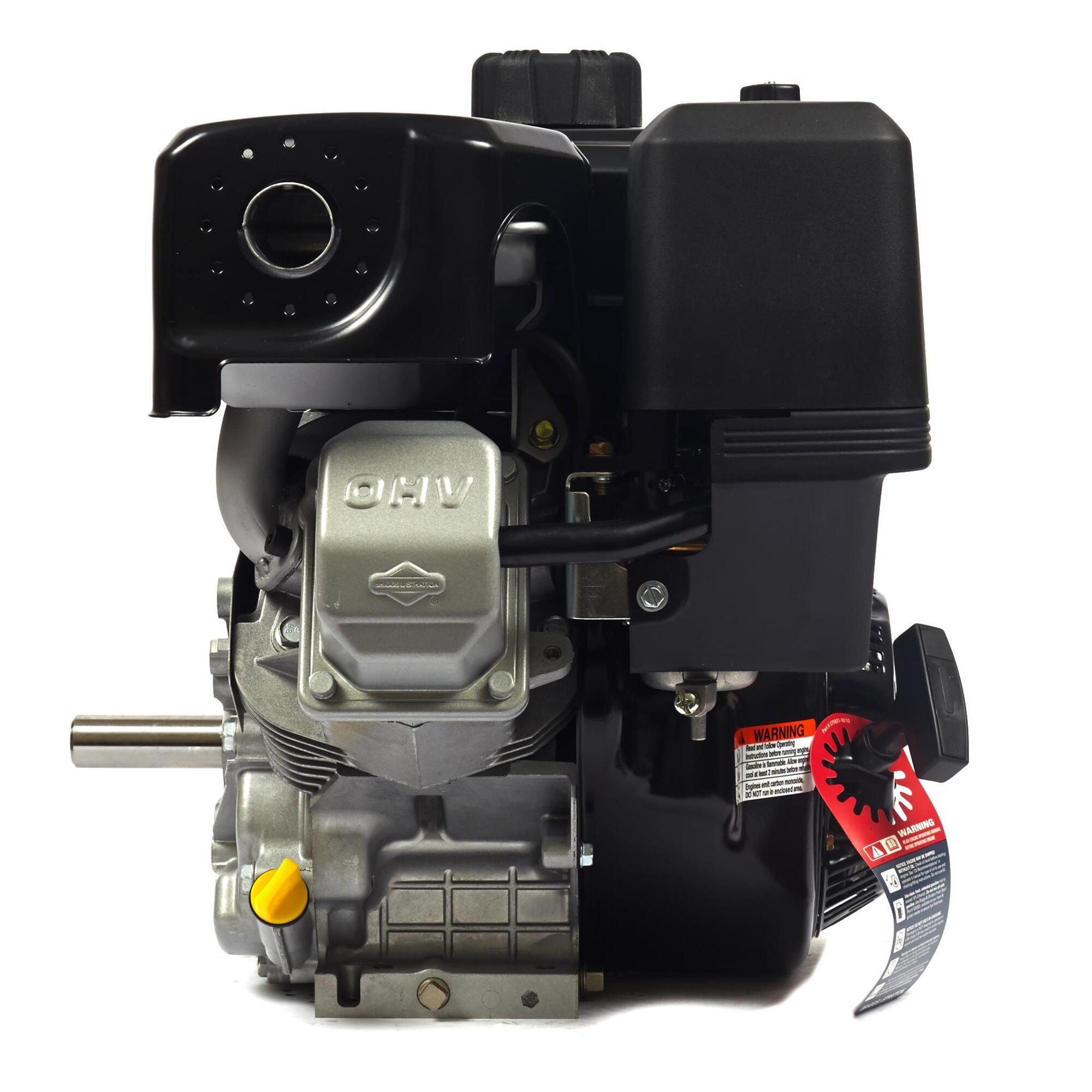

Briggs & Stratton Vanguard Commercial Power Horizontal OHV Engines, 305cc, 1in. x 2 29/32in. Shaft, Model# 19L232-0036-F1

Item# 24750
Briggs & Stratton Vanguard Commercial Power Horizontal OHV Engines, 305cc, 1in. x 2 29/32in. Shaft, Model# 19L232-0036-F1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Briggs & Stratton Vanguard Commercial Power Horizontal OHV Engines, 305cc, 1in. x 2 29/32in. Shaft, Model# 19L232-0036-F1

Click or Tap image to Zoom

  • TransportGuard™ fuel and ignition switch protects oil and fuel dilution during transport
  • OHV design for cooler operation, more power, longer valve life and improved fuel economy
  • Recoil start has auto compression release
  • Low oil shutdown system significantly reduces the chance of engine damage due to insufficient lubrication
  • Dura-Bore™ cast iron cylinder sleeve for longer life and improved oil control

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Briggs Stratton® Vanguard 305cc commercial power OHV engine gives you cooler operation and longer valve life. Dura-Bore cast iron cylinder sleeve withstands wear and abuse while providing improved oil control. The TransportGuard simultaneous fuel and ignition switch protects oil and fuel dilution during transport. Engine is ideal for use with tillers, aerators, pressure washers and compaction plates.

What's Included

    (1) Engine, Model# 19L232-0036-F1

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • TransportGuard™ fuel and ignition switch protects oil and fuel dilution during transport
  • OHV design for cooler operation, more power, longer valve life and improved fuel economy
  • Recoil start has auto compression release
  • Low oil shutdown system significantly reduces the chance of engine damage due to insufficient lubrication
  • Dura-Bore™ cast iron cylinder sleeve for longer life and improved oil control
  • Dual ball bearing supported crankshaft
  • Maintenance-free Magnetron® electronic ignition for quick, dependable starts
  • Metal fuel tank reduces emissions and is mounted directly to engine block to enhance durability
  • Commercial-style carburetor has additional fuel passages to ensure reliable starting and smooth running operation
  • Large, efficient sediment filter collects sediments in a large, clear bowl and is drained with a convenient toolfree valve
  • High-mounted canister-style air cleaner has 22% more filter area than competition
  • Water-repellent filter with innovative triple seal design dramatically decreases dirt, dust and debris intake
  • Larger ignition coil assures fast, easy starts
  • Innovative combustion chamber design improves air and fuel flow, resulting in a cleaner burn, reduced emissions and more horsepower
  • Automatic low oil shutdown
  • Forged crankshaft has heat-treated ball bearings to minimize heat and friction
  • 3 5/8in., 5in. and 6 1/2in. flange mount bolt circle
  • For use with tillers, aerators, pressure washers, compaction plates and other utility applications
  • Motorsports rod/dipper design improves oil flow through the engine for maximum internal component protection
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

24750

Brand

Briggs & Stratton

Manufacturer's Warranty

36 months parts/36months labor

Ship Weight

57.1 LB

Engine Displacement

305 cc

Engine Type

Vanguard Commercial Power OHV

Shaft Diameter

1 in

Shaft Length

2.9 in

Start Type

Recoil

Shaft Keyway

0.25 in

PTO Height

4.17 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Fuel Tank

Yes

Fuel Tank Capacity

3.5 qt

Oil Capacity

0.875 qt

Low Oil Shutdown

Yes
AttributeSpecification

Low Oil Alert

Yes

CARB Approved

No

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Splash

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air

Bore

3.12 in

Stroke

2.44 in

Air Cleaner Type

Dual Element

Choke Control

Manual

Throttle Control

Manual

Fuel Filter

Yes

Muffler Included

Yes

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Is the crankshaft tapped? I am seeing some engines that are tapped 3/8 x 24 and some 7/16 x 20.

    1 answer

    1. The engine would have a 3/8-24 tapped end with a 1/4" keyway.

      Helpful?

  2. What is the horizontal distance from the center of the mounting bolt to the end of the shaft

    1 answer

    1. The height from the mounting base to the end of the shaft is 4.17" high. The distance from the center of the mounting hole to the crank seal is 2.28" and the distance from the crank seal to the end of the shaft is 2 49/64".

      Helpful?

  3. Is this engine made in Japan?

    I know some Vanguards are made in Japan. I want a Japanese engine. Thanks.

    1 answer

    1. This Briggs & Stratton engine is made in USA.

      Helpful?
