This engine does not have a PTO ball bearing.

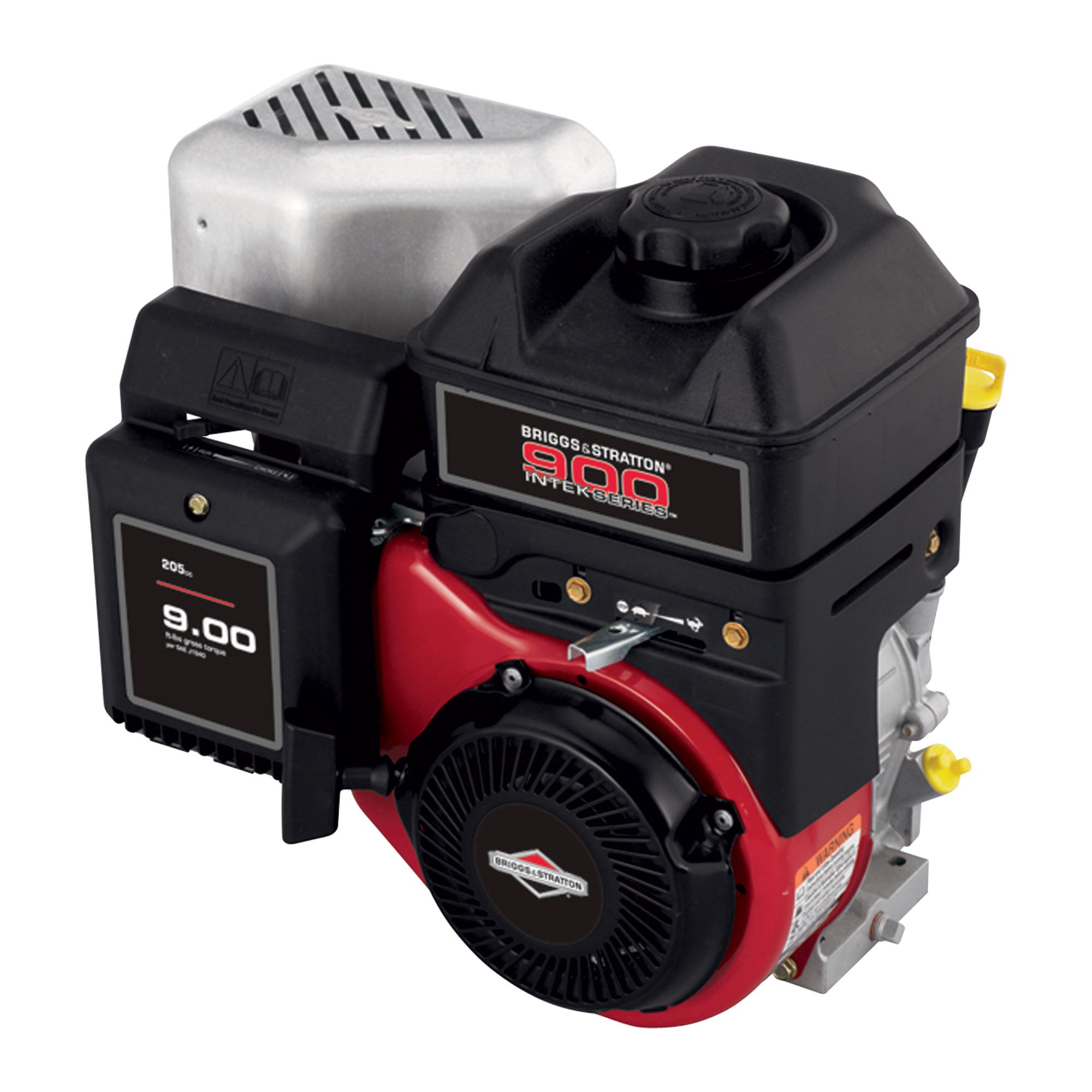

Briggs & Stratton 900 Series Horizontal OHV Engine — 205cc, 1in.dia. x 2 7/8in.L Shaft, Model# 12S402-0060-F8
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom

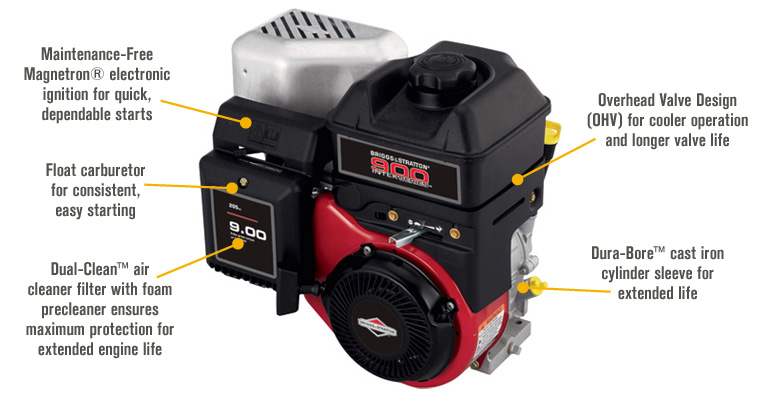

- 50-state compliant engine
- 9 ft.-lbs. Gross Torque
- OHV design for cooler operation, longer valve life
- Dura-Bore™ cast iron cylinder sleeve withstands wear and abuse while providing improved oil control
- Flow-Tek flywheel design
See full description
What's Included
- (1) Engine, Model# 12S402-0060-F8
Features + Benefits
- 50-state compliant engine
- 9 ft.-lbs. Gross Torque
- OHV design for cooler operation, longer valve life
- Dura-Bore™ cast iron cylinder sleeve withstands wear and abuse while providing improved oil control
- Flow-Tek flywheel design
- Permanent mold piston
- Self-lubricating heavy-duty bearing of steel-backed Teflon-coated bronze to withstand load and reduce wear
- Mechanical governor controls throttle to deliver more power for tough chores
- Maintenance-free Magnetron® electronic ignition for quick, dependable starts
- Float feed carburetor for consistent one-pull starts
- Dual-Clean™ premium air filter
- Recoil start with auto compression release
- Comfort-Tek pull handle
- Removable rewind
- Fuel shutoff valve makes it easy to shut off fuel flow for safe transportation
- 3-qt. fuel tank for long run times
- DuraLube™ gear-driven splash lubrication system continuously supplies oil to all internal parts
- Approx. mounting base dim. 6.38in. x 3.13in.
- Flange mount bolt circle 3 5/8in.
See All Horizontal Engines
See All Briggs & Stratton Horizontal Engines
Currently Viewing This Product
Shipping: Sold Out
Specifications
Specifications
Briggs & Stratton 900 Series Horizontal OHV Engine — 205cc, 1in.dia. x 2 7/8in.L Shaft, Model# 12S402-0060-F8

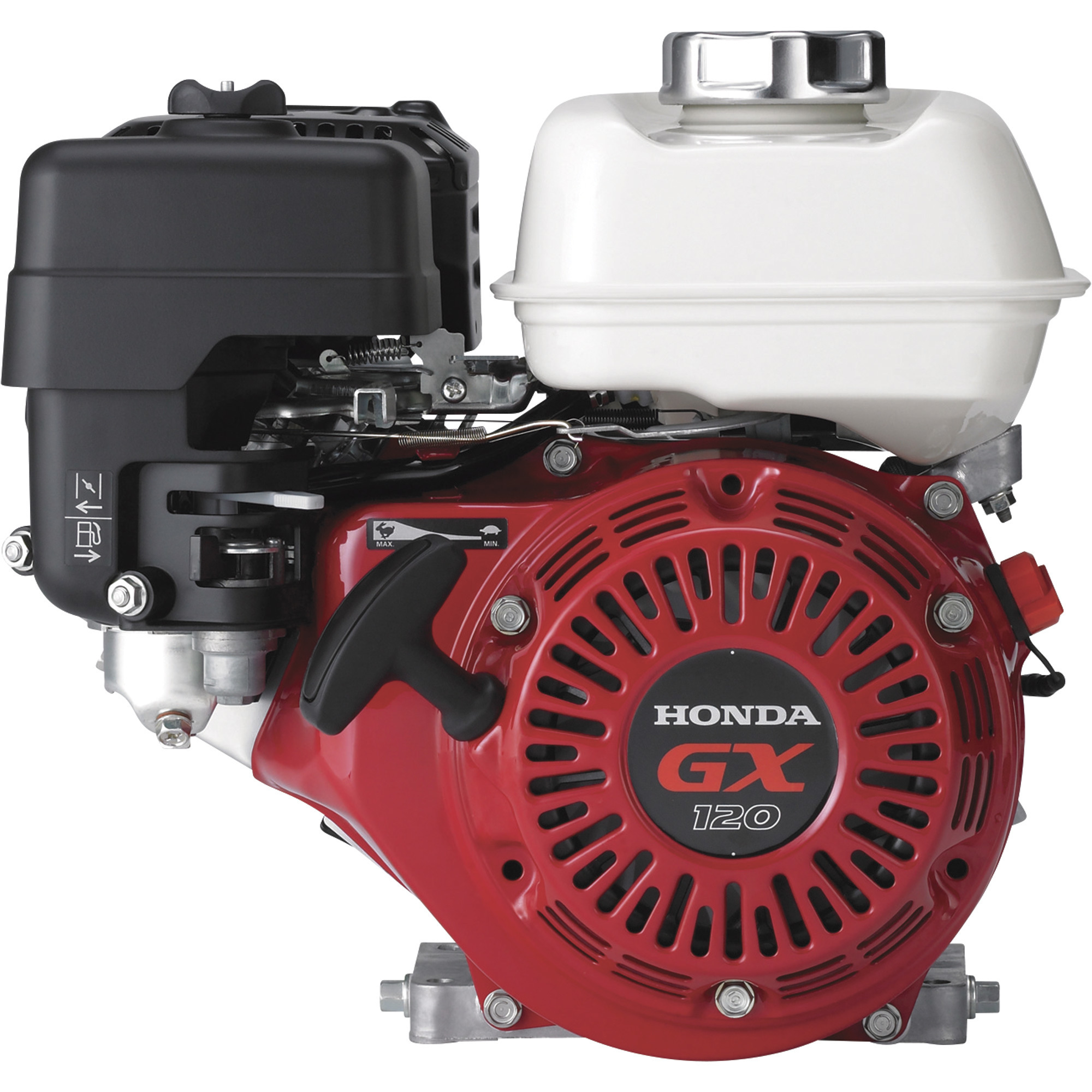

Honda 118cc GX Series OHV Commercial-Grade Engine, 3/4in. Shaft, Model# GX120T3XQX2

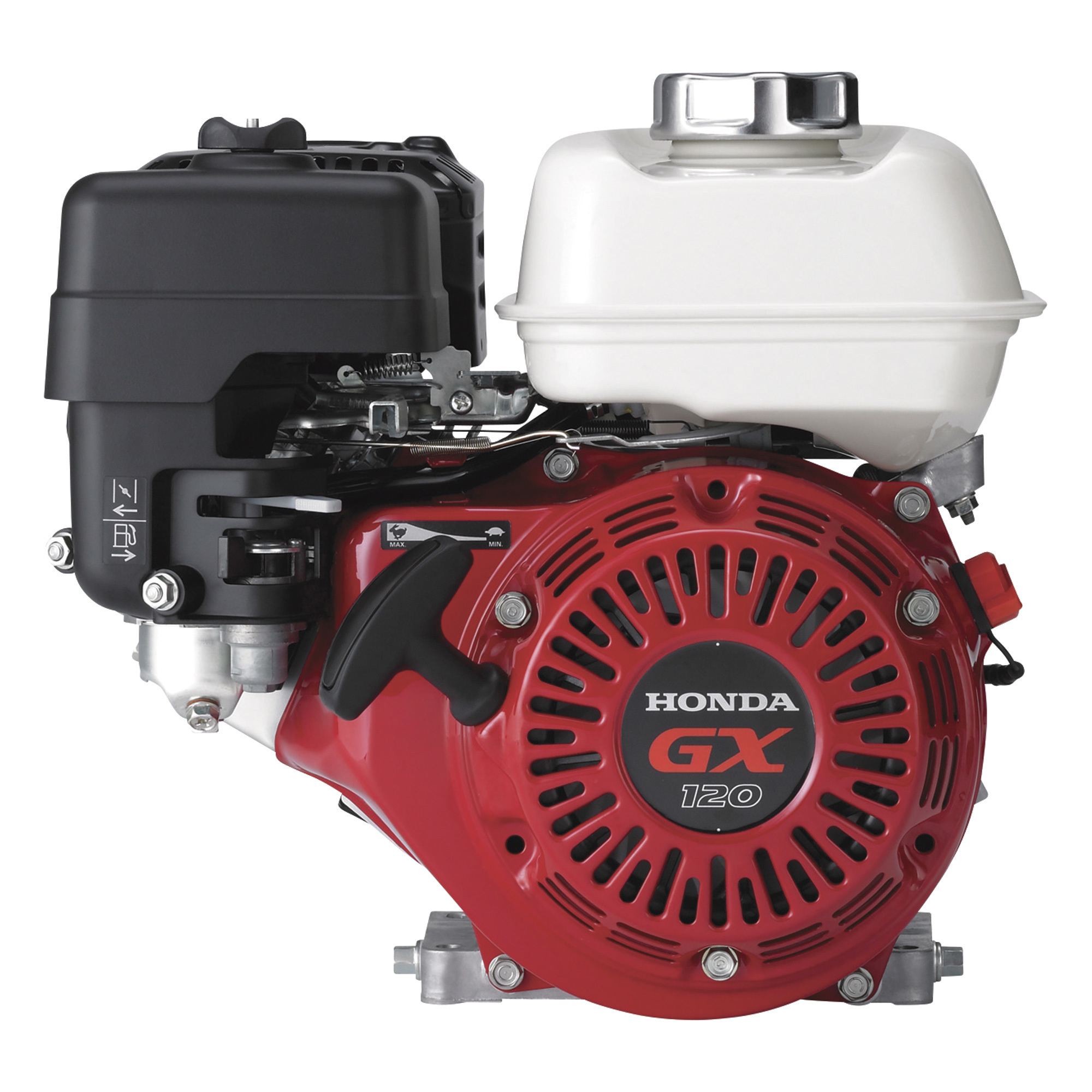

Honda Engines, HONDA 120CC OHV 6:1 ENGINE, Engine Displacement 118 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 3/4 in, Model# GX120T3XHX2

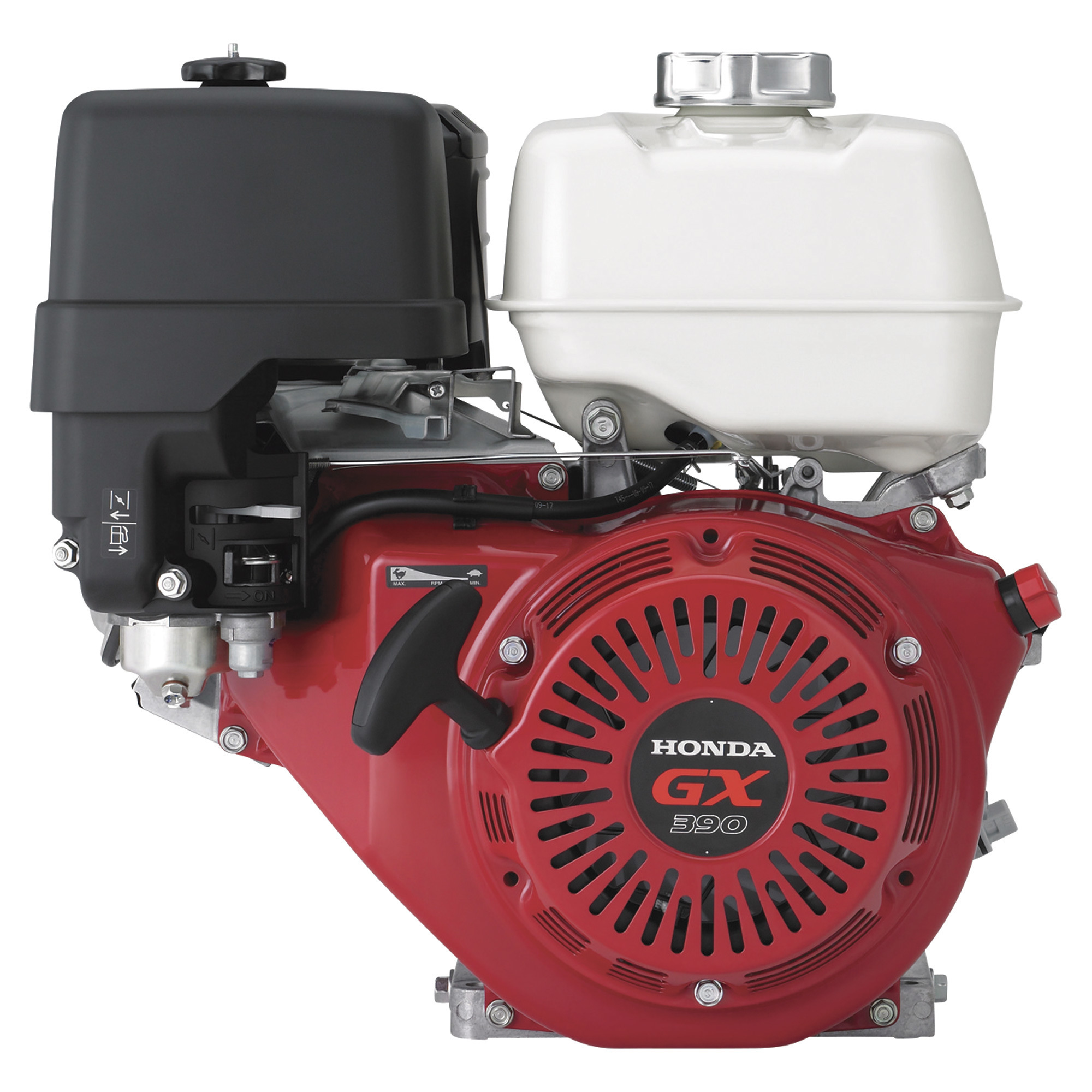

Honda Horizontal OHV Engine, 389cc, GX Series, 1in. x 3 31/64in. Shaft, Model# GX390UT1QAA2
Engine Displacement
Same
205 cc
118 cc
118 cc
389 cc
Engine Type
Same
900 Series OHV
GX Series OHV Commercial-duty
GX Series OHV Commercial-duty
GX Series OHV Commercial-duty
Shaft Diameter
Same
1
3/4 in
3/4 in
1 in
Start Type
Same
Recoil
Recoil
Recoil
Recoil
Shaft Keyway
Same
1/4
0.18 in
0.25 in
0.25 in
Crankshaft
Same
1 x 2 7/8
Q-type
H-type
Q-type
PTO Height
Same
4 3/16
4.17 in
4.17 in
5.25 in
Cylinders (qty.)
Same
1
1
1
1
Cylinder Bore
Same
Cast Iron
Cast Iron
Cast Iron
Cast Iron
Fuel Tank
Same
Yes
-
-
Yes
Low Oil Shutdown
Same
No
Yes
Yes
Yes
Low Oil Alert
Same
No
Yes
Yes
Yes
Shaft Rotation (From PTO Shaft Side)
Same
Counterclockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Mechanical
Centrifugal Mechanical
Centrifugal Mechanical
Centrifugal Mechanical
Ignition System
Same
Electronic
Electronic
Electronic
Electronic
Carburetor
Same
Float
Float
Float
Float, External Vent
Lubrication System
Same
Splash
Splash
Splash
Splash
Bearing Type
Same
Plain
-
-
-
Auto Compression Release
Same
Yes
Yes
Yes
Yes
Cooling System
Same
Air cooled
Air
Air
Air
Air Cleaner Type
Same
Pleated paper
Dual Element
Dual Element
Dual Element
Choke Control
Same
Manual
Manual
Manual
Manual
Throttle Control
Same
Manual, remote, adjustable (constant speed)
Remote
Remote
Remote
Fuel Filter
Same
No
-
-
Yes
Muffler Included
Same
Yes
Yes
Yes
Yes
Shaft Length
Same
-
2.43 in
2.09 in
3.48 in
Net Torque
Same
-
5.4 ft-lbs.
5.4 ft-lbs.
19.5 ft-lbs.
Net Power Output
Same
-
3.5 HP
3.5 HP
11.7 HP
Compression Ratio
Same
-
8.5:1
8.5:1
8.2:1
Fuel Tank Capacity
Same
-
2.1 qt
2.1 qt
6.4 qt
Oil Capacity
Same
-
0.59 qt
0.59 qt
1.16 qt
Bore
Same
-
2.4 in
2.4 in
3.5 in
Stroke
Same
-
1.7 in
1.7 in
2.5 in
