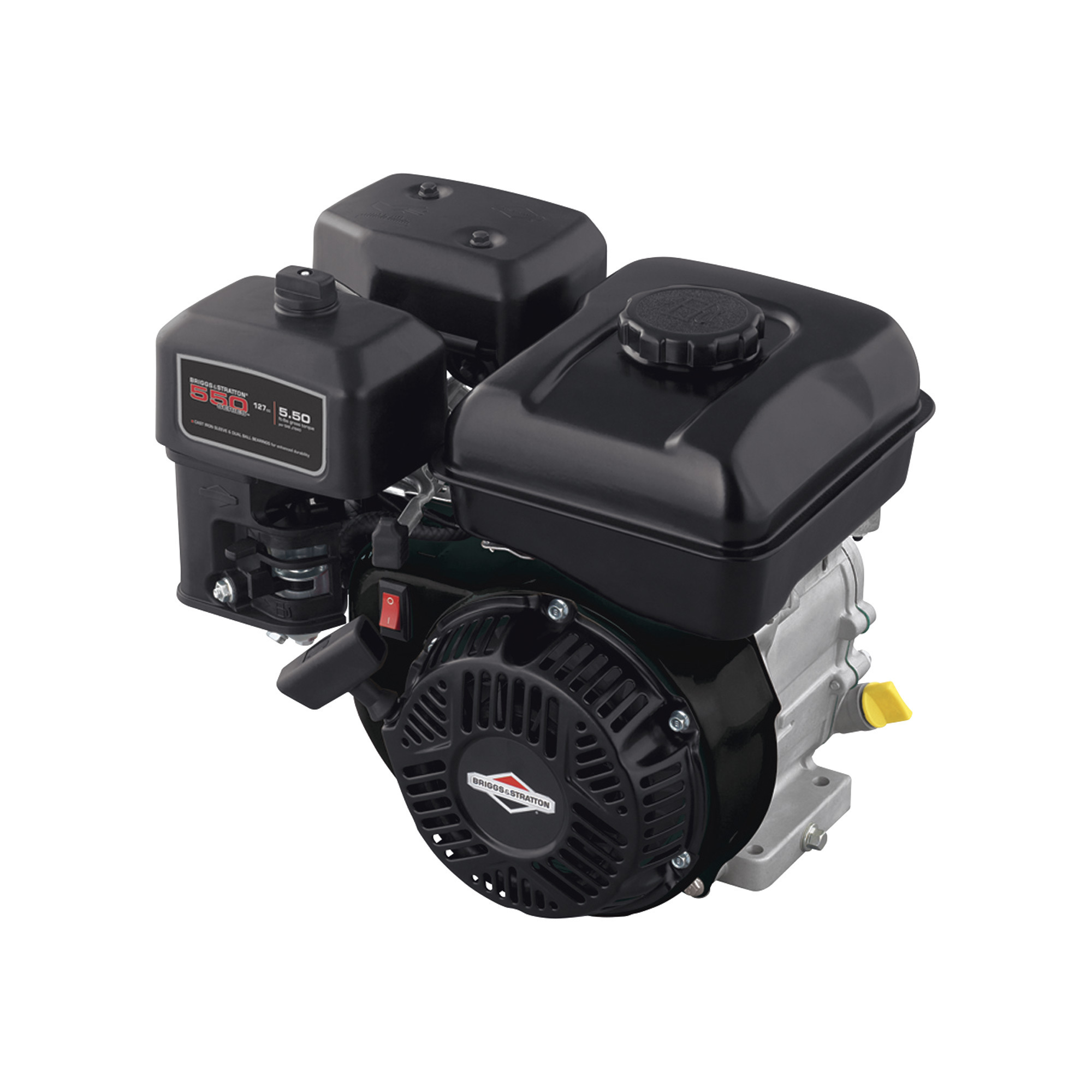

Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, Threaded 5/8in. dia. x 2 27/64in.L Shaft, Model# 83132-1036-F1

Item# 26596
"Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, Threaded 5/8in. dia. x 2 27/64in.L Shaft, Model# 83132-1036-F1"
Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, Threaded 5/8in. dia. x 2 27/64in.L Shaft, Model# 83132-1036-F1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, Threaded 5/8in. dia. x 2 27/64in.L Shaft, Model# 83132-1036-F1

Click or Tap image to Zoom

  • Model# 83132-1036-F1; 127cc engine with threaded 5/8in. dia. x 2 27/64in.L horizontal shaft
  • OHV design for cooler operation, longer valve life
  • Maintenance-free Magnetron® electronic ignition for quick, dependable starts
  • 6 3/8in.L x 3 1/8in.W mounting bolt pattern
  • Dura-Bore™ cast iron cylinder sleeve for extended life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Briggs & Stratton 550 Series Horizontal OHV Engine runs cooler and cleaner, delivering more power, smoother operation, longer engine life and improved fuel economy. An excellent, compact performer that you can depend on for mid-duty applications.

What's Included

    (1) Engine, Model# 83132-1036-F1

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Model# 83132-1036-F1; 127cc engine with threaded 5/8in. dia. x 2 27/64in.L horizontal shaft
  • OHV design for cooler operation, longer valve life
  • Maintenance-free Magnetron® electronic ignition for quick, dependable starts
  • 6 3/8in.L x 3 1/8in.W mounting bolt pattern
  • Dura-Bore™ cast iron cylinder sleeve for extended life
  • Ideal for use in pumps and other mid-duty applications
  • Float carburetor for consistent, easy starting
  • Maxi-Clean™ automotive-style paper air filter for superior protection and long engine life
  • Dual oil filter and drain
  • Dual ball bearings reduce wear for long life
  • DuraLube™ gear-driven splash lubrication continuously supplies oil to all internal parts
  • Super Lo-Tone Muffler reduces noise levels improves tonal quality
  • 50-state compliant engine

Key Specs

AttributeSpecification

item#

26596

Brand

Briggs & Stratton

Manufacturer's Warranty

2 year limited warranty

Ship Weight

35.0 LB

Engine Displacement

127 cc

Engine Type

550 Series

Shaft Diameter

5/8 in

Shaft Length

2.42 in

Start Type

Recoil

PTO Height

4.17 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Fuel Tank

Yes

Fuel Tank Capacity

2 qt

Oil Capacity

0.625 qt

Low Oil Shutdown

No
AttributeSpecification

Low Oil Alert

No

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Splash

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air

Bore

2.44 in

Stroke

1.65 in

Air Cleaner Type

Dual Element

Choke Control

Manual

Throttle Control

Manual

Fuel Filter

Yes

Muffler Included

Yes

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. what is the gear ratio ?

    Originally posted on "Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, 5/8in. x 2 27/64in. Shaft, Model# 83132-1040-F1"

    1. The RPM ratio between the auger and the gear box is 11 to 1.

      Helpful?

    2. The RPM ratio between the auger and the gear box is 11 to 1. This ratio means the impeller rotates 11 times for every 1 revolution of the auger.

      Helpful?

  2. Does this engine have a reverse power shaft speed?

    1 answer

    1. This engine would not have a reverse power shaft speed.

      Helpful?

  3. 2 OR 4 STRKE ENGINE?

    1 answer
    Originally posted on "Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, 5/8in. x 2 27/64in. Shaft, Model# 83132-1040-F1"

    1. This engine is 4 stroke.

      Helpful?

  4. Where is this engine built?

    1 answer
    Originally posted on "Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, 5/8in. x 2 27/64in. Shaft, Model# 83132-1040-F1"

    1. This engine is manufactured in China.

      Helpful?

  5. what is the hp rating?

    I have an older 5HP Briggs and stratten engine I am attempting to replace, Is your engine rated at least a 5hp?
    Thank you, Paul.

    1 answer

    1. This model is rated at about 4 hp.

      Helpful?

  6. What is length width & height and what does it weigh?

    1 answer
    Originally posted on "Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, 5/8in. x 2 27/64in. Shaft, Model# 83132-1040-F1"

    1. This motor is 13" long, 15" wide, and 13" high. This engine weighs 35 pounds.

      Helpful?

  7. What is the HP of this engine?

    ?

    1 answer
    Originally posted on "Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, 5/8in. x 2 27/64in. Shaft, Model# 83132-1040-F1"

    1. The horse power for this Briggs & Stratton 550 Series Engine is approximately 4.

      Helpful?
