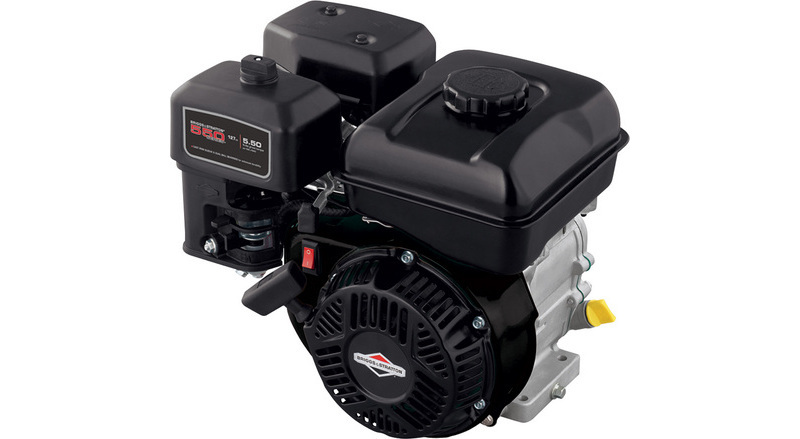

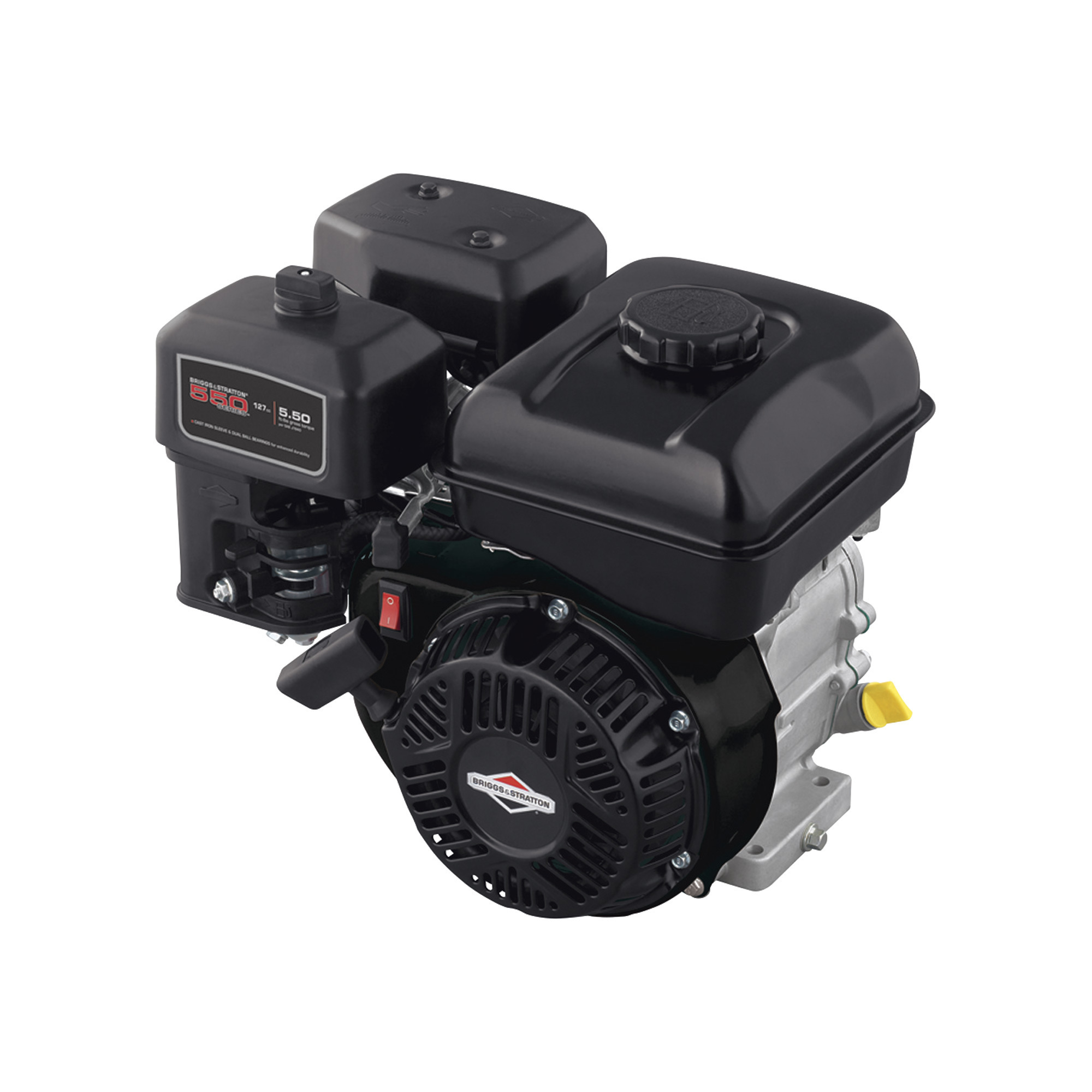

Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, 5/8in. x 2 27/64in. Shaft, Model# 83132-1040-F1
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Model# 83132-1040-F1, 127cc engine with 5/8" dia. x 2²????"L shaft
- 5.50 ft./lbs. gross torque
- OHV design for cooler operation, longer valve life
- Maintenance-free Magnetron® electronic ignition for quick, dependable starts
- Recoil start
See full description
What's Included
- (1) Engine, Model# 83132-1040-F1
Features + Benefits
- Model# 83132-1040-F1, 127cc engine with 5/8" dia. x 2²????"L shaft
- 5.50 ft./lbs. gross torque
- OHV design for cooler operation, longer valve life
- Maintenance-free Magnetron® electronic ignition for quick, dependable starts
- Recoil start
- 3 5/8in. flange mount bolt circle
- 7in.L x 4in.W base
- Dura-Bore™ cast iron cylinder sleeve for extended life
- Ideal for use in mid-duty applications
- Maxi-Clean™ automotive-style paper air filter for superior protection and long engine life
- Dual oil filter and drain
- Dual ball bearings reduce wear for long life
- DuraLube™ gear-driven splash lubrication system continuously supplies oil to all internal parts
- Super Lo-Tone muffler reduces noise level
- Float carburetor for consistent, easy starting
- 50-state compliant engine
-
what is the gear ratio ?
-
Helpful?
-
The RPM ratio between the auger and the gear box is 11 to 1. This ratio means the impeller rotates 11 times for every 1 revolution of the auger.
Helpful?
-
-
Does this engine have a reverse power shaft speed?
1 answer-
This engine would not have a reverse power shaft speed.
Helpful?
-
-
2 OR 4 STRKE ENGINE?
1 answer-
This engine is 4 stroke.
Helpful?
-
-
Where is this engine built?
1 answer-
This engine is manufactured in China.
Helpful?
-
-
what is the hp rating?
I have an older 5HP Briggs and stratten engine I am attempting to replace, Is your engine rated at least a 5hp?
Thank you, Paul.1 answer-
This model is rated at about 4 hp.
Helpful?
-
-
What is length width & height and what does it weigh?
1 answer-
This motor is 13" long, 15" wide, and 13" high. This engine weighs 35 pounds.
Helpful?
-
-
What is the HP of this engine?
?
1 answer-
The horse power for this Briggs & Stratton 550 Series Engine is approximately 4.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Briggs & Stratton Horizontal Engines
Currently Viewing This Product
Item # 26597
Shipping: Sold Out
Specifications
Specifications
Briggs & Stratton 550 Series Horizontal OHV Engine, 127cc, 5/8in. x 2 27/64in. Shaft, Model# 83132-1040-F1
Honda Engines, V-TWIN HORIZONTAL 688CC RQAF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQAF
Honda Engines, V-TWIN HORIZONTAL 630CC RQAF1 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQAF1
Honda Engines, V-TWIN HORIZONTAL 630CC RQXA, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQXA
Engine Displacement
Same
127 cc
688 cc
688 cc
688 cc
Engine Type
Same
550 Series
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
Shaft Diameter
Same
5/8 in
1 in
1 in
1 in
Shaft Length
Same
2.42 in
2.9 in
2.9 in
2.9 in
Start Type
Same
Recoil
Electric
Electric
Electric
Shaft Keyway
Same
0.18 in
0.25 in
0.25 in
0.25 in
PTO Height
Same
4.17 in
5.25 in
5.25 in
5.25 in
Cylinders (qty.)
Same
1
2
2
2
Cylinder Bore
Same
Cast Iron
Integrated
Integrated
Integrated
Fuel Tank
Same
Yes
No
No
No
Fuel Tank Capacity
Same
2 qt
-
-
-
Oil Capacity
Same
0.625 qt
2 qt
2 qt
2 qt
Low Oil Shutdown
Same
No
-
-
-
Low Oil Alert
Same
No
Yes
No
Yes
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Mechanical
Mechanical
Mechanical
Mechanical
Ignition System
Same
Electronic
Electonic, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Carburetor
Same
Float
2-barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
Lubrication System
Same
Splash
Full Pressure
Full Pressure
Full Pressure
Bearing Type
Same
Ball
-
-
-
Auto Compression Release
Same
Yes
-
-
-
Cooling System
Same
Air
Air
Air
Air
Bore
Same
2.44 in
3.1 in
3.1 in
3.1 in
Stroke
Same
1.65 in
2.8 in
2.8 in
2.8 in
Air Cleaner Type
Same
Dual Element
Dual Element
Dual Element
Dual Element
Choke Control
Same
Manual
Remote
Manual
Remote
Throttle Control
Same
Manual
Remote
Manual
Remote
Fuel Filter
Same
Yes
-
-
-
Muffler Included
Same
Yes
No
No
No
Net Torque
Same
-
35.6 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
Crankshaft
Same
-
Q-type
Q-type
Q-type
Net Power Output
Same
-
20.8 HP
20.8 HP
20.8 HP
Compression Ratio
Same
-
9.3:1
9.3:1
9.3:1
Charging System Amps
Same
-
20
17
3
