Briggs & Stratton 1450 Series Horizontal OHV Engine, 306cc, 3/4in. x 2.51in. Shaft, Model# 19N132-0051-F1

Item# 44615
Briggs & Stratton 1450 Series Horizontal OHV Engine, 306cc, 3/4in. x 2.51in. Shaft, Model# 19N132-0051-F1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

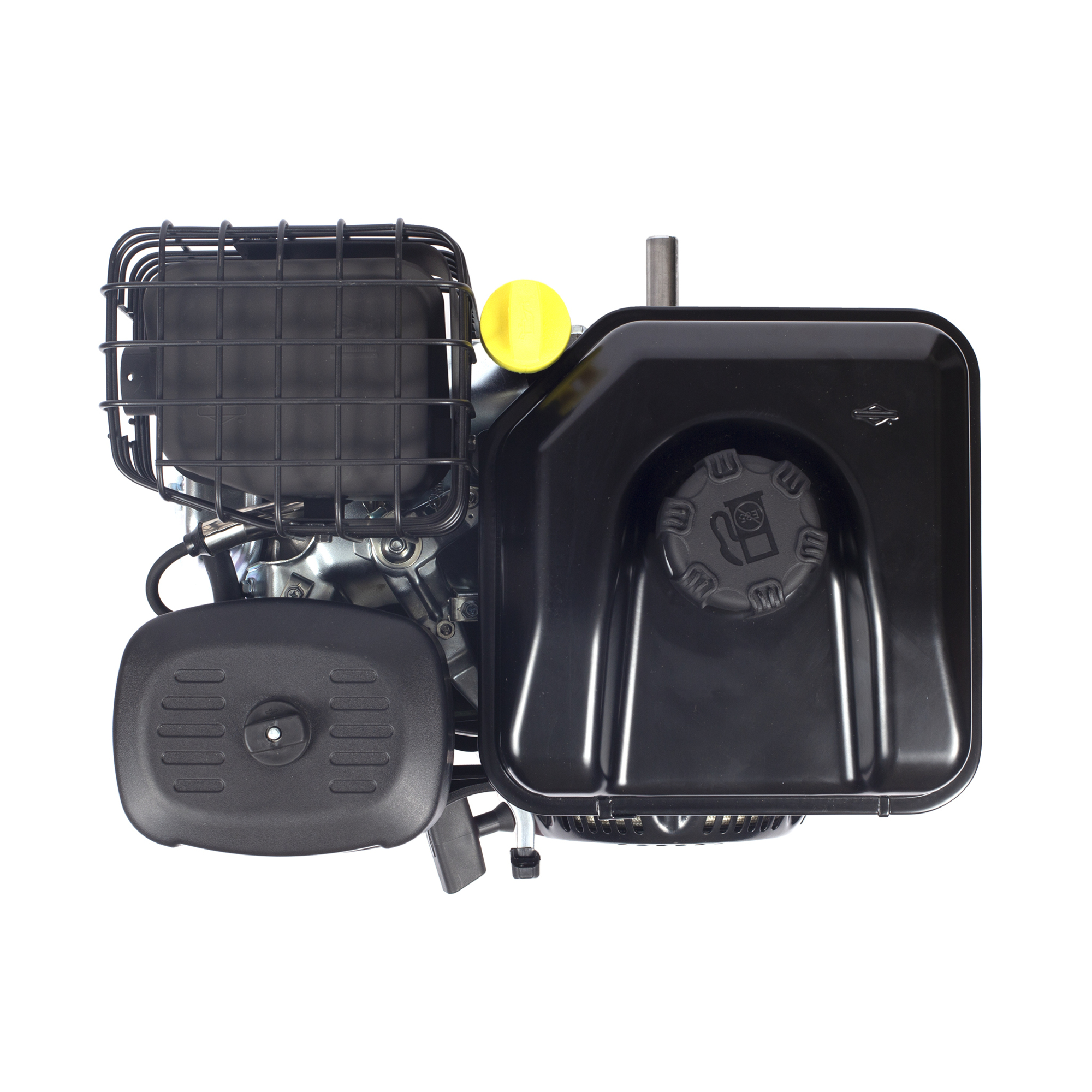

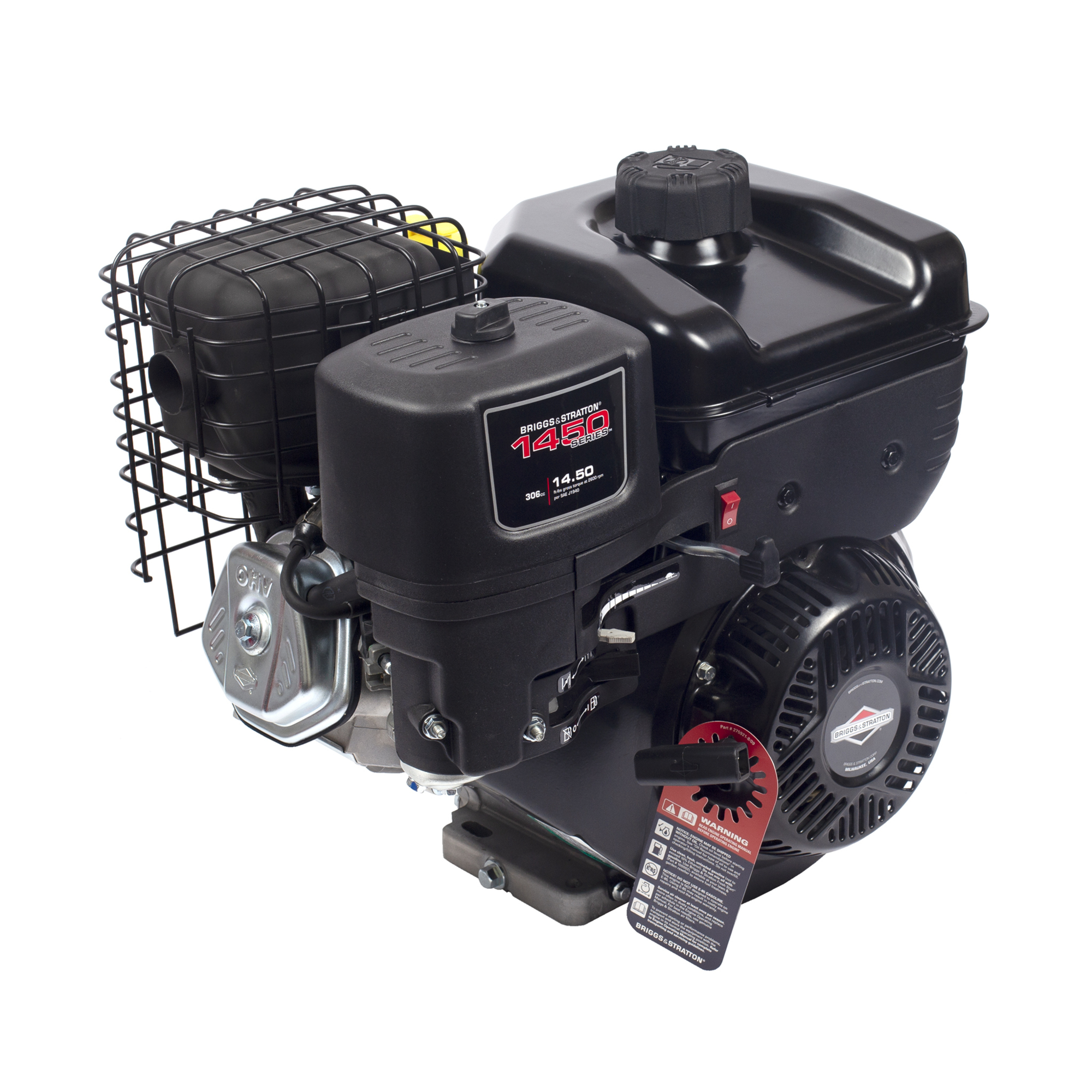

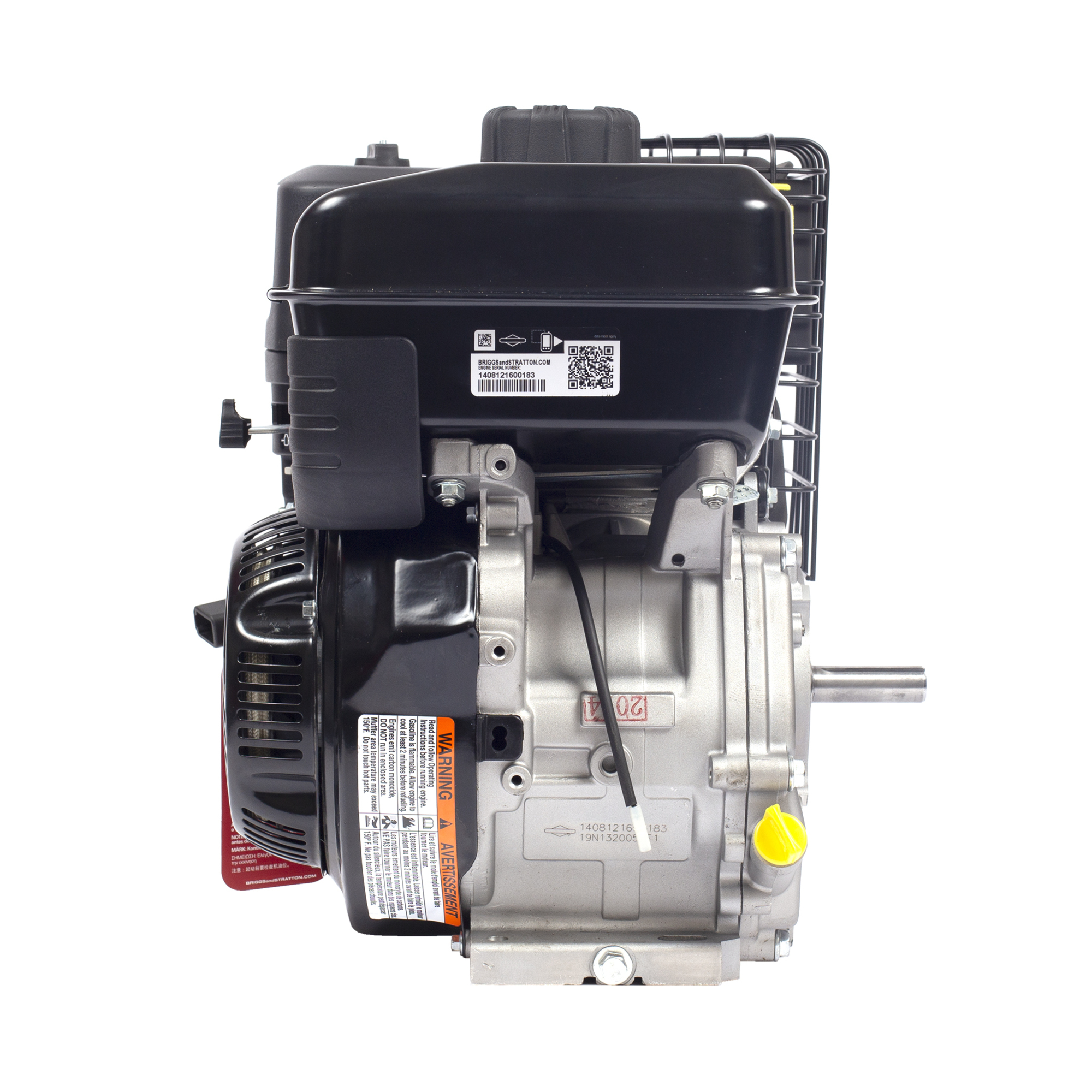

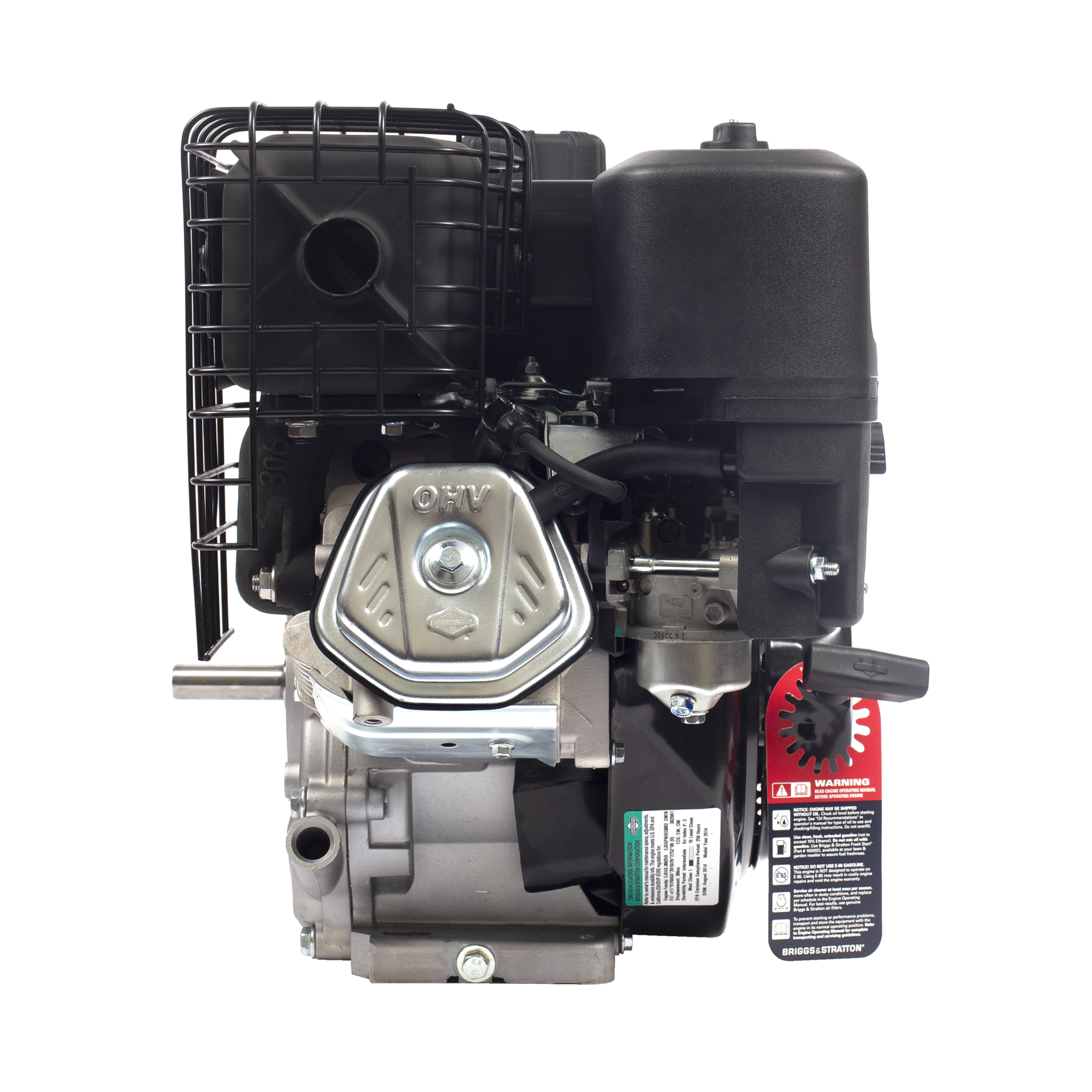

Briggs & Stratton 1450 Series Horizontal OHV Engine, 306cc, 3/4in. x 2.51in. Shaft, Model# 19N132-0051-F1

Click or Tap image to Zoom

$838.76

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 14.5 ft.-lbs. gross torque
  • OHV design for cooler operation, longer valve life
  • Dura-Bore™ cast iron cylinder sleeve withstands wear and abuse while providing improved oil control
  • PTO ball bearing
  • Mechanical governor controls throttle to deliver more power for tough chores

See full description

Complete Your Solution

  • Briggs & Stratton 1450 Series Horizontal OHV Engine, 306cc, 3/4in. x 2.51in. Shaft, Model# 19N132-0051-F1
  • Honda Power Equipment 10W-30 Motor Oil, 1-Qt. Bottle
Price for all two:

$851.75

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Briggs Stratton 1450 SeriesHorizontal OHV engine has the power you need to get the job done. This robust, versatile engine with a standard 3/4in. diameter crankshaft is designed and specifically engineered for a wide range of applications including tillers, log splitters, compressors, pressure washers, blowers and more. The compact overhead valve design runs cooler and cleaner, delivering more power, longer engine life and improved fuel economy. With a crankshaft supported by ball bearings, a dual element air cleaner, and a lo-tone muffler, this engine is a workhorse. It has fast fuel delivery for one-pull starts and smooth operation.

What's Included

    (1) Engine

Downloads

Product Manual

Features + Benefits

  • 14.5 ft.-lbs. gross torque
  • OHV design for cooler operation, longer valve life
  • Dura-Bore™ cast iron cylinder sleeve withstands wear and abuse while providing improved oil control
  • PTO ball bearing
  • Mechanical governor controls throttle to deliver more power for tough chores
  • Maintenance-free Magnetron® electronic ignition for quick, dependable starts
  • Float feed carburetor for consistent one-pull starts
  • Dual-Clean™ premium air filter
  • Recoil start with auto compression release
  • Metal 3.2-qt. fuel tank for long run times and added durability
  • Lo-Tone muffler reduces noise levels and improves tonal quality
  • DuraLube™ gear-driven splash lubrication system continuously supplies oil to all internal parts
  • Approx. mounting base dim. 8in x 4in.
  • Flange mount bolt circles: 3 5/8in., 5in., 6 1/2in.
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

44615

Brand

Briggs & Stratton

Manufacturer's Warranty

2 year limited warranty

Ship Weight

68.0 LB

Engine Displacement

306 cc

Engine Type

1450 Series OHV

Shaft Diameter

3/4 in

Shaft Length

2.5 in

Start Type

Recoil

Shaft Keyway

0.18 in

PTO Height

5.26 in

Cylinders (qty.)

1

Cylinder Bore

Cast Iron

Fuel Tank

Yes

Fuel Tank Capacity

3.2 qt

Oil Capacity

1.16 qt

Low Oil Shutdown

No
AttributeSpecification

Low Oil Alert

No

CARB Approved

No

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Splash

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air

Bore

3.22 in

Stroke

2.28 in

Air Cleaner Type

Dual Element

Choke Control

Manual

Throttle Control

Manual

Fuel Filter

Yes

Muffler Included

Yes

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Can electric start be added to this engine?

    1 answer

    1. The engine is not designed for an electric start.

      Helpful?

  2. where is it made?

    1 answer

    1. This engine is made in China.

      Helpful?

  3. what is the spacing of the four threaded holes around the 3/4in. shaft

    1 answer

    1. The engine will come with three bolt circle dimensions that will be 3 5/8", 5" and 6 1/2".

      Helpful?

  4. electric start

    i want to install this on my utv , will the electric start option charge the carts battery?

    1 answer

    1. This engine has a recoil start. An electric start engine would not charge the carts battery.

      Helpful?

  5. Just purchased this b&s 1450 & it has a black wire with a push connector in the front, what is this for

    1 answer

    1. This would be the remote kill switch for the Briggs & Stratton engine.

      Helpful?

  6. What is the horse power of this engine

    1 answer

    1. This engine would be rated at an approximate 10.5 horsepower.

      Helpful?
