This engine is manufactured in China.

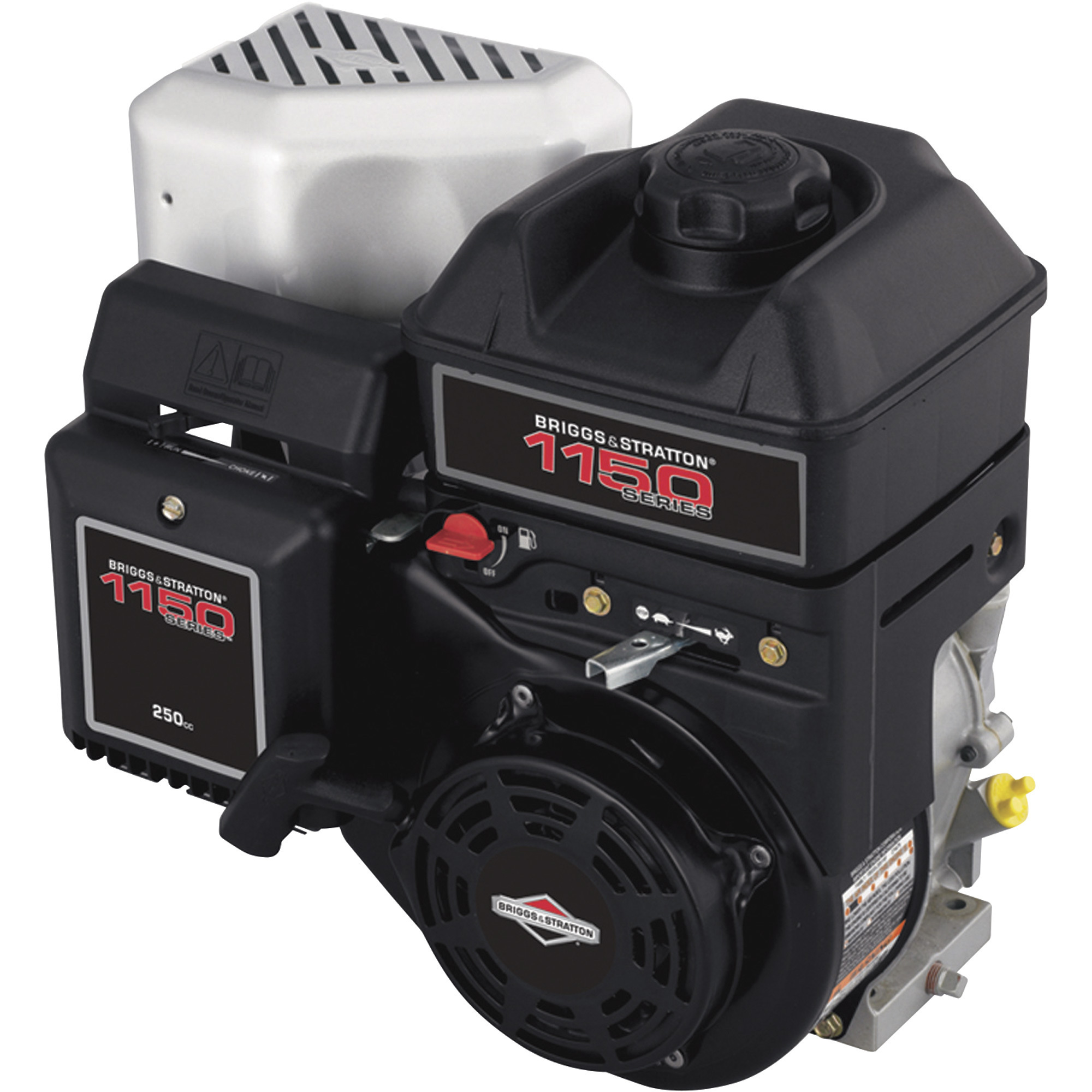

Briggs & Stratton 1150 Series Horizontal OHV Engine, 250cc, 3/4in. x 2 5/16in. Shaft, Model# 15T212-0223-F8
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- 11.5 ft.-lbs. gross torque
- OHV design for cooler operation, longer valve life
- Dual-Clean™ air cleaner pleated paper filter with foam pre-cleaner ensures maximum protection for extended engine life
- Maintenance-free Magnetron® electronic ignition for quick, dependable starts
- Kool Bore™ aluminum alloy bore for cooler operation
See full description
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Horizontal Engines
See All Briggs & Stratton Horizontal Engines
Currently Viewing This Product
Item # 24230
Shipping: Sold Out
Specifications
Specifications
Briggs & Stratton 1150 Series Horizontal OHV Engine, 250cc, 3/4in. x 2 5/16in. Shaft, Model# 15T212-0223-F8
Honda Engines, V-TWIN HORIZONTAL 688CC RQAF, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQAF
Honda Engines, V-TWIN HORIZONTAL 630CC RQAF1 Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQAF1
Honda Engines, V-TWIN HORIZONTAL 630CC RQXA, Engine Displacement 688 cc, Engine Type GX Series OHV V-twin Commercial-duty, Shaft Diameter 1 in, Model# GX630RHXQXA
Engine Displacement
Same
250 cc
688 cc
688 cc
688 cc
Engine Type
Same
1150 Series OHV
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
GX Series OHV V-twin Commercial-duty
Shaft Diameter
Same
3/4 in
1 in
1 in
1 in
Shaft Length
Same
2.31 in
2.9 in
2.9 in
2.9 in
Start Type
Same
Recoil
Electric
Electric
Electric
Shaft Keyway
Same
0.18 in
0.25 in
0.25 in
0.25 in
PTO Height
Same
4.18 in
5.25 in
5.25 in
5.25 in
Cylinders (qty.)
Same
1
2
2
2
Cylinder Bore
Same
Aluminum
Integrated
Integrated
Integrated
Fuel Tank
Same
Yes
No
No
No
Fuel Tank Capacity
Same
3 qt
-
-
-
Oil Capacity
Same
0.625 qt
2 qt
2 qt
2 qt
Low Oil Shutdown
Same
No
-
-
-
Low Oil Alert
Same
No
Yes
No
Yes
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Mechanical
Mechanical
Mechanical
Mechanical
Ignition System
Same
Electronic
Electonic, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Electonic, Digital CDI W/variable Ignition Timing
Carburetor
Same
Float
2-barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
2-barrel, Fuel Cut Solenoid, Inner Vent
Lubrication System
Same
Splash
Full Pressure
Full Pressure
Full Pressure
Bearing Type
Same
Plain
-
-
-
Auto Compression Release
Same
Yes
-
-
-
Cooling System
Same
Air
Air
Air
Air
Bore
Same
2.97 in
3.1 in
3.1 in
3.1 in
Stroke
Same
2.2 in
2.8 in
2.8 in
2.8 in
Air Cleaner Type
Same
Dual Element
Dual Element
Dual Element
Dual Element
Choke Control
Same
Manual
Remote
Manual
Remote
Throttle Control
Same
Manual
Remote
Manual
Remote
Fuel Filter
Same
No
-
-
-
Muffler Included
Same
Yes
No
No
No
Net Torque
Same
-
35.6 ft-lbs.
35.6 ft-lbs.
35.6 ft-lbs.
Crankshaft
Same
-
Q-type
Q-type
Q-type
Net Power Output
Same
-
20.8 HP
20.8 HP
20.8 HP
Compression Ratio
Same
-
9.3:1
9.3:1
9.3:1
Charging System Amps
Same
-
20
17
3
