Brand Hydraulics Electronically Adjustable Flow Control Valve - 0-20 GPM, 3,000 PSI, Model# PEFC12-20-12

Item# 20166
"Brand Hydraulics Electronically Adjustable Flow Control Valve - 0-20 GPM, 3,000 PSI, Model# PEFC12-20-12"
Top Seller
Brand Hydraulics Electronically Adjustable Flow Control Valve - 0-20 GPM, 3,000 PSI, Model# PEFC12-20-12

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Brand Hydraulics Electronically Adjustable Flow Control Valve - 0-20 GPM, 3,000 PSI, Model# PEFC12-20-12

Click or Tap image to Zoom

$449.99

  • Shipping:

    Backordered: Order now to reserve yours -
    Estimated to ship 07/13/26

  • Store Pickup:

  • Manual override
  • The balance of oil above maximum is directed out of the excess port
  • 12V DC coil

See full description

Complete Your Solution

  • Brand Hydraulics Electronically Adjustable Flow Control Valve - 0-20 GPM, 3,000 PSI, Model# PEFC12-20-12
  • Brand Hydraulics 12 VDC Electronic Control Box, Model# EC-12-01
Price for all two:

$809.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Proportional pressure-compensated valve electronically adjusts flow to a hydraulic actuator. Nominally rated at 3,000 PSI.

What's Included

    (1) Electronic flow control valve

Features + Benefits

  • Manual override
  • The balance of oil above maximum is directed out of the excess port
  • 12V DC coil

Key Specs

AttributeSpecification

item#

20166

Brand

Brand Hydraulics

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

9.2 LB
AttributeSpecification

GPM

20

Working Port

#12 SAE in

Max. PSI

3,000

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Is this valve free flow in opposite direction ?

    1 answer

    1. This valve does not have free reverse flow. This valve can be easily changed to where it can, by ordering the C9A-C compensator spool with the manufacturer.

      Helpful?

  2. Can this valve be set to adjust based on PSI vs flow rate?

    1 answer

    1. The unit would need a controller to set the flow. Northern Tool does sell item #20169 or model EC-12-02. The controller will allow the valve to operate at an adjustable range of 0-20 GPM.

      Helpful?

  3. What is the input signal to the control valve? And does it have a full range of adjustment from 0-20 GPM?

    1 answer

    1. This control valve requires a control box, item 20168 or item 20169, to operate. Both controllers have a modulated output and the current will vary linearly with the position of the potentiometer knob, but the maximum current output of these controllers is 1 amp. This means the input of this valve is a maximum of 1 amp with a frequency of 100 Hz. These controllers will allow the valve to operate at a full range of 0-20 GPM.

      Helpful?

  4. Is this Control valve a Pulse Width Modulated (PWM) controlled valve?

    1 answer

    1. Yes, this valve is rated at 90-115 Hertz.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Hydraulic Accessories

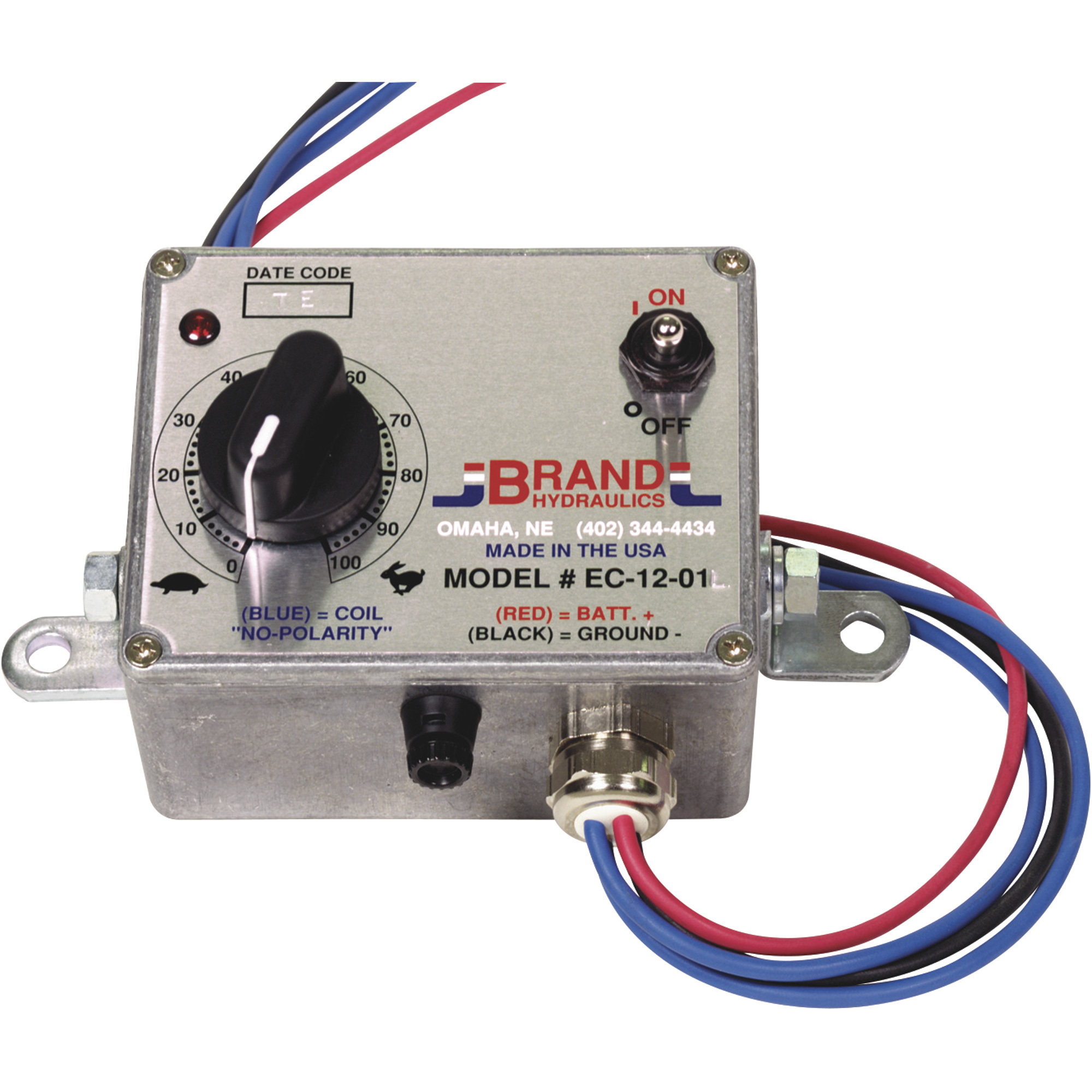

Brand Hydraulics 12 VDC Electronic Control Box, Model# EC-12-01
5.0 out of 5 stars. 1 review

Brand Hydraulics 12 VDC Electronic Control Box, Model# EC-12-01

Item # 20168

$359.99

Warranty

Manufacturer's Warranty

24 months parts/24months labor
