Brand Hydraulics 12 VDC Electronic Control Box, Model# EC-12-01

Item# 20168
1 Pieces

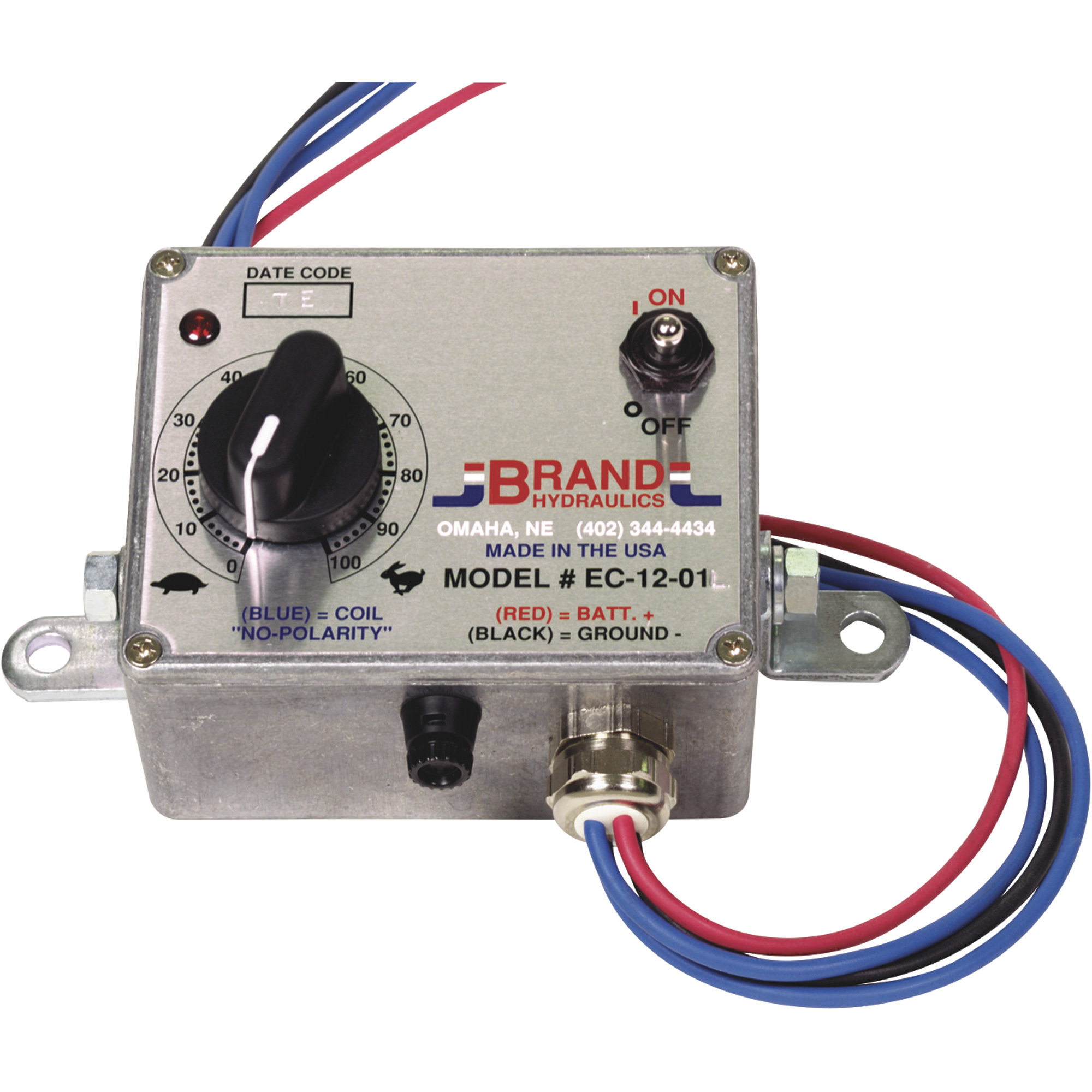

Brand Hydraulics 12 VDC Electronic Control Box, Model# EC-12-01

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Brand Hydraulics 12 VDC Electronic Control Box, Model# EC-12-01

Click or Tap image to Zoom

$359.99

  • Shipping:

  • Store Pickup:

    Not available - online only
  • IP65 rated controller
  • Ideal for outdoor applications
  • PWM output signal reduces effects of hysteresis
  • Requires 12.7-18V power supply

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Proportionally controls electronic flow control valve. Main control knob adjusts current going through the valve coil. Good for outdoor use. U.S.A.

What's Included

    (1) Electronic control box

Features + Benefits

  • IP65 rated controller
  • Ideal for outdoor applications
  • PWM output signal reduces effects of hysteresis
  • Requires 12.7-18V power supply

Key Specs

AttributeSpecification

item#

20168

Brand

Brand Hydraulics

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

1.69 LB
AttributeSpecification

Pieces (qty.)

1

Accessory Type

Electronic Controller

Compatible With

Electronic Flow Valves

Volts

12

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Regarding the power supply... 12 volts at what amps?

    1 answer

    1. The model EC-12-01 has a maximum input current of 1.5 amps with a limited fuse of 1.5 amps. The normal operation at 12 volt should be approximately 0.2-1.2 amps. Maximum output current is 1 amp.

      Helpful?

  2. Is this controll RFI protected?

    1 answer

    1. The control box would not be RFL protected. It is an analog circuit, there is no data requiring RFL protection.

      Helpful?

  3. What kind of input wire will it accept?

    There are 3 wires that hook into the receiver of the laser level that I use with my skidsteer. I want to connect the laser level's receiver to this controller. My receiver has an isobus wire that will need to connect to the controller. Does this controller accept an isobus wire?

    1 answer

    1. Input wire is standard 12vdc 16 awg. This unit will not accept an isobus wire.

      Helpful?

  4. What is the length of the wiring for item 20168-2651?

    1 answer

    1. The Brand Hydraulics Control Box comes with 18 inches of lead wire.

      Helpful?

Warranty

Manufacturer's Warranty

24 months parts/24months labor

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Replacement Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
