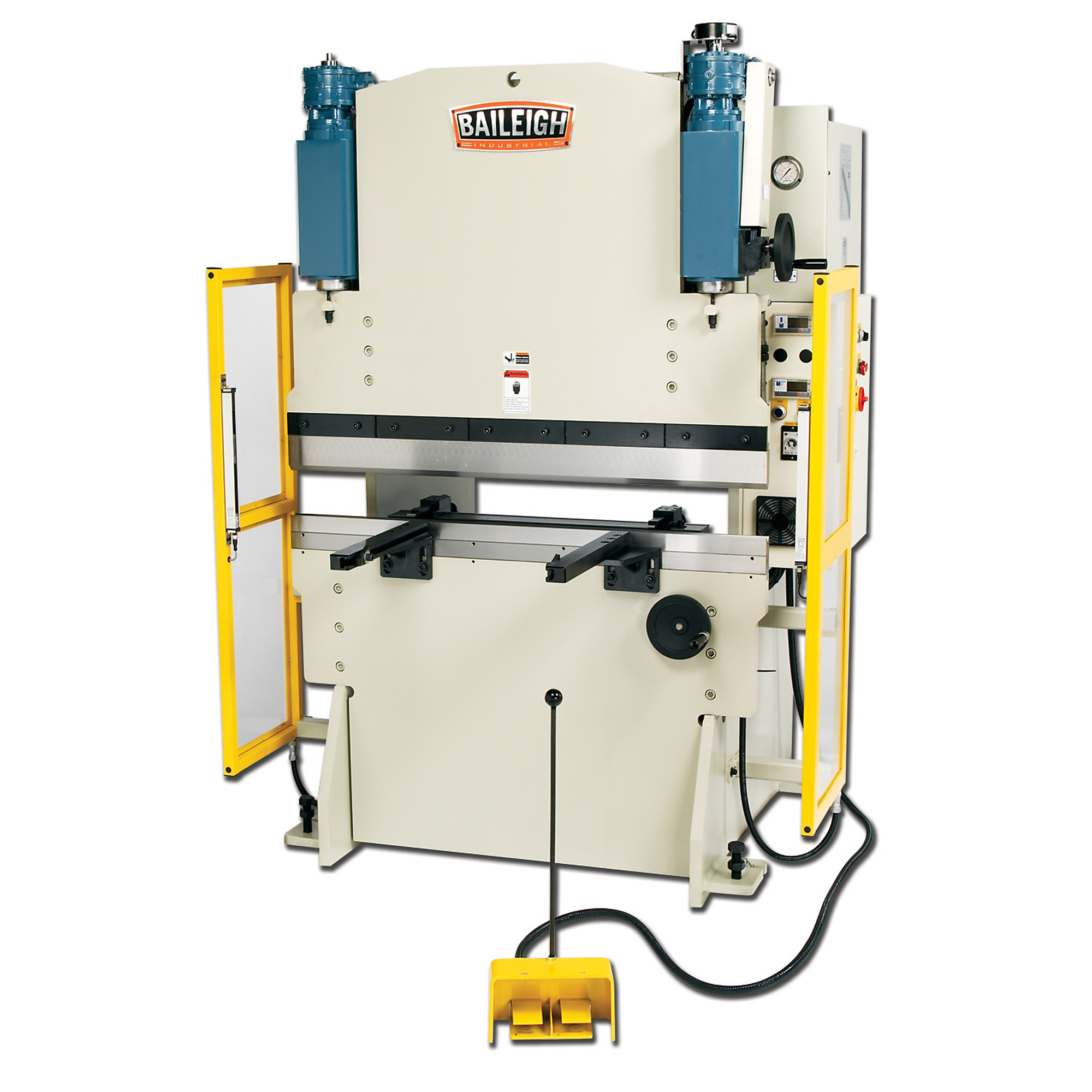

Baileigh Hydraulic Press Brake — 33 Ton, Encoder-Controlled, DRO, Model# BP-3350NC

Item# 6664916
Baileigh Hydraulic Press Brake — 33 Ton, Encoder-Controlled, DRO, Model# BP-3350NC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh Hydraulic Press Brake — 33 Ton, Encoder-Controlled, DRO, Model# BP-3350NC

Click or Tap image to Zoom

$43,879.02

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Produces up to 33 tons of pressure
  • Bends sheet metal up to 5” wide
  • Maximum capacity of .98” thick sheet metal across the machine’s full width
  • Requires 22-volt 3-phase power
  • Recommended for: Small industrial shops, maintenance and R&D shops, and potentially larger industrial shops, if they need to make a specific part that fits this press brake’s width.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Simple to use, this hydraulic press brake shows the encoder-controlled bend depth and back gauge positions on separate DROs. A heavy steel frame ensures reliable production. Powerful, Easy-to-Learn Hydraulic System *Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production. *2 encoder-controlled hydraulic cylinders move the top beam. *Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time. *It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel). *You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape. *2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam. *Foot pedal brings the stroke up and down, leaving your hands free to position the material. *Motorized back gauge rides on a solid ball screw trolley mechanism. *Back gauge encoder shows its position on its own DRO. *Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine. *You can train your staff to use this press brake in 5 minutes. Rigid Structure and Low Maintenance *Heavy electro welded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years. *Robust 2,64-pound construction supports the hydraulic pressure, so the machine won’t buckle at full capacity. *Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke. *Includes a set of hardened single-Vee American tooling. *Accepts standard press brake tooling, giving you a wide variety of options. *Comes with front material rests (or support arms), which some competing machines do not include. *6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam. *4 grease zerks let you add oil every few months. *Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months. Questions? Not sure which press brake is right for you? Call us at 1-92-684-499 and talk to a Baileigh expert.

What's Included

    (1) BP-3350NC

Features + Benefits

  • Produces up to 33 tons of pressure
  • Bends sheet metal up to 5” wide
  • Maximum capacity of .98” thick sheet metal across the machine’s full width
  • Requires 22-volt 3-phase power
  • Recommended for: Small industrial shops, maintenance and R&D shops, and potentially larger industrial shops, if they need to make a specific part that fits this press brake’s width.
  • Finger gap adjustment on the right and left of the bend brake allows for different gauges of material
  • 1

Key Specs

AttributeSpecification

item#

6664916

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

2640.0 LB

Product Weight

2640.0000 lb

Dimensions L x W x H (in.)

75.0 x 36.0 x 94.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
