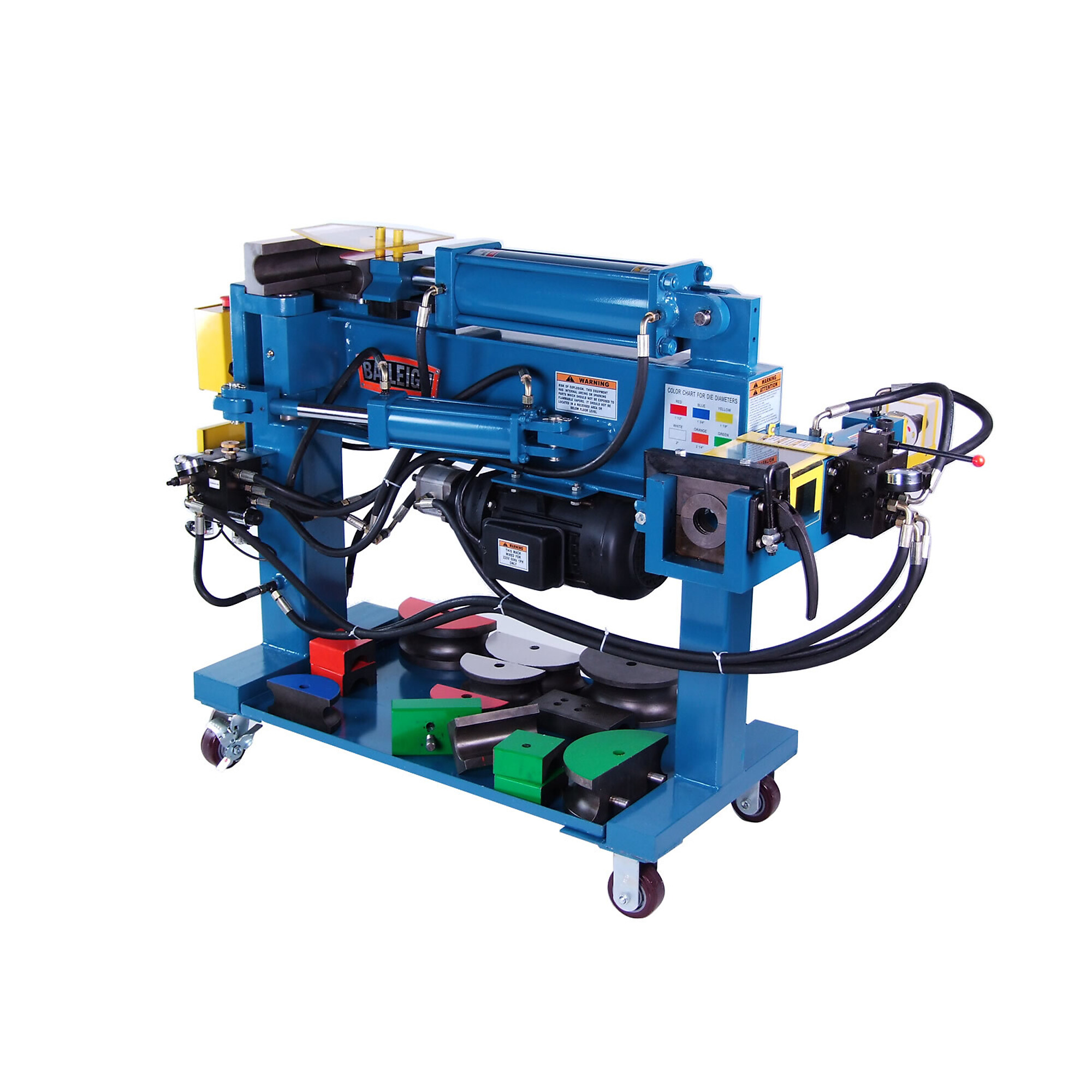

Baileigh, Exhaust Bender, Max. Material Gauge 12 Model# EB-300

Item# 4685684
Baileigh, Exhaust Bender, Max. Material Gauge 12 Model# EB-300

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Exhaust Bender, Max. Material Gauge 12 Model# EB-300

Click or Tap image to Zoom

$15,219.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • For bending, the EB-300 exhaust bender comes with standard radius tooling from 1-1/2" up to 3" OD (for 2-1/4 to 3” OD tubing 12 gauge mild steel wall thickness is required).
  • The EB-300 exhaust pipe bender is considered a compression bender as it uses one large hydraulic ram to push the inside radius die into the compression assisted outside counter dies.
  • The outside dies have two hydraulic cylinders that applies pressure at the point of bend on the inside radius die.
  • The end result is that the machine can bend light gauge tubing without folding the material in half.

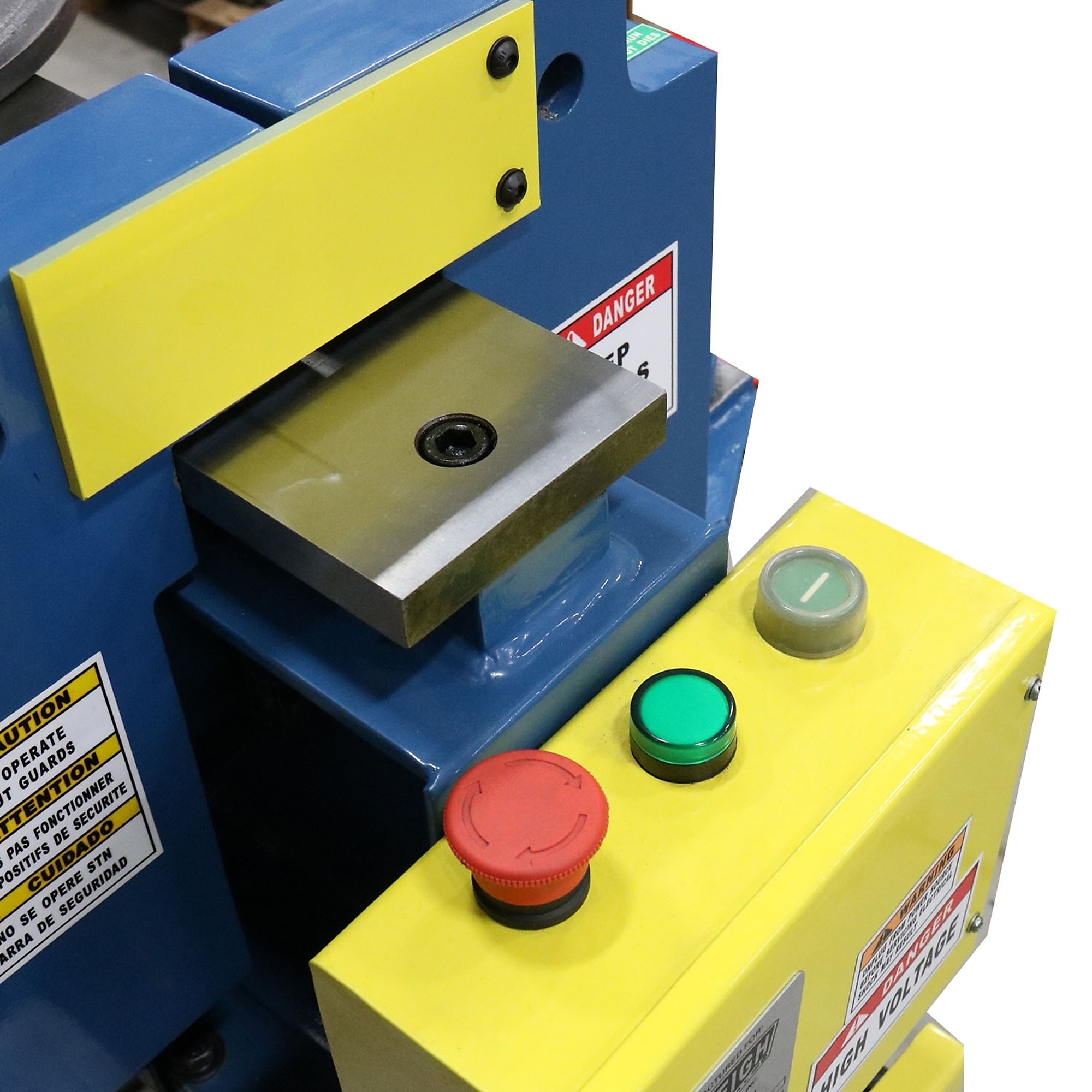

  • The EB-300 exhaust pipe bender requires 220 volts of single phase power is operated using knee controls, allowing hands to be kept free for material control.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Have an automotive repair shop that is constantly outsourcing your exhaust jobs because you don’t have the right tube bender for the job?  If that is the case look, at the EB-300 exhaust bender from Baileigh Industrial.  This just might be tool you need to add profitability back to your jobs. The EB-300 exhaust pipe bender comes with everything you need to get started.

What's Included

    (1) Hydraulic Compression Exhaust Bender/Swager

Features + Benefits

  • For bending, the EB-300 exhaust bender comes with standard radius tooling from 1-1/2" up to 3" OD (for 2-1/4 to 3” OD tubing 12 gauge mild steel wall thickness is required).
  • The EB-300 exhaust pipe bender is considered a compression bender as it uses one large hydraulic ram to push the inside radius die into the compression assisted outside counter dies.
  • The outside dies have two hydraulic cylinders that applies pressure at the point of bend on the inside radius die.
  • The end result is that the machine can bend light gauge tubing without folding the material in half.
  • The EB-300 exhaust pipe bender requires 220 volts of single phase power is operated using knee controls, allowing hands to be kept free for material control.

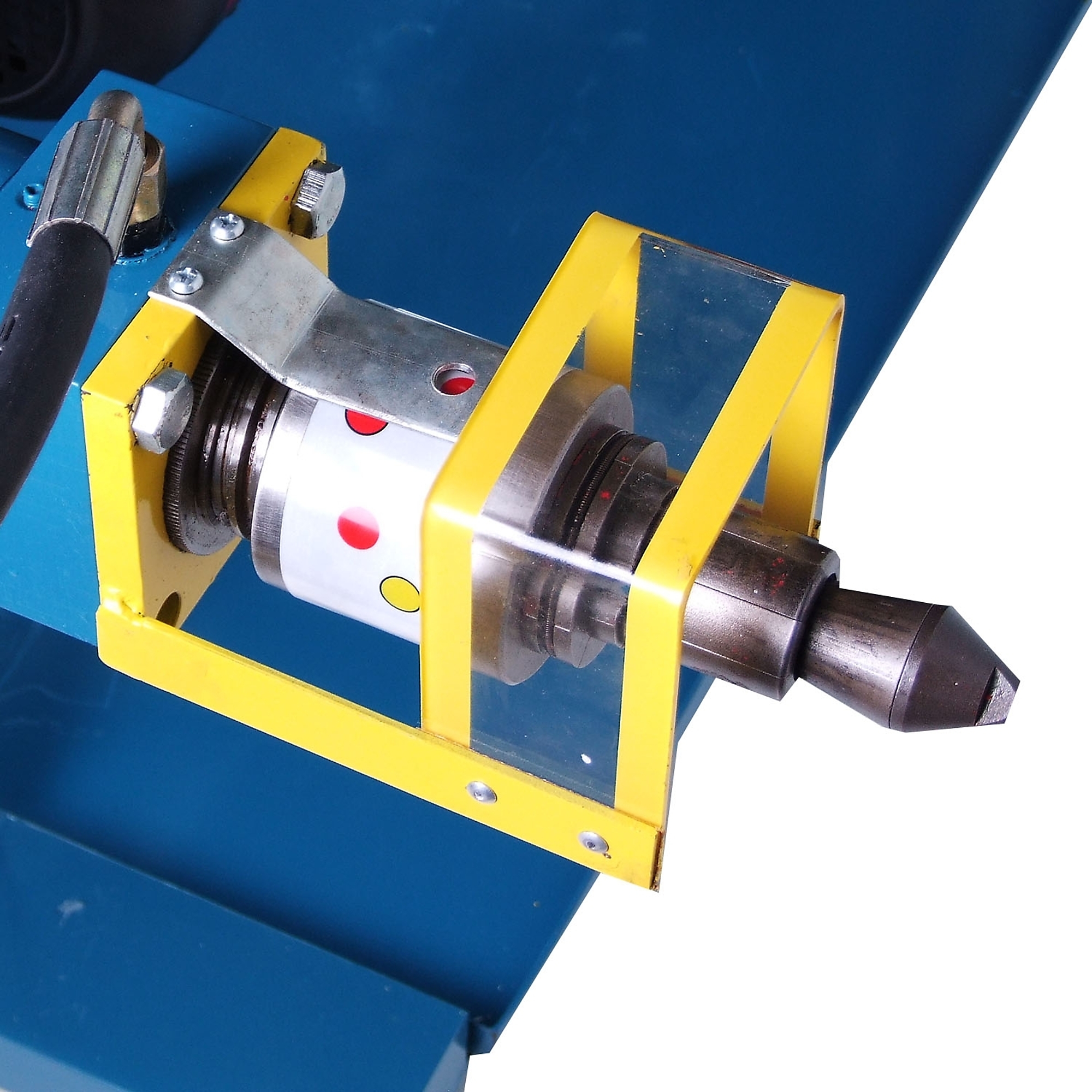

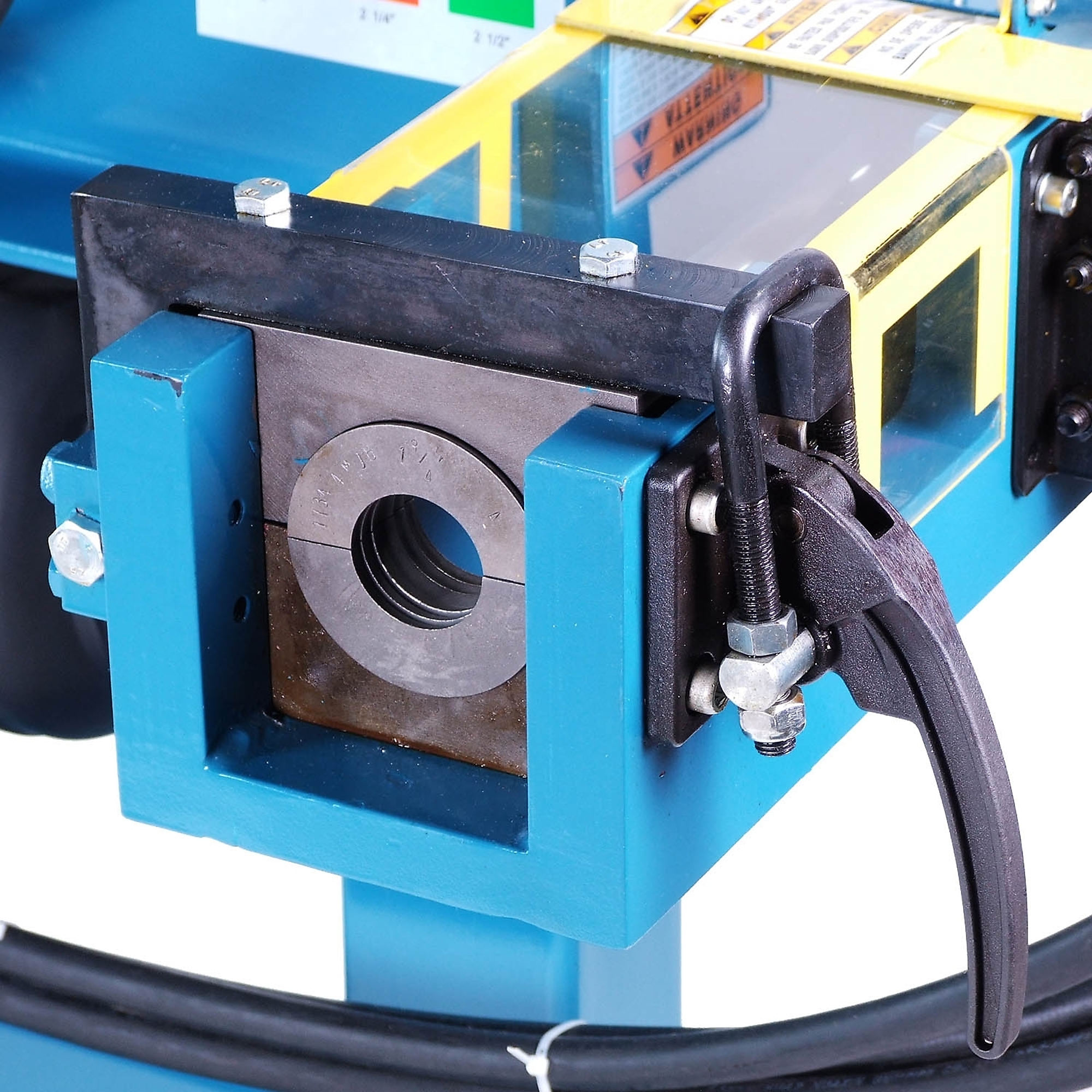

  • This exhaust tube bender also comes equipped with tube end forming station.  This station includes tooling to expand, flare and swage the tubing.  It also allows the operator to create ball joints and flanges.
  • The EB-300 exhaust tube bender comes filled with hydraulic fluid and has an oil sight glass to ensure the proper level is maintained at all times.  A useful tooling tray is standard as well so the tooling stays with the machine instead of getting lost in a busy auto shop.
  • Baileigh Industrial exhaust pipe benders are well built to last for decades of profitable production.  For more information contact a Baileigh Industrial representative.

Key Specs

AttributeSpecification

item#

4685684

Brand

Baileigh

Manufacturer's Warranty

3 year limited warranty

Ship Weight

10957.0 LB

Max. Bending Capacity - Round

3 in

Max. Material Gauge

12
AttributeSpecification

Dies Included

Yes

Max. Depth

5 in

Max. Bending Radius

172 °

Slip Roll Length

0 in

Product Weight

10957.0000 lb

Dimensions L x W x H (in.)

69.0 x 32.0 x 53.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
