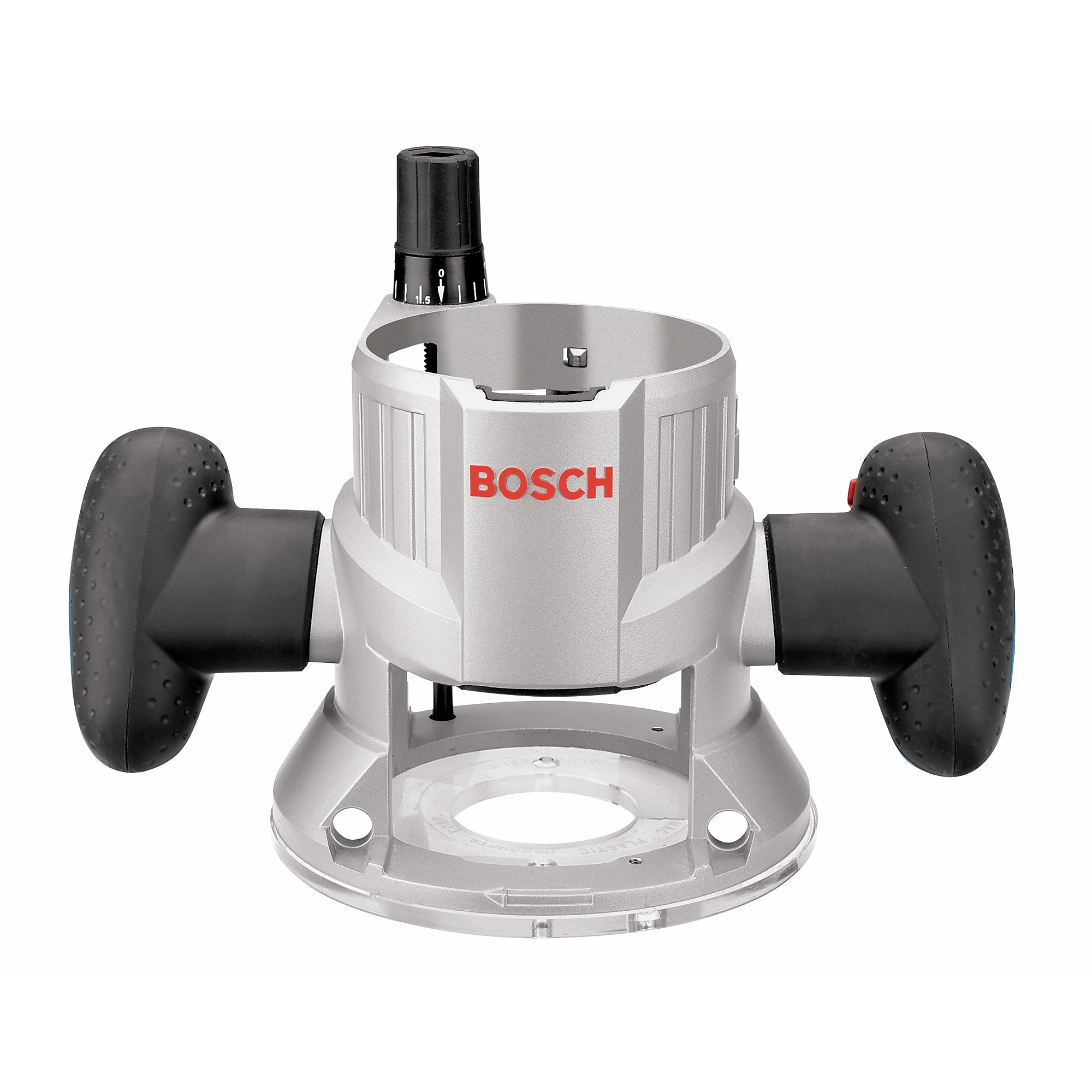

Bosch Fixed Router Base, Model# MRF01

Item# 7022991
Bosch Fixed Router Base, Model# MRF01

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bosch Fixed Router Base, Model# MRF01

Click or Tap image to Zoom

$135.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Fixed base with fine adjustment knob with on/off switch located in the handle
  • Trigger control system conveniently located in handle for enhanced control
  • Versatile fixed base adjustment system for easy and precise bit depth adjustment
  • Macro and microfine adjustment system with resettable depth indicator
  • Large 3-3/4 In. base opening and 2 In. sub-base opening accepts larger bits

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

The Bosch MRF01 fixed base is designed exclusively for use with Bosch MR23EVS router motor. It features a trigger-controlled power switch in the right handle, so you don't have to reach up to a switch on the motor to turn the tool on and off. The motor is held by the base using the Bosch-invented router quick-clamp system, allowing tool-free movement of motor from base to base. The MRF01 fixed base features a versatile depth adjustment that allows for easy macro- and micro-fine adjustment with a 1-5/8” continuous micro-fine adjustment range. It also features the Bosch Precision Centering Design that allows the subbase to be centered around the bit, which makes it easy to keep the bit on intended cut line when using jigjigs, templets, dovetail fixtures and similar guidance devices. This base also has threaded holes positioned in common 3-hole pattern for mounting to a router table. Moreover, it features the ability to adjust the depth from above an optional router table using the included T-wrench, so there is no need to buy an expensive after-market router lift. Hardware for mounting to an optional router table is also included. The MRF01 fixed base accepts several different Bosch routing attachments, including the RA1126 Tool-free Templet Guide Adapter, RA1054 Deluxe Router Guide and RA1176AT Dust Hood Kit.

What's Included

    (1) Fixed Router Base

Features + Benefits

  • Fixed base with fine adjustment knob with on/off switch located in the handle
  • Trigger control system conveniently located in handle for enhanced control
  • Versatile fixed base adjustment system for easy and precise bit depth adjustment
  • Macro and microfine adjustment system with resettable depth indicator
  • Large 3-3/4 In. base opening and 2 In. sub-base opening accepts larger bits
  • Precision centering design - makes it easy to keep bit on intended cutline when using jigs, templates, dovetail fixtures and similar guidance devices
  • Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides

Key Specs

AttributeSpecification

item#

7022991

Brand

Bosch

Ship Weight

3.88 LB
AttributeSpecification

Product Type

Hardware Accessories

Product Weight

3.8800 lb

Dimensions L x W x H (in.)

7.5 x 7.5 x 3.88 in
