Bosch Spline Combination Hammer — 1-9/16in., 6.1 ft.-lbs. Impact Energy, Variable Speed, Model# RH540S

Item# 4970741
"Bosch Spline Combination Hammer — 1-9/16in., 6.1 ft.-lbs. Impact Energy, Variable Speed, Model# RH540S"
Bosch Spline Combination Hammer — 1-9/16in., 6.1 ft.-lbs. Impact Energy, Variable Speed, Model# RH540S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bosch Spline Combination Hammer — 1-9/16in., 6.1 ft.-lbs. Impact Energy, Variable Speed, Model# RH540S

Click or Tap image to Zoom

$555.00

  • Shipping:

    Factory shipped

  • Store Pickup:

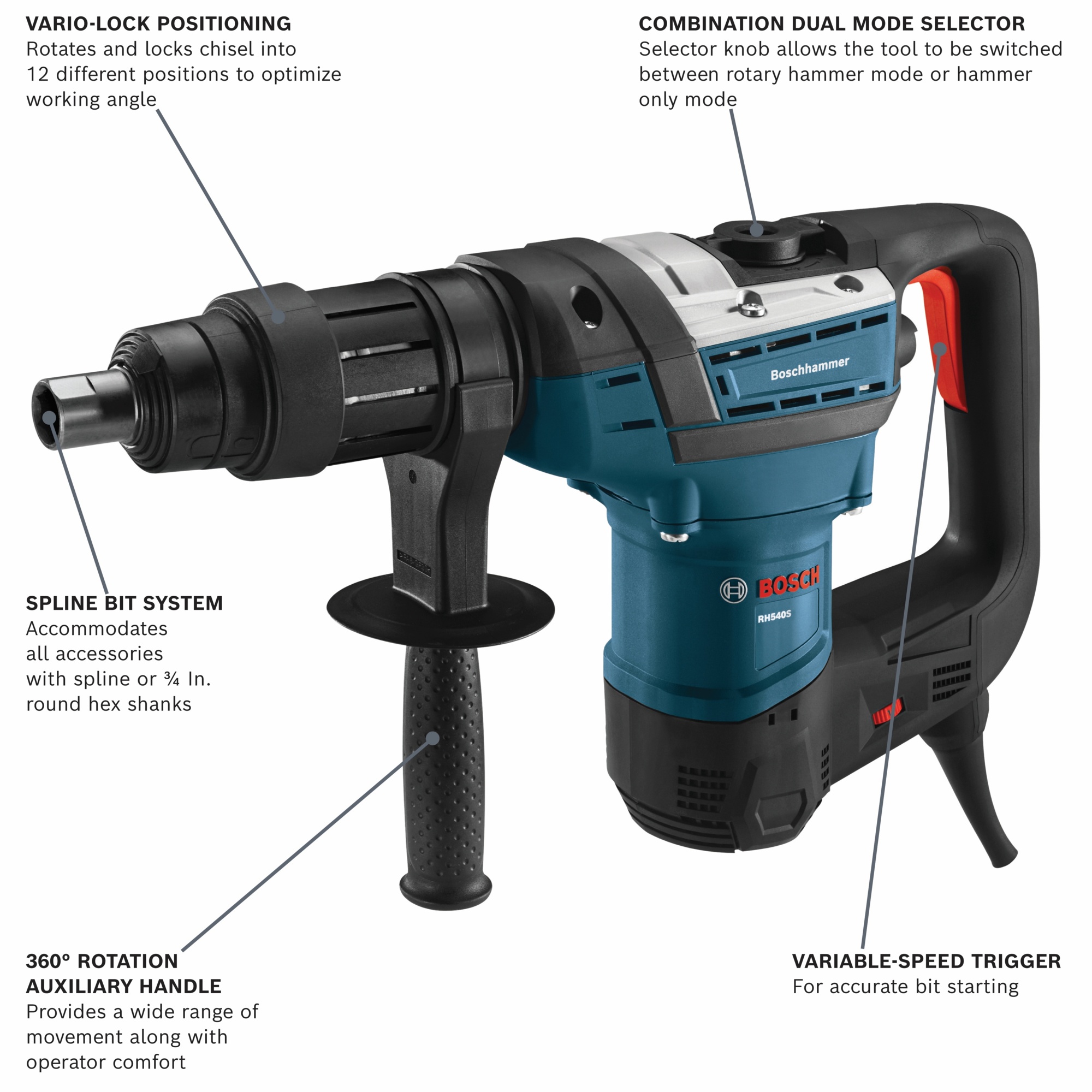

  • Spline bit system — accommodates all accessories with spline or 3/4 In. round hex shanks

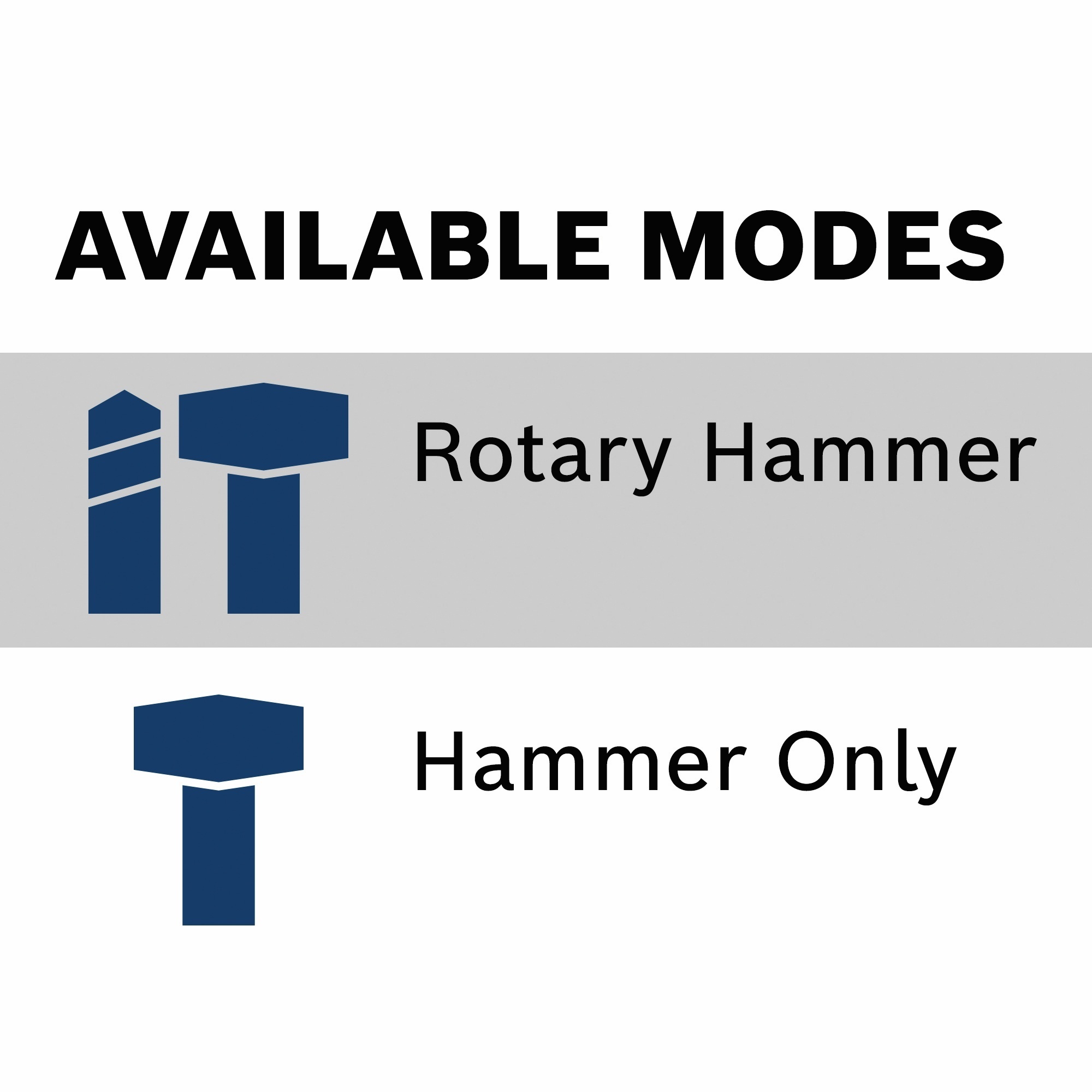

  • Combination dual mode selector — selector knob allows the tool to be switched between rotary hammer mode or hammer only mode
  • Vario-Lock positioning — rotates and locks chisel into 12 different positions to optimize working angle
  • Innovative service modules — designed so a qualified service technician can quickly replace the brushes and cord
  • 360° Auxiliary handle — provides a wide range of movement along with operator comfort

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Bosch RH540S Spline 1-9/16in. Combination Hammer provides maximum productivity in all day drilling and chiseling applications. Equipped with 6.1ft.-Lbs. of impact energy (E.P.T.A.). The RH540S provides up to 39% more impact energy versus the previous model for best-in-class performance. The RH540S also provides variable speed. This delivers better bit control during application start-up.

What's Included

    (1) RH540S

Features + Benefits

  • Spline bit system — accommodates all accessories with spline or 3/4 In. round hex shanks
  • Combination dual mode selector — selector knob allows the tool to be switched between rotary hammer mode or hammer only mode
  • Vario-Lock positioning — rotates and locks chisel into 12 different positions to optimize working angle
  • Innovative service modules — designed so a qualified service technician can quickly replace the brushes and cord
  • 360° Auxiliary handle — provides a wide range of movement along with operator comfort
  • Integral clutch — disengages torque transmission if the bit gets into a bind situation
  • Grounded design, CSA listed, complies to OSHA

Key Specs

AttributeSpecification

item#

4970741

Brand

Bosch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

25.07 LB

Chuck Size

1-9/16 in

Volts

120

Amps

12

Max. RPM

340

Max. Blows Per Minute

2,900

Cordless

No

Impact Energy

6.1 ft-lbs.
AttributeSpecification

Product Category

Concrete Power Tools

Power Cord Length

8 ft

Battery Included

No

Hammer Only Mode

No

Keyless Chuck

Yes

Tool Weight

15 lb

Side Handle

Yes

Charger Included

No

Storage Case Included

Yes

Product Weight

25.0700 lb

Dimensions L x W x H (in.)

24.75 x 16.5 x 6.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

  1. Does this rotohammer have cord with a ground?  I need a spline roto-hammer with a ground so i can use A bit-stop.

    1 answer

    1. The cord for this item is a grounded outlet plug.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
