Bosch SDS-Plus Rotary Hammer — 1-1/4in., 8.5 Amps, 3.1ft.-Lbs. Impact Energy, Quick-Change Chuck, Model# RH432VCQ

Item# 4970750
Bosch SDS-Plus Rotary Hammer — 1-1/4in., 8.5 Amps, 3.1ft.-Lbs. Impact Energy, Quick-Change Chuck, Model# RH432VCQ

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bosch SDS-Plus Rotary Hammer — 1-1/4in., 8.5 Amps, 3.1ft.-Lbs. Impact Energy, Quick-Change Chuck, Model# RH432VCQ

Click or Tap image to Zoom

$726.61

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Powerful 8.5-amp motor – drives 3.1 Ft.-Lbs. of impact energy for professional results
  • Vibration Control in the hammer mechanism and the grip area – maximum user comfort for extended periods of work
  • SDS-plus® shank system – for use with bits up to 1-1/4 In. diameter
  • Optional three-jaw chuck shank – allows a quick change-out for using a wide variety of bits
  • Multifunction selector – rotary hammer, rotation-only and hammer-only mode

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

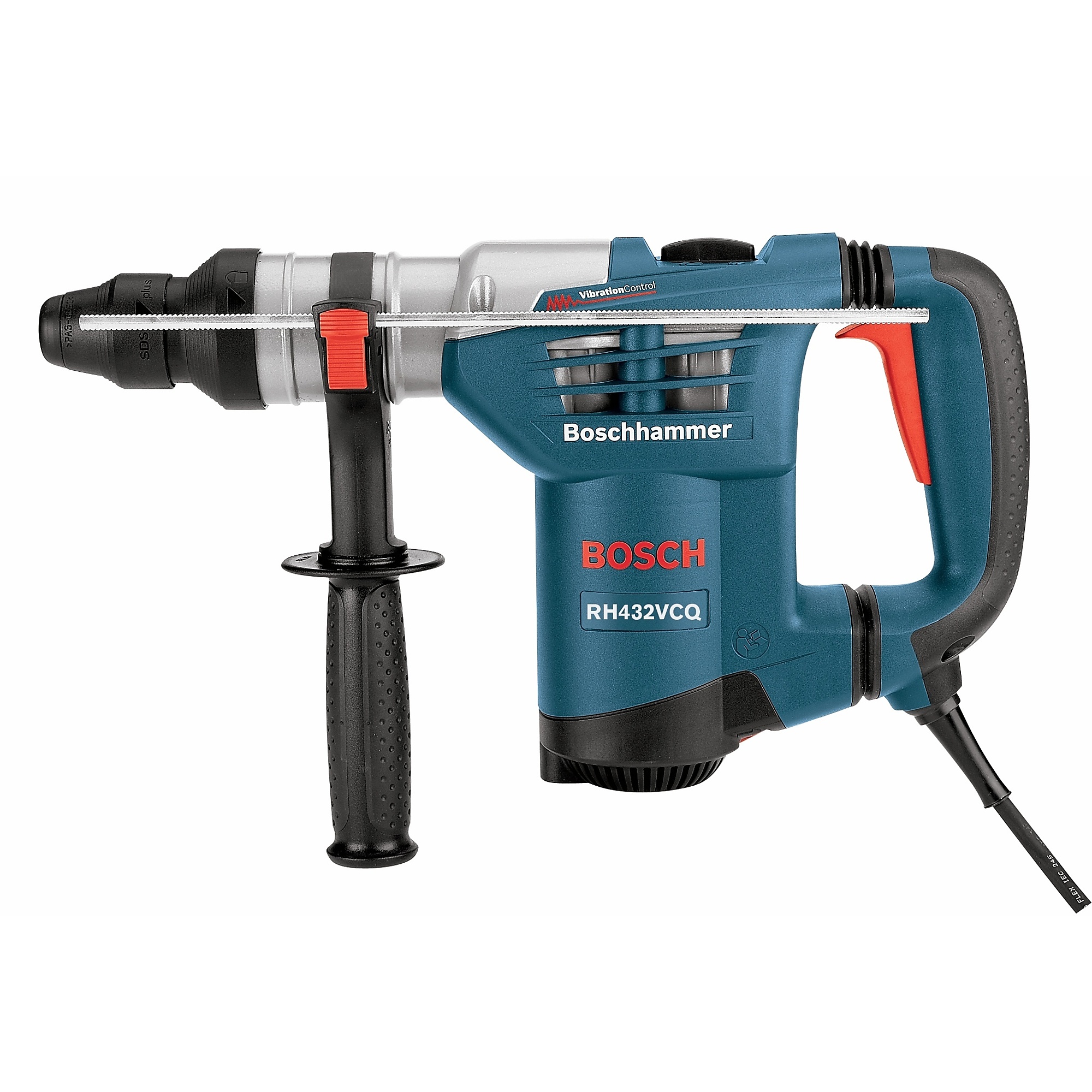

The Bosch RH432VCQ SDS-plus® 1-1/4in. Rotary Hammer is a 8.5-amp tool that delivers 3.1ft.-Lbs. of impact energy, but it weighs only 10.3 Lbs. for a top performance-to-weight ratio. The multifunction selector gives the user the versatility to match mode to application – rotary hammer, rotation-only or hammer-only mode. Concrete contractors will appreciate the production in drilling holes in concrete and chiseling masonry. The quick change chuck allows the fast and simple exchange of an SDS-plus® chuck. It has Vibration Control™ in the hammer mechanism and grip area to provide improved user comfort. The hammer provides an integral clutch for bind-up situations.

What's Included

    (1) RH432VCQ

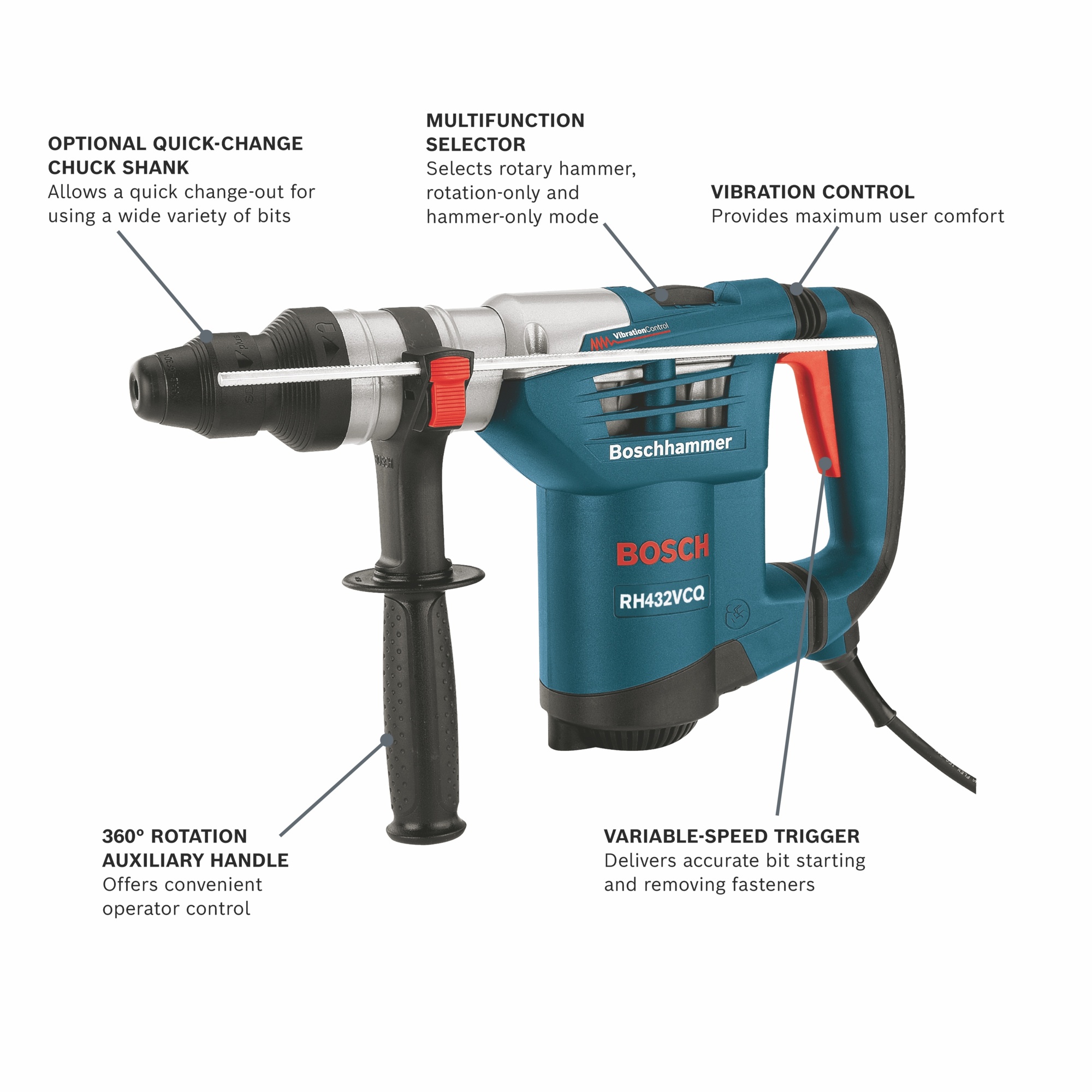

Features + Benefits

  • Powerful 8.5-amp motor – drives 3.1 Ft.-Lbs. of impact energy for professional results
  • Vibration Control in the hammer mechanism and the grip area – maximum user comfort for extended periods of work
  • SDS-plus® shank system – for use with bits up to 1-1/4 In. diameter
  • Optional three-jaw chuck shank – allows a quick change-out for using a wide variety of bits
  • Multifunction selector – rotary hammer, rotation-only and hammer-only mode
  • Variable-speed trigger with reversing – for accurate bit starting as well as removing fasteners or bound bits
  • Integral clutch – disengages torque transmission if the bit gets into a bind situation

Key Specs

AttributeSpecification

item#

4970750

Brand

Bosch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

16.83 LB

Chuck Size

1-1/4 in

Volts

120

Amps

8.5

Max. RPM

900

Max. Blows Per Minute

3,600

Cordless

No

Impact Energy

3.1 ft-lbs.
AttributeSpecification

Product Category

Concrete Power Tools

Power Cord Length

8 ft

Battery Included

No

Hammer Only Mode

No

Keyless Chuck

Yes

Tool Weight

10.3 lb

Side Handle

Yes

Charger Included

No

Storage Case Included

Yes

Product Weight

16.8300 lb

Dimensions L x W x H (in.)

19.0 x 5.25 x 14.5 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
