BendPak, Mobile Column Lift System Set of 6 Capacity 108000 lb, Max. Rise 6 ft, Horsepower 4 HP, Model# PCL-18B-Low_Voltage

Item# 6478048
BendPak, Mobile Column Lift System Set of 6 Capacity 108000 lb, Max. Rise 6 ft, Horsepower 4 HP, Model# PCL-18B-Low_Voltage

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak, Mobile Column Lift System Set of 6 Capacity 108000 lb, Max. Rise 6 ft, Horsepower 4 HP, Model# PCL-18B-Low_Voltage

Click or Tap image to Zoom

$93,095.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • 208-240V, 3-phase main power system - optional voltages available upon request
  • Forklift Required
  • For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

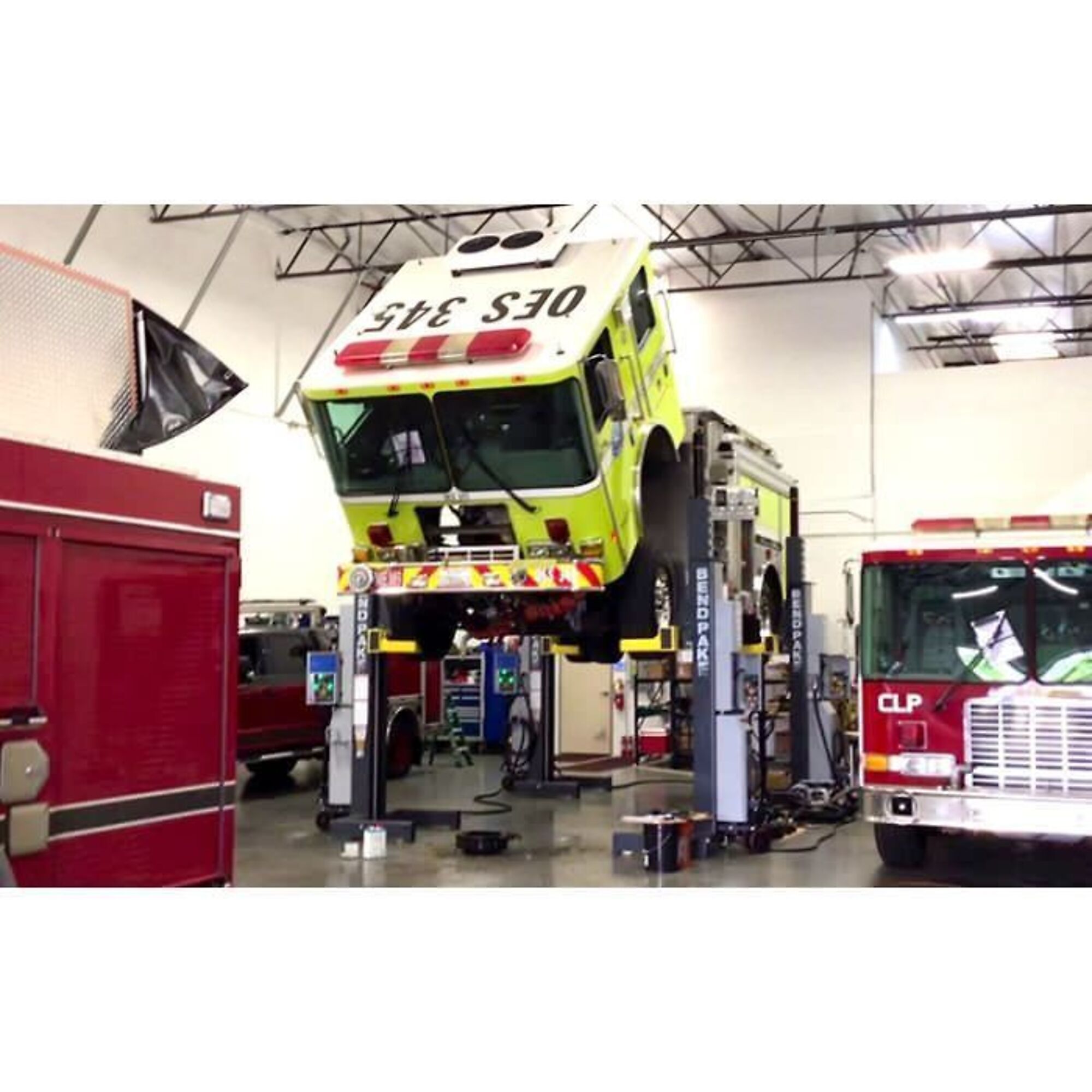

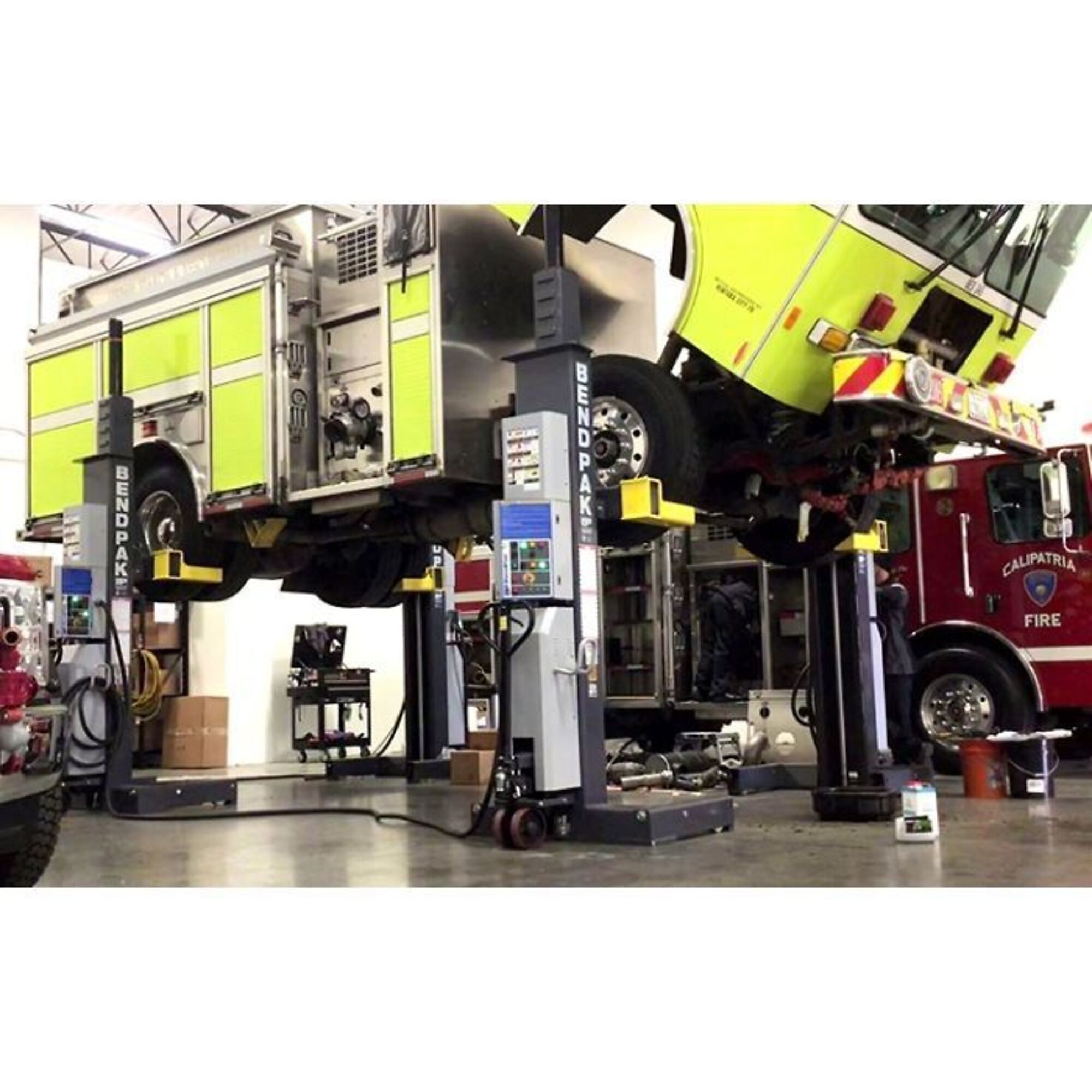

108,000-lb. Capacity / Mobile Lift System / 208-230-190V / 50-60 Hz, 3 Ph / Set of 6 This PCL-18B mobile column lift system comes in a set of 6. When combined, the system lifts up to 108,000 lbs. Ideal for three-axle vehicles. Sets of 2, 4 and 8 are available. Set of 6 Mobile Column Lifts With 6 mobile column lifts in a single setup, you have the ability to lift up to 108,000 lbs. Despite so much lifting power, each column is easy to stow away in minutes flat after the vehicle is lowered. Safety and user control is paramount, so all lifts will be connected via a single control panel and can be stopped simultaneously with the push of a button.

What's Included

    (6) 6-Column Lift Set

Downloads

Product Manual

Features + Benefits

  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • 208-240V, 3-phase main power system - optional voltages available upon request
  • Forklift Required
  • For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
  • Simple operation, long service life and minimum maintenance

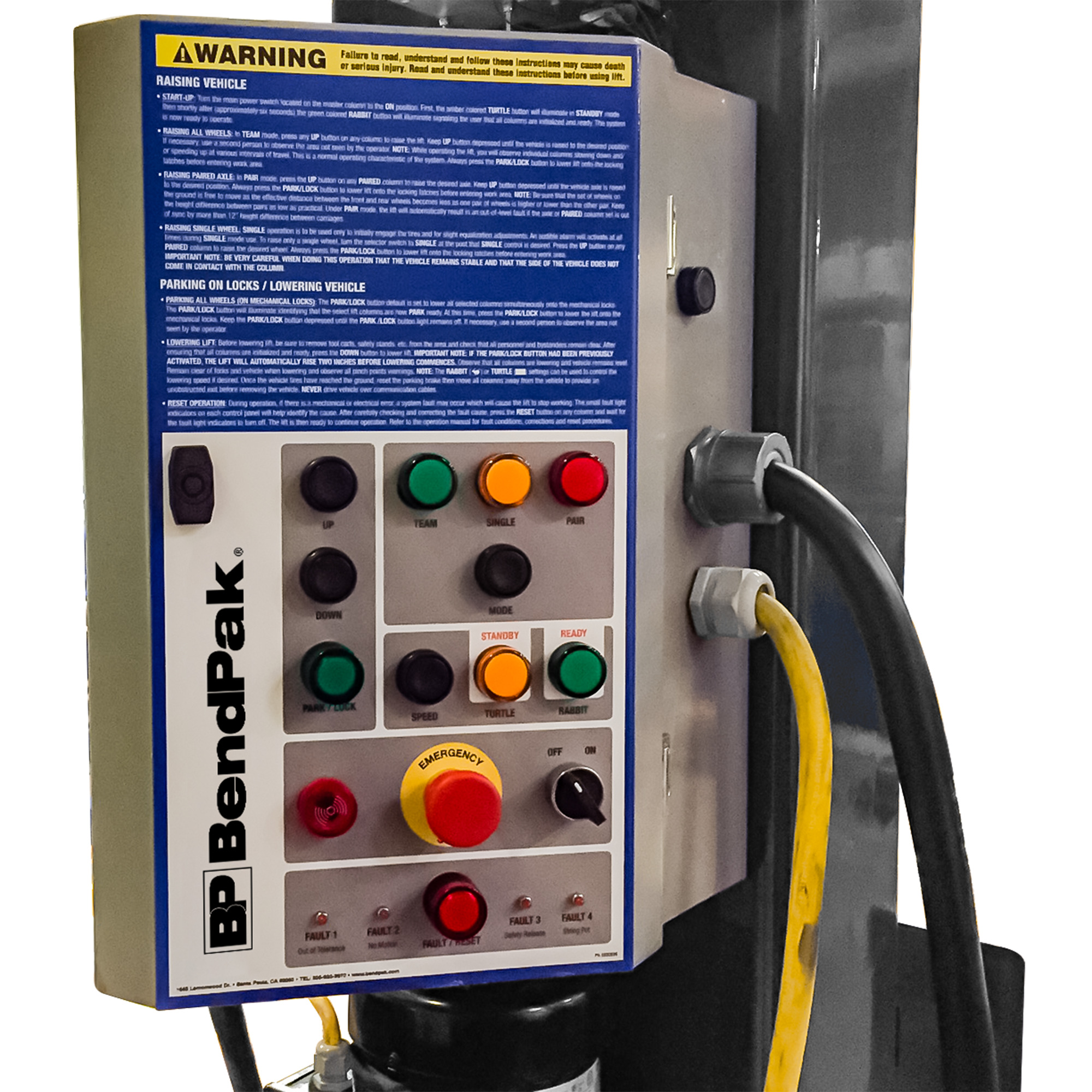

  • Intuitive controls allow the lift to be fully programmed and controlled from any column
  • Control systems feature 24-volt safety circuitry
  • The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls, which can be very expensive to service or replace
  • Smart electronics feature self-diagnostics and self-calibration functions
  • Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting
  • Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
  • Two-speed lowering option - turtle or rabbit speed settings
  • Each column is equipped with a warning light and audible alarm for critical warning alerts
  • Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
  • Separate key lock enclosure on each column
  • Electronics are multi-fuse protected

Key Specs

AttributeSpecification

item#

6478048

Brand

BendPak

Manufacturer's Warranty

3 year limited warranty

Ship Weight

1436.0 LB

Capacity

108,000 lb

Max. Rise

6 ft

Horsepower

4 HP

Motor Phase

Three-phase
AttributeSpecification

Volts

230V/3-phase

Lock Spacing

4 in

Locking Position (qty.)

13

Time of Full Rise

85 sec.

Material

Steel

Product Weight

1396.0000 lb

Dimensions L x W x H (in.)

46.0 x 45.75 x 101.25 in
