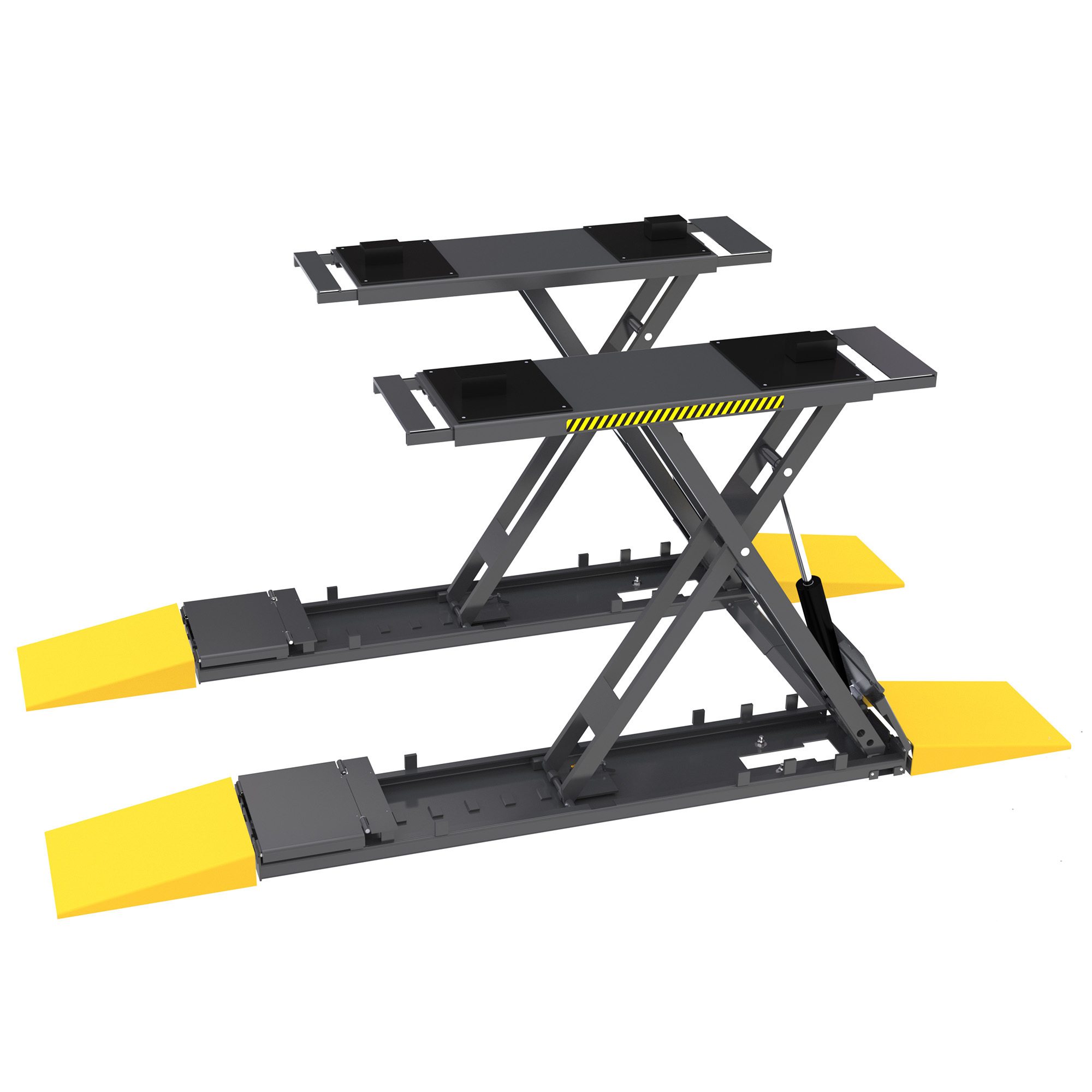

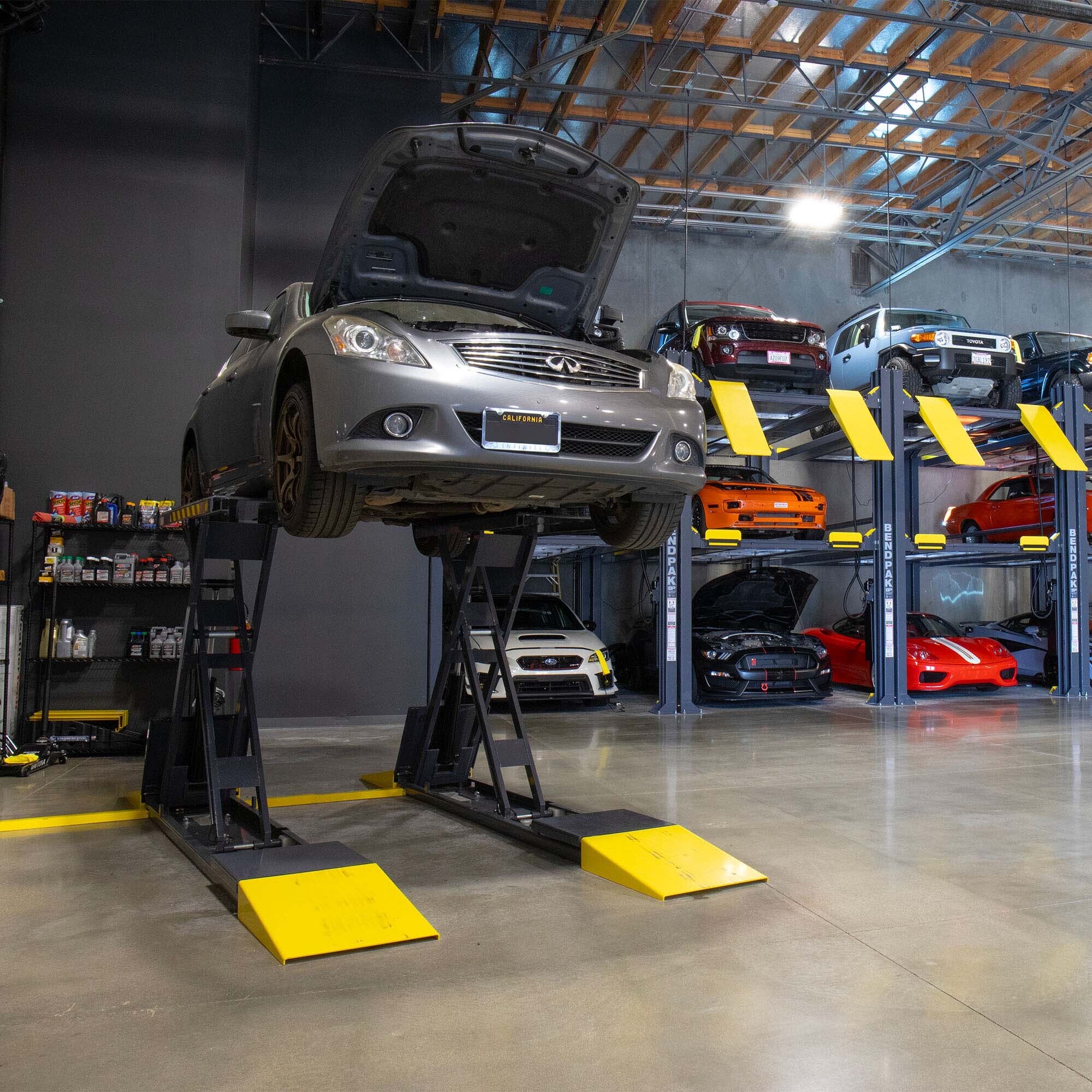

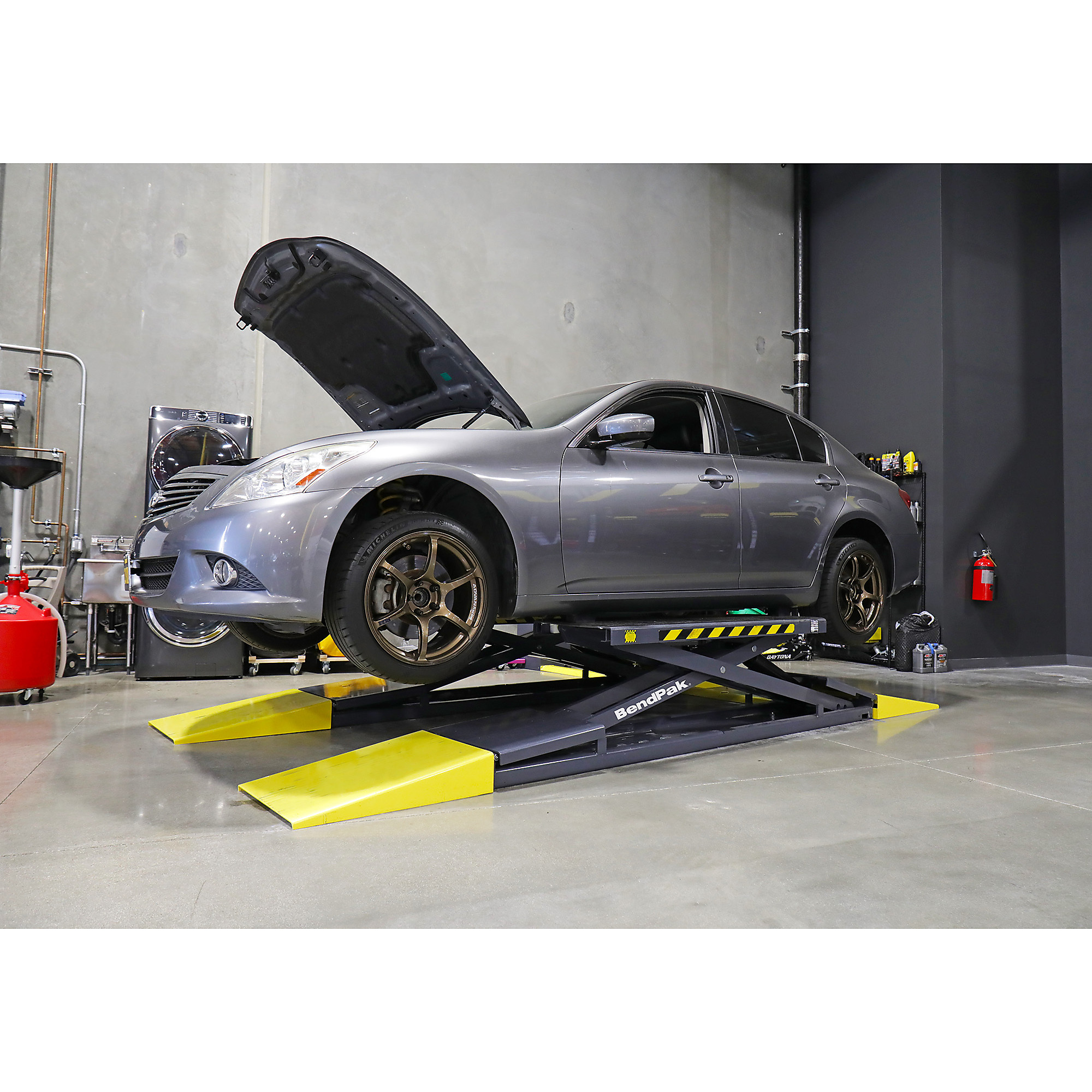

BendPak, 7000lb. Capacity Full-Rise Scissors Lift, Capacity 7000 lb, Max. Lift Height 69.75 in, Collapsed Height 6.5 in, Model# SP-7XE

Item# 6478435
BendPak, 7000lb. Capacity Full-Rise Scissors Lift, Capacity 7000 lb, Max. Lift Height 69.75 in, Collapsed Height 6.5 in, Model# SP-7XE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak, 7000lb. Capacity Full-Rise Scissors Lift, Capacity 7000 lb, Max. Lift Height 69.75 in, Collapsed Height 6.5 in, Model# SP-7XE

Click or Tap image to Zoom

$10,795.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Pneumatic safety locks
  • Hardened pivot pins with "Zerk" fittings
  • Forklift Required
  • Ergonomic controls
  • Dual-cylinder hydraulic design provides extra power

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

7,000-lb. Capacity / Scissors / Frame Engaging This space?saving, frame engaging lift features no cross members whatsoever, making installation simpler than ever. It easily accommodates most passenger vehicles and light trucks, and it comes complete with pneumatic safety locks, rubber lifting blocks and an open?center for full under?car accessibility. The Full-Rise Scissor Lift with Collapsible Frames The SP-7XE is a brilliant design for full-service auto shops, quick-lube pits and anyone who regularly services vehicles without much room to spare. If you need more overhead space for you and your techs, the full-rise SP-7XE might be the perfect scissor lift for you. A flush-mount option, the SP-7XE, is also available. No cross member The SP-7XE is installed and mounted on your flooring without a cross member. This makes for a true open-center design that provides access to all critical undercarriage areas without requiring operators to awkwardly stoop or crawl across the floor. Reinforced steel at the base and along the top of the runways help provide a stable lift that completely eliminates the need for a cross member or additional structural support. Large base frame Heavy boxed-steel formed base frame provides excellent stability. Your vehicle should glide smoothly up and down, not rock haphazardly side-to-side. Our sturdy, expanded base guarantees a safe, stable lift. Electric / hydraulic power system We incorporate maintenance-free electric hydraulic power systems into each lift for ultimate dependability, and all controls are conveniently located within close reach.

What's Included

    (1) 1 Full- Rise Lift

Downloads

Product Manual

Features + Benefits

  • Pneumatic safety locks
  • Hardened pivot pins with "Zerk" fittings
  • Forklift Required
  • Ergonomic controls
  • Dual-cylinder hydraulic design provides extra power
  • Low-profile
  • Surface-mount
  • Open-center design

Key Specs

AttributeSpecification

item#

6478435

Brand

BendPak

Manufacturer's Warranty

2 year limited warranty

Ship Weight

2542.0 LB

Capacity

7,000 lb

Max. Lift Height

69.75 in

Collapsed Height

6.5 in
AttributeSpecification

Lift Type

Full-Rise

Horsepower

3 HP

Motor Phase

Single-phase

Volts

220

Material

Steel

Product Weight

2500.0000 lb

Dimensions L x W x H (in.)

165.0 x 140.5 x 6.5 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. Can you install this lift in a home garage with a "+" control joint pattern?

    1 answer

    1. The scissor lift can be installed in a home garage, but not directly over or bridging the control joints. Any concrete anchor used to secure the lift must be a minimum of 6 inches away from any control joint, expansion joint, or significant crack in the concrete, You cannot span or bridge the lift frames over an expansion joint. The joint physically dividing the slab means the concrete is not one continuous structural unit, which poses severe safety and stability risks. A "+", "T", or grid control joint pattern means your concrete slab is broken up into individual sub-slabs (called panels). The lift's base frame and anchors must rest entirely on a single, continuous concrete slab/panel.

      Helpful?

  2. Is this lift portable or does it have to be anchored to the floor?

    1 answer

    1. The scissor lift must be anchored to a concrete slab that has a minimum thickness of 4.25 inches, minimum compression strength of 4000 PSI and cured a minimum of 28 days. The lift should never be installed over an expansion joint, hand mixed concrete or drilled/cut into a post tensioned slab.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
