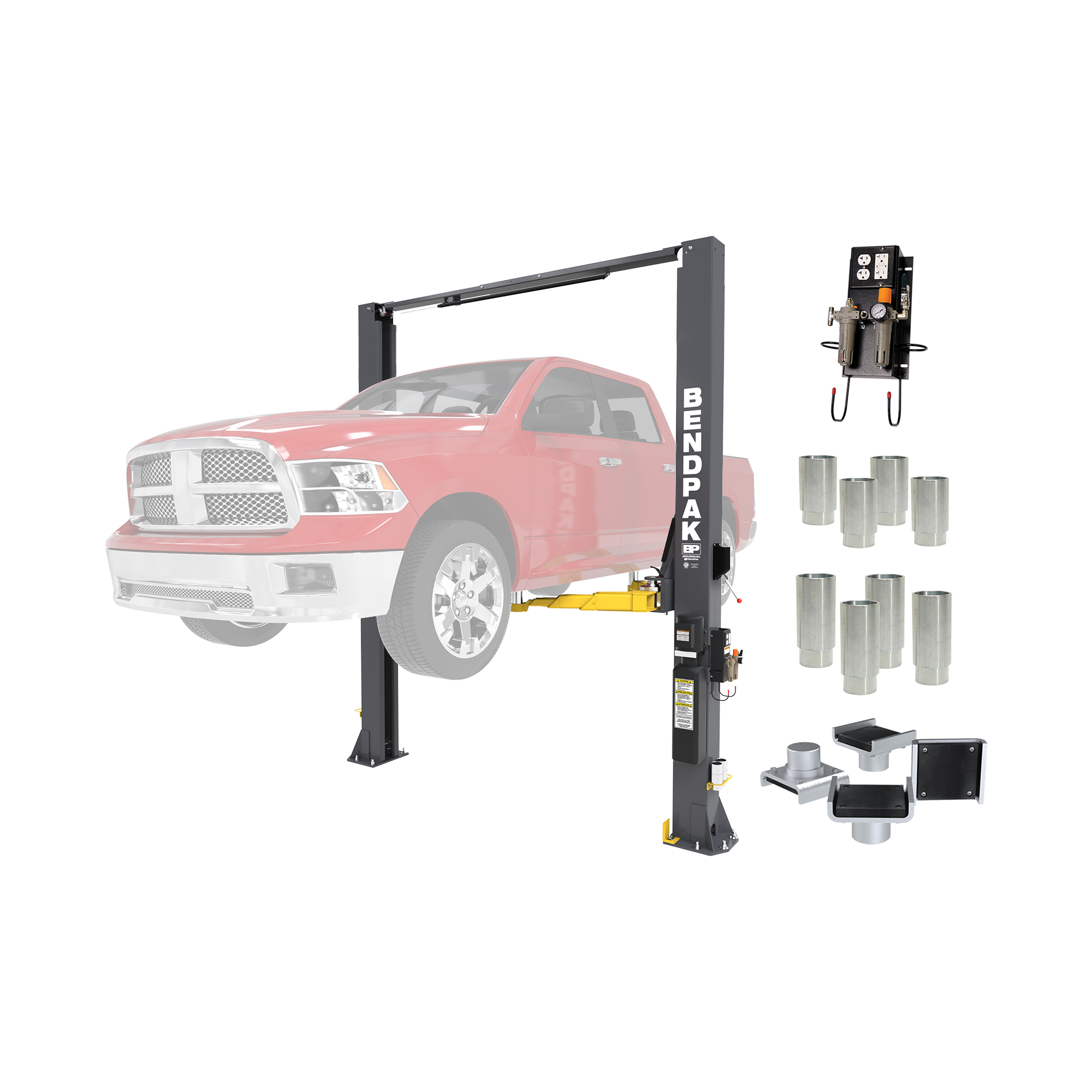

BendPak, 10000lb.Cap, Adjustable Width With Accessories, Capacity 10000 lb, Max. Rise 6.5 ft, Horsepower 3 HP, Model# 10APX_ PRO_Package

Item# 6478267
BendPak, 10000lb.Cap, Adjustable Width With Accessories, Capacity 10000 lb, Max. Rise 6.5 ft, Horsepower 3 HP, Model# 10APX_ PRO_Package

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

BendPak, 10000lb.Cap, Adjustable Width With Accessories, Capacity 10000 lb, Max. Rise 6.5 ft, Horsepower 3 HP, Model# 10APX_ PRO_Package

Click or Tap image to Zoom

$7845.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Symmetric or Asymmetric Configurations
  • Double-telescoping screw pads offer increased versatility
  • Forklift Required
  • Exclusive Bi-Metric™ arm design for more versatile arm positioning
  • Single-point safety release

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

10,000?lb. Capacity / Adjustable Width 10APX / WSA-100 Air-Electric Workstation / Frame Cradle Pads / Medium Adapters / Tall Adapters The next-generation of two-post lifts – now with an increased height! The 10APX PRO was built with the future in mind and is loaded with all the features you’ll need to service vehicles as effectively as possible. This revolutionary lift can handle Electric Vehicles effortlessly and can adapt to both symmetrical and asymmetrical configurations. 10APX PRO – The Future of Two-Post Lifting Introducing the 10APX PRO-Series two-post lift, designed for mechanics who constantly deal with working in uncomfortable positions on the job. This powerful lift offers a lifting height of 79.5” and an overhead beam of 157”, providing ample room to work comfortably with top-tier equipment. Like the rest of the PRO-Series, it features a 10,000-lb. lifting capacity, Low-Pro arms, Bi-Metric™ arms, and more. Auto repair shops must stay ahead of the curve by outfitting themselves with the best equipment. BendPak’s PRO Series of two-post lifts boast a revolutionary design that combines the finest qualities of today’s lifts into a new car lift engineering concept. The result is a lift unlike any other, purposefully designed for extreme use, high loads, and unmatched operator safety and efficiency. Experience the ultimate convenience with the PRO-Series, offering both wide and narrow installation options in one customizable package. Built to last, these lifts ensure durability, safety, and reliability for all your automotive needs. Featuring BendPak’s advanced Bi-Metric™ arms, capable of both symmetric and asymmetric lifting, these lifts deliver unmatched versatility.

What's Included

    (5) 1-10APX, 1-WSA-100, 4- Cradle Pads, 4-Medium Adapters, 4-Tall Adapters

Downloads

Product Manual

Features + Benefits

  • Symmetric or Asymmetric Configurations
  • Double-telescoping screw pads offer increased versatility
  • Forklift Required
  • Exclusive Bi-Metric™ arm design for more versatile arm positioning
  • Single-point safety release
  • Drop-end provides a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Oversized 59” tall carriages for superior strength and durability
  • Electric / hydraulic HVLP power system
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Automatic arm restraints withstand over 2000-pounds of side force
  • 3/8"(10mm) High-strength multi-strand galvanized steel equalizing cable
  • Oversized cable sheave diameter reduces cable fatigue
  • Four triple-telescoping arms
  • ALI certified

Key Specs

AttributeSpecification

item#

6478267

Brand

BendPak

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1840.0 LB

Capacity

10,000 lb

Max. Rise

6.5 ft

Horsepower

3 HP

Motor Phase

Single-phase

Volts

220
AttributeSpecification

Lock Spacing

3 in

Locking Position (qty.)

15

Time of Full Rise

45 sec.

Pad Height

4 in

Drive-Thru Clearance

92 in

Material

Steel

Product Weight

1800.0000 lb

Dimensions L x W x H (in.)

26.0 x 145.0 x 157.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All BendPak Two-Post Lifts

Specifications

Specifications
BendPak, 10000lb.Cap, Adjustable Width With Accessories, Capacity 10000 lb, Max. Rise 6.5 ft, Horsepower 3 HP, Model# 10APX_ PRO_Package
Model: Olympic 2PBP-10 / 10,000-lb Base Plate 2-Post Lift / Dual Point Lock Release / 2-Stage Arms / 2-Stage Foot Pads / 110? H × 130? W / 10-Year Warranty / SHIPS FREE!
BendPak, 12000lbs Capacity Clearfloor High-Rise, Capacity 12000 lb, Max. Rise 6.6 ft, Horsepower 5 HP, Model# 12APX
Katool 2-Post Vehicle Lift, 11,000-Lb. Capacity, 3 HP, Model# KT-M110
Capacity
Same

10,000 lb

10,000 lb

12,000 lb

11,000 lb

Max. Rise
Same

6.5 ft

71 ft

6.6 ft

6 ft

Horsepower
Same

3 HP

3 HP

5 HP

3 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

220

110

220

220

Lock Spacing
Same

3 in

-

4 in

-

Locking Position (qty.)
Same

15

-

15

20

Time of Full Rise
Same

45 sec.

50 sec.

45 sec.

-

Pad Height
Same

4 in

-

5 in

-

Drive-Thru Clearance
Same

92 in

100.39 in

103 in

-

Material
Same

Steel

Steel

Steel

-

Product Weight
Same

1800.0000 lb

1250.0000 lb

2724.0000 lb

1256.0000 lb

Dimensions L x W x H (in.)
Same

26.0 x 145.0 x 157.0 in

17.0 x 130.0 x 110.2 in

29.0 x 156.0 x 169.0 in

18.0 x 134.65 x 110.24 in
