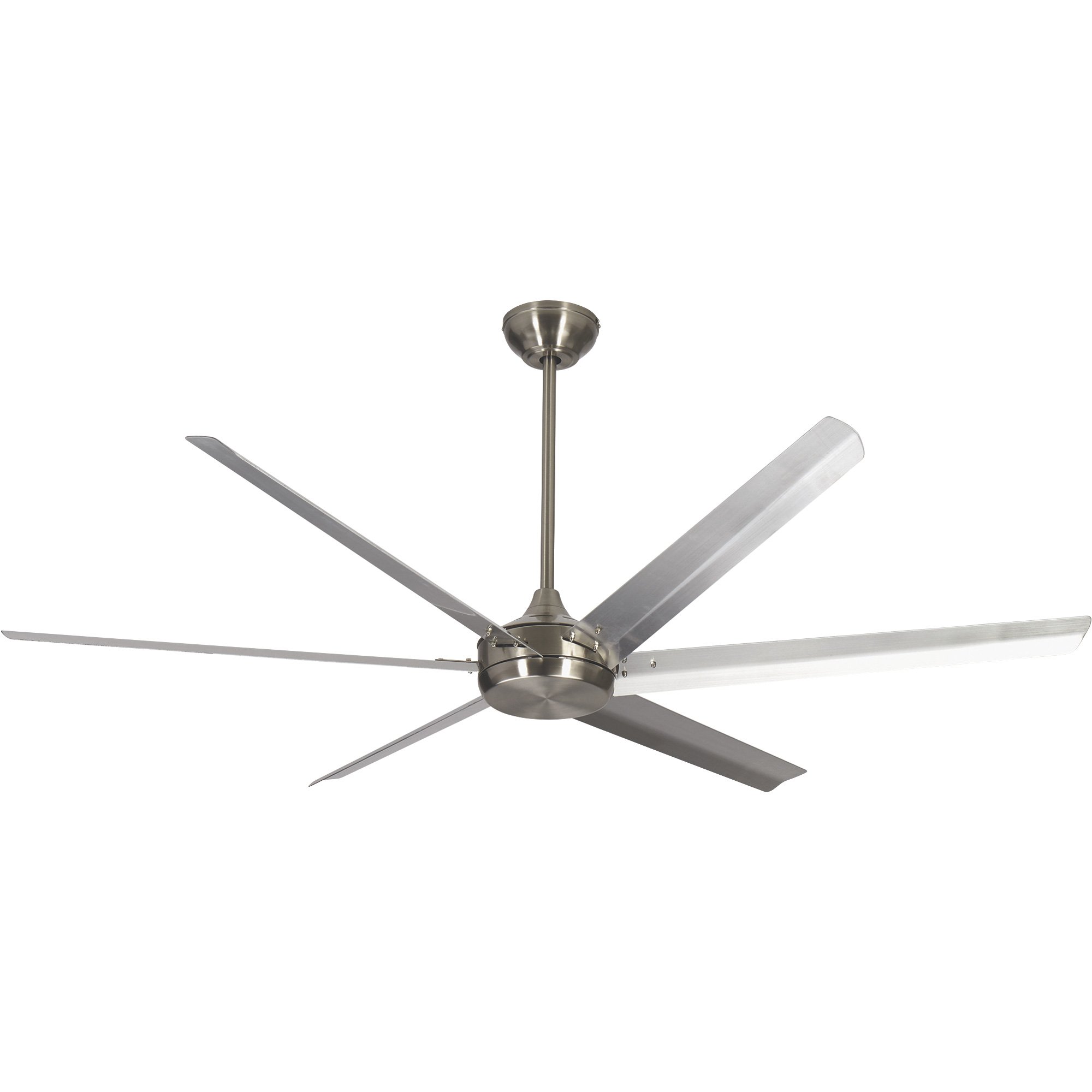

Bannon High-Volume Industrial Ceiling Fan — 80in., 20,000 CFM

Item# 57940
Bannon High-Volume Industrial Ceiling Fan — 80in., 20,000 CFM
Bannon High-Volume Industrial Ceiling Fan — 80in., 20,000 CFM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bannon High-Volume Industrial Ceiling Fan — 80in., 20,000 CFM

Click or Tap image to Zoom

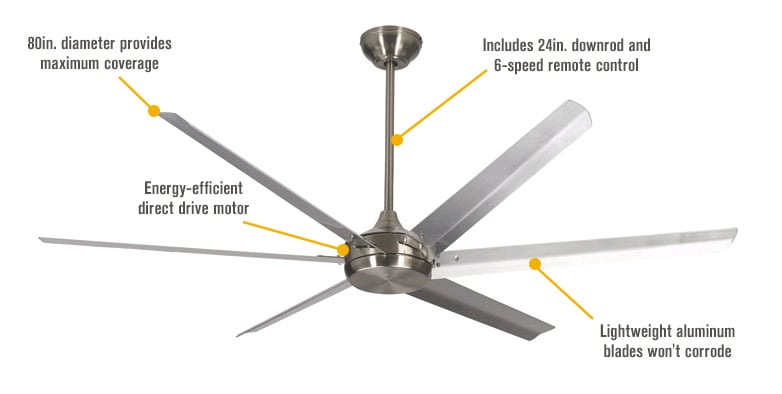

  • Cools up to 800 sq. feet
  • Energy-efficient direct drive motor
  • Includes 24in. downrod and 6-speed remote control
  • Requires hardwired electrical connection; professional installation recommended

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Bannon High-Volume Industrial Ceiling Fan cools large areas faster and more quietly. Energy-efficient direct drive motor uses less power and needs less maintenance. Includes 24in. downrod and 6-speed remote control. Requires hardwired electrical connection. Professional installation recommended.

What's Included

  • (1) High-volume ceiling fan
  • (1) 24in. downrod
  • (1) Remote control

Downloads

Product Manual

Features + Benefits

  • Cools up to 800 sq. feet
  • Energy-efficient direct drive motor
  • Includes 24in. downrod and 6-speed remote control
  • Requires hardwired electrical connection; professional installation recommended

Key Specs

AttributeSpecification

item#

57940

Brand

Bannon

Manufacturer's Warranty

1 year Limited Warranty

Ship Weight

41.0 LB

Fan Diameter

80 in

Air Delivery

20,000 cfm

Volts

120
AttributeSpecification

Speeds (qty.)

6

Max. Fan Speed

90 rpm

Watts

132

Primary Color

Silver

Housing Material

Aluminum

Product Weight

39 lb

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. what is overall length from ceiling to base of fan?

    For Bannon 80in fan, item 57940

    1 answer

    1. The overall length from the ceiling to the base of the fan is 36".

      Helpful?

  2. Can this be used with a shorter downrod? It says it comes with a 24". Can you use a 12" or 6"?

    1 answer

    1. This ceiling fan has not been tested with a shorter down rod. Shortening the down rod could cause a vacuum effect which would not allow the fan to work as efficiently as designed.

      Helpful?

  3. can i wall mount a speed control to operate multiple fans together?

    1 answer

    1. The speed and direction of the fan can only be controlled with the remote control. A solid-state variable speed control cannot be used with this fan.

      Helpful?

  4. Is the fan reversible

    1 answer

    1. This fan can be reversed. To reverse the direction of the blades, you will slide the reverse switch (located on the top of the motor housing) to the opposite side.

      Helpful?

  5. How many CFM does the fan produce at each of the 6 speeds?

    1 answer

    1. The fan will put out 5,000 CFM at the lowest rating and 20,000 CFM on the high speed. The fan is not rated for individual CFM per each speed setting.

      Helpful?

  6. What is the minimum distance from the blade to the ceiling?

    1 answer

    1. The minimum distance from the blade to the ceiling is 22".

      Helpful?

  7. what is the fan rpm range? shows 90rpm but no range for the 6 speeds.

    1 answer

    1. The estimated range of RPM's for the fan are from 35 on low up to 90 on high.

      Helpful?

  8. can fan be set to run continuously using the remote control and at one of the 6 speeds?

    1 answer

    1. The remote control has an operation duration timer from 1 to 8 hours. Each speed level can be chosen with the remote control and the fan can be run continuously without using the timer function on the remote.

      Helpful?

Warranty

Manufacturer's Warranty

1 year Limited Warranty
