Banjo, 3in. TRANSFER PUMP W/200CC GX200 Max. Flow 17400 GPM, Engine Displacement 196 cc, Model# 300PH-6-200E.BAN

Item# 42649
Banjo, 3in. TRANSFER PUMP W/200CC GX200 Max. Flow 17400 GPM, Engine Displacement 196 cc, Model# 300PH-6-200E.BAN

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Banjo, 3in. TRANSFER PUMP W/200CC GX200 Max. Flow 17400 GPM, Engine Displacement 196 cc, Model# 300PH-6-200E.BAN

Click or Tap image to Zoom

$1299.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Handles high-capacity liquid transfer jobs
  • Up to 300 GPM flow rate

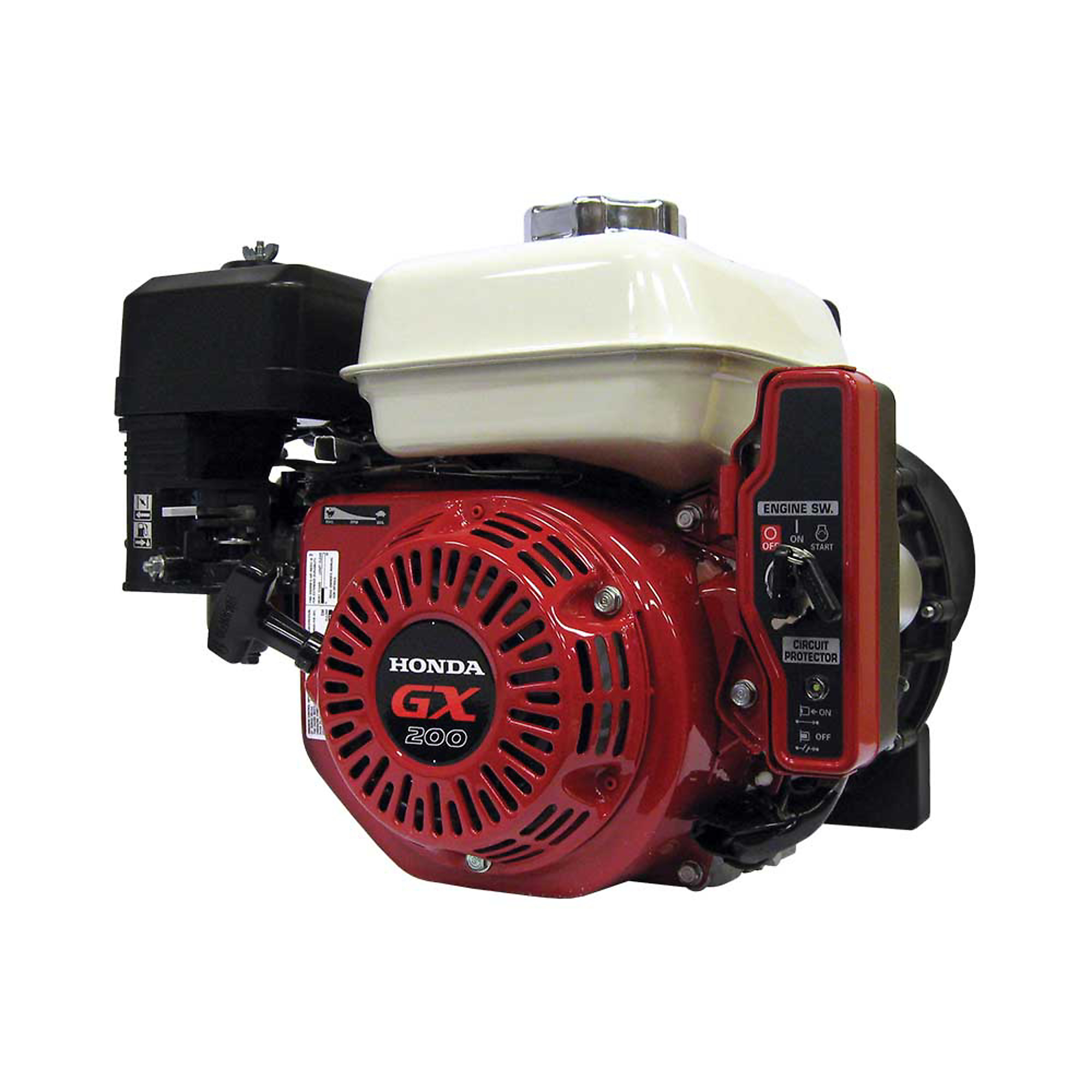

  • Honda GX200 engine with electric start for easy starts and reliability
  • Approx. 5.5 HP
  • Polypropylene housing

See full description

Complete Your Solution

  • Banjo, 3in. TRANSFER PUMP W/200CC GX200 Max. Flow 17400 GPM, Engine Displacement 196 cc, Model# 300PH-6-200E.BAN
  • JGB Enterprises Water Pump Suction Hose, 3in. x 15ft., Model# A007-0489-1615
  • JGB Enterprises Water Pump Discharge Hose, 3in. x 50ft., Model# A008-0486-1650
  • JGB Enterprises Pump Hose Kit, 3in. Dia., 15ft. Suction Hose, 20ft. Discharge Hose, Model# A007-NTEHOSEKIT-3
Price for all four:

$1814.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

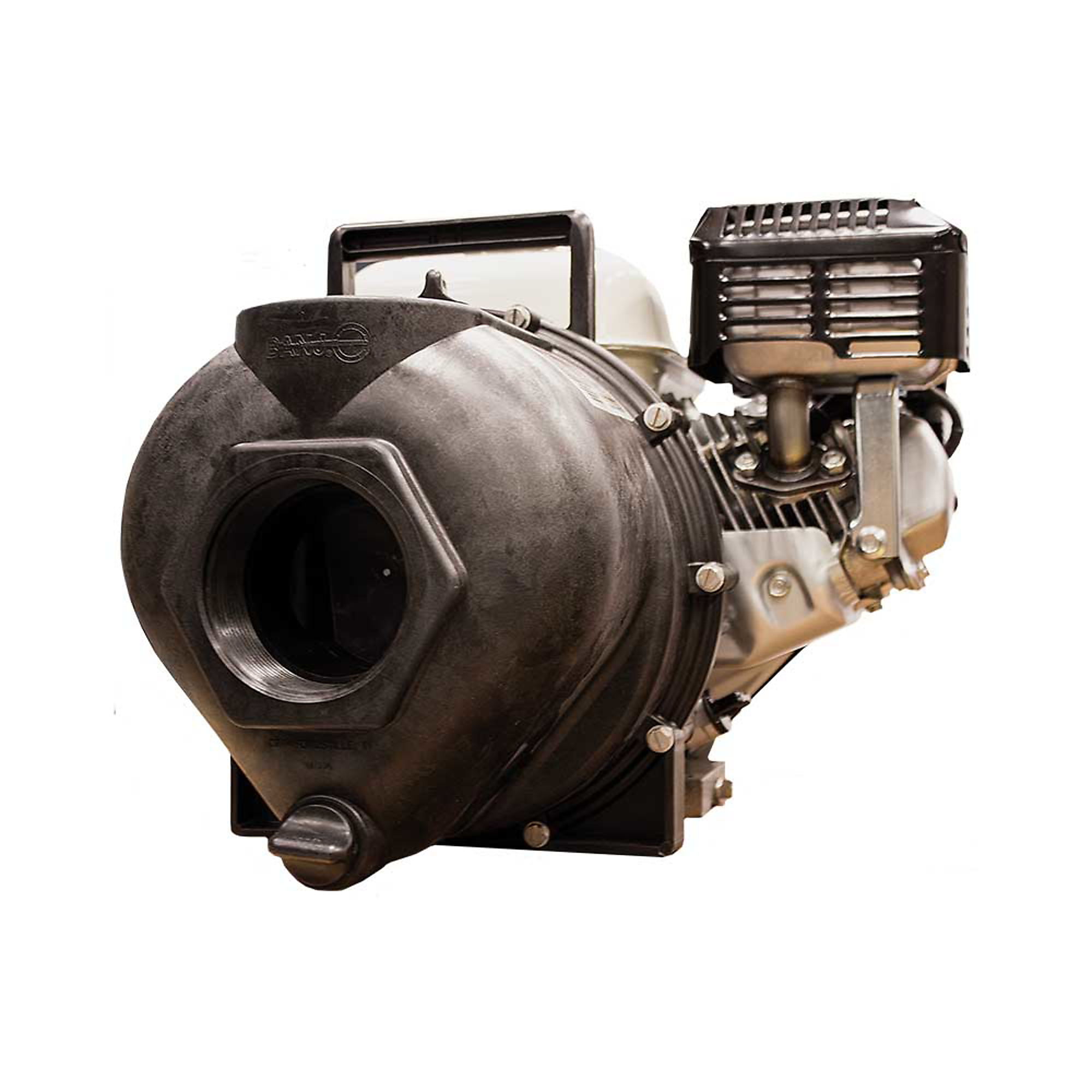

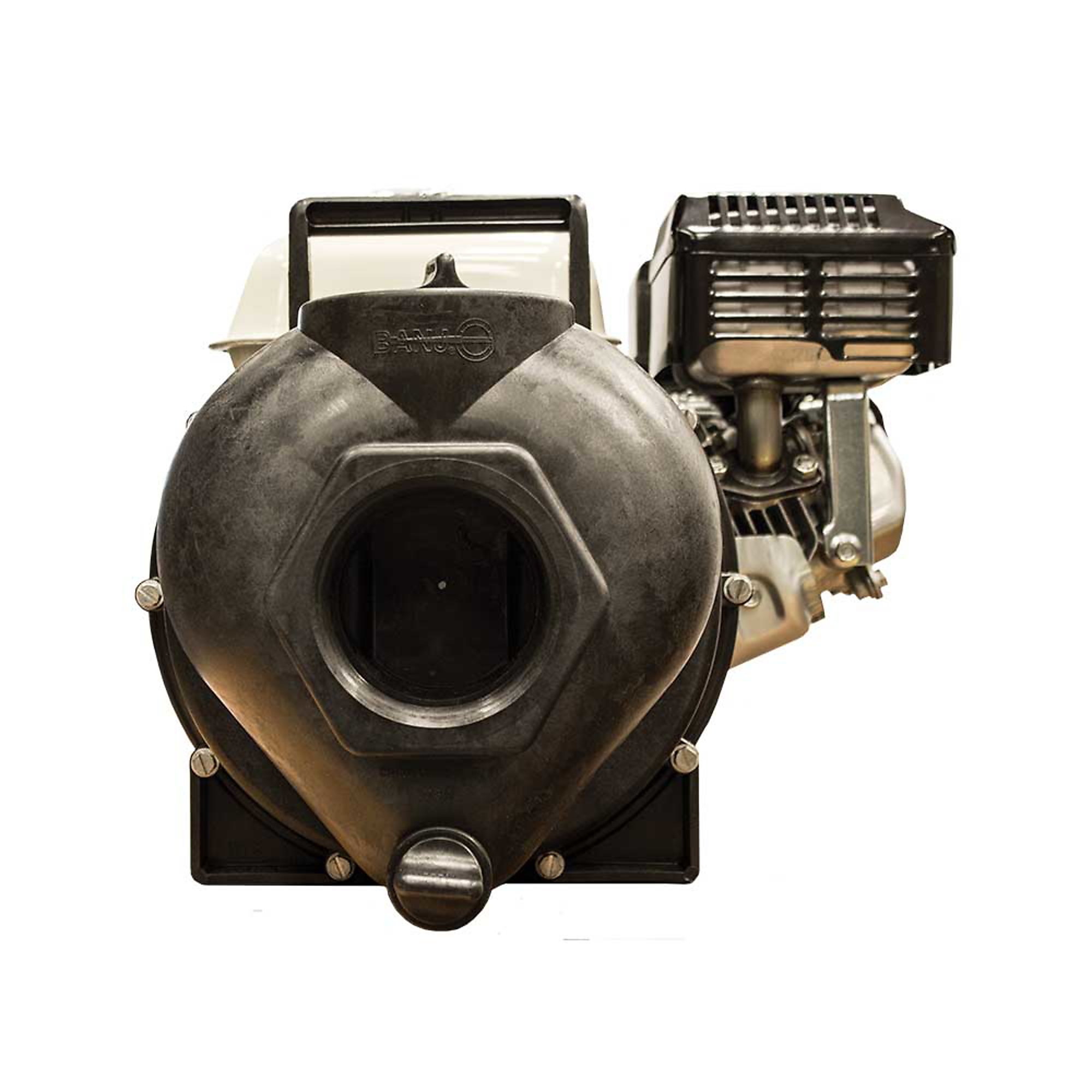

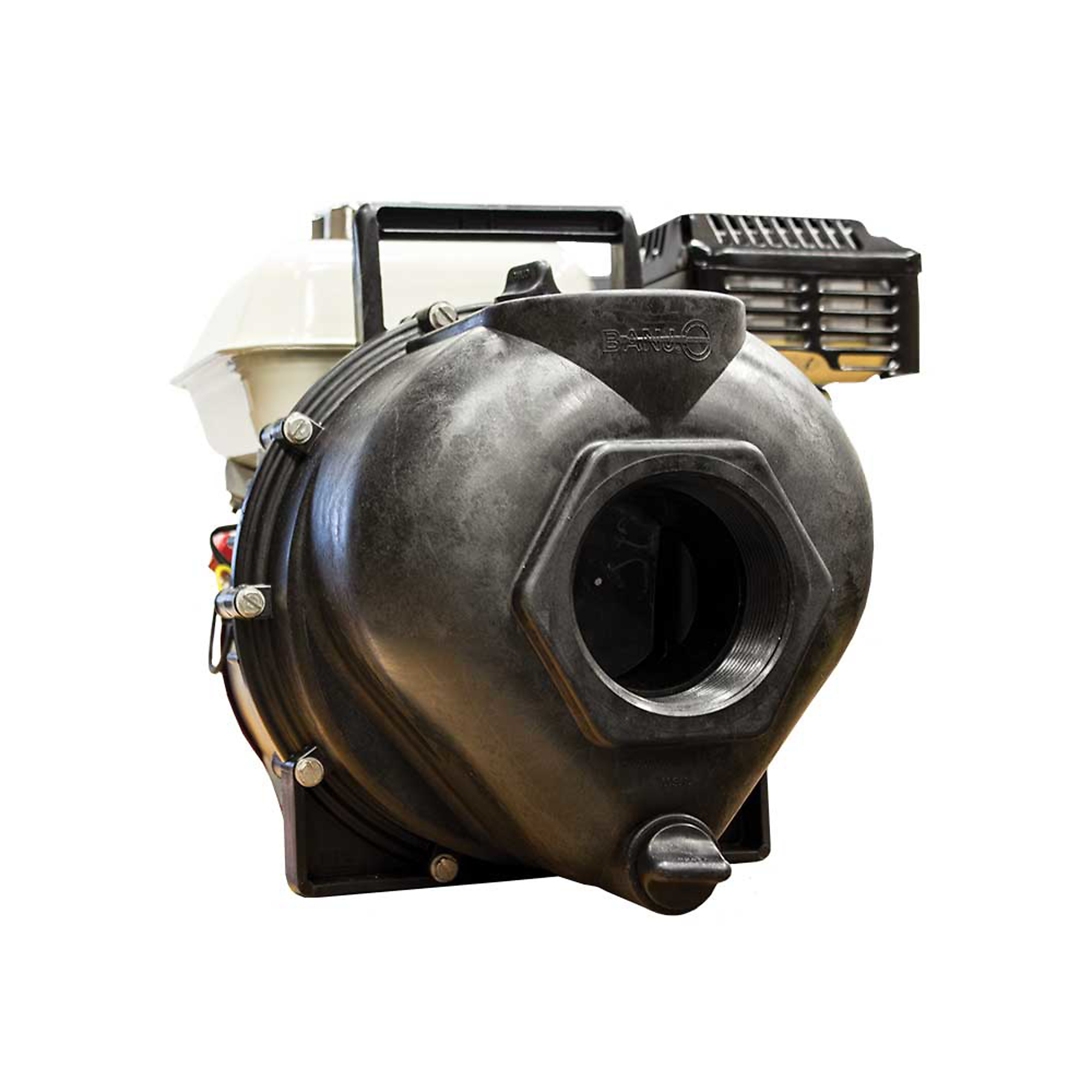

This Banjo Self-Priming Transfer Chemical Water Pump features a Honda GX200 engine with electric start to efficiently handles high-capacity liquid transfer jobs with flow rates up to 300 GPM. Ideal for farming, transfer of corrosive chemicals, dewatering and lawn and garden irrigation.

What's Included

    (1) Transfer pump

Downloads

Product Manual

Features + Benefits

  • Handles high-capacity liquid transfer jobs
  • Up to 300 GPM flow rate
  • Honda GX200 engine with electric start for easy starts and reliability
  • Approx. 5.5 HP
  • Polypropylene housing
  • Nylon impeller for improved strength
  • EPDM seal for longevity and reliability
  • Stainless steel hardware
  • V-shaped body for quick priming
  • Large weep holes
  • Heavy-duty slinger seal
  • Large drain and prime plug thumb screws

Key Specs

AttributeSpecification

item#

42649

Brand

Banjo

Manufacturer's Warranty

1 year limited warranty

Ship Weight

60.0 LB

Max. Flow

17,400 GPM

Engine Displacement

196 cc
AttributeSpecification

Port Size

3 in

Self-Priming

Yes

Housing Material

Polypropylene

Product Weight

lb

Dimensions L x W x H (in.)

21.0 x 17.0 x 15.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. 1. Can you mount this pump on skid? 2. Can you connect 2" hose on output to increase pressure?

    1 answer

    1. This water pump is not designed to be mounted to a skid. A mounting bracket would have to be fabricated by the user without modifying the pump or the warranty would be voided. Reducing the output side is not recommended as it could create back pressure and damage the pump.

      Helpful?

  2. What port is the discharge

    1 answer

    1. The 3" discharge port is located on the top of the pump.

      Helpful?

  3. What is the Maxine water pressure

    1 answer

    1. The maximum pressure on this pump would be 35 PSI with an 80 ft head and 30 PSI with a 69 ft head.

      Helpful?
