Bailey Electro-Hydraulic Third Function Kit, Model# KIT-TFK3T

Item# 64790
Bailey Electro-Hydraulic Third Function Kit, Model# KIT-TFK3T

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Bailey Electro-Hydraulic Third Function Kit, Model# KIT-TFK3T

Click or Tap image to Zoom

$539.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 12 GPM flow rating
  • 3600 PSI pressure rated
  • 12V DC D03 solenoid valve
  • 3-position spring center tandem
  • 2-button, 3-wire handle with adjustable mount

See full description

Complete Your Solution

  • Bailey Electro-Hydraulic Third Function Kit, Model# KIT-TFK3T
  • Apache Hydraulic Hose, 1/2in. x 48in.L, 2-Wire, 3,500 PSI
Price for all two:

$569.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

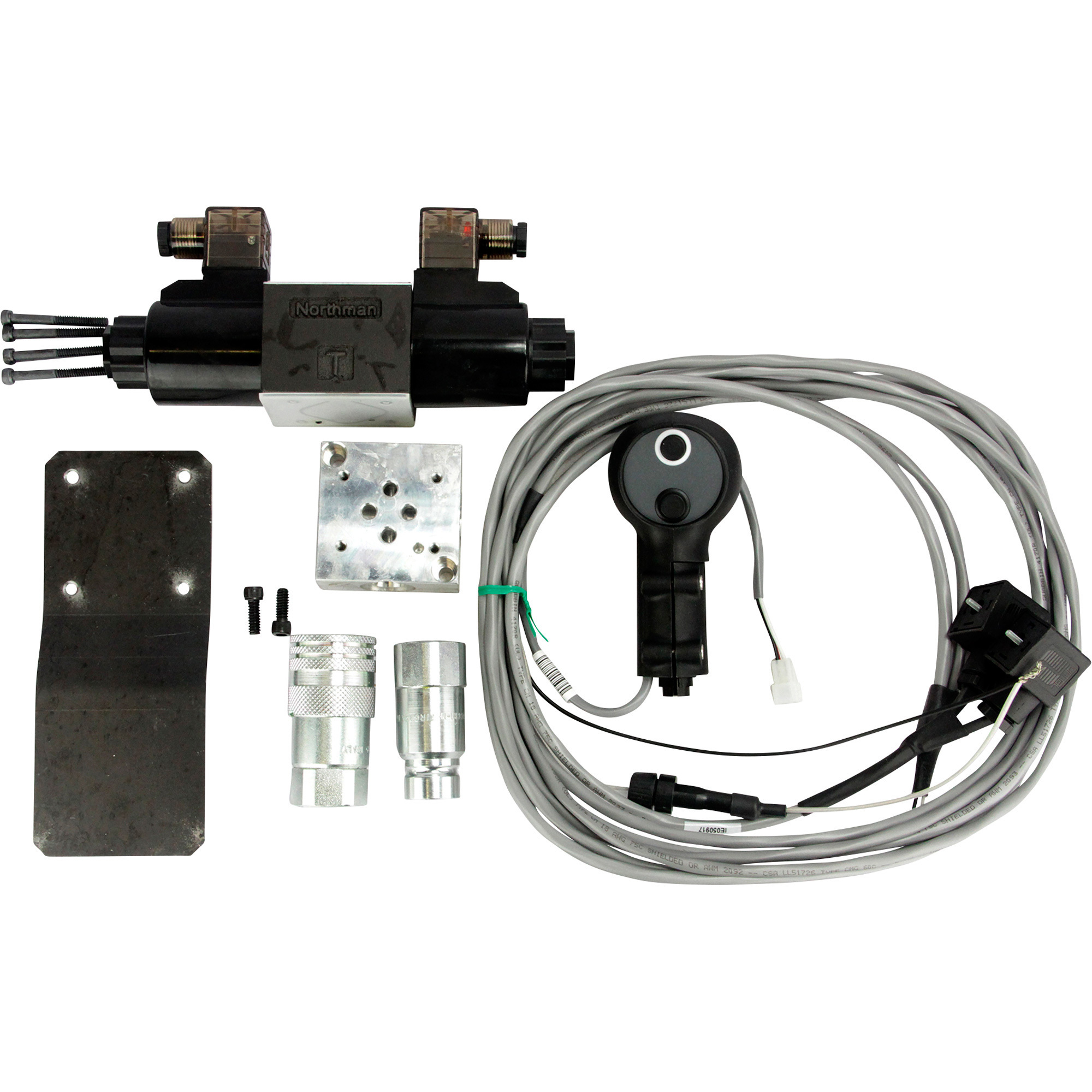

The Bailey Electro-Hydraulic Third Function Kit is used to add functionality to a front- or rear-mounted skid steer-style attachment, such as a backhoe, grapple, auger, forks, broom or blade. Adds functionality by utilizing the existing power beyond function on your tractor's valving. Kit comes with a D03 solenoid valve, manifold and mounting plate, plus diodes, wiring harness, Sure Grip AU series control handle, and quick-connect hose adapters. Kit does include installation and wiring information, but does not include hoses.

What's Included

    (1) D03 solenoid valve (1) Manifold (1) Mounting plate, (1) Diodes set (1) Wiring harness (1) Sure Grip AU series control handle (1) Set of quick-connect hose adapters

Downloads

Additional Product Info

Features + Benefits

  • 12 GPM flow rating
  • 3600 PSI pressure rated
  • 12V DC D03 solenoid valve
  • 3-position spring center tandem
  • 2-button, 3-wire handle with adjustable mount
  • 1/2in. NPT male flat-face coupling
  • 1/2in. NPT female flat-face coupling
  • 3in. x 7.19in. mounting bracket
  • 10ft. harness with in-line fuse
  • Installation guide and video available

Key Specs

AttributeSpecification

item#

64790

Brand

Bailey

Manufacturer's Warranty

3 year limited warranty
AttributeSpecification

Ship Weight

16.54 LB

Product Type

Electro-Hydraulic Third Function Kit

Compatible With

Front- or Rear-mounted Skid Steer-style Attachment

Reviews

Questions & Answers

Questions

1–4 of 4 Questions
Sort by:

  1. Is this the type of kit that controls the third function directly with the buttons, or does it use the buttons to switch your existing controls between the stock and third function?

    1 answer

    1. This item has a 3 position center control valve that will allow the user to control all 3 functions with the buttons.

      Helpful?

  2. Do you have a part number for just the manifold ??

    1 answer

    1. The manifold is part #791-053. At this time, we do not offer the manifold separately.

      Helpful?

  3. open or close center valve?

    1 answer

    1. This is a 3-position tandem center control valve.

      Helpful?

  4. A and B port size

    Does this come with 3/8 inch ports and couplers, vice 1/2"

    1 answer

    1. Northern Tool does not currently offer this kit with 3/8" ports and couplers.
