Baileigh Semi-Automatic Metal Cutting Band Saw 1-1/4in.Blade, 3 HP, Volts 220, Model# BS-330SA

Item# 4765174
Baileigh Semi-Automatic Metal Cutting Band Saw 1-1/4in.Blade, 3 HP, Volts 220, Model# BS-330SA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh Semi-Automatic Metal Cutting Band Saw 1-1/4in.Blade, 3 HP, Volts 220, Model# BS-330SA

Click or Tap image to Zoom

$21,029.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Maximum capacity of 13” OD round at 90°.
  • Accepts a 1.25” blade, a large size for greater accuracy and speed.
  • Variable blade speed ranges from 82 to 270 fpm.

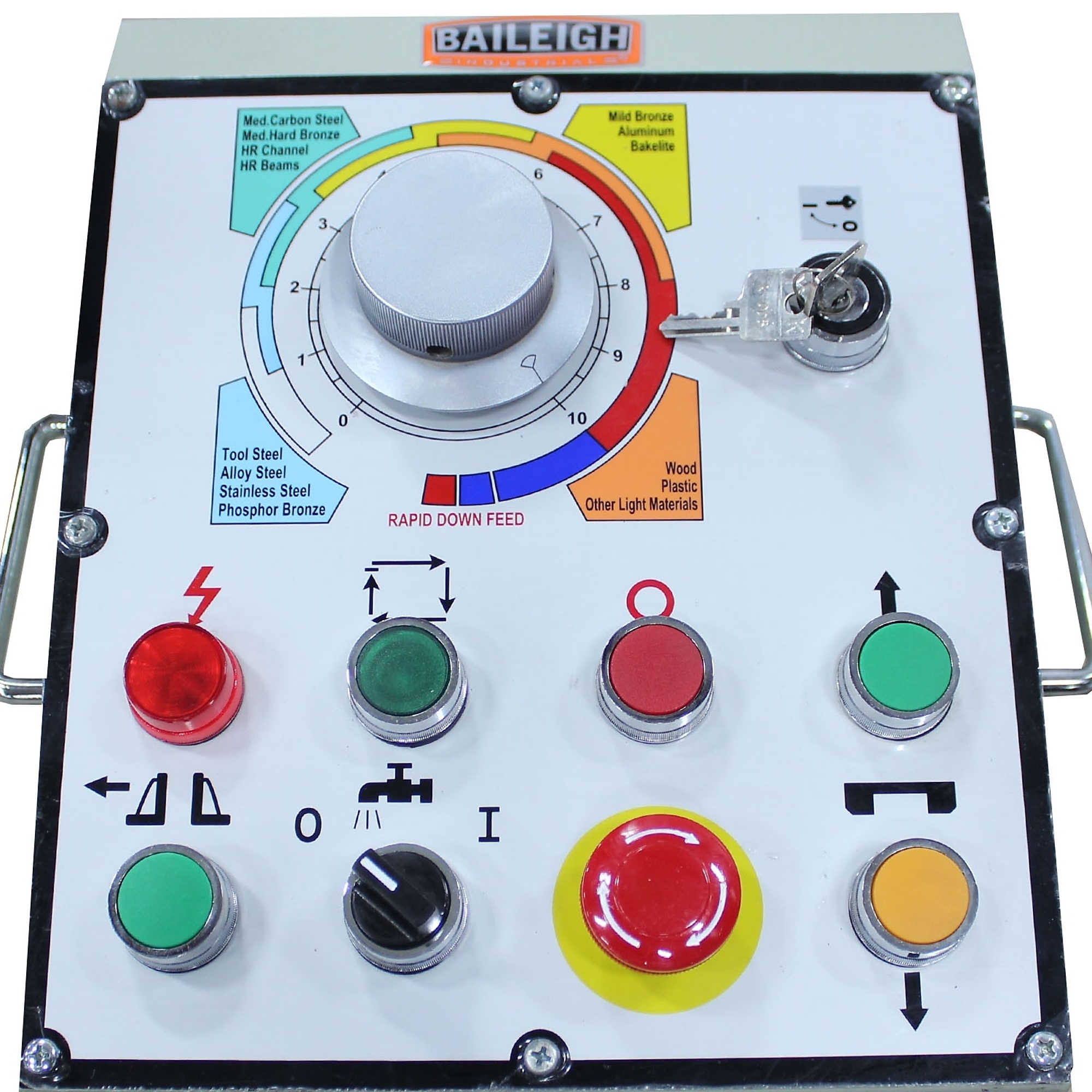

  • You can adjust the dial to set the speed at the perfect fpm for your material.
  • 3 hp motor runs on 220-volt three-phase power.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

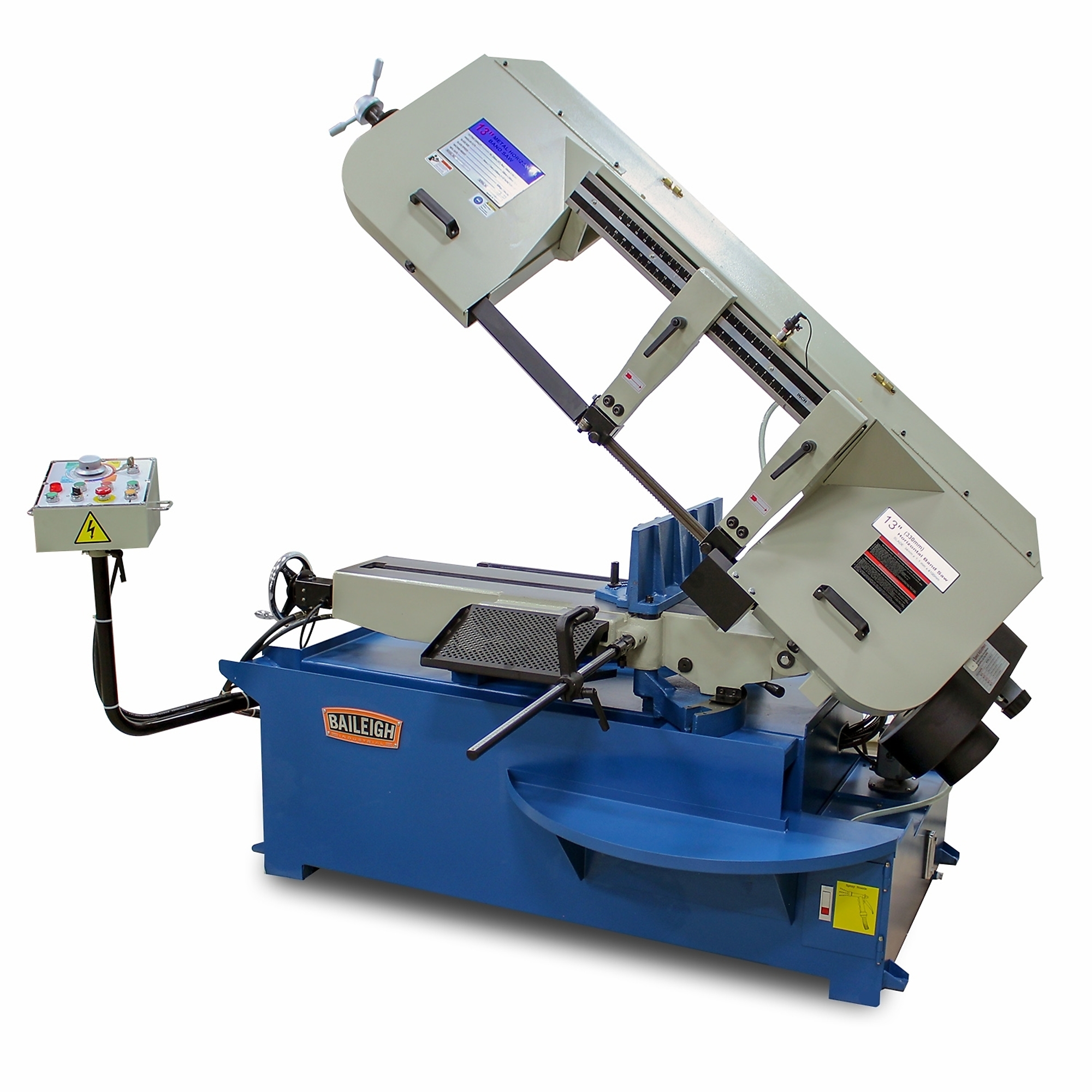

The Baileigh Semi-Auto Metal Cutting Band Saw is a powerful and reliable tool designed for professional use in metalworking shops. With a robust 3 HP motor and operating on 220 Volts, this corded band saw delivers the performance needed for demanding cutting tasks. Its horizontal design is complemented by a hydraulic vise, downfeed, and bow return, all of which contribute to enhanced efficiency and ease of use. The hydraulic vise ensures secure clamping of materials, while the downfeed mechanism allows for controlled and precise cutting. The automatic bow return feature further streamlines the cutting process, reducing manual intervention and increasing productivity. With over a decade of proven dependability, the BS-330SA stands out as a durable and efficient solution for metal cutting applications, making it an indispensable addition to any professional workshop.

What's Included

    (1) BS-330SA

Features + Benefits

  • Maximum capacity of 13” OD round at 90°.
  • Accepts a 1.25” blade, a large size for greater accuracy and speed.
  • Variable blade speed ranges from 82 to 270 fpm.
  • You can adjust the dial to set the speed at the perfect fpm for your material.
  • 3 hp motor runs on 220-volt three-phase power.
  • Gear-driven transmission makes the machine more reliable. No belts to break and replace.
  • Saw head miters up to 45°.

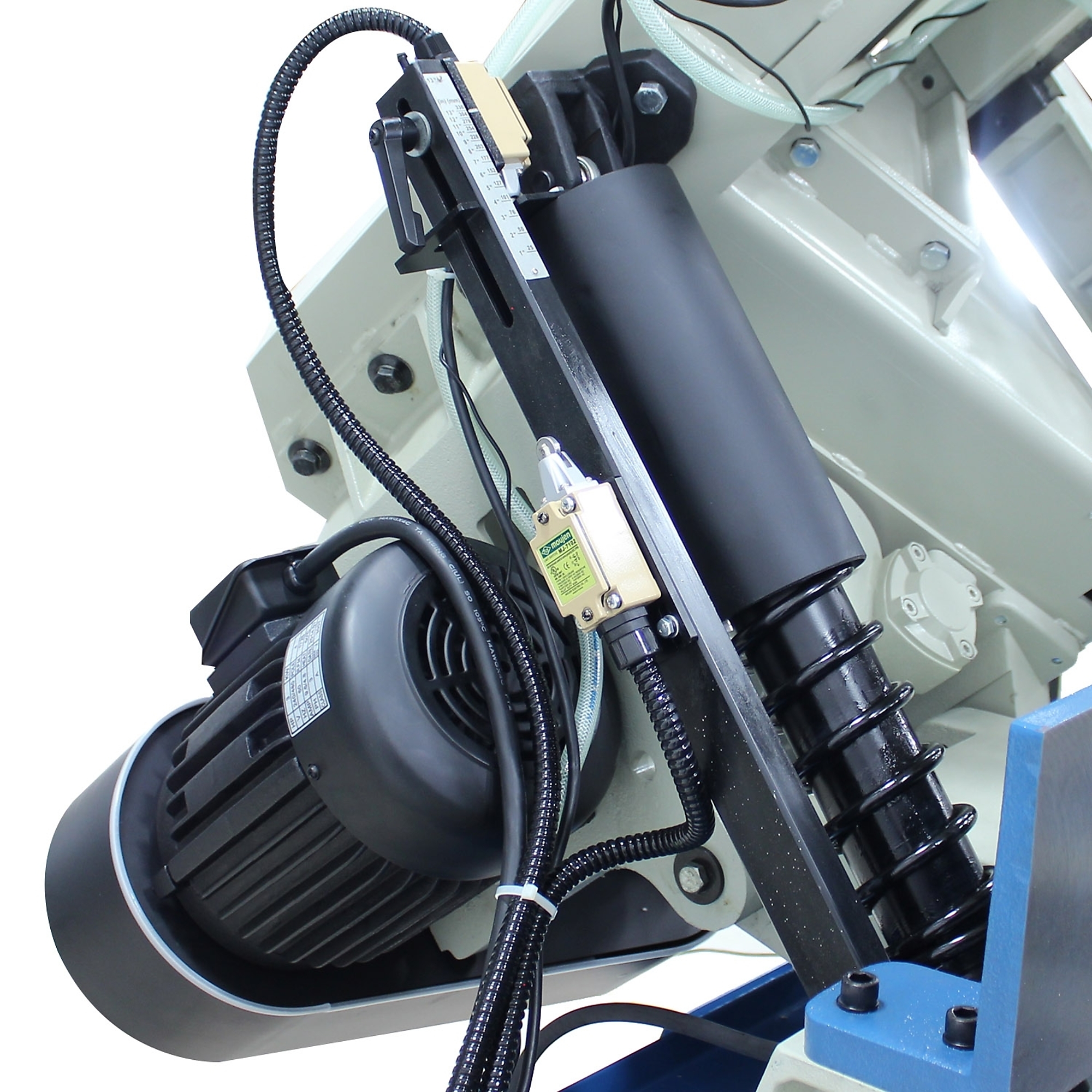

  • Industrial-grade hydraulic system clamps the vise, lowers the head, then raises the head back up after the cut is done.
  • Cast iron mitering head and bow reduce vibrations when cutting.
  • Tungsten carbide blade guides get as close as possible to the material to produce a clean, high-quality cut.
  • Laser pointer guide lets you see where the cut will be, for more accurate work.

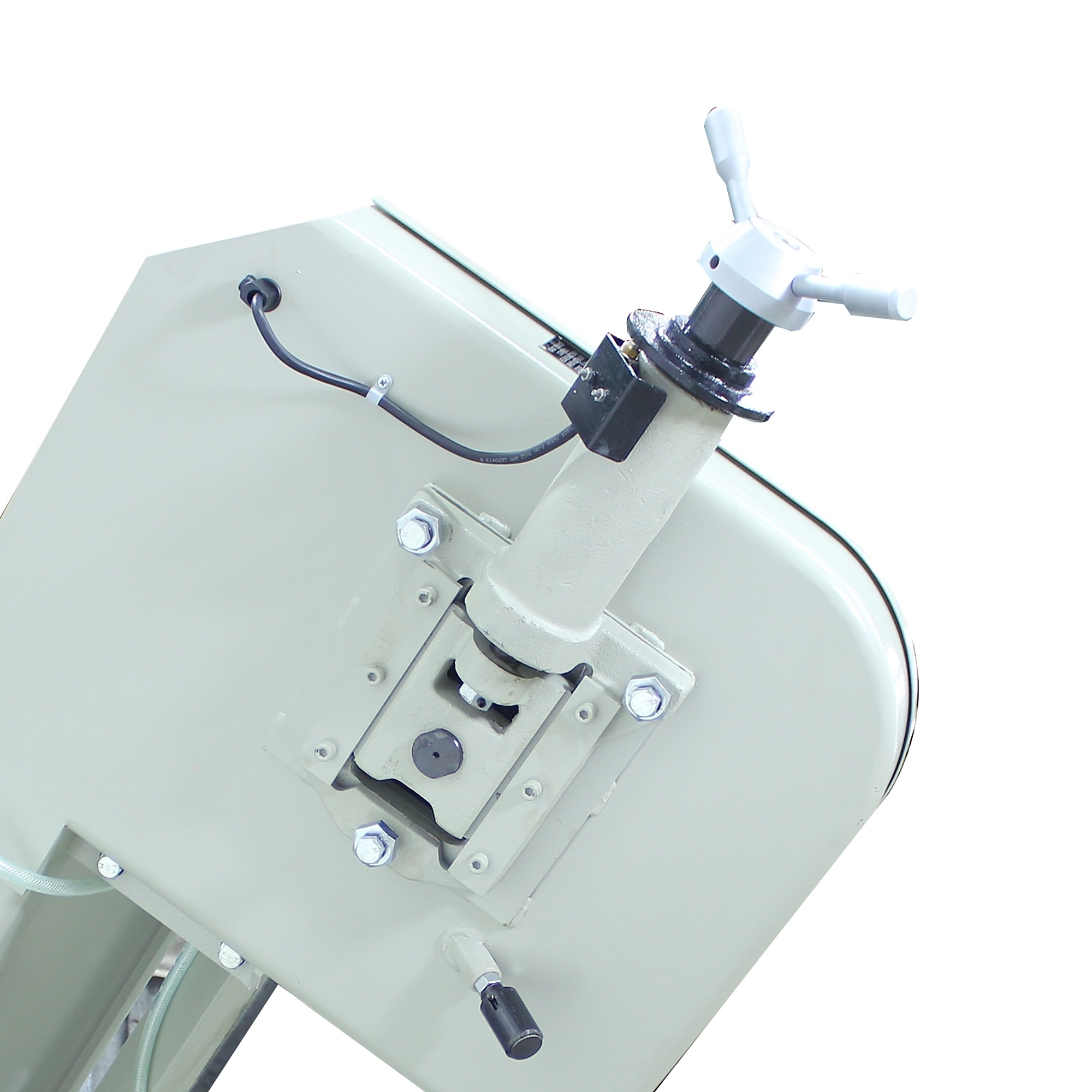

  • Patented blade tensioning gauge makes it simple to get the tension right. Simply adjust until the black arrow is lined up with the liquid-filled green area.
  • Electro-welded steel construction keeps the machine stable for more accurate cutting.

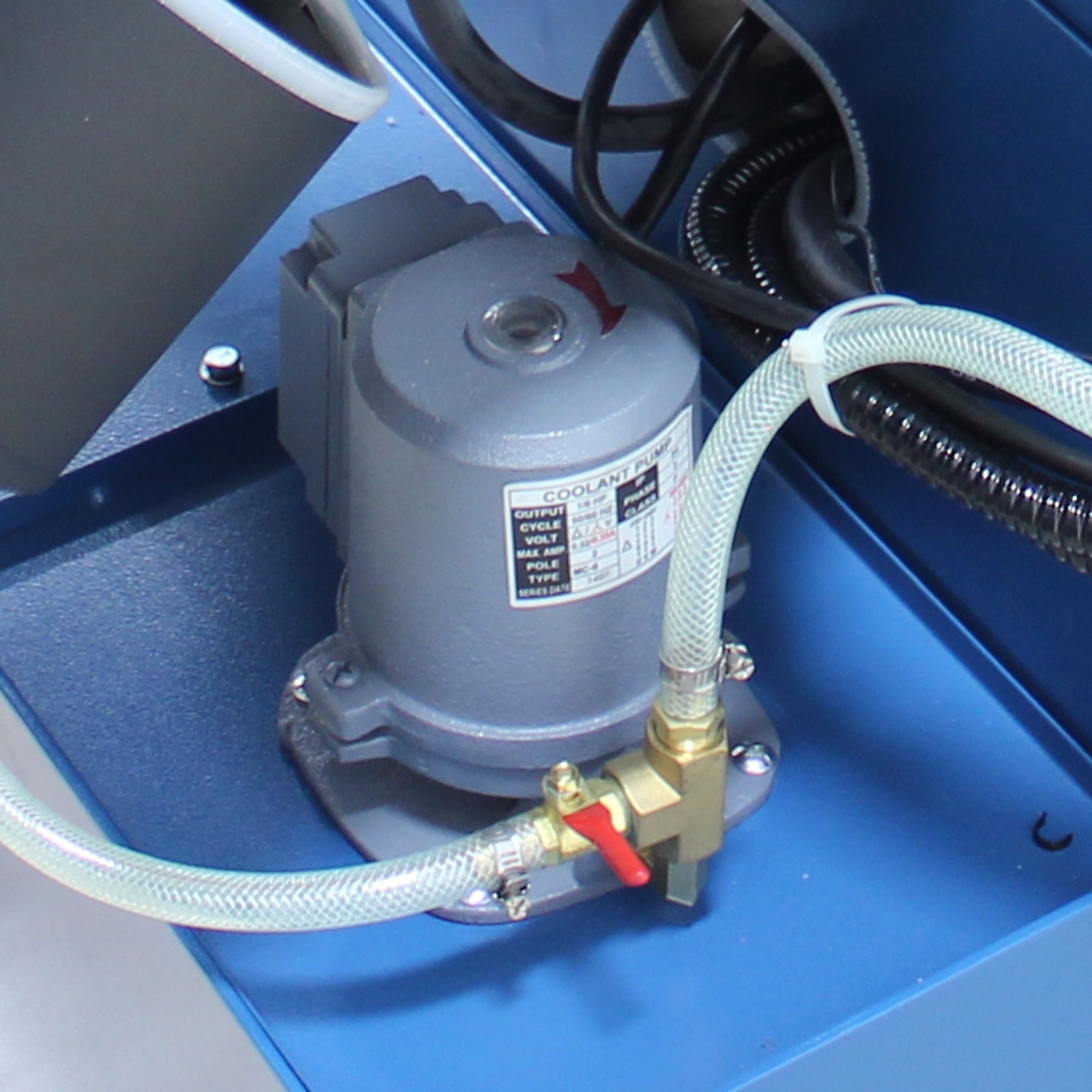

  • Large-capacity flood coolant system washes away metal chips and helps blades last longer.
  • You can get replacement parts quickly. We stock them at our headquarters in Wisconsin.
  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support by phone. Call our experienced reps if you need troubleshooting or project advice.

Key Specs

AttributeSpecification

item#

4765174

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1800.0 LB

Volts

220

Power Type

Corded

Motor Type

Brushed

Phase

Three-phase

Variable Speed

Yes
AttributeSpecification

Max. Cutting Capacity

270 SFPM

Table Tilt Left Max. Degrees

45

Table Tilt Right Max. Degrees

45

Cuts Through

13" Round

Case Included

No

No Tool Blade Change

No

Horsepower

3 HP

Product Weight

1800.0000 lb

Dimensions L x W x H (in.)

90.0 x 38.0 x 60.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
