Baileigh Semi Automatic Dual Mitering 13in. Blade Band Saw, 3 HP, Volts 220, Model# BS-20SA-DM

Item# 4765107
Baileigh Semi Automatic Dual Mitering 13in. Blade Band Saw, 3 HP, Volts 220, Model# BS-20SA-DM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh Semi Automatic Dual Mitering 13in. Blade Band Saw, 3 HP, Volts 220, Model# BS-20SA-DM

Click or Tap image to Zoom

$23,999.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Maximum capacity of 13” OD round at 90°.
  • Accepts a 1.25” blade (included). The large size makes faster and more accurate cuts.
  • Dual-mitering band saw can move 45° left and 60° right. Just push or pull the head to the right angle.
  • Inverter drive allows for infinite blade speed adjustments from 69 to 306 fpm.
  • You can fine-tune the speed for materials like mild steel, bronze, or aluminum.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

We built this semi-automatic dual miter band saw with a cast iron bow and steel frame to offer decades of reliable quality. Its hydraulic system will speed up production and save you effort.

What's Included

    (1) BS-20SA-DM

Features + Benefits

  • Maximum capacity of 13” OD round at 90°.
  • Accepts a 1.25” blade (included). The large size makes faster and more accurate cuts.
  • Dual-mitering band saw can move 45° left and 60° right. Just push or pull the head to the right angle.
  • Inverter drive allows for infinite blade speed adjustments from 69 to 306 fpm.
  • You can fine-tune the speed for materials like mild steel, bronze, or aluminum.

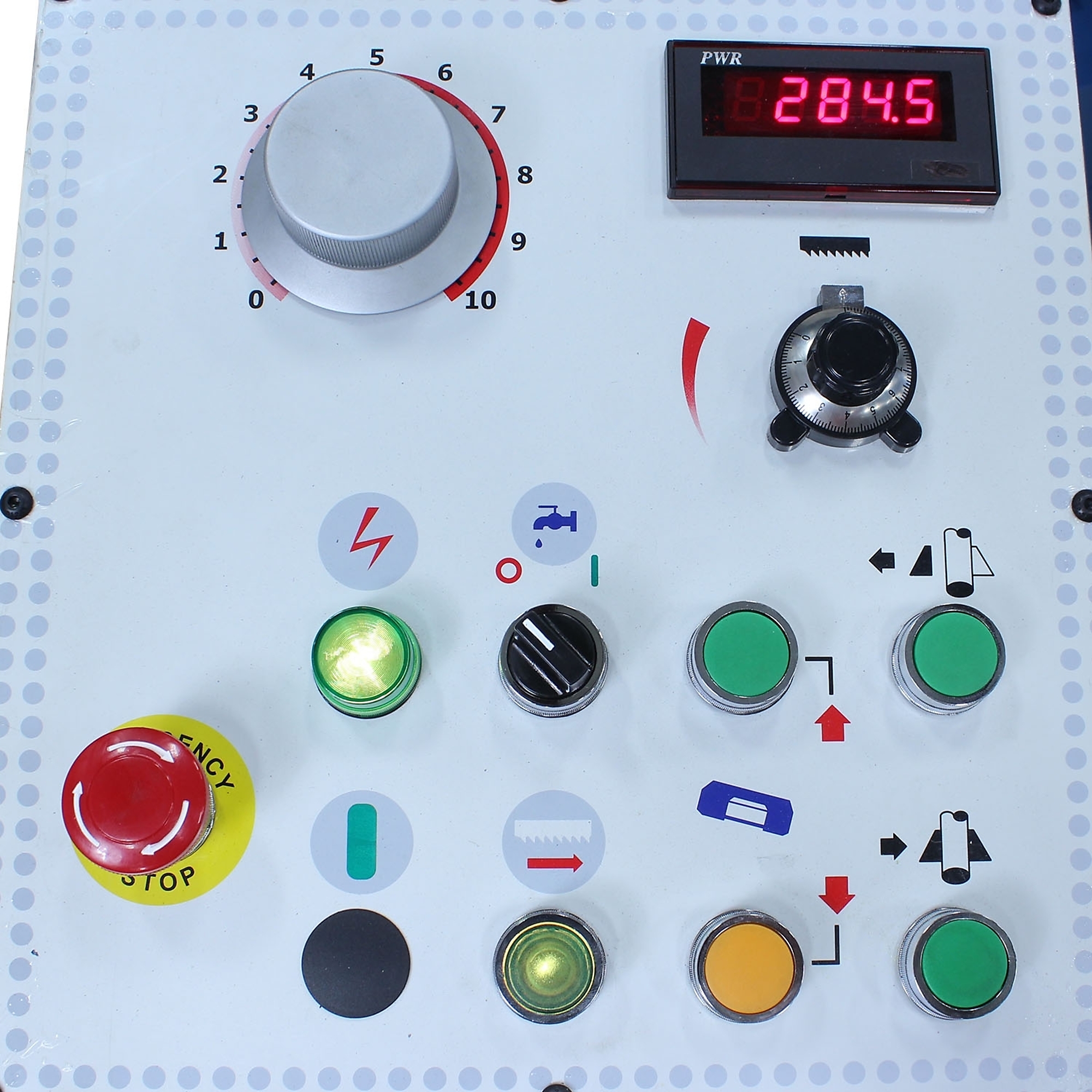

  • Digital readout (DRO) allows you to reproduce settings with ease.
  • Available in 220-volt or 440-volttriple-phase models (440-volt is a special order).
  • Cast iron bow resists vibrations and helps to ensure a high-quality cut.

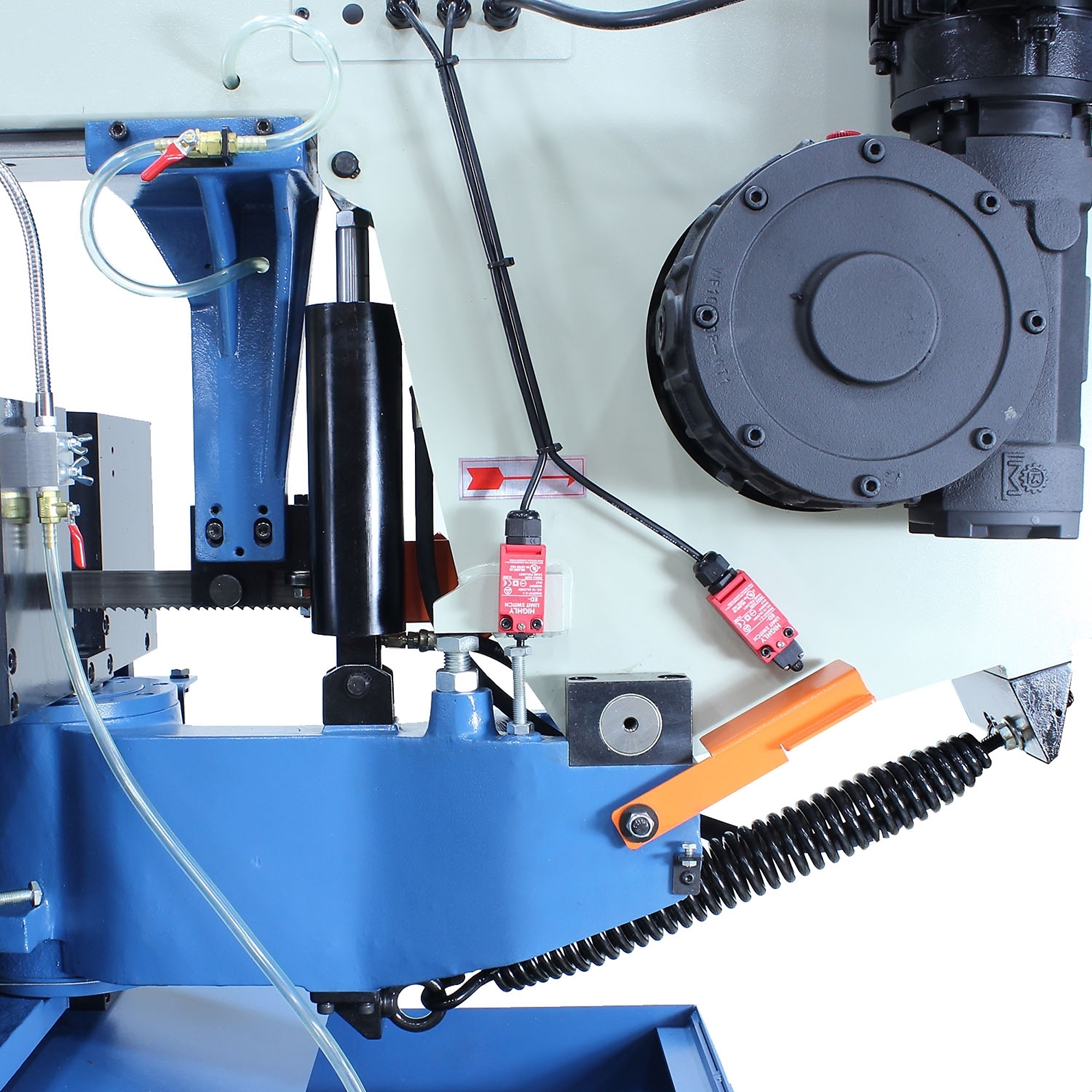

  • Hydraulic vise, downfeed, and bow return make production runs more efficient. Set down the material, press start, and the saw will automatically handle the rest.
  • You can adjust the hydraulic descent pressure (depending on the material) to achieve faster cut times and longer blade life.
  • Cutting head return position can be altered for faster cycle times between cuts on smaller pieces.
  • Comes with heavy-duty infeed and outfeed tables for easier material handling.

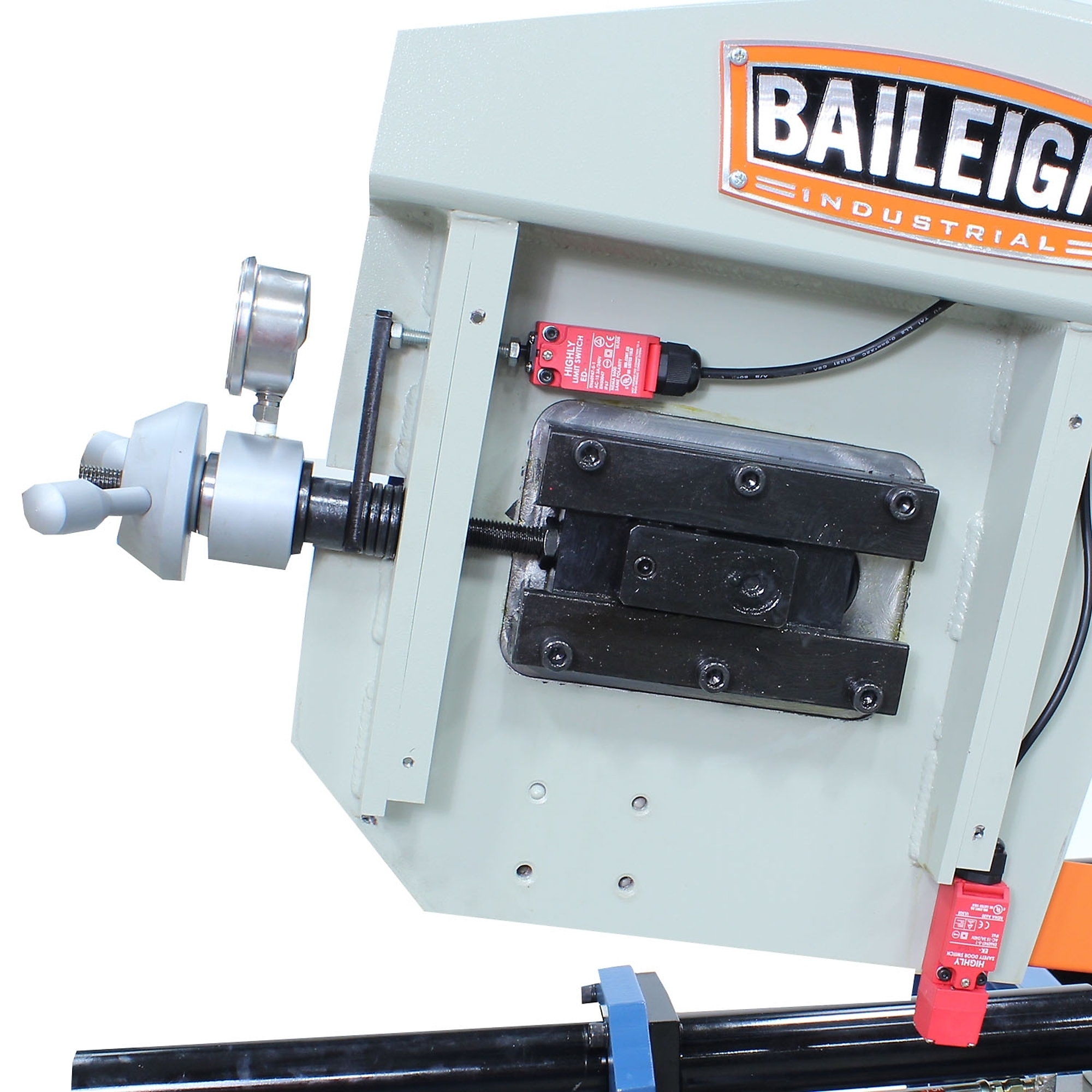

  • Our patented blade tension device lets you easily set the right tension. Adjust until the black arrow lines up with the green liquid-filled gauge.
  • Electro-welded steel framegives the machine structural strength to maintain accuracy.
  • Compact floor plan conserves space in your shop.

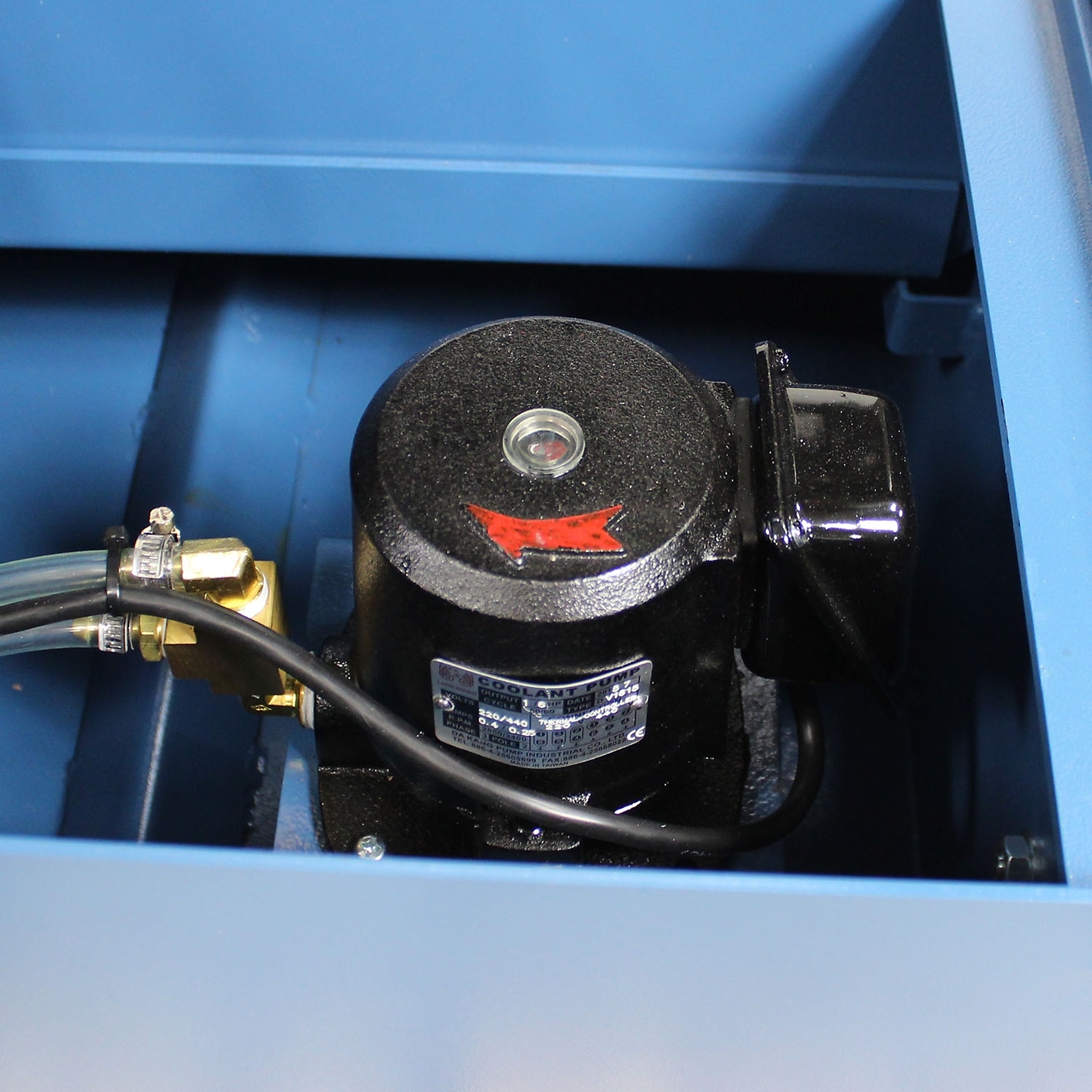

  • High-pressure flood coolant system washes away metal chips and helps blades last longer.
  • We typically keep this horizontal band saw and its parts in stockfor fast deliveries.
  • This dual miter band saw is covered by a 1-year parts warranty.
  • You can count on lifetime technical support by phone. Talk to a Baileigh rep with hands-on machine experience whenever if you need help.

Key Specs

AttributeSpecification

item#

4765107

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2370.0 LB

Volts

220

Power Type

Corded

Motor Type

Brushed

Phase

Three-phase

Variable Speed

Yes
AttributeSpecification

Max. Cutting Capacity

306 SFPM

Table Tilt Left Max. Degrees

45

Table Tilt Right Max. Degrees

60

Cuts Through

13" Round, 13" Square

Case Included

No

No Tool Blade Change

No

Horsepower

3 HP

Product Weight

2370.0000 lb

Dimensions L x W x H (in.)

90.0 x 36.0 x 66.0 in
