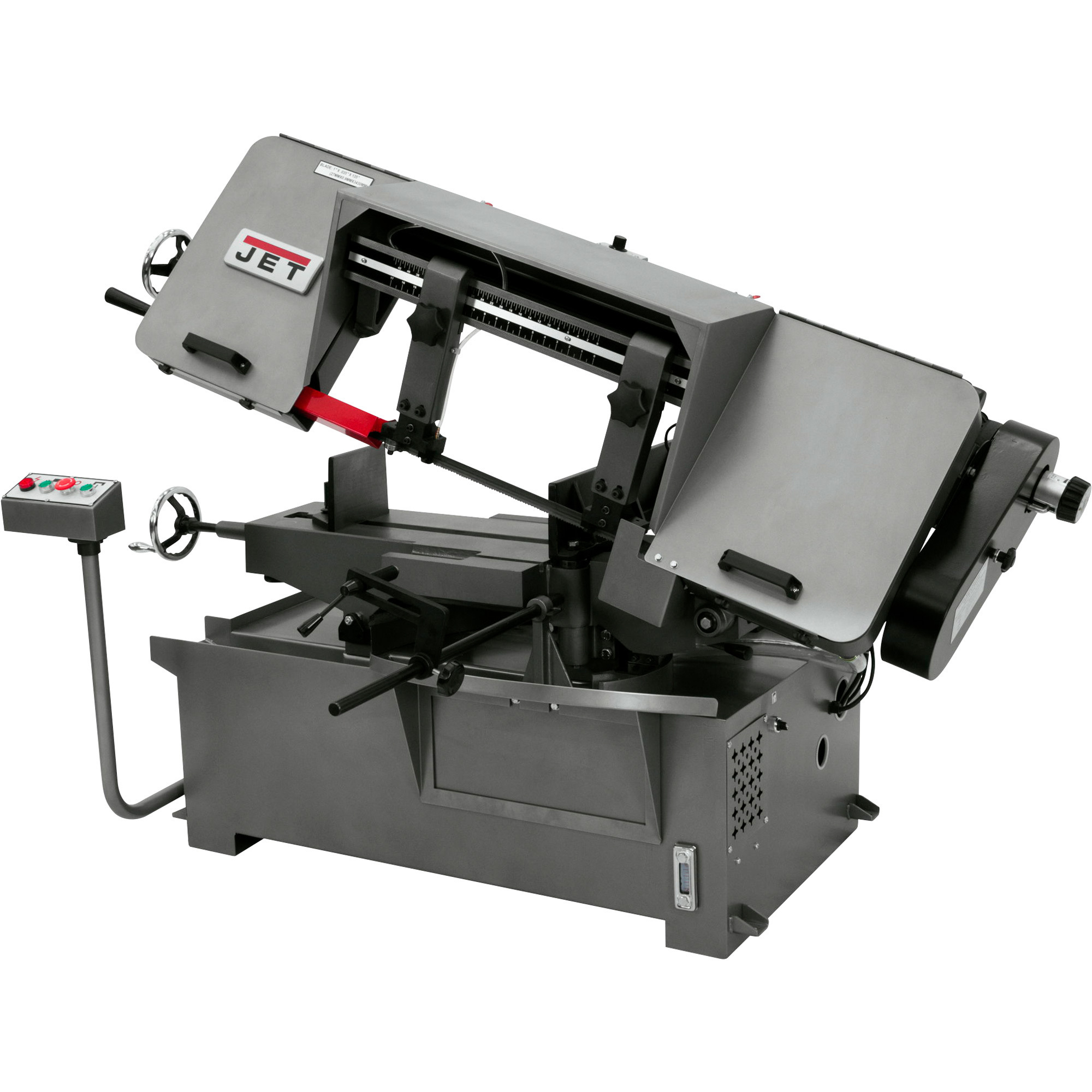

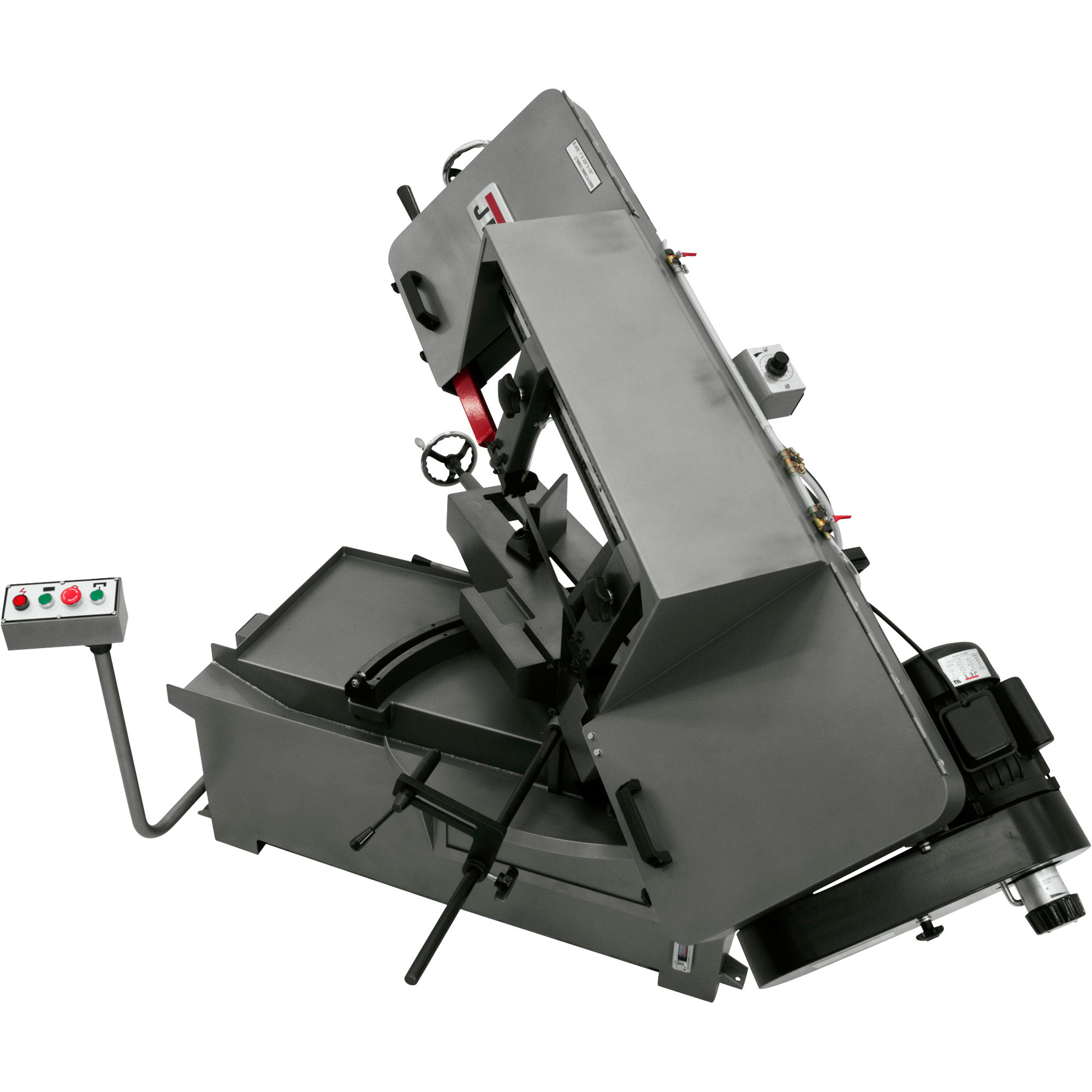

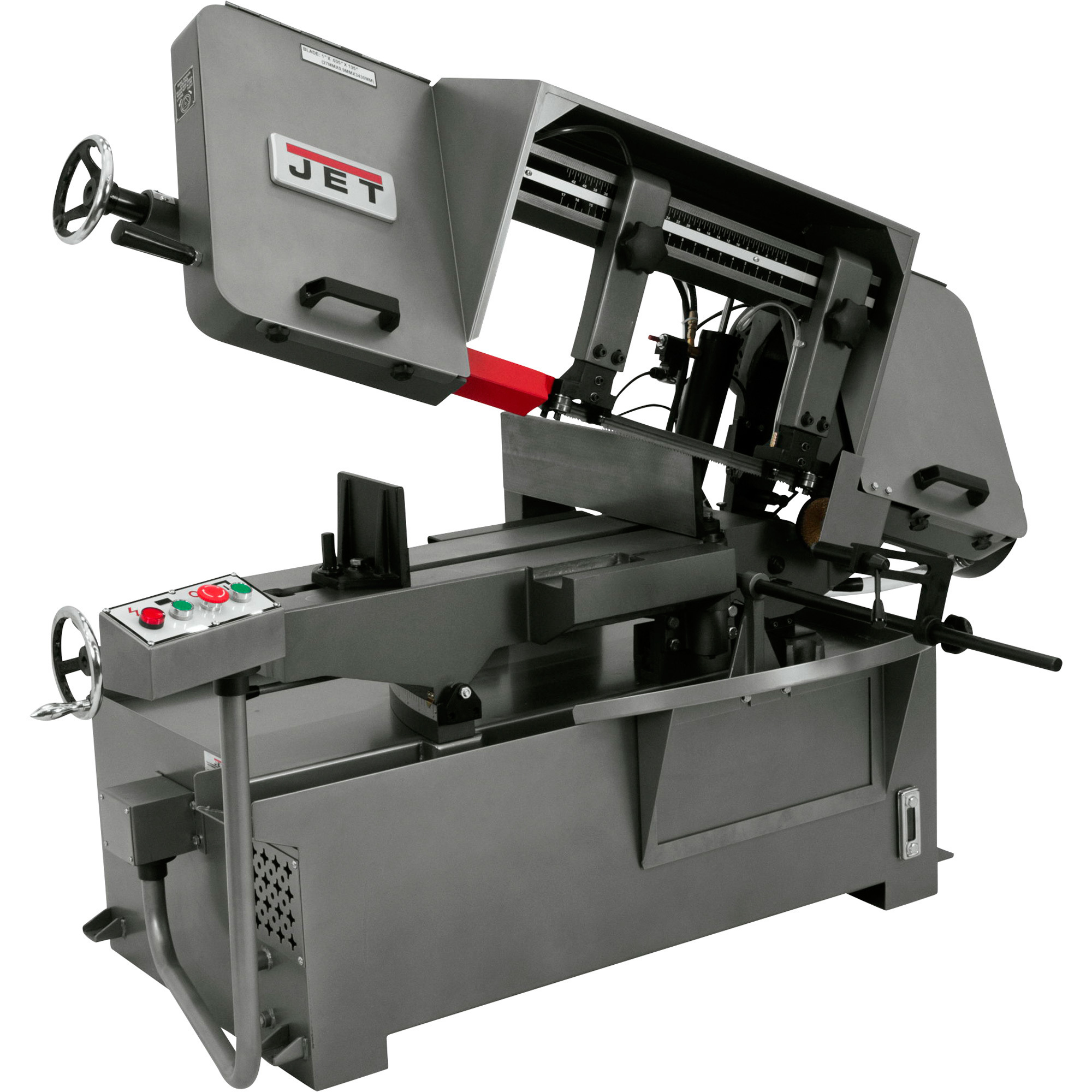

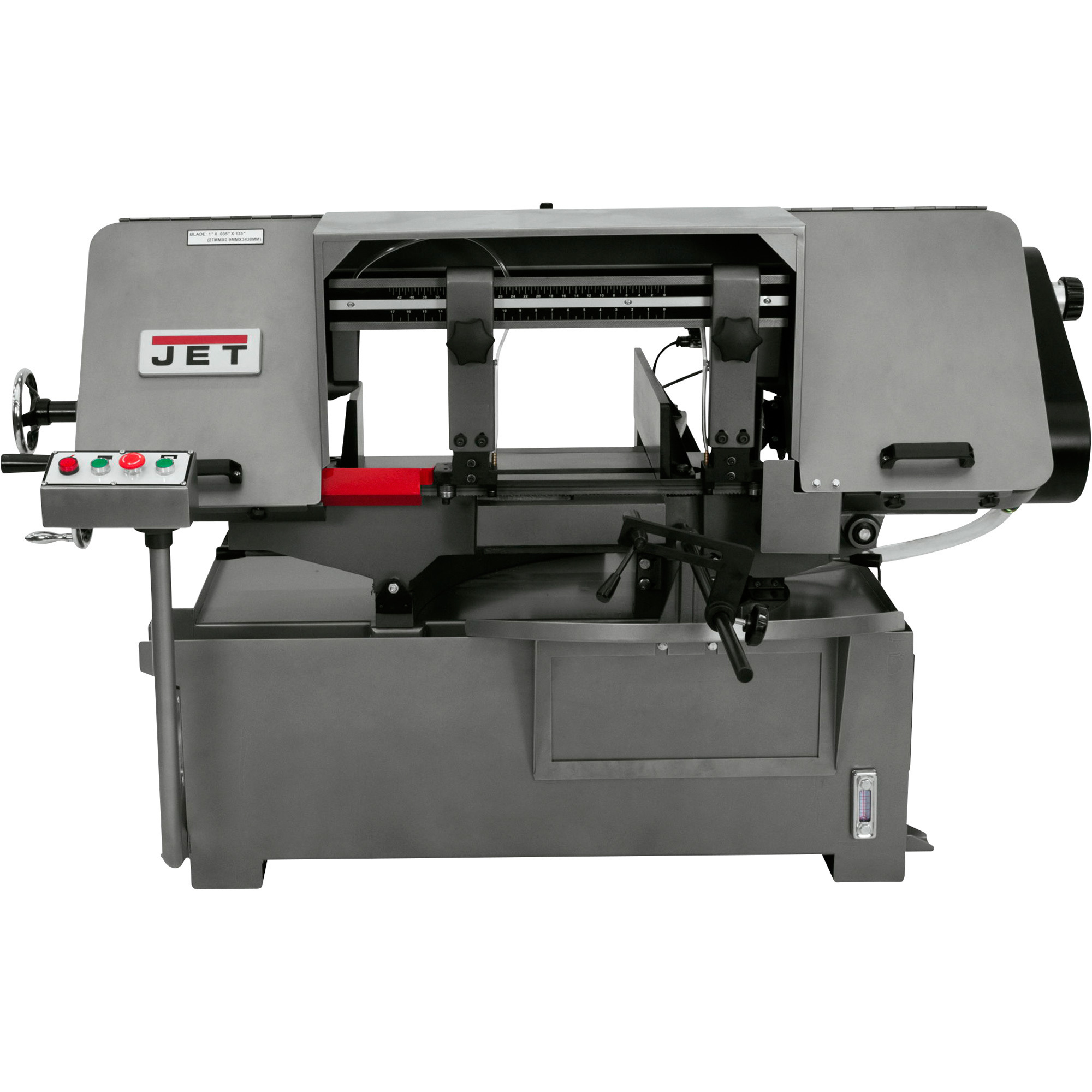

JET Horizontal Mitering Band Saw, 10in. x 16in., 2 HP, 460V, 3-Phase, Model# J-7040M-4

Item# 66146
JET Horizontal Mitering Band Saw, 10in. x 16in., 2 HP, 460V, 3-Phase, Model# J-7040M-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Horizontal Mitering Band Saw, 10in. x 16in., 2 HP, 460V, 3-Phase, Model# J-7040M-4

Click or Tap image to Zoom

$10,297.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Mitering head swivels to cut any angle 0 degrees to 45 degrees while the work piece remains secured
  • Swing-away control panel houses major saw controls
  • Variable speed drive system allows the operator to easily fine tune the blade speed
  • Adjustable blade guide with 6 contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
  • Blade rides on 2 load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Horizontal Mitering Band Saw, 10in. x 16in., 2 HP, 460V, 3-Phase, Model# J-7040M-4
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
Price for all four:

$10,321.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 10in. x 16in. JET Horizontal Mitering Bandsaw has a unique design that features a swiveling head while the base remains stationary. This allows the stock to remain in the same position while making accurate crosscuts and miters. Powerful 2 HP, 460V, 3-phase motor. Item too large for lift gate. Forklift required for on site unloading.

What's Included

    (1) Horizontal mitering bandsaw

Downloads

Product Manual

Features + Benefits

  • Mitering head swivels to cut any angle 0 degrees to 45 degrees while the work piece remains secured
  • Swing-away control panel houses major saw controls
  • Variable speed drive system allows the operator to easily fine tune the blade speed
  • Adjustable blade guide with 6 contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
  • Blade rides on 2 load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally
  • Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
  • Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath
  • Rugged cast Iron blade wheels
  • Built-in coolant system
  • Adjustable material stop
  • 1in. bi-metal blade

Key Specs

AttributeSpecification

item#

66146

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

1200.0 LB

Volts

460

Variable Speed

Yes
AttributeSpecification

Max. Cutting Capacity

350 SFPM

Case Included

No

Horsepower

2 HP

Product Weight

lb

Dimensions L x W x H (in.)

76.0 x 30.0 x 48.0 in
