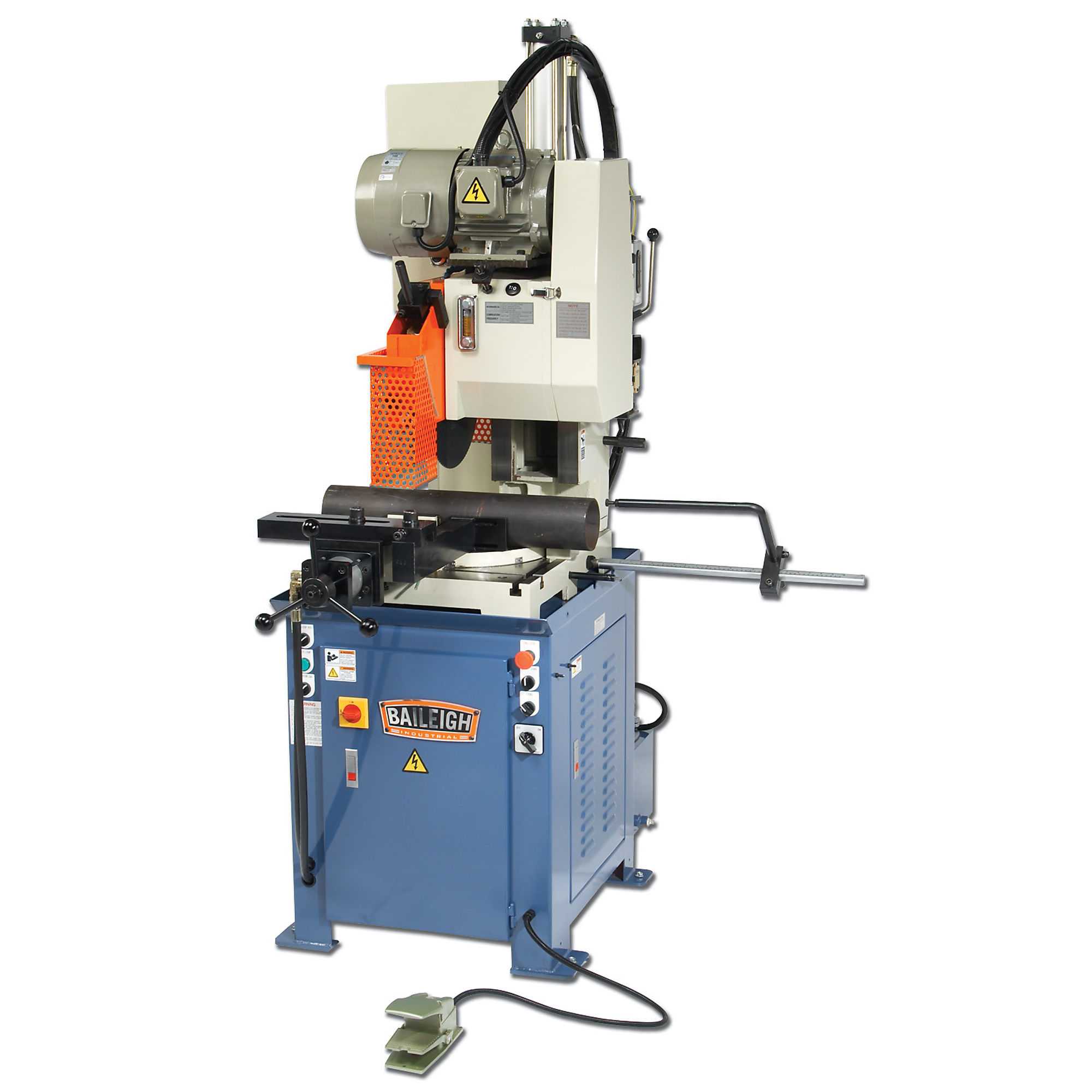

Baileigh Semi-Automatic Column Cold Band Saw, 5 HP, Volts 220, Model# CS-C485SA

Item# 4765297
Baileigh Semi-Automatic Column Cold Band Saw, 5 HP, Volts 220, Model# CS-C485SA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh Semi-Automatic Column Cold Band Saw, 5 HP, Volts 220, Model# CS-C485SA

Click or Tap image to Zoom

$32,741.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Accepts up to a 16.5” blade.
  • Miters 45° left and 60° right, perfect for tubing, angle iron, and channel applications.
  • Yaskawa® inverter drive controls the variable speed from 40 to 240 rpm.
  • 5 hp blade motor runs on 220-volt 3-phase power.
  • Hardened and ground 2” slideways are attached to the solid column for durability and trouble-free movement.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This vertical column cold saw weighs an impressive 1898 lbs. That steel construction lets you cut heavy materials and produce a machined-like surface that doesn't need clean-up.

What's Included

    (1) CS-C485SA-220V Cold Saw

Features + Benefits

  • Accepts up to a 16.5” blade.
  • Miters 45° left and 60° right, perfect for tubing, angle iron, and channel applications.
  • Yaskawa® inverter drive controls the variable speed from 40 to 240 rpm.
  • 5 hp blade motor runs on 220-volt 3-phase power.
  • Hardened and ground 2” slideways are attached to the solid column for durability and trouble-free movement.
  • Efficient combination of drive motor, hydraulic feeding system, and coolant system will provide decades of profitable use, even in a demanding shop.
  • Hydraulic downfeed and upfeed can efficiently tackle high production applications.
  • You can limit the upward stroke or travel for faster cycle times and production.
  • Semi-automatic system is simple to operate: just step on the foot pedal and the blade will descend to cut your material.
  • Foot pedal clamps the hydraulic self-centering vise. You don’t have to adjust when switching between material sizes.
  • After cutting, the blade automatically shuts off and returns to home position.
  • American-style vise has jaws on both sides of the material to increase blade life.
  • Vise slides to allow for a continuously variable range of positions.
  • Metered stop rod ensures repeatable lengths for efficient production.
  • Steel framework prevents wobbling and maintains accuracy.
  • Rigid base gives the saw the structural strength to cut large volumes of maximum capacity material.
  • Flood coolant system makes blades last longer and maintains a high cut quality.
  • Oiler system with one-shot lube keeps the saw head moving smoothly.
  • Integrated chip brush cleans away debris for increased blade life.
  • Comes with both standard flat and Vee jaws.

Key Specs

AttributeSpecification

item#

4765297

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1900.0 LB

Max. Blade Diameter

16.5 in

Volts

220

Power Source

Corded

Phase

Three-phase

Blade Mounting Holes

32 mm

Max. Vise Opening

6 in
AttributeSpecification

Coolant System

Yes

Arbor Size

1.26 in

Round Solid Capacity @ 90 Deg.

2.75 in

Round Tube Capacity @ 90 Deg.

2.75 in

Square Tube Capacity @ 90 Deg.

4.33 in

Head Miter

45° Left / 60° Right

Horsepower

5 HP

Product Weight

1900.0000 lb

Dimensions L x W x H (in.)

60.0 x 87.0 x 48.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
