The spindle bore is 1.5".

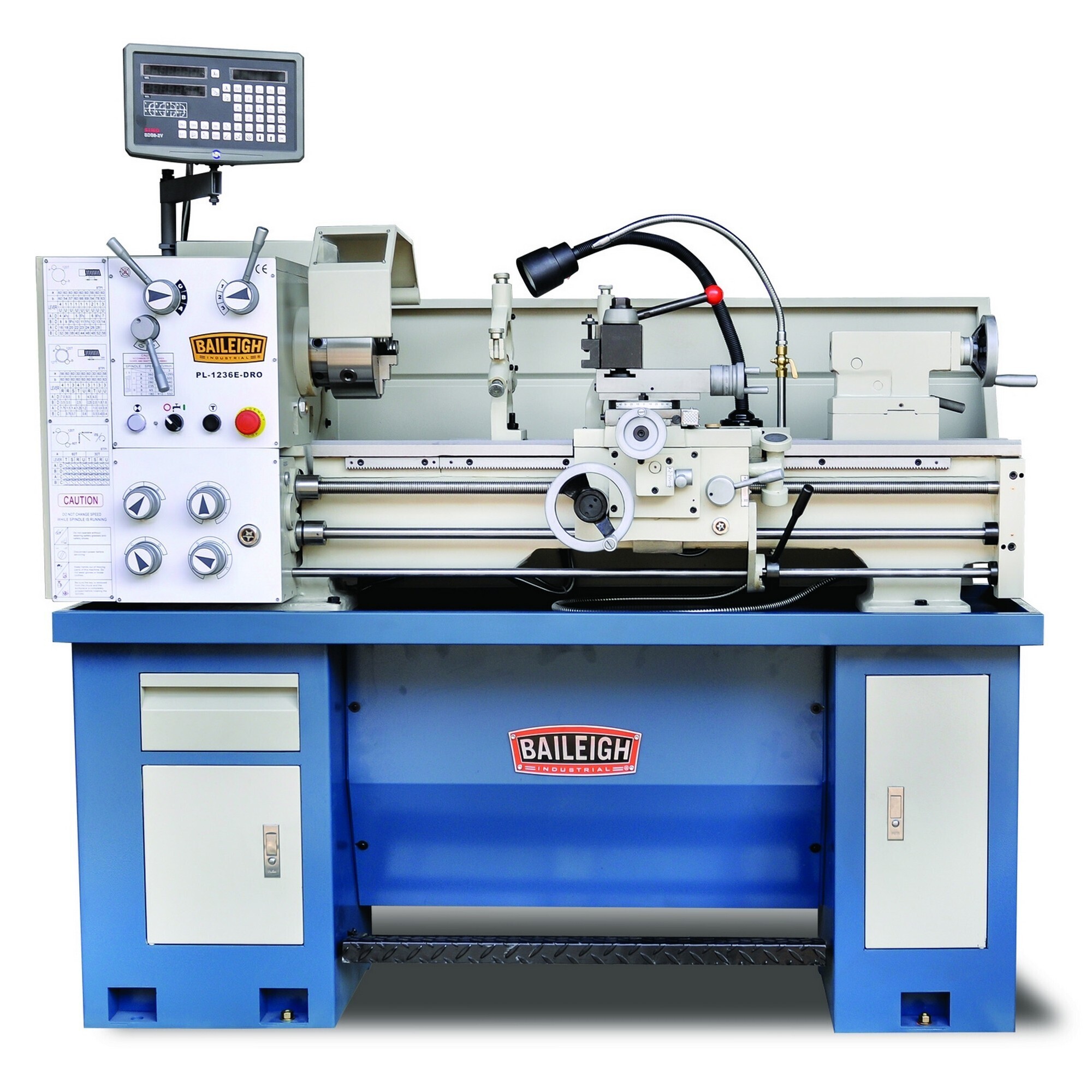

Baileigh, Metalworking Lathe, Model# PL-1236E-DRO-1.0
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$10,059.99

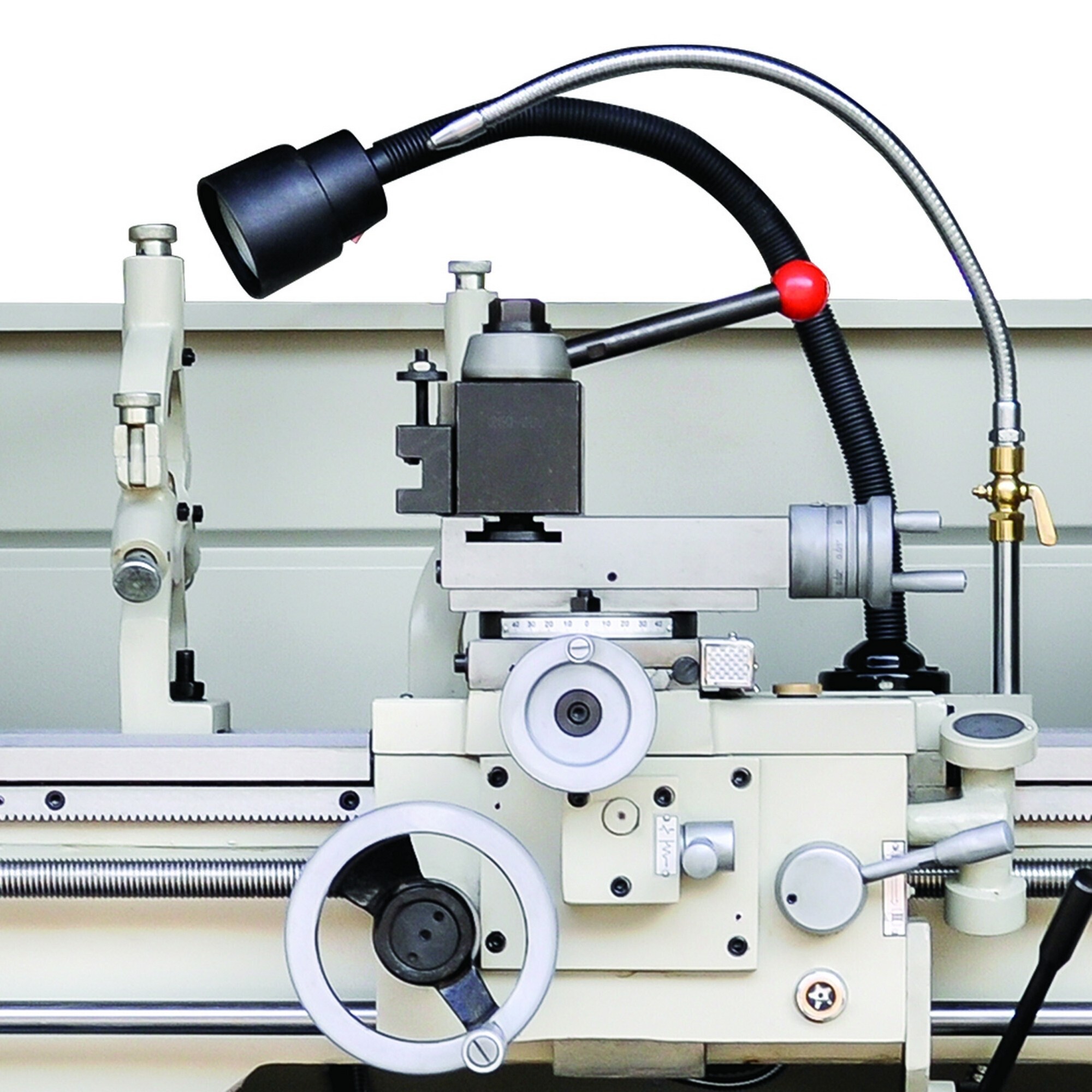

- This model includes a quick-change tool post and a coolant system.
Prop 65 Warning: See Details
See full description
See All Lathes
See All Baileigh Lathes
Currently Viewing This Product
Specifications
Specifications
Baileigh, Metalworking Lathe, Model# PL-1236E-DRO-1.0

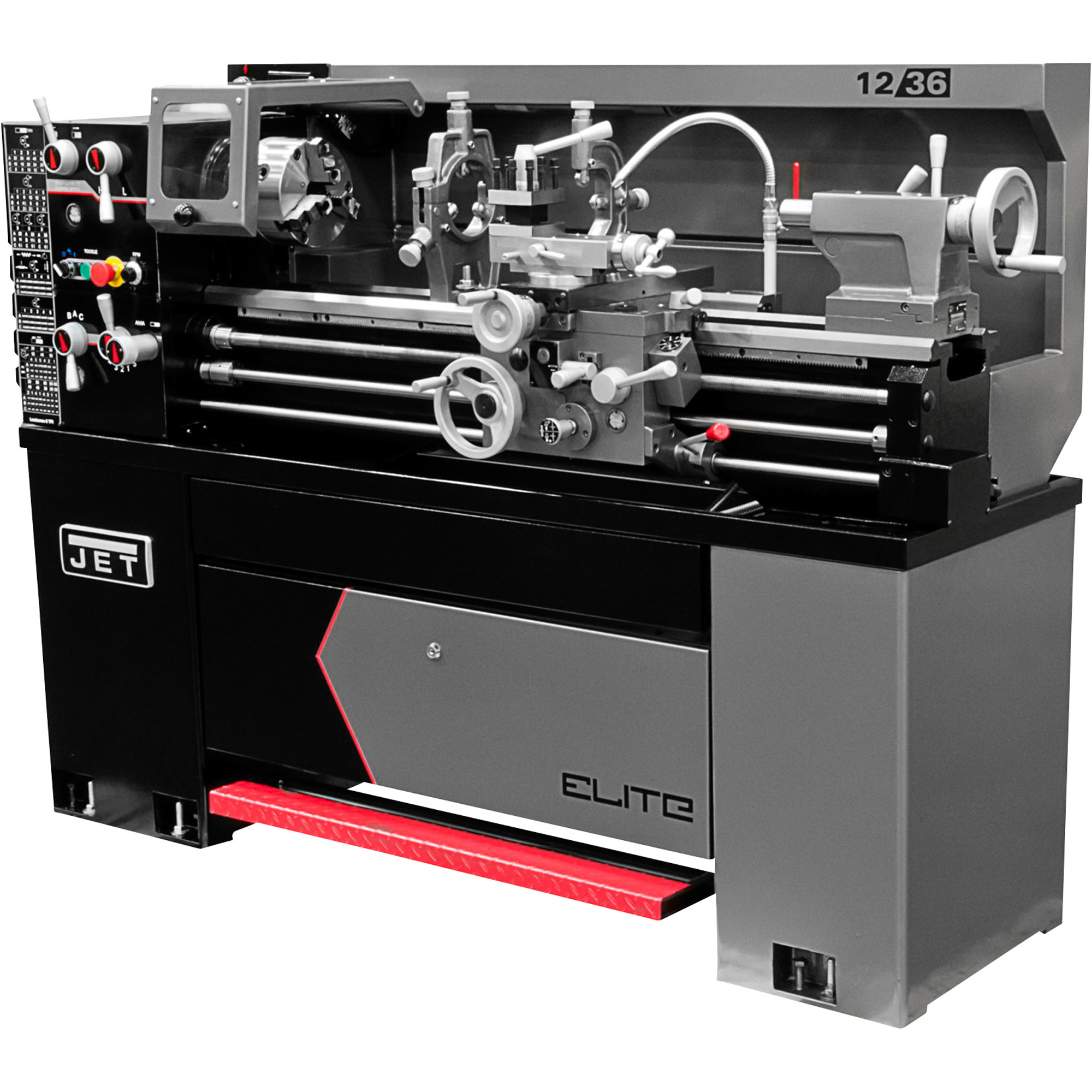

JET Elite Metal Lathe with ACU-RITE 203 DRO, Taper Attachment and Collet Closer, 12in. x 36in., Model# E-1236VS W/ 203 & TAK
JET Elite Metal Lathe, 14in. x 40in., Model# E-1440VS
JET Elite Metal Lathe with ACU-RITE 203 DRO, Taper Attachment and Collet Closer, 13in. x 40in., E-1340VS W/ 203 W/ TAK & CC
Horsepower
Same
5 HP
2 HP
3 HP
3 HP
Volts
Same
220
230
230
230
Distance Between Centers
Same
36 in
36 in
40 in
40 in
Swing Over Bed
Same
12 in
12 in
14 in
13 in
Product Type
Same
Bench Lathe
Bench Lathe
Bench Lathe
Bench Lathe
Carriage Travel
Same
0 in
12 in
14 in
13 in
Phase
Same
Three-phase
Single-phase
Single-phase
Single-phase
Variable Speed
Same
Yes
Yes
Yes
Yes
Max. Speed
Same
3,500 rpm
2,000 rpm
2,200 rpm
2,200 rpm
Spindle Mount
Same
Yes
Yes
Yes
Yes
Product Weight
Same
1420.0000 lb
lb
lb
lb
Dimensions L x W x H (in.)
Same
69.0 x 44.0 x 62.0 in
70.0 x 29.5 x 60.0 in
76.0 x 37.0 x 60.0 in
60.0 x 30.0 x 57.0 in
Thread Cutting Max. (SAE)
Same
-
56 in
112 in
112 in
Thread Cutting Max.
Same
-
12 mm
7.5 mm
7.5 mm
Spindle Bore Size
Same
-
1.562 in
1.5 in
1.5 in
Stand Included
Same
-
Yes
Yes
Yes
