Baileigh, Metalworking Lathe, Model# PL-1022VS-V2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- Variable speed: Offers variable spindle speeds from approximately 100–2000 RPM for versatile machining

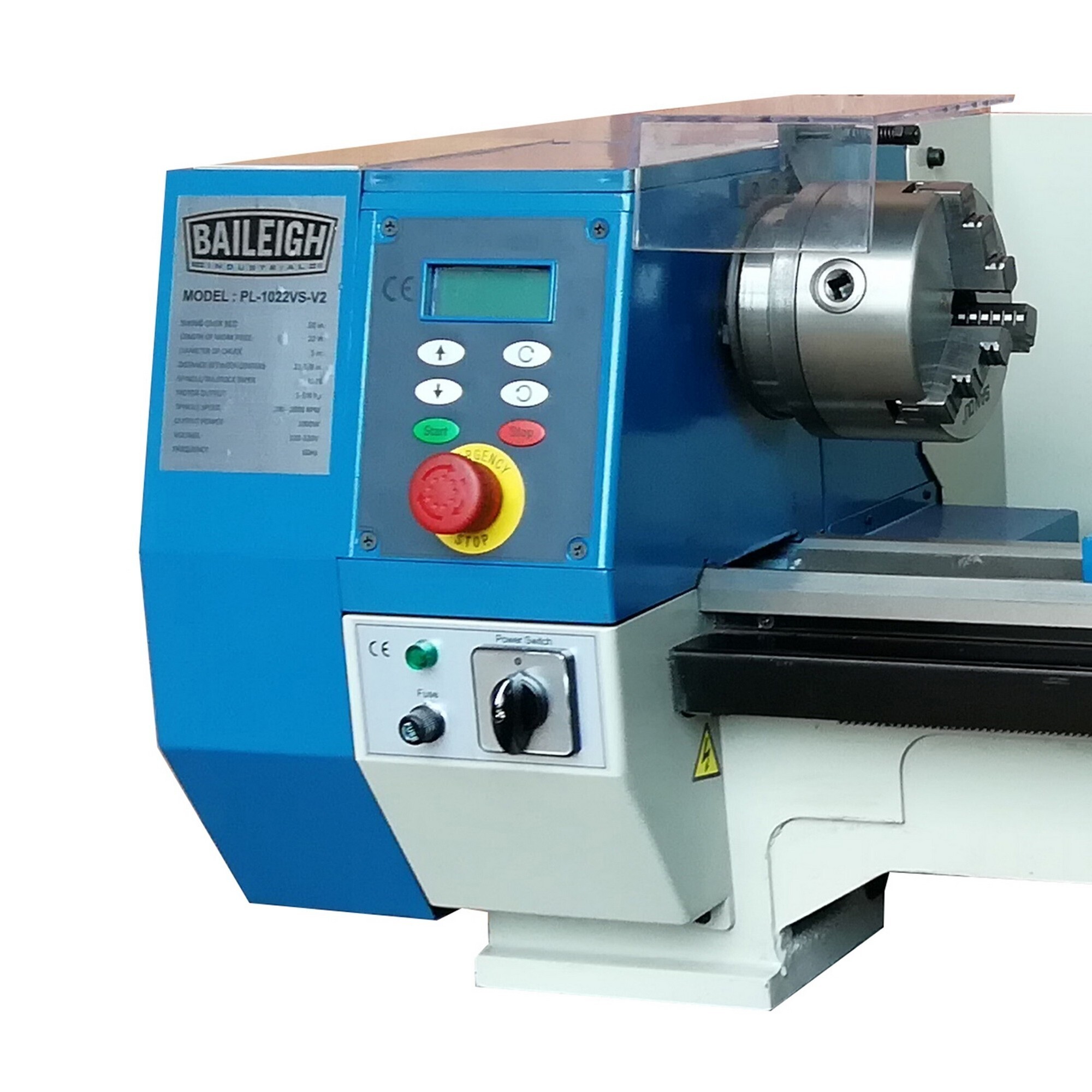

- Digital readout: Integrated DRO displays spindle speed for precision control
- Cast-iron base: Heavy cast-iron frame and precision-ground bed ways reduce vibration for improved accuracy
- Swing capacity: Handles an 10” swing over bed for benchtop work
- Center distance: Provides 22” between centers for longer stock turning
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Lathe
Features + Benefits
- Variable speed: Offers variable spindle speeds from approximately 100–2000 RPM for versatile machining
- Digital readout: Integrated DRO displays spindle speed for precision control
- Cast-iron base: Heavy cast-iron frame and precision-ground bed ways reduce vibration for improved accuracy
- Swing capacity: Handles an 10” swing over bed for benchtop work
- Center distance: Provides 22” between centers for longer stock turning
- Spindle bore: Includes a 0.787” spindle bore to accommodate typical bar stock sizes
- Threading: Capable of standard and metric thread cutting (8–56 TPI)
- 19.6" between centers
- 110V 1 hp motor
Key Specs
| Attribute | Specification |
|---|---|
item# | 5717641 |
Brand | Baileigh |
Manufacturer's Warranty | 1 year limited warranty |
Ship Weight | 405.0 LB |
Horsepower | 5 HP |
Volts | 110 |
Distance Between Centers | 22 in |
Swing Over Bed | 10 in |
| Attribute | Specification |
|---|---|
Product Type | Bench Lathe |
Carriage Travel | 0 in |
Phase | Single-phase |
Variable Speed | Yes |
Max. Speed | 3,500 rpm |
Spindle Mount | Yes |
Product Weight | 405.0000 lb |
Dimensions L x W x H (in.) | 60.0 x 44.0 x 28.0 in |
Reviews
Questions & Answers
Questions
-
· a month ago
what is the max spindle bore size
1 answer-
ProductExpert6· a month ago
Helpful?
-
-
· 3 years ago
Is 5 HP or .5 HP ????
1 answer-
ProductExpert37· 3 years ago
Per the manufacturer, the correct horsepower for this lathe is 1 HP, 110 Volt.
Helpful?
-
-
· 3 years ago
What are the thread pitches that can be made?
1 answer-
ProductExpert6· 3 years ago
The lathe can do 8-40 TPI (threads per inch).
Helpful?
-
Warranty
Manufacturer's Warranty
1 year limited warranty
