Baileigh Metal Cutting Band Saw Mitering Vise, 3 HP, Volts 220, Model# BS-330M

Item# 4765203
Baileigh Metal Cutting Band Saw Mitering Vise, 3 HP, Volts 220, Model# BS-330M

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh Metal Cutting Band Saw Mitering Vise, 3 HP, Volts 220, Model# BS-330M

Click or Tap image to Zoom

$15,426.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Maximum capacity of 13” OD round at 90°.
  • Accepts a large 1.25” blade.
  • Variable blade speed from 82 to 270 fpm lets you choose the right speed for metal, plastic, and wood.
  • 3 hp motor runs on 220-volt triple-phase power, more reliable and efficient than single-phase.
  • Saw head miters up to 45°.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

In 2,005, we introduced the BS-330M manual mitering band saw. With steel frames and smooth hydraulic descent, these saws have given shops trouble-free productivity for 10+ years.

What's Included

    (1) BS-330M

Features + Benefits

  • Maximum capacity of 13” OD round at 90°.
  • Accepts a large 1.25” blade.
  • Variable blade speed from 82 to 270 fpm lets you choose the right speed for metal, plastic, and wood.
  • 3 hp motor runs on 220-volt triple-phase power, more reliable and efficient than single-phase.
  • Saw head miters up to 45°.
  • Heavy cast iron head and bow reduce vibrations while cutting.

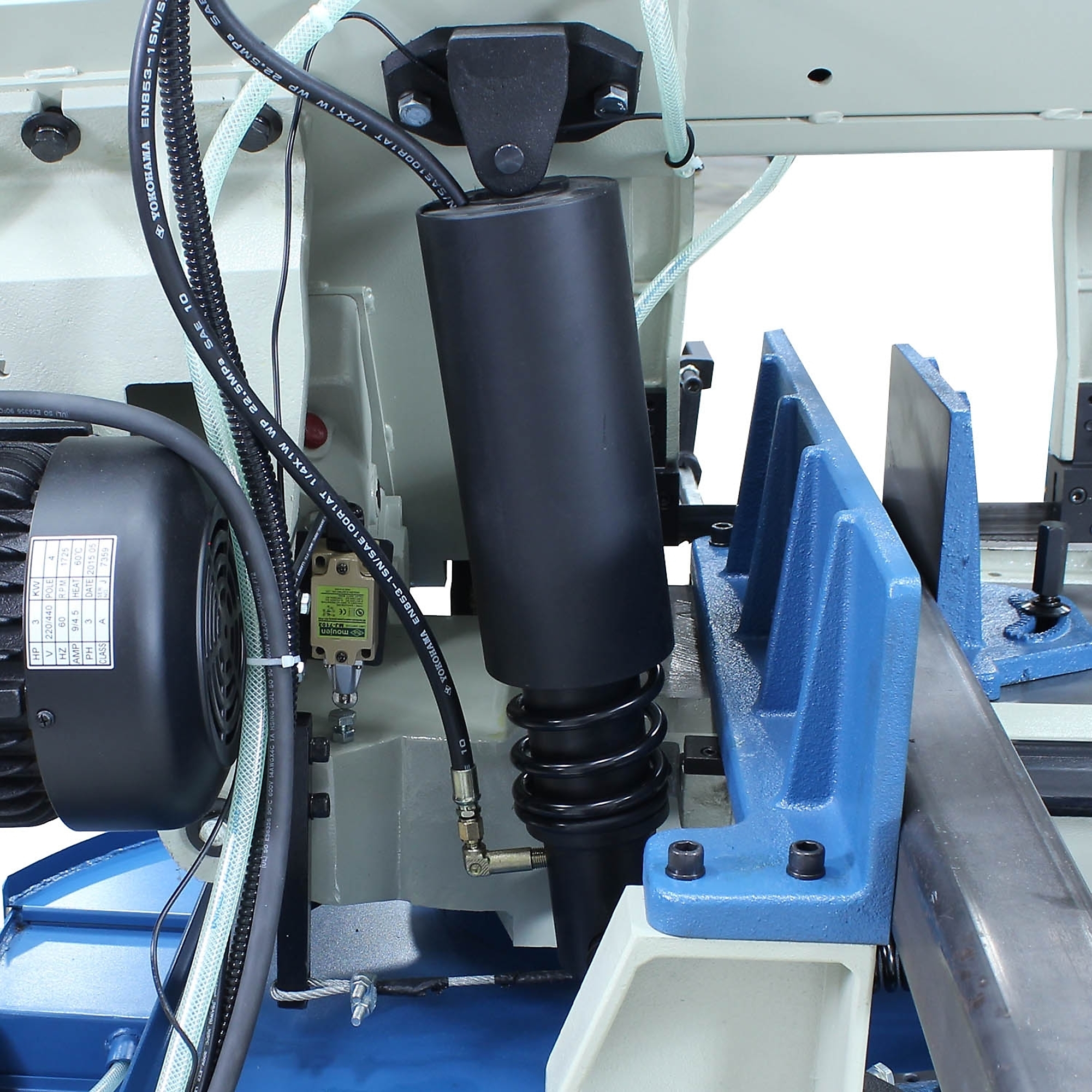

  • Hydraulic descent makes production runs more efficient, increases blade life, and reduces operator fatigue.

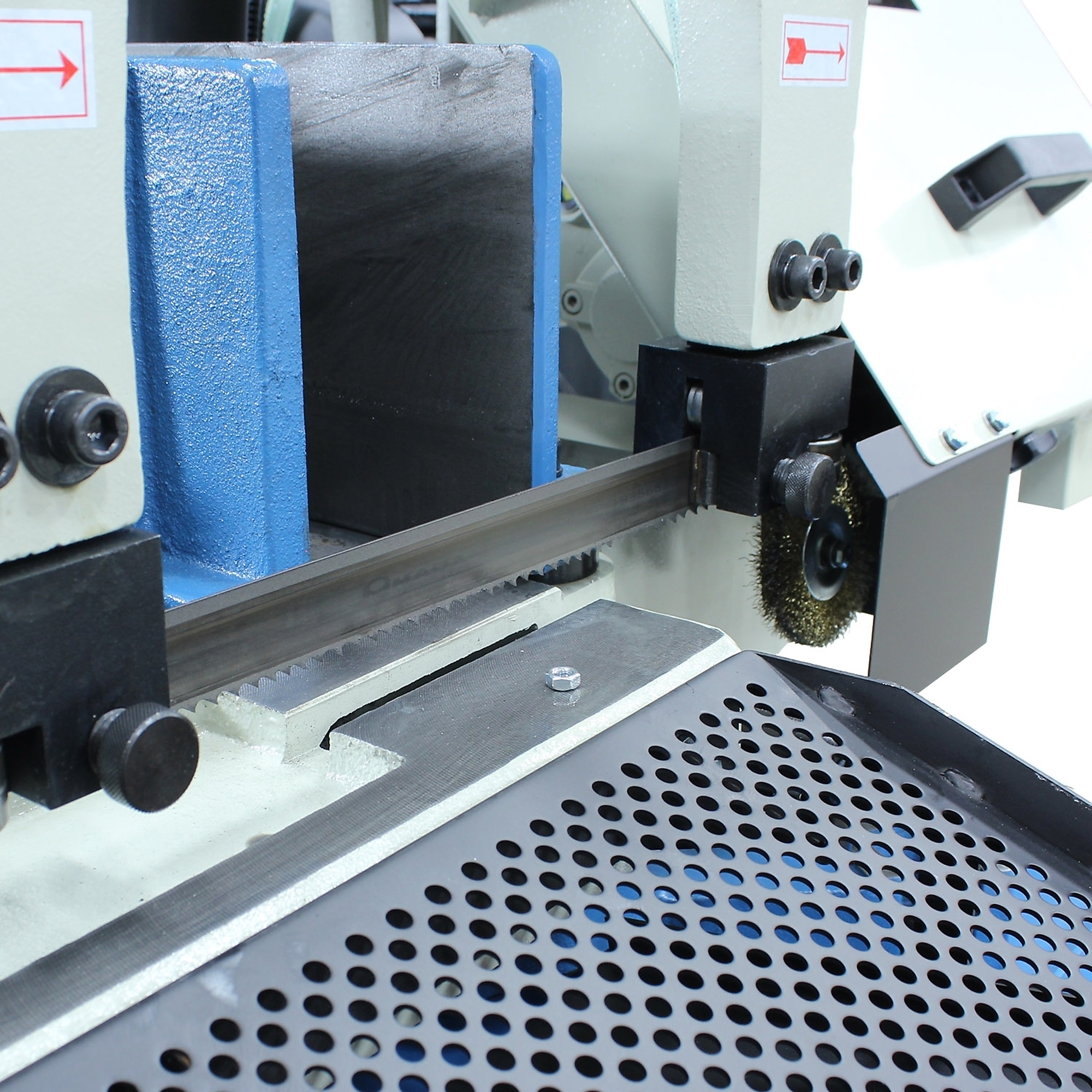

  • Tungsten carbide blade guides get as close as possible to the material to allow for more precise cuts.
  • Laser guide helps you see where your cut will be and line it up.
  • Durable steel flywheels drive the blade.
  • Adjustable vise can move back and forth. A quick cam lock system holds it in place.

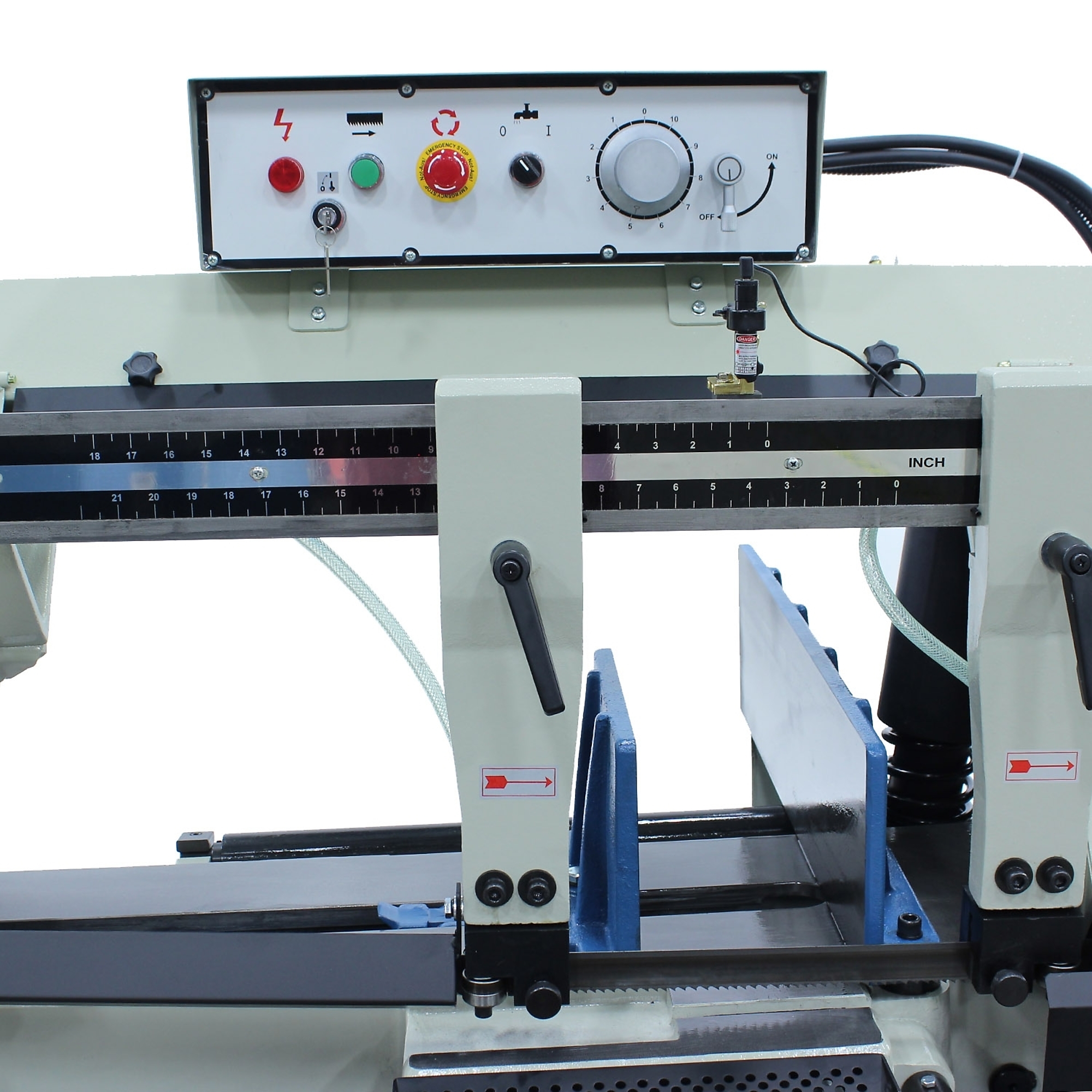

  • Control panel has large start and emergency stop buttons and a dial for adjusting the speed.
  • Swing-away material stop enables you to easily make repeatable cuts.
  • Baileigh’s patented blade tension gauge takes the effort out of getting the tension right. Just line the arrow pointer up with the green zone and you’re good to go.

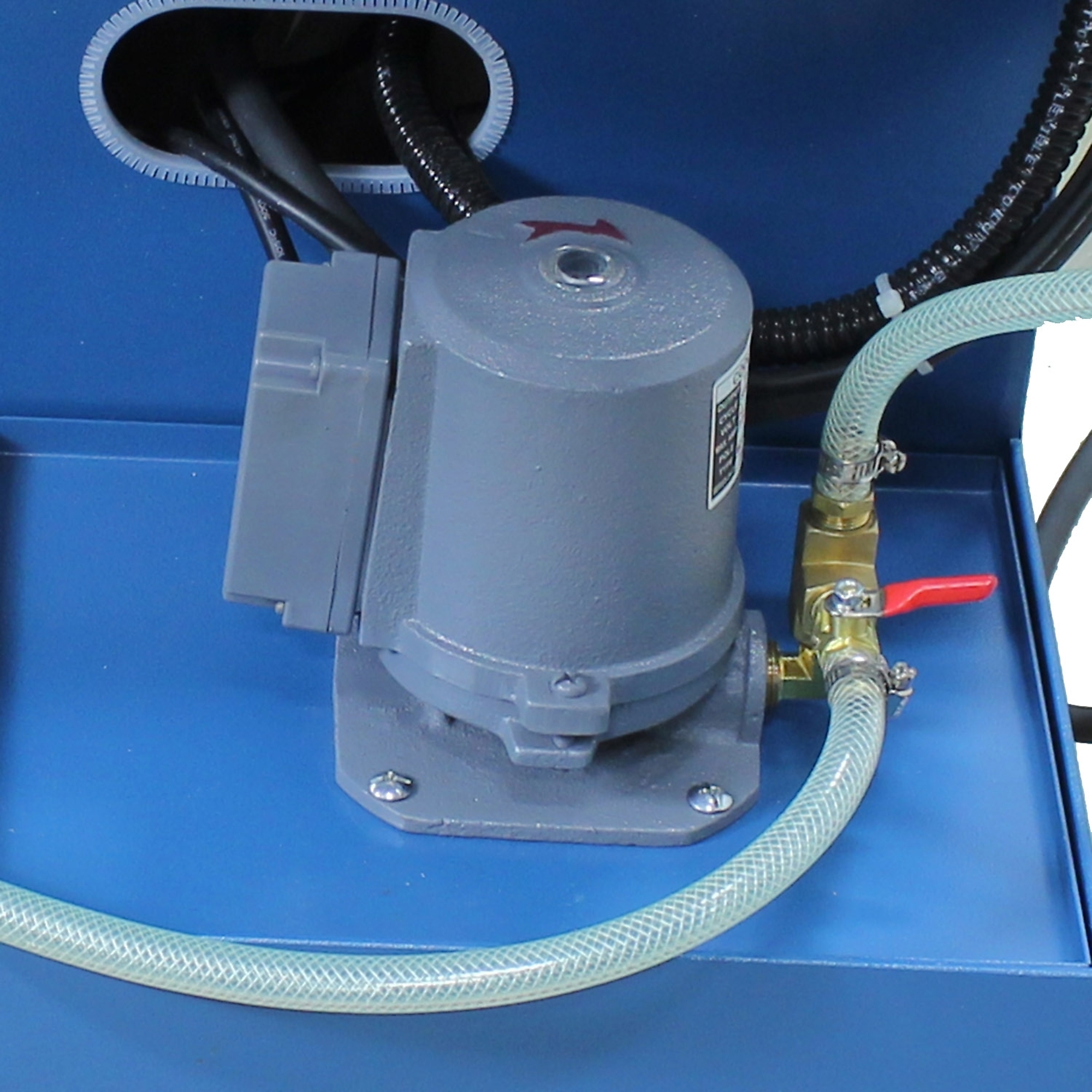

  • Comes standard with a flood coolant system that will wash away metal shavings and prolong blade life.
  • Heavy electro-welded steel construction minimizes vibrations to keep cuts accurate.
  • Weighs over 1,800 lbs.
  • Automatic shut-off safety feature stops the blade from running when the saw gets to the bottom of the cut.
  • This metal band saw and its replacement parts are almost always in stock for quick deliveries.
  • Covered by a 1-year parts warranty.

Key Specs

AttributeSpecification

item#

4765203

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1826.0 LB

Volts

220

Power Type

Corded

Motor Type

Brushed

Phase

Three-phase

Variable Speed

Yes
AttributeSpecification

Max. Cutting Capacity

270 SFPM

Table Tilt Left Max. Degrees

45

Table Tilt Right Max. Degrees

45

Cuts Through

13” OD round at 90°

Case Included

No

No Tool Blade Change

No

Horsepower

3 HP

Product Weight

1826.0000 lb

Dimensions L x W x H (in.)

90.0 x 37.0 x 63.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
