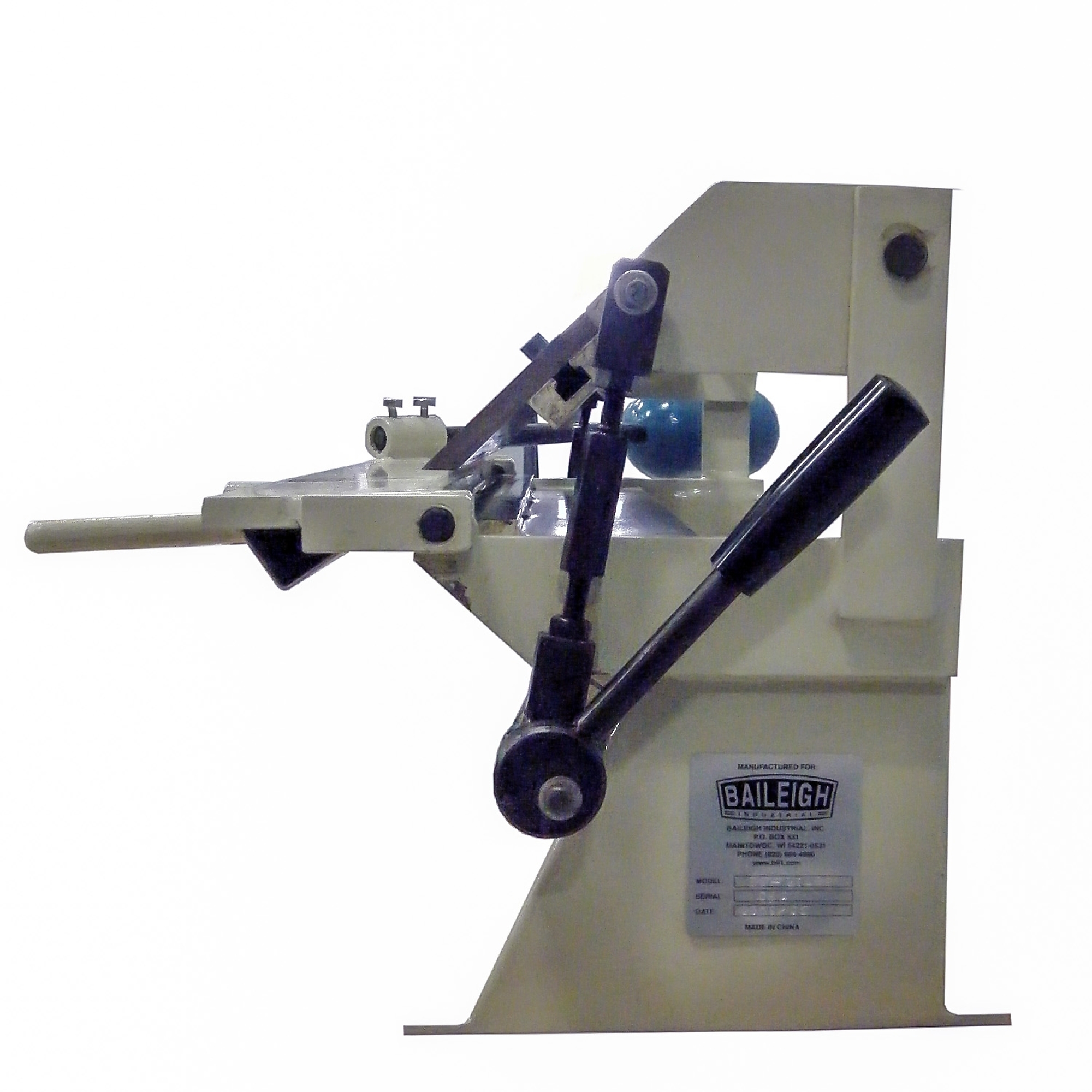

Baileigh, Manual Box Pan Brake, Max. Material Gauge 16 Model# BB-4816E

Item# 4685941
Baileigh, Manual Box Pan Brake, Max. Material Gauge 16 Model# BB-4816E

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Manual Box Pan Brake, Max. Material Gauge 16 Model# BB-4816E

Click or Tap image to Zoom

$2449.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Maximum capacity of 16 gauge mild steel.
  • Bends up to 135° across the brakes entire 48” (4-foot) length even at full capacity.
  • Includes 16 hardened fingers of varying lengths to make many sizes of boxes and pans.

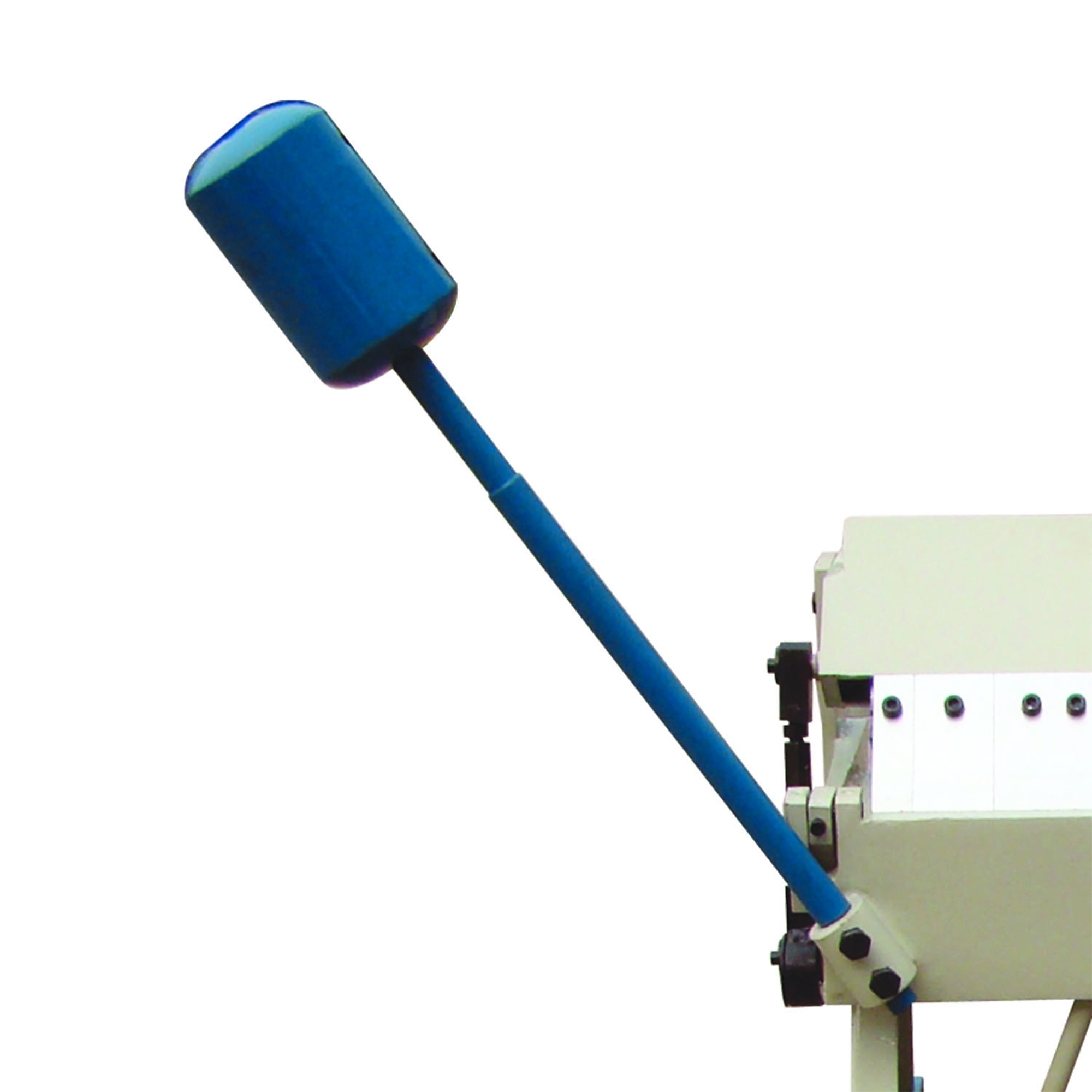

  • Counterweight apron lift assist reduces your effort when bending at full capacity.

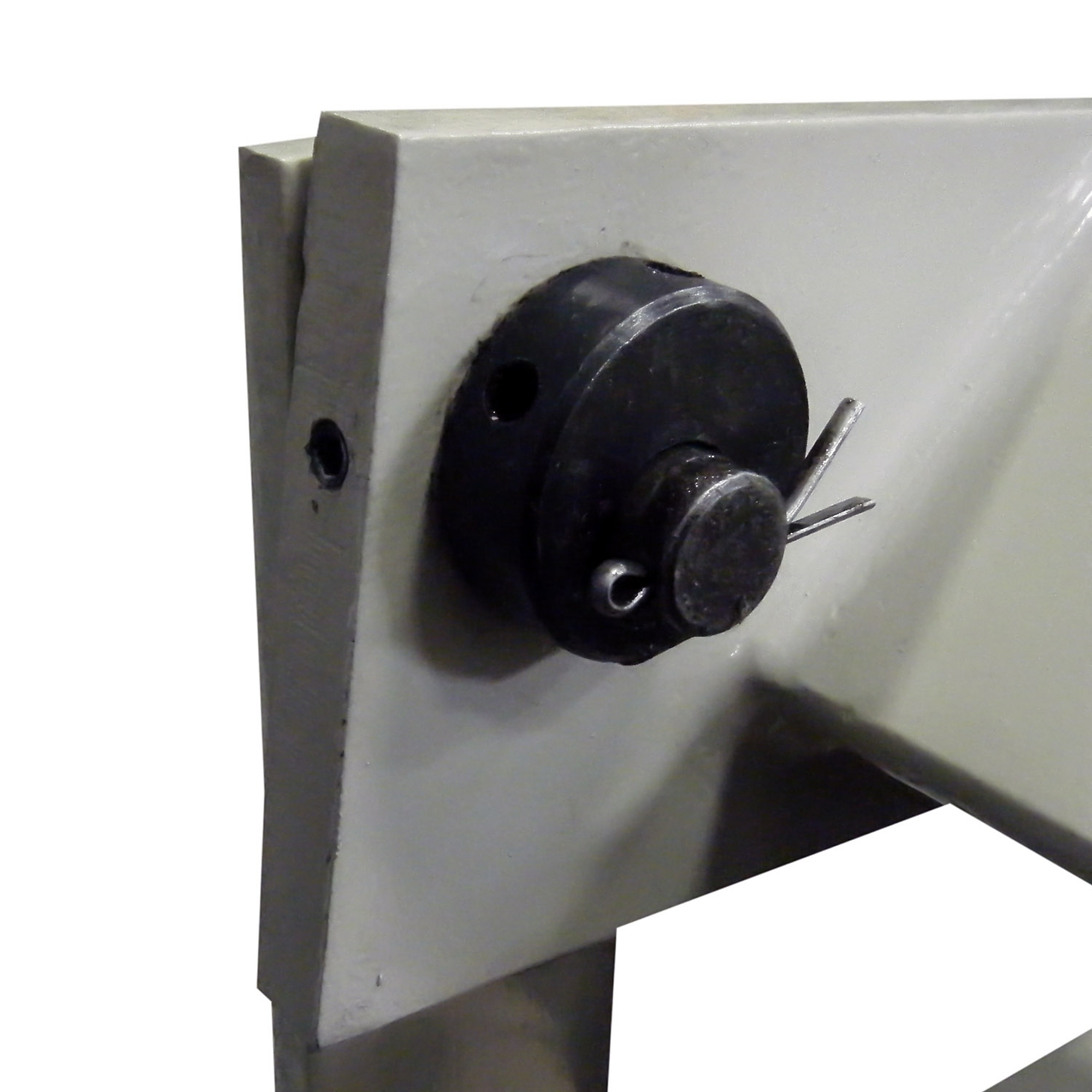

  • Finger setback adjustment  lets you adjust for the thickness of the material.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Baileigh Manual Box Pan Brake, is a robust and cost-effective solution for sheet metal bending tasks, designed to deliver long-lasting performance and reliability. Constructed with a fully-welded steel plate framework, this brake ensures exceptional durability and stability, making it a valuable addition to any workshop. Capable of handling a maximum material gauge of 16, it is ideal for a variety of bending applications, providing precise and consistent results every time. The Baileigh Manual Box Pan Brake combines solid construction with user-friendly operation, making it an excellent choice for both professionals and hobbyists seeking a dependable and efficient metalworking tool.

What's Included

    (1) Manually Operated Box and Pan (Finger) Brake

Features + Benefits

  • Maximum capacity of 16 gauge mild steel.
  • Bends up to 135° across the brakes entire 48” (4-foot) length even at full capacity.
  • Includes 16 hardened fingers of varying lengths to make many sizes of boxes and pans.
  • Counterweight apron lift assist reduces your effort when bending at full capacity.
  • Finger setback adjustment  lets you adjust for the thickness of the material.
  • Comes standard with sturdy floor stand.
  • Baileigh backs this metal brake with a 1-year parts warranty and lifetime technical support by phone.
  • Typically kept in stock for quick shipments.

Key Specs

AttributeSpecification

item#

4685941

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

540.0 LB

Max. Material Gauge

16

Dies Included

No
AttributeSpecification

Max. Depth

4 in

Max. Bending Radius

135 °

Max. Width

48 in

Slip Roll Length

0 in

Product Weight

540.0000 lb

Dimensions L x W x H (in.)

63.0 x 22.0 x 28.0 in

Reviews

Questions & Answers

Questions

  1. Maximum thickness for aluminum? And maximum thickness clearance?

    1 answer

    1. The maximum thickness for aluminum is 12 gauge (0.0907"). Maximum mild steel thickness is 16 gauge (0.0625"). Maximum box depth is 1.5".

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
