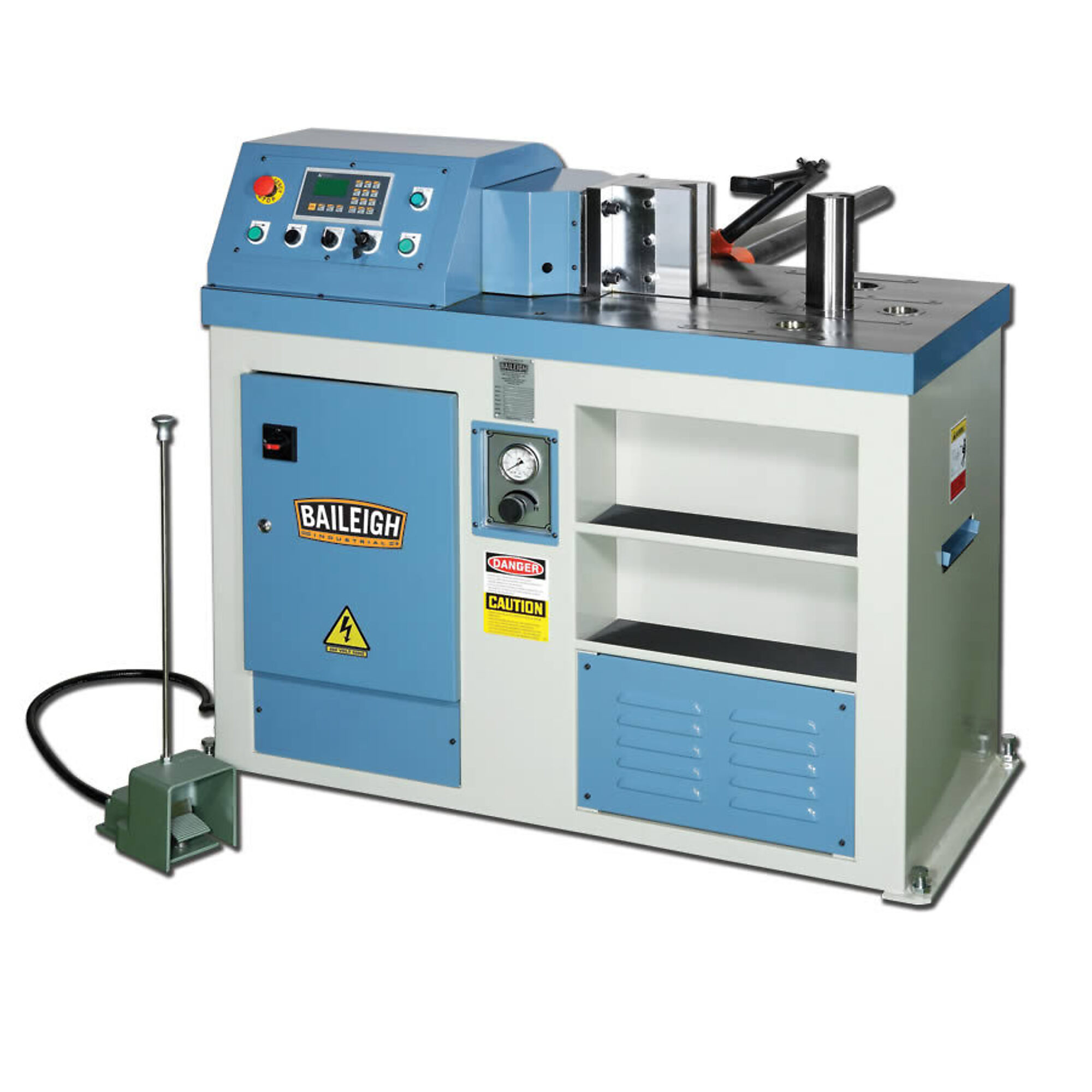

Baileigh, Horizontal Press Brake, Max. Material Gauge 8 Model# HPB-45NC

Item# 4685861
Baileigh, Horizontal Press Brake, Max. Material Gauge 8 Model# HPB-45NC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Horizontal Press Brake, Max. Material Gauge 8 Model# HPB-45NC

Click or Tap image to Zoom

$25,993.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 5 hp motor produces up to 45 tons of pressure.
  • 9.84” stroke length.
  • Runs on 220-volt 3-phase power.
  • Industrial-grade hydraulic system is located on top of the metal press brake to reduce flex.
  • You can adjust the pressure of the the hydraulics for your material.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

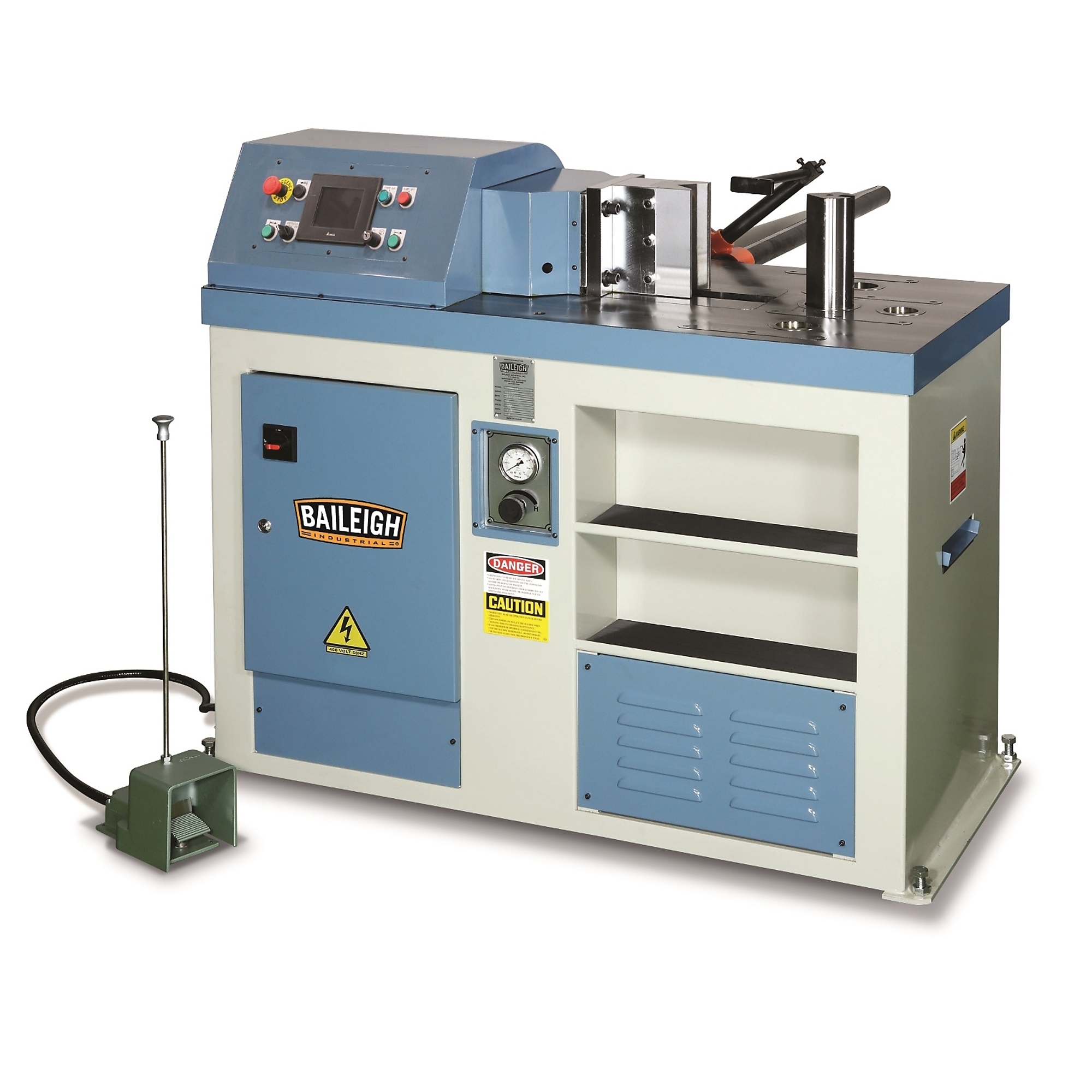

This Baileigh horizontal press brake machine can bend, punch, and shear with the right tooling. You can easily make small parts, like flanges and brackets, because material lies on a flat surface.

What's Included

    (1) Horizontal Press Brake

Features + Benefits

  • 5 hp motor produces up to 45 tons of pressure.
  • 9.84” stroke length.
  • Runs on 220-volt 3-phase power.
  • Industrial-grade hydraulic system is located on top of the metal press brake to reduce flex.
  • You can adjust the pressure of the the hydraulics for your material.
  • Designed for simple operation. In 15 minutes, anyone could learn to run it.
  • Numerical control (NC) programmer can store up to 99 programs with 10 bends per program.
  • Electronic encoders make this hydraulic press brake accurate to +/- .002”.
  • Product counter makes production runs more efficient.
  • Control the bending stroke with 2 buttons or with the foot pedal, so your hands are free to guide the material.
  • You can also run the metal press brake in a manual mode for one-off projects as well as set-up.
  • Robust manual back gauge bolts to the machine and helps with repeatability.
  • Machined table, 36” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!
  • Quick-release tooling system makes changes fast and simple. Just turn the handle and the post will lift. The V die slides in and out.

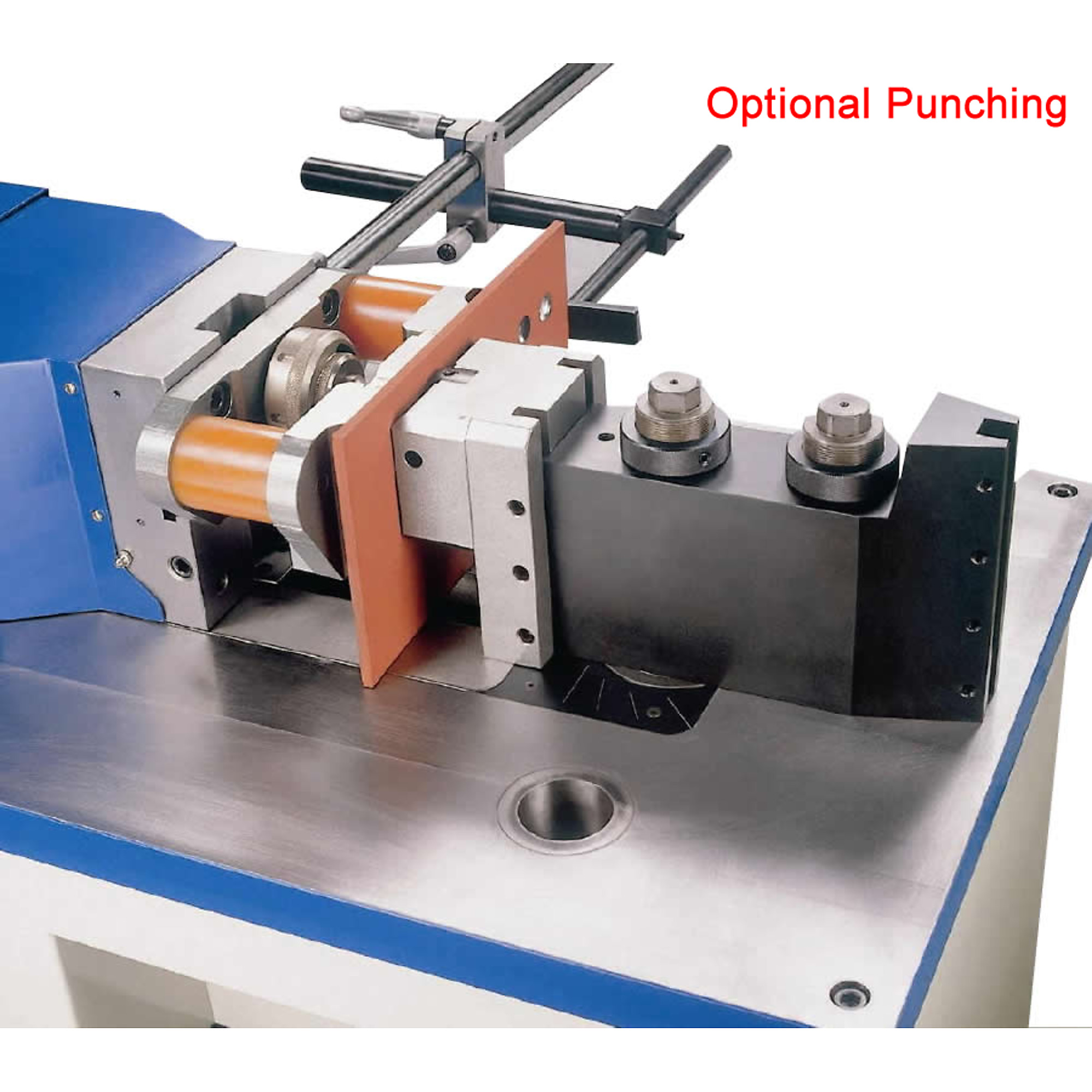

  • Accepts attachments for punching, straightening, shearing, and even pipe bending.
  • Includes 80mm single-V tooling (V-opening die and V post).

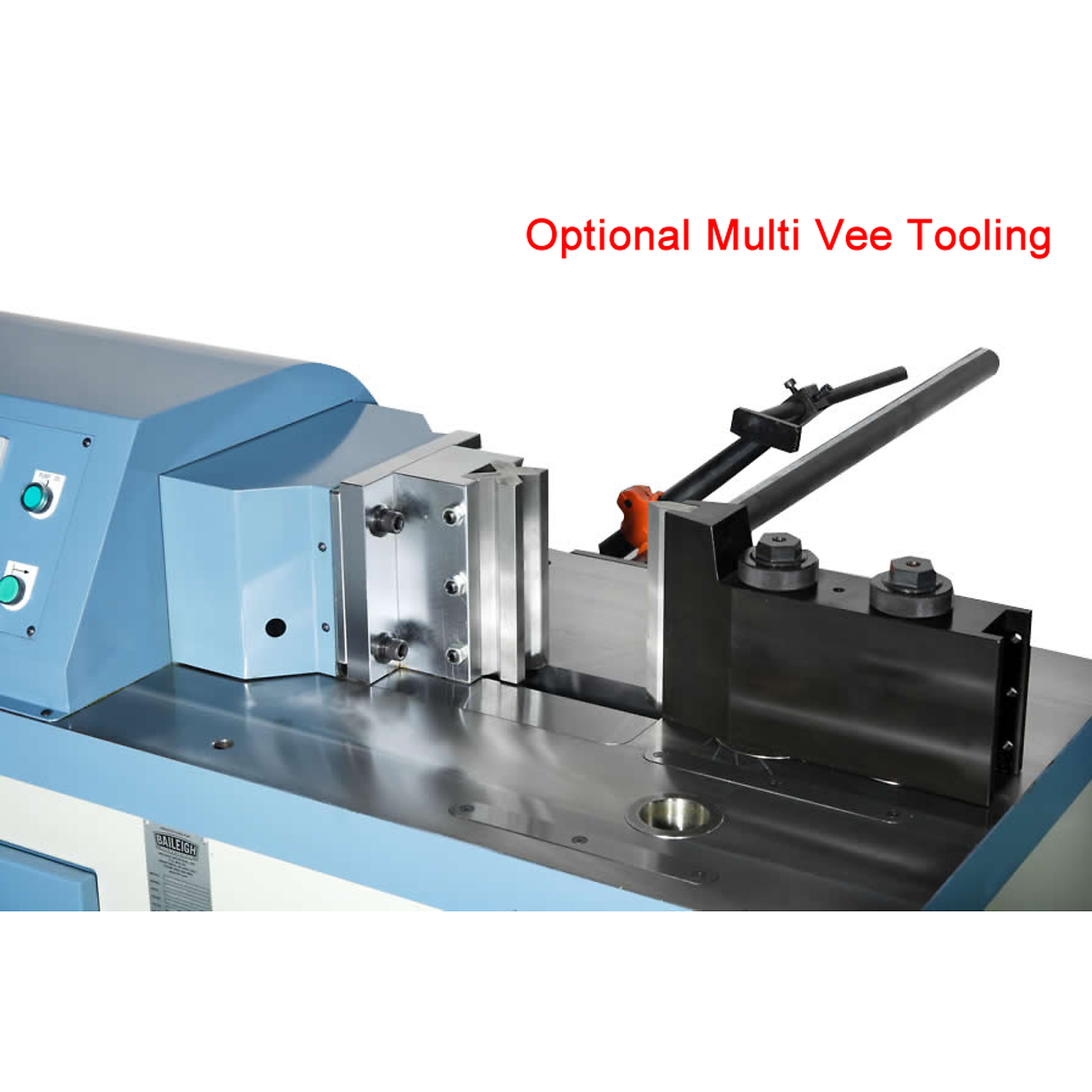

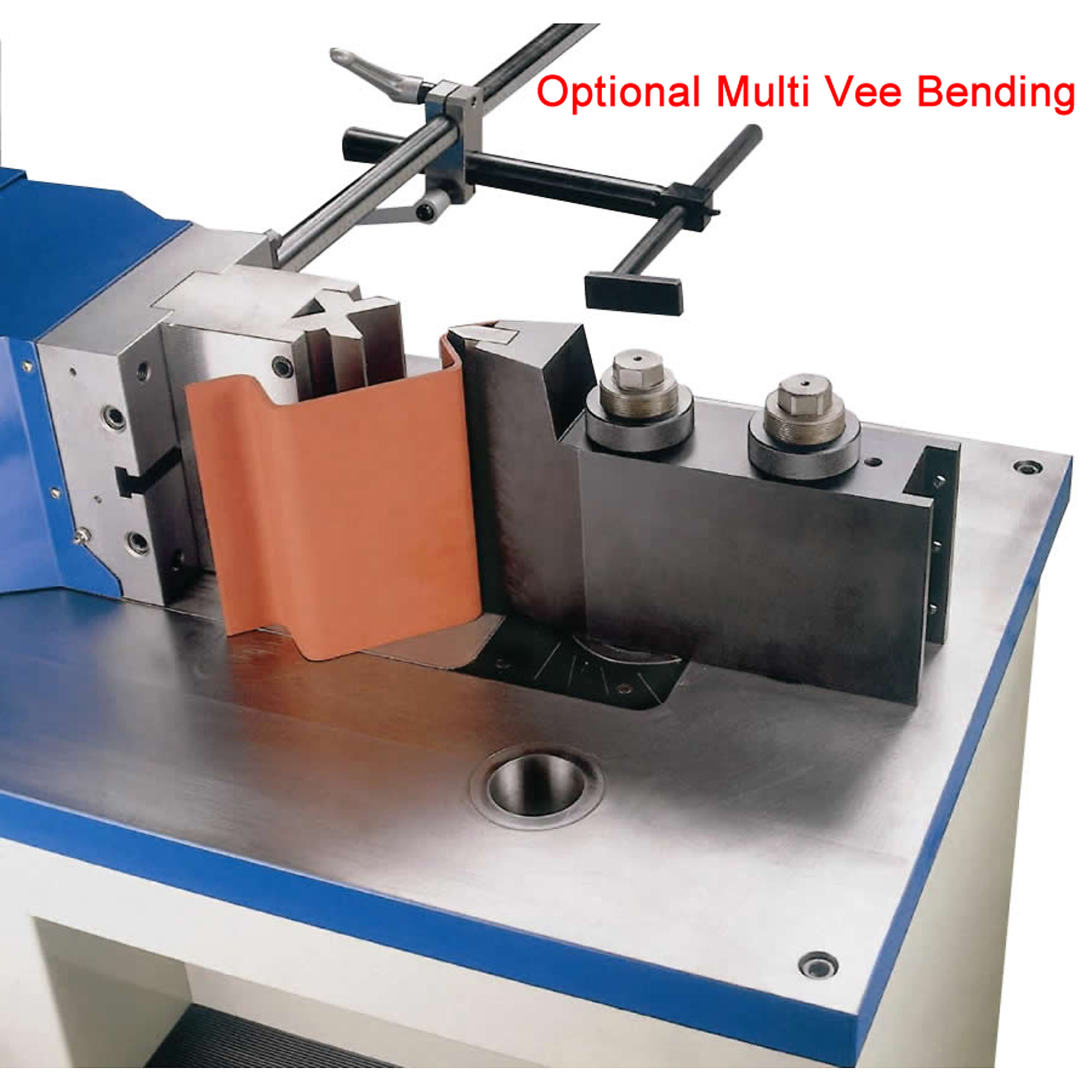

  • Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary.
  • 2,266-pound steel frame, made from 4 powerful pieces of inch-thick flat bar, will keep results accurate for many years and won’t flinch under pressure.
  • Shelving in the front can hold tooling and items you might need on a daily basis.
  • We stock replacement parts, so we can ship them to you quickly.

Key Specs

AttributeSpecification

item#

4685861

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

23137.0 LB

Max. Bending Capacity - Round

3.268 in

Max. Material Gauge

8
AttributeSpecification

Dies Included

No

Max. Depth

7.875 in

Max. Lift Height

9.84 in

Slip Roll Length

0 in

Product Weight

23137.0000 lb

Dimensions L x W x H (in.)

60.0 x 48.0 x 55.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
