Baileigh, Metal Drill Press, Horsepower 2 HP, Volts 220 Model# DP-1250VS-HS

Item# 5003745
Baileigh, Metal Drill Press, Horsepower 2 HP, Volts 220 Model# DP-1250VS-HS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Metal Drill Press, Horsepower 2 HP, Volts 220 Model# DP-1250VS-HS

Click or Tap image to Zoom

$7298.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

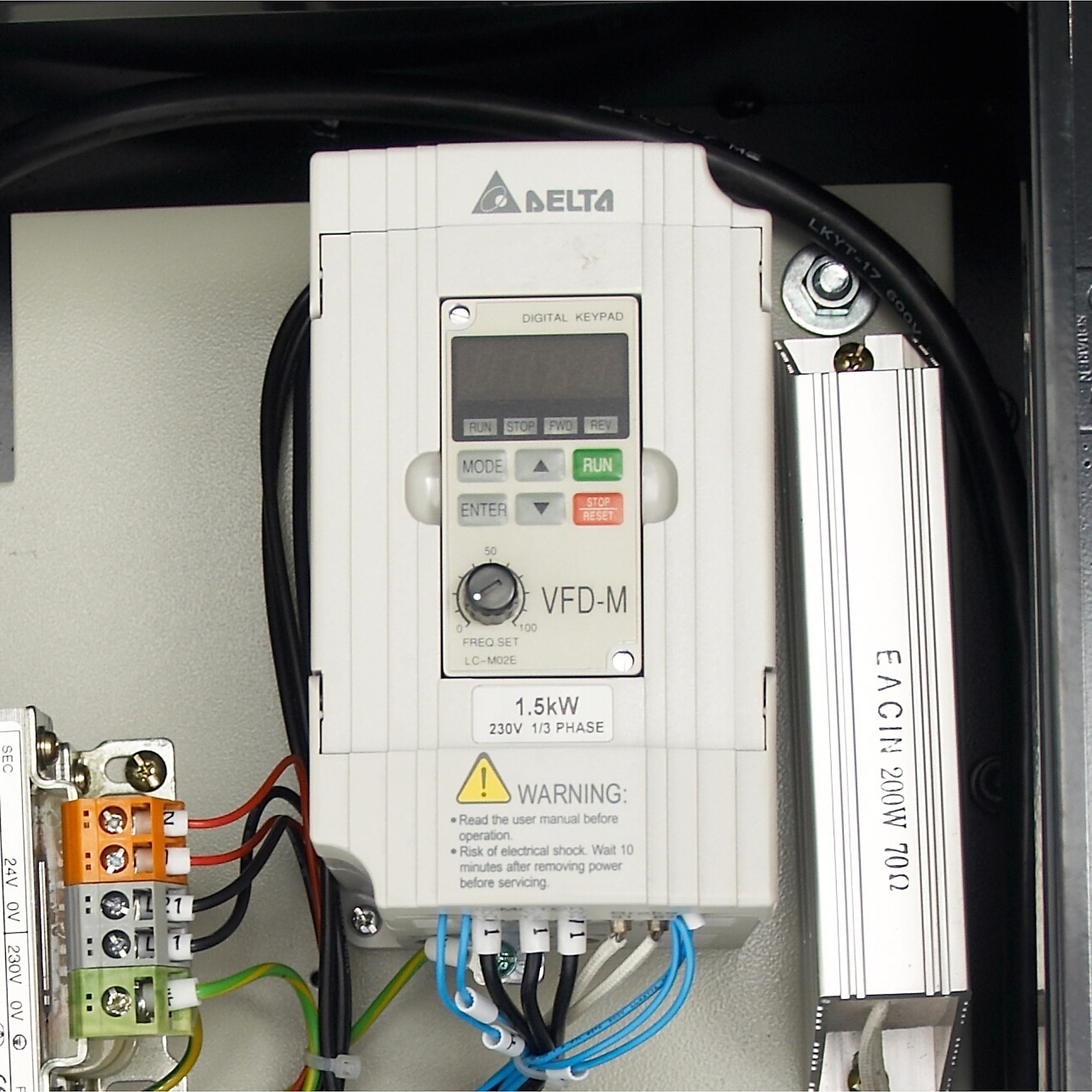

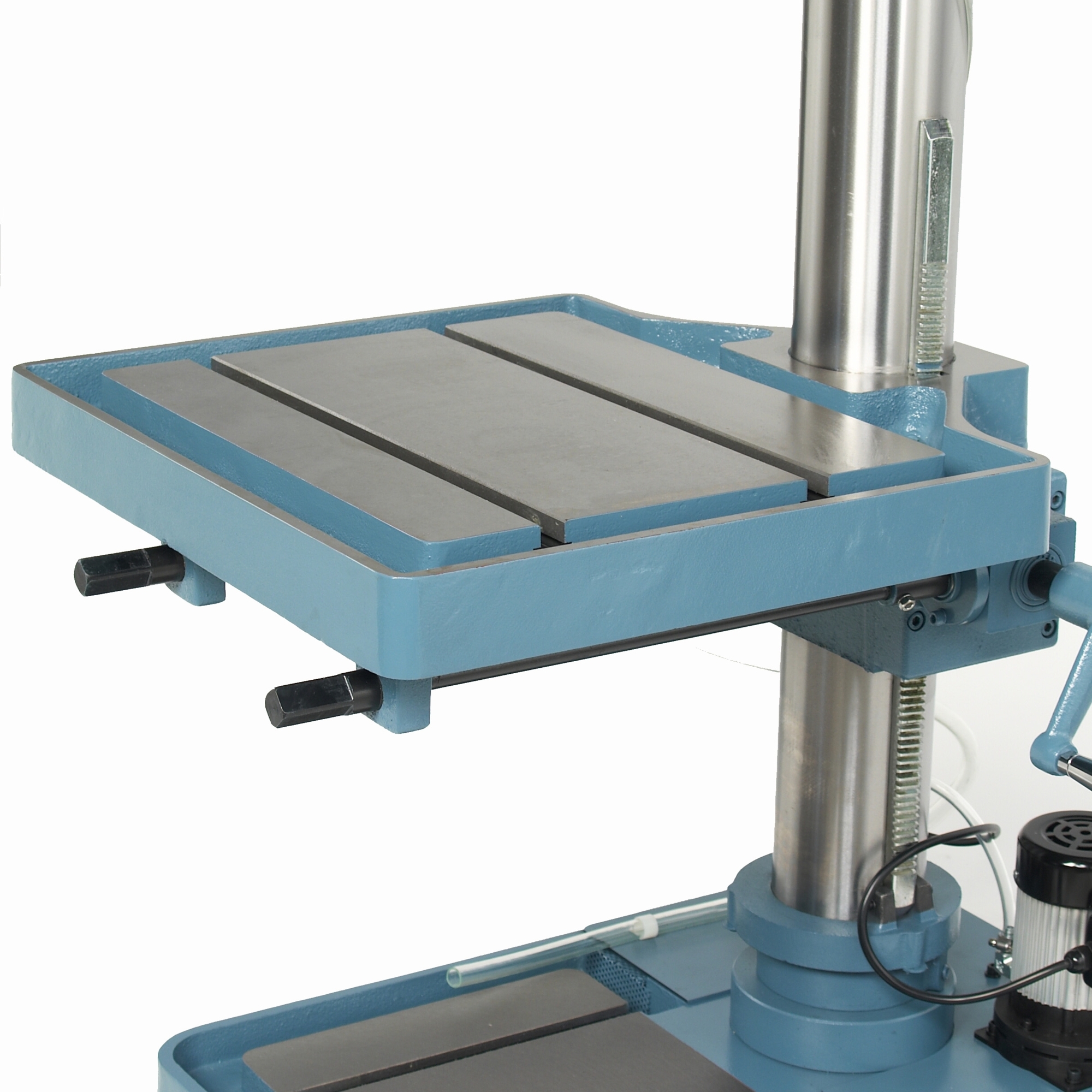

  • *2 hp motor runs on 220-volt single-phase power. *Wide 20” swing. *High speed drill press handles a maximum capacity of 1.25” mild steel. *Includes quality auto-reversing tapping feature with a capacity of .75” mild steel. *Efficient Delta® inverter drives the mighty #4 Morse taper spindle and regulates the amount of power and rpms to the spindle. *Variable speed range from 100 to 4000 rpm lets you select the optimal setting for your application. *Inverter lets you set the rpm to your desired speed within the continuous range instead of just a few settings. *Machined, polished worktable offers large .625” T-slots for your work-holding device.

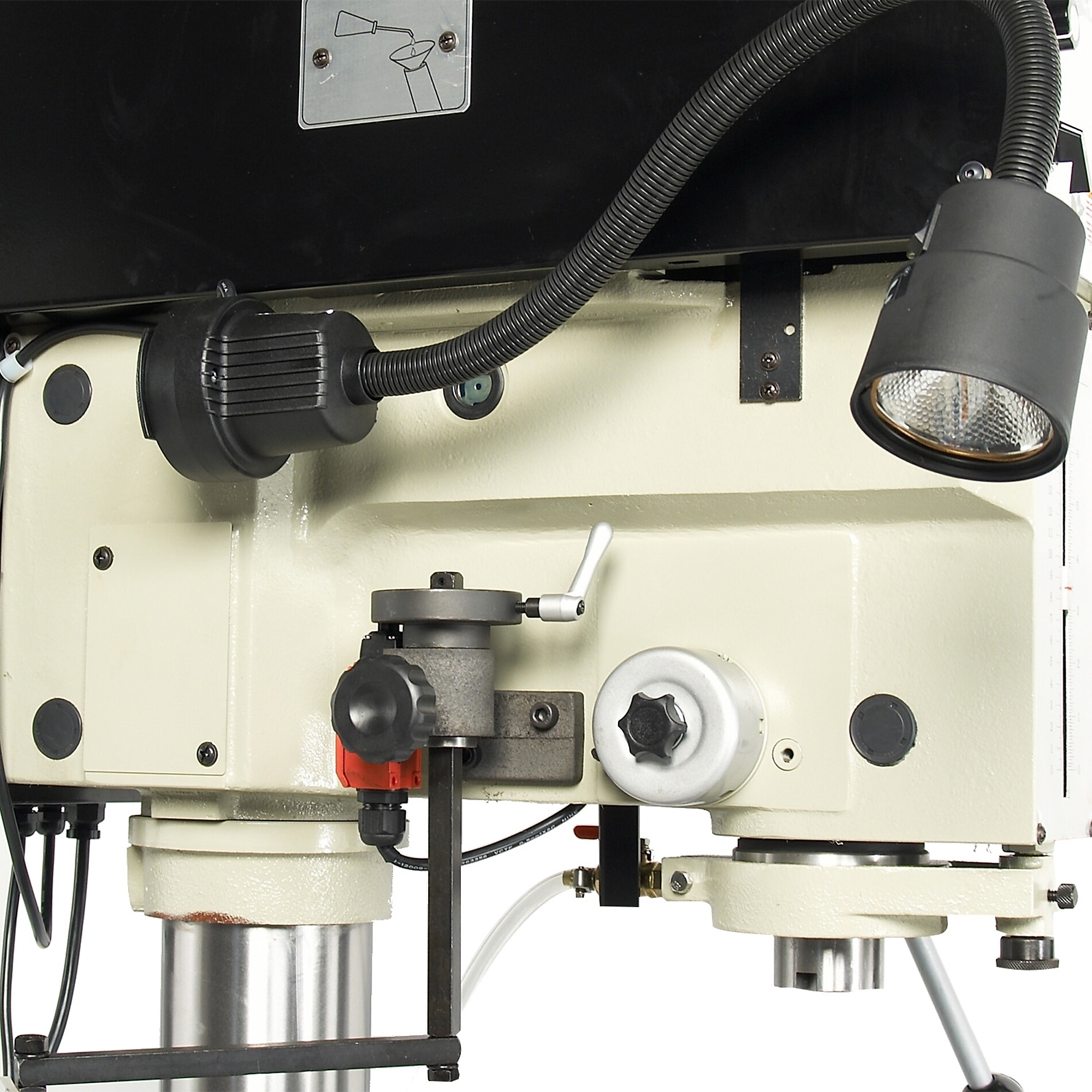

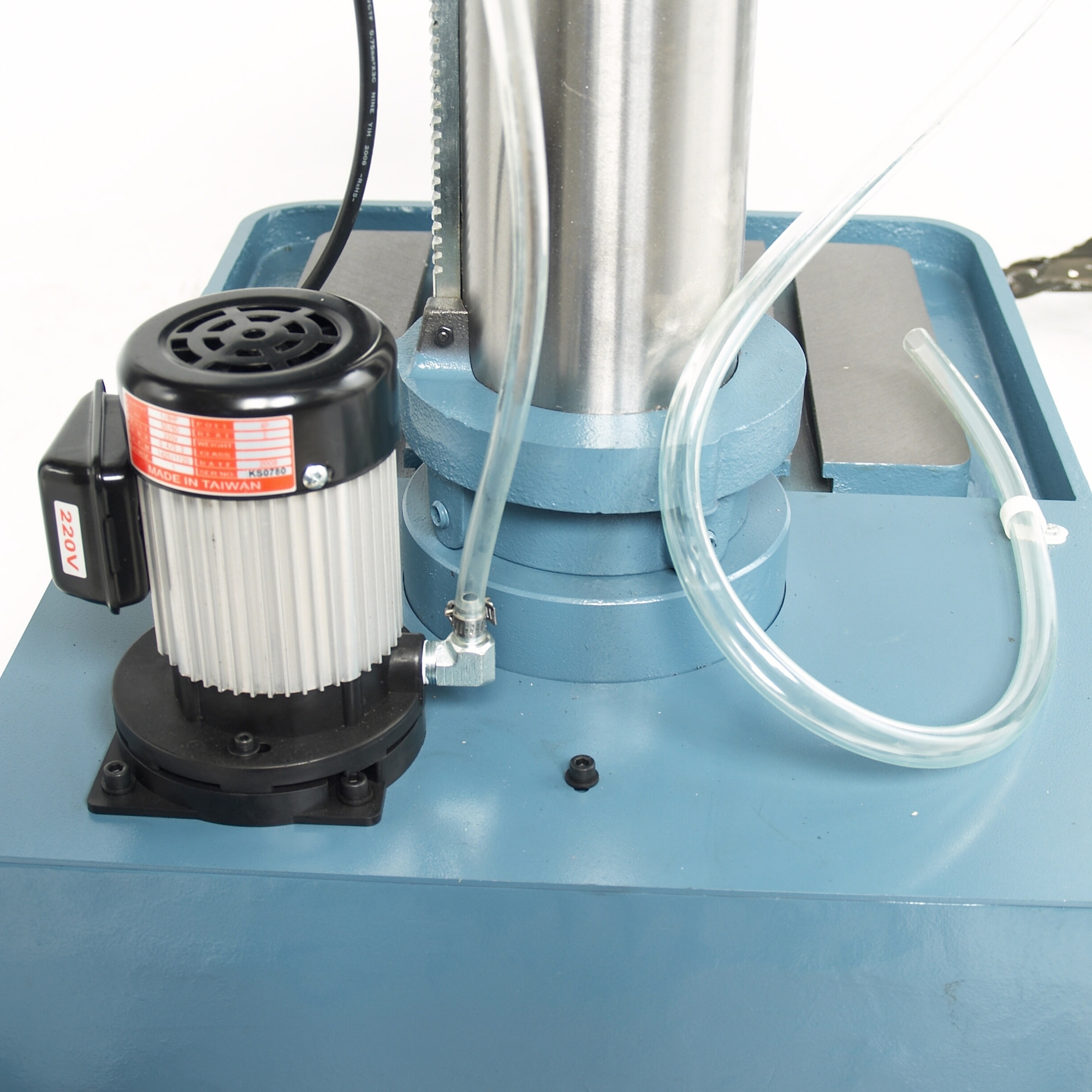

  • *4.5” wide column minimizes flex and maintains accuracy. *Heavy-duty cast iron base has a built-in coolant system to extend tooling life. *Automatic tool ejector make it easy to adjust the drill press for a given project. *Protective spindle shield with limit switch keeps you and your shop safe. *Comes standard with a halogen work light to help you get the job done under dark conditions. *Baileigh backs this high speed drill press with a 1-year parts warranty plus our unbeatable lifetime technical support.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

  Looking to upgrade your current drill? This variable-speed drill press includes all the features of Baileigh’s DP-1250VS but rotates at speeds above 3000 rpm which is perfect for thermal friction drilling (tooling not included).  This process lets the drill bit melt through the material and creates “walls” that can then be tapped.

What's Included

    (1) Machine

Features + Benefits

  • *2 hp motor runs on 220-volt single-phase power. *Wide 20” swing. *High speed drill press handles a maximum capacity of 1.25” mild steel. *Includes quality auto-reversing tapping feature with a capacity of .75” mild steel. *Efficient Delta® inverter drives the mighty #4 Morse taper spindle and regulates the amount of power and rpms to the spindle. *Variable speed range from 100 to 4000 rpm lets you select the optimal setting for your application. *Inverter lets you set the rpm to your desired speed within the continuous range instead of just a few settings. *Machined, polished worktable offers large .625” T-slots for your work-holding device.
  • *4.5” wide column minimizes flex and maintains accuracy. *Heavy-duty cast iron base has a built-in coolant system to extend tooling life. *Automatic tool ejector make it easy to adjust the drill press for a given project. *Protective spindle shield with limit switch keeps you and your shop safe. *Comes standard with a halogen work light to help you get the job done under dark conditions. *Baileigh backs this high speed drill press with a 1-year parts warranty plus our unbeatable lifetime technical support.

Key Specs

AttributeSpecification

item#

5003745

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

865.0 LB

Horsepower

2 HP

Volts

220

Max. Speed

4,000 rpm
AttributeSpecification

360 Degree Head Swivel

No

Product Type

Drill Press

Light Included

Yes

Stand Included

Yes

Variable Speed

Yes

Product Weight

865.0000 lb

Dimensions L x W x H (in.)

60.0 x 44.0 x 79.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
