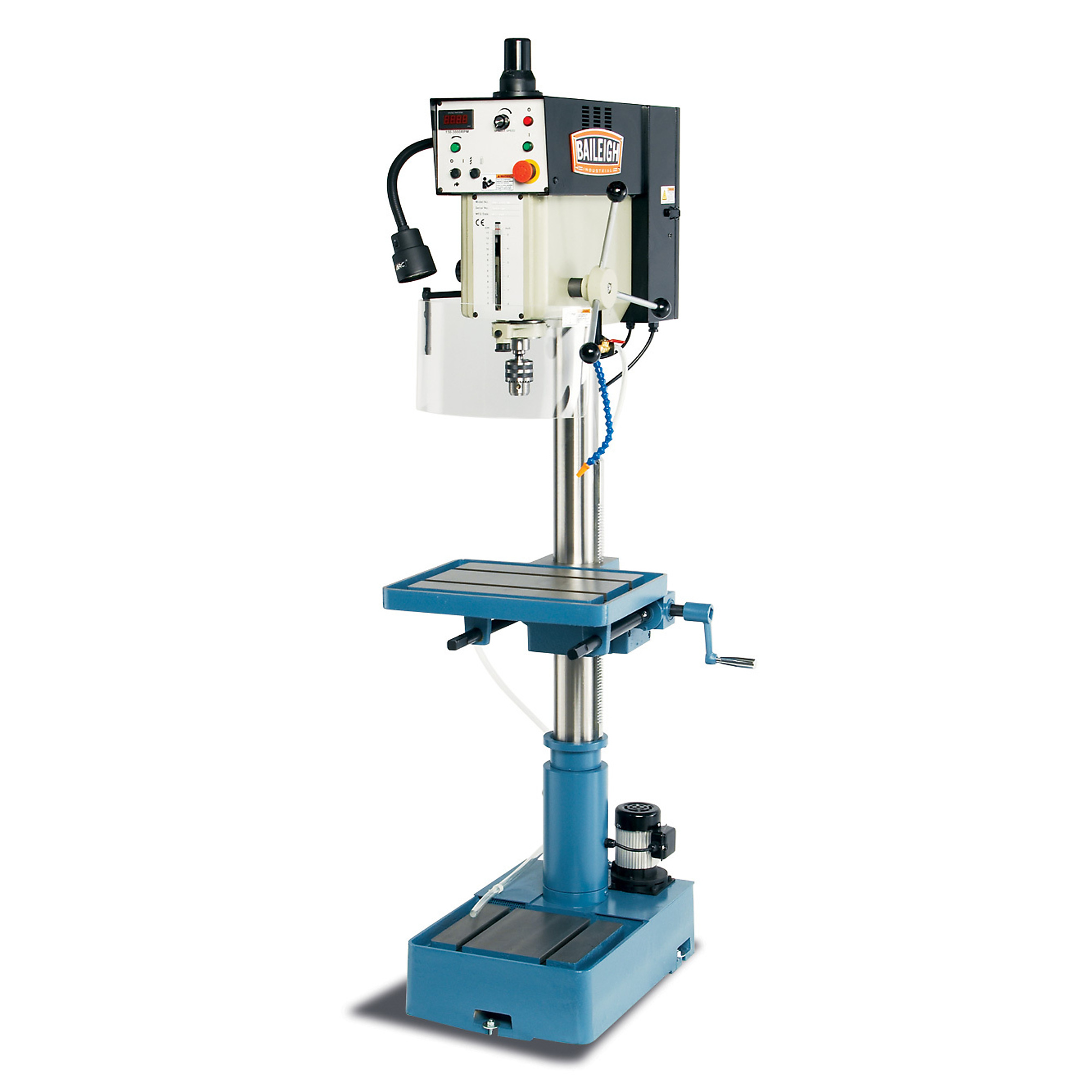

Baileigh, Metal Drill Press, Horsepower 2 HP, Volts 220 Model# DP-1000VS

Item# 5004617
Baileigh, Metal Drill Press, Horsepower 2 HP, Volts 220 Model# DP-1000VS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Metal Drill Press, Horsepower 2 HP, Volts 220 Model# DP-1000VS

Click or Tap image to Zoom

$4849.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • *2 hp motor requires 220-volt single-phase power and will work at virtually any shop or site. *Inverter-driven head drills a maximum capacity of 1” steel. *You can fine-tune the speed in the range from 150 to 3000 rpm to suit your application. *Auto-reversing tap has a tapping capacity of 5/8” steel. *Wide steel column eliminates flexing even when drilling at full capacity. *Rigid cast iron base and table add strength to the drill’s structure. *Comes standard with a coolant system, a feature that some competing companies consider an upgrade.
  • *Includes a safety shield around the drill head to protect you, as well as a halogen light that bends to help you see the project better. *Baileigh backs this variable-speed drill press machine with a 1-year parts warranty and lifetime technical support by phone from our experienced team.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This variable-speed drill press runs smoothly even at full capacity—and will do so for years at your shop. Unlike pulley-driven drills, this 16in. drill press lets you run tooling at the proper speed to fit your application and extend tooling life.

What's Included

    (1) Machine

Features + Benefits

  • *2 hp motor requires 220-volt single-phase power and will work at virtually any shop or site. *Inverter-driven head drills a maximum capacity of 1” steel. *You can fine-tune the speed in the range from 150 to 3000 rpm to suit your application. *Auto-reversing tap has a tapping capacity of 5/8” steel. *Wide steel column eliminates flexing even when drilling at full capacity. *Rigid cast iron base and table add strength to the drill’s structure. *Comes standard with a coolant system, a feature that some competing companies consider an upgrade.
  • *Includes a safety shield around the drill head to protect you, as well as a halogen light that bends to help you see the project better. *Baileigh backs this variable-speed drill press machine with a 1-year parts warranty and lifetime technical support by phone from our experienced team.

Key Specs

AttributeSpecification

item#

5004617

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

620.0 LB

Horsepower

2 HP

Volts

220

Max. Speed

3,000 rpm
AttributeSpecification

360 Degree Head Swivel

No

Product Type

Drill Press

Light Included

Yes

Stand Included

Yes

Variable Speed

Yes

Product Weight

620.0000 lb

Dimensions L x W x H (in.)

60.0 x 44.0 x 83.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
