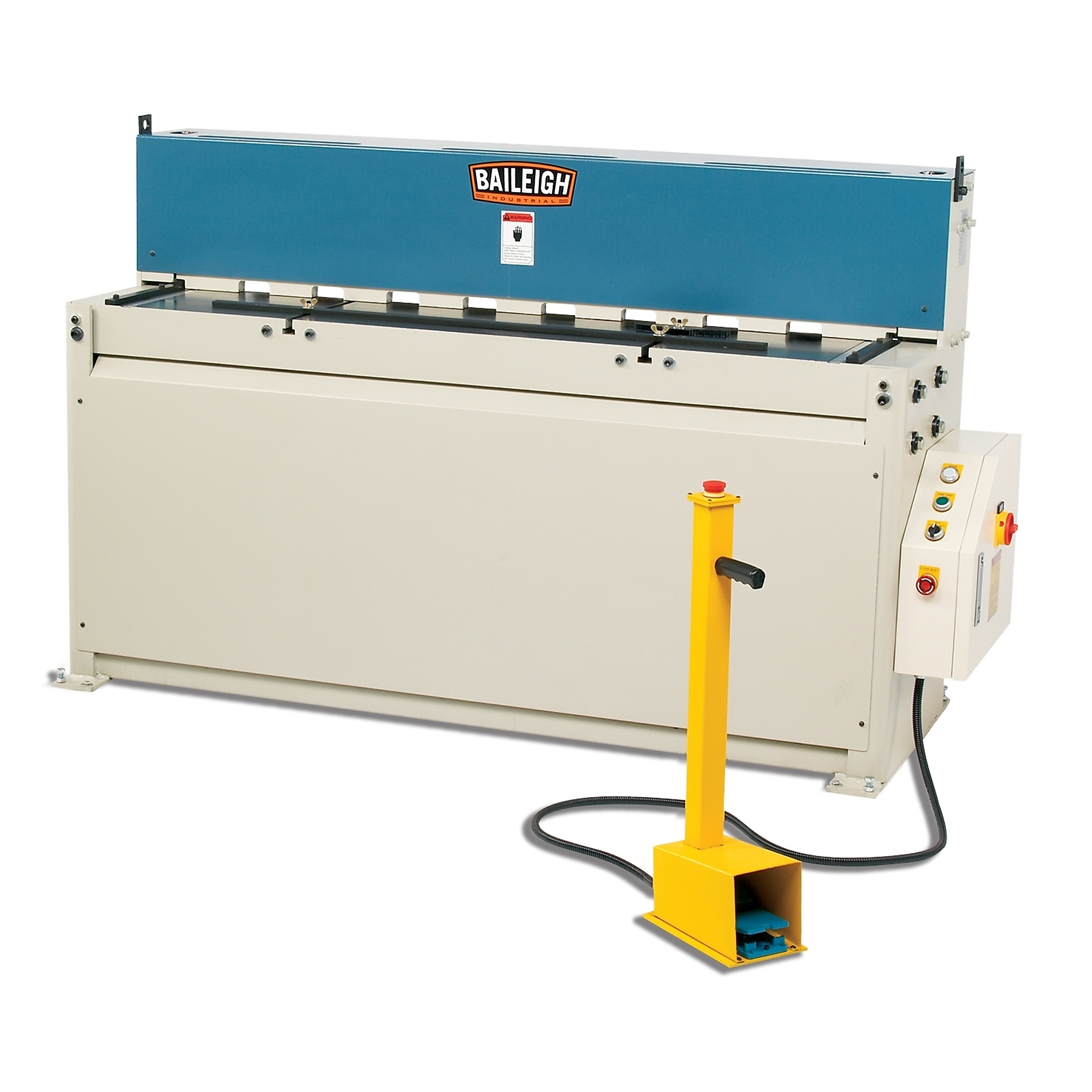

Baileigh, Hydraylic Shear, Max. Material Thickness 10 ga, Model# SH-6010

Item# 4685836
Baileigh, Hydraylic Shear, Max. Material Thickness 10 ga, Model# SH-6010

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Hydraylic Shear, Max. Material Thickness 10 ga, Model# SH-6010

Click or Tap image to Zoom

$21,899.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 60” length sheet metal shear..
  • 10 gauge mild steel maximum capacity.
  • Minimum capacity of 24 gauge mild steel.
  • 3 hp motor runs on 220-volt 3-phase power.
  • Up to 26 strokes per minute.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

We build this 10 gauge metal shear with a fully welded metal plate frame to reduce flex and ensure accuracy. Industrial-grade hydraulics produce smooth movements that prolong blade life.

What's Included

    (1) Hydraulic Powered Shear

Features + Benefits

  • 60” length sheet metal shear..
  • 10 gauge mild steel maximum capacity.
  • Minimum capacity of 24 gauge mild steel.
  • 3 hp motor runs on 220-volt 3-phase power.
  • Up to 26 strokes per minute.

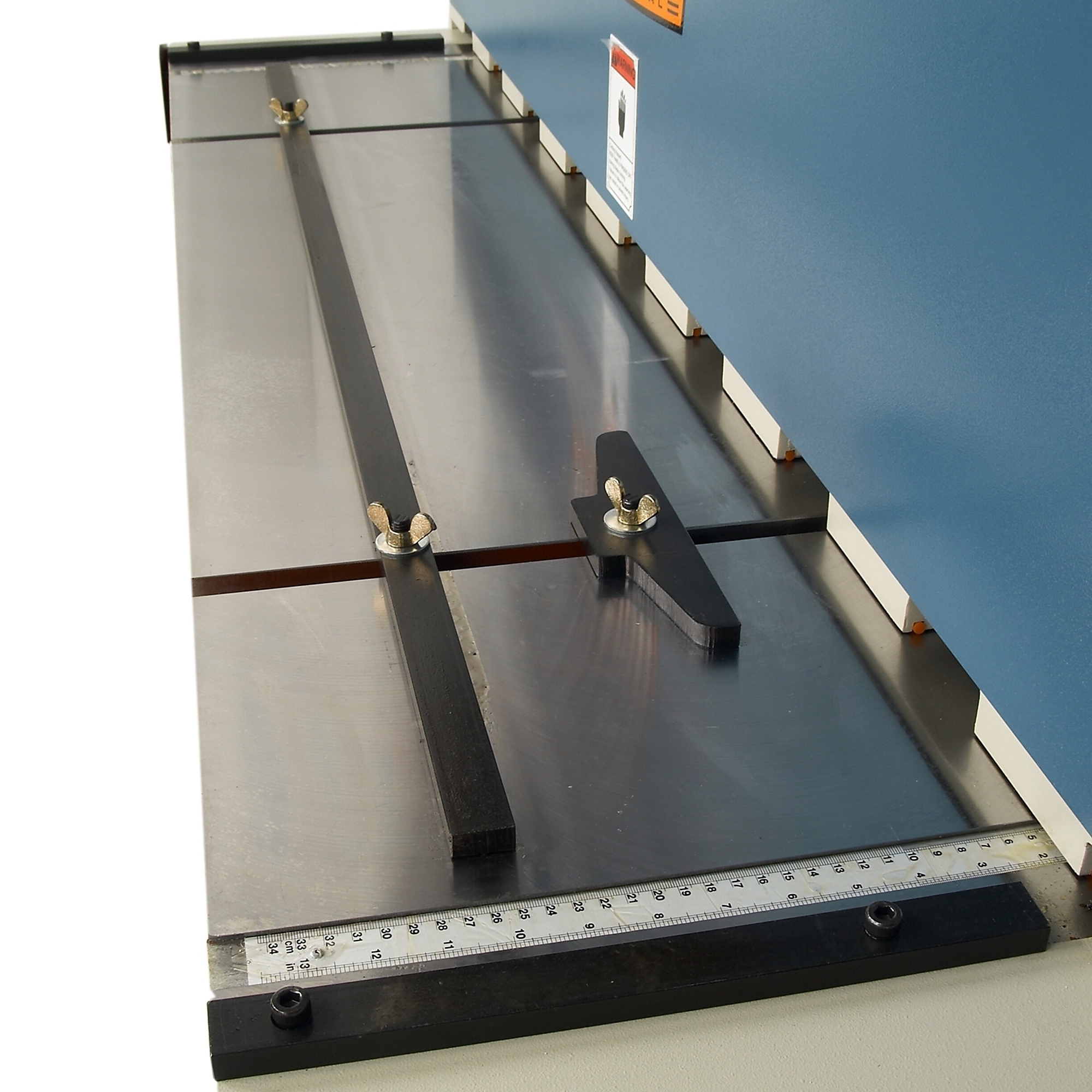

  • Adjustable 24” backgauge ensures precise repeatability.
  • Front support arms and table guides keep the material square to the blade.

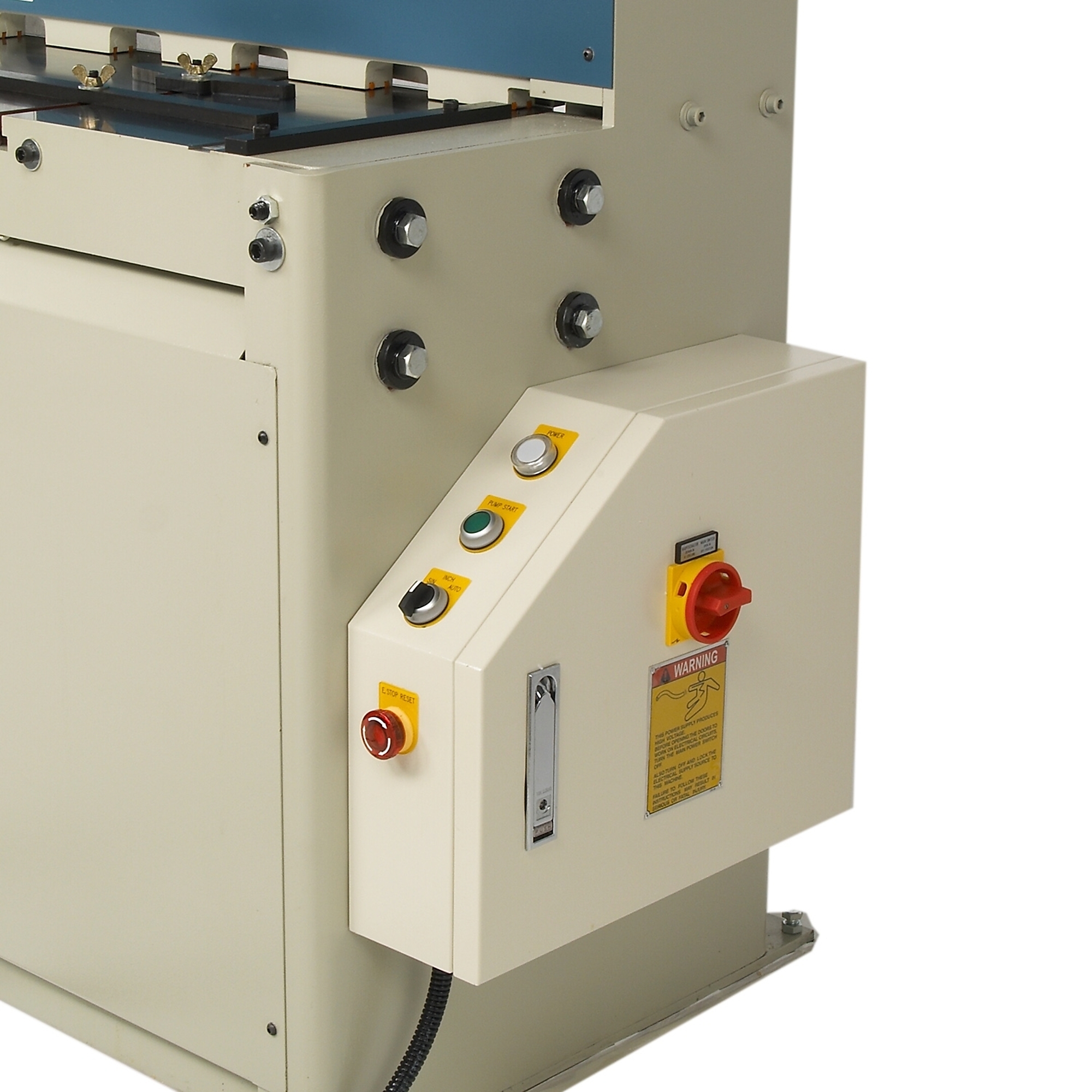

  • 3 modes on the operator console:
  • Inch mode: Jog the control and ease the blade down to the material.

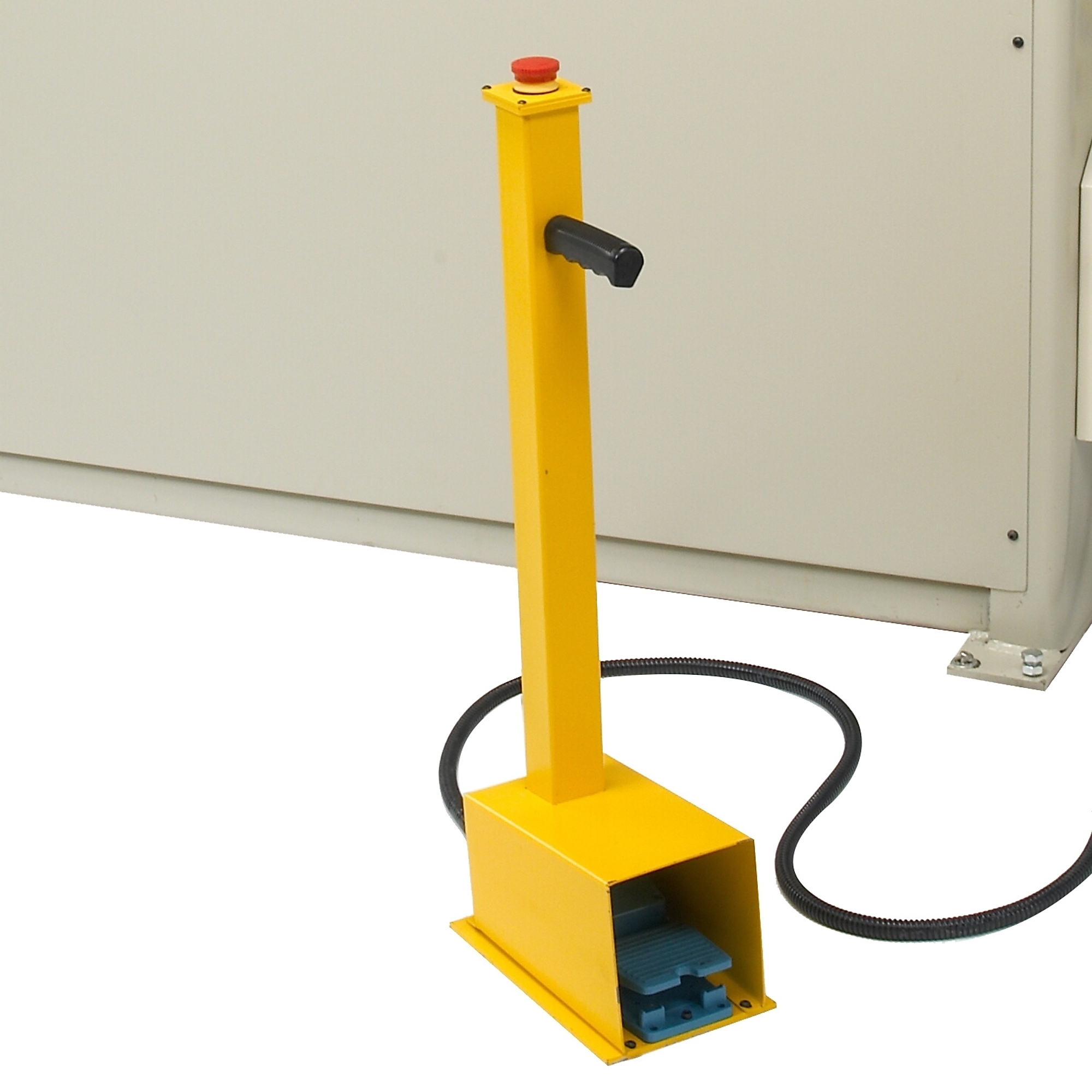

  • Single mode: Make one cut cycle per foot pedal push.
  • Auto mode: Continue cycling as you hold the pedal down.
  • Comes standard with high carbon chromium blades.
  • Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
  • Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
  • Rigid steel frame minimizes deformation and helps deliver clean, high-quality cuts.
  • Covered by a 1-year parts warranty.
  • We stock replacement parts, including blades, in house for fast shipping.
  • Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.

Key Specs

AttributeSpecification

item#

4685836

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

15728.0 LB
AttributeSpecification

Max. Material Thickness

10 ga

Product Weight

15728.0000 lb

Dimensions L x W x H (in.)

85.0 x 35.0 x 58.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
