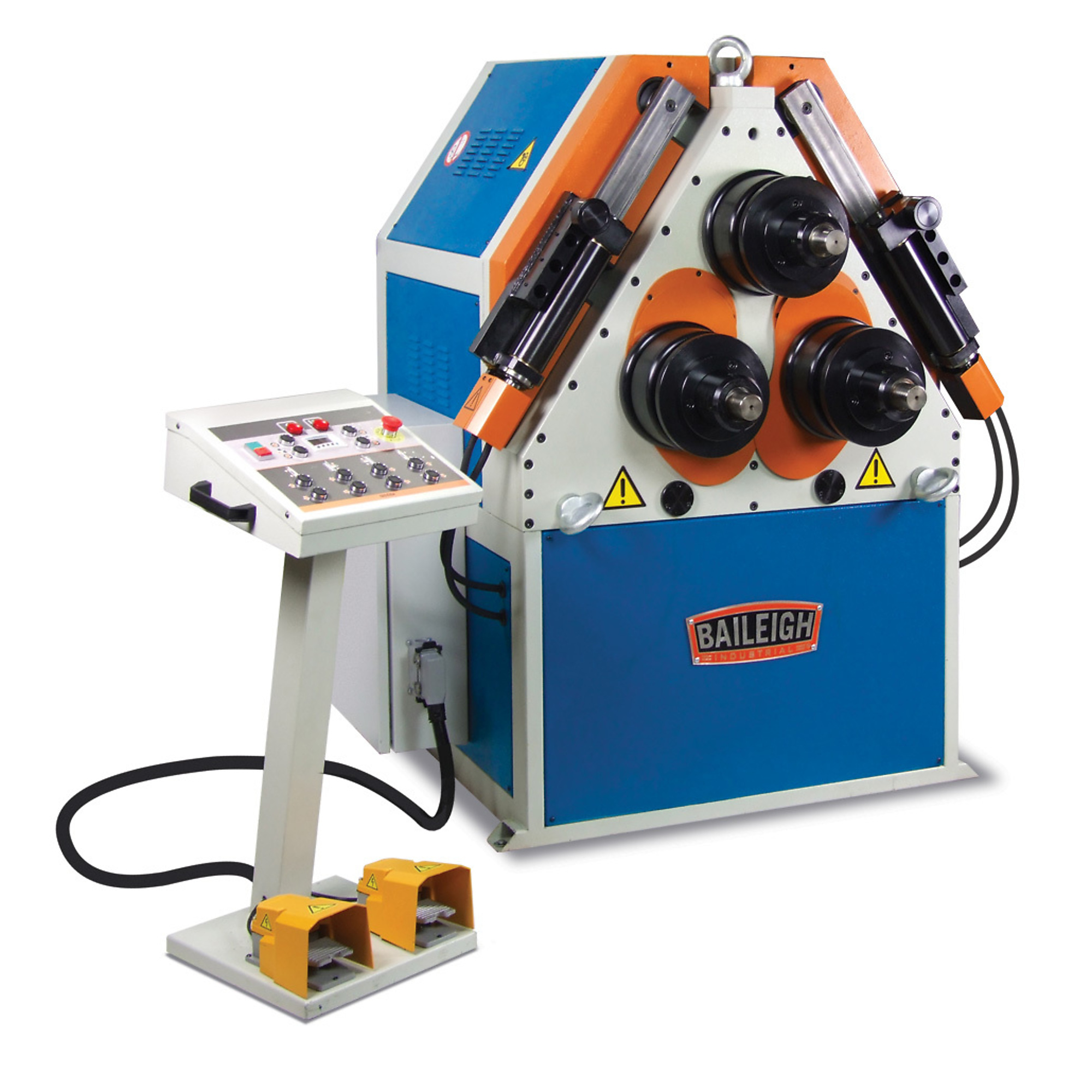

Baileigh, Hydraulic Roll Bender, Max. Material Gauge 8 Model# R-H85

Item# 4686185
Baileigh, Hydraulic Roll Bender, Max. Material Gauge 8 Model# R-H85

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Hydraulic Roll Bender, Max. Material Gauge 8 Model# R-H85

Click or Tap image to Zoom

$41,689.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Runs on 220-volt 3-phase power.
  • Bends up to 4" round tube, 3” schedule 40 pipe, and 3.375” x 3.375” x .25” angle iron.
  • 3 rolls driven by industrial-grade hydraulic transmission.

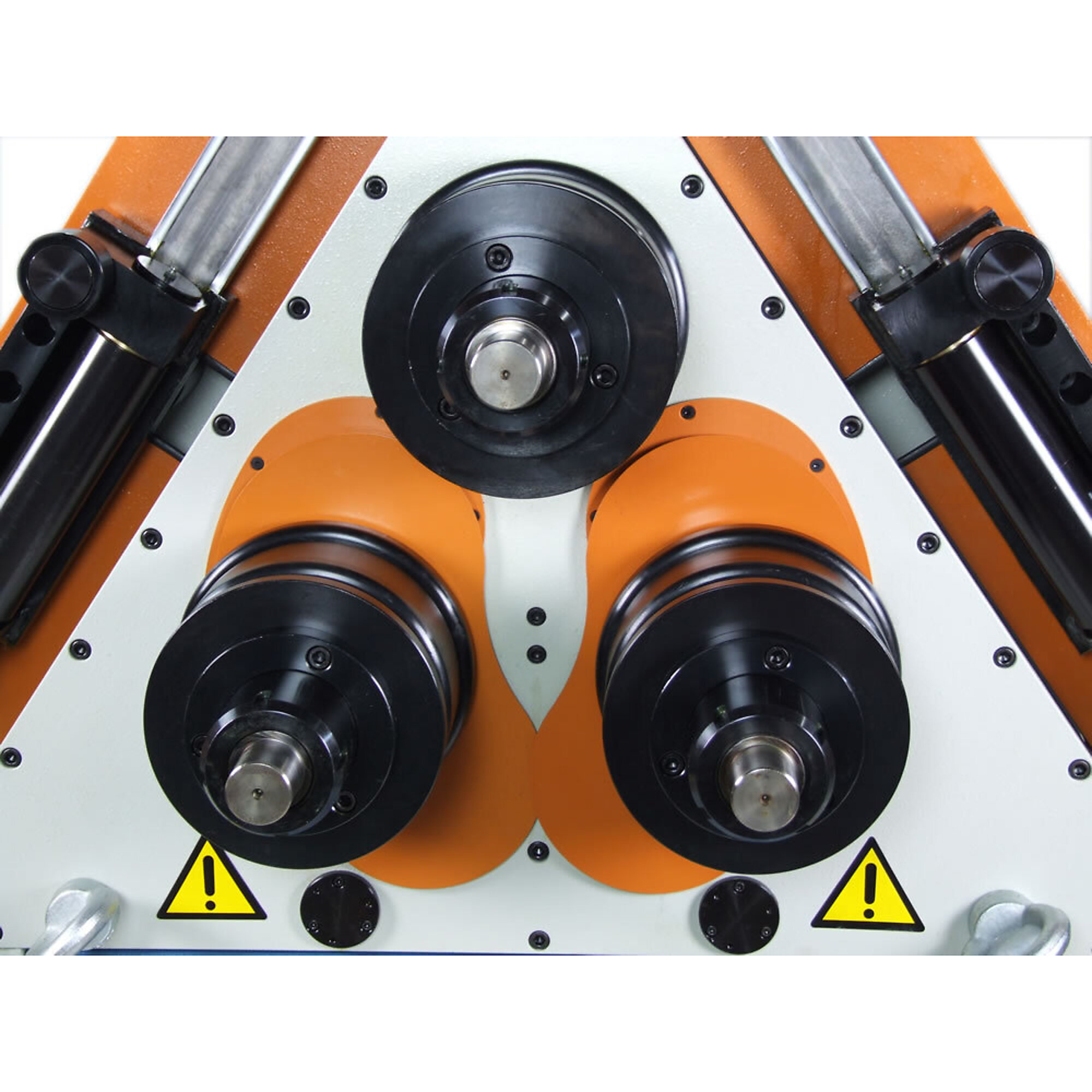

  • Double-pinch design consists of 1 fixed top roll plus 2 bottom rolls moved by independent hydraulic cylinders.
  • Hydraulic encoders communicate exact roll positioning to integrated digital readout programmers, making repeatability a cinch.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Baileigh Hydraulic Roll Bender, is an advanced tool designed to enhance the efficiency and precision of your metalworking shop. Capable of handling a maximum material gauge of 8, this double-pinch ring roller significantly reduces waste and optimizes material usage, saving you money on scrap metal. Its hydraulic operation ensures fast, accurate bending, making it an indispensable asset for any professional metalworking environment. Built for durability and performance, the Baileigh Hydraulic Roll Bender is engineered to deliver consistent, high-quality results, helping you achieve precise bends and shapes with ease. Whether you're working on large-scale projects or intricate designs, this roll bender provides the reliability and efficiency needed to meet demanding production standards.

What's Included

    (1) Double Pinch Roll Bender

Features + Benefits

  • Runs on 220-volt 3-phase power.
  • Bends up to 4" round tube, 3” schedule 40 pipe, and 3.375” x 3.375” x .25” angle iron.
  • 3 rolls driven by industrial-grade hydraulic transmission.
  • Double-pinch design consists of 1 fixed top roll plus 2 bottom rolls moved by independent hydraulic cylinders.
  • Hydraulic encoders communicate exact roll positioning to integrated digital readout programmers, making repeatability a cinch.

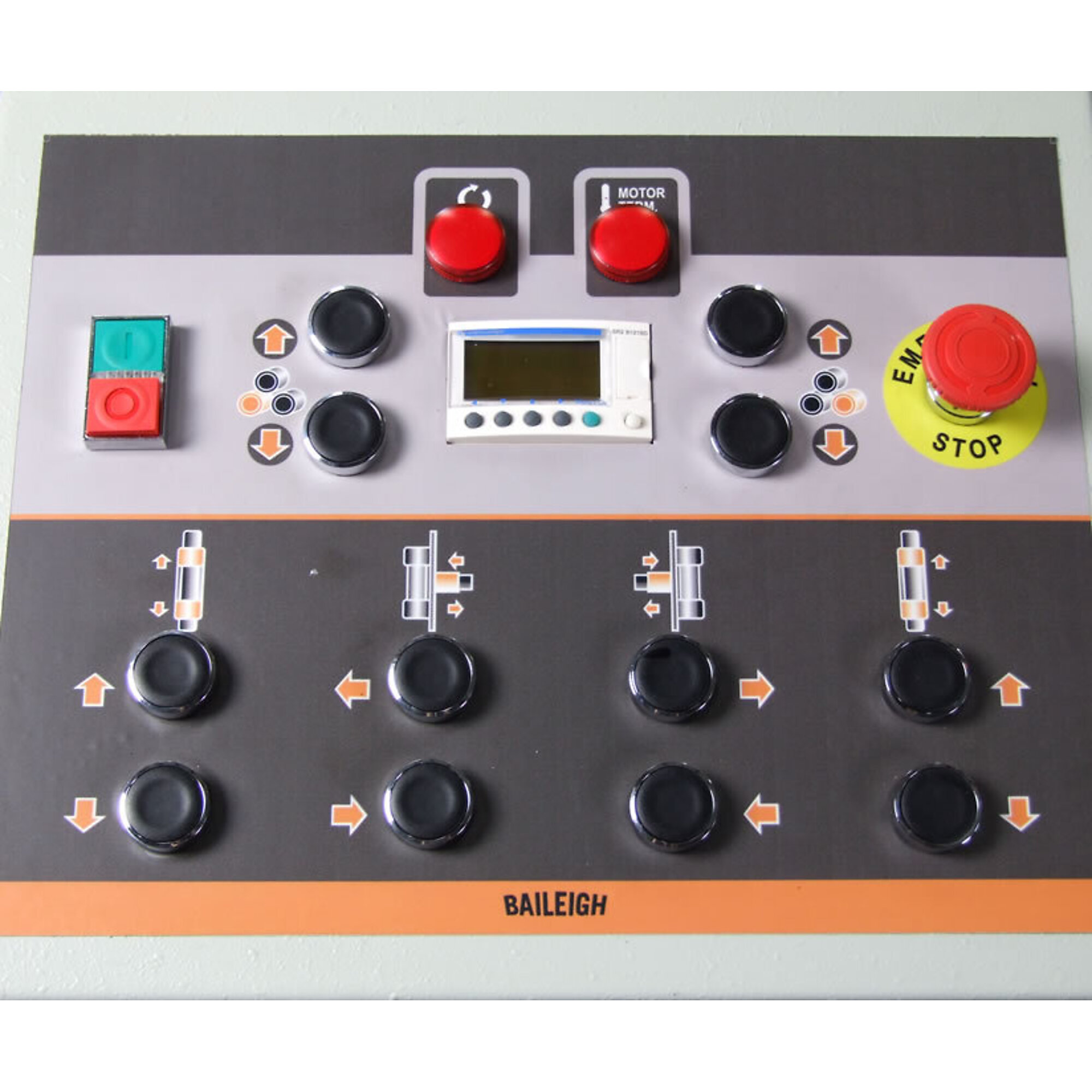

  • You can control all machine movement of the machine from the podium-mounted operator panel with attached foot pedal.

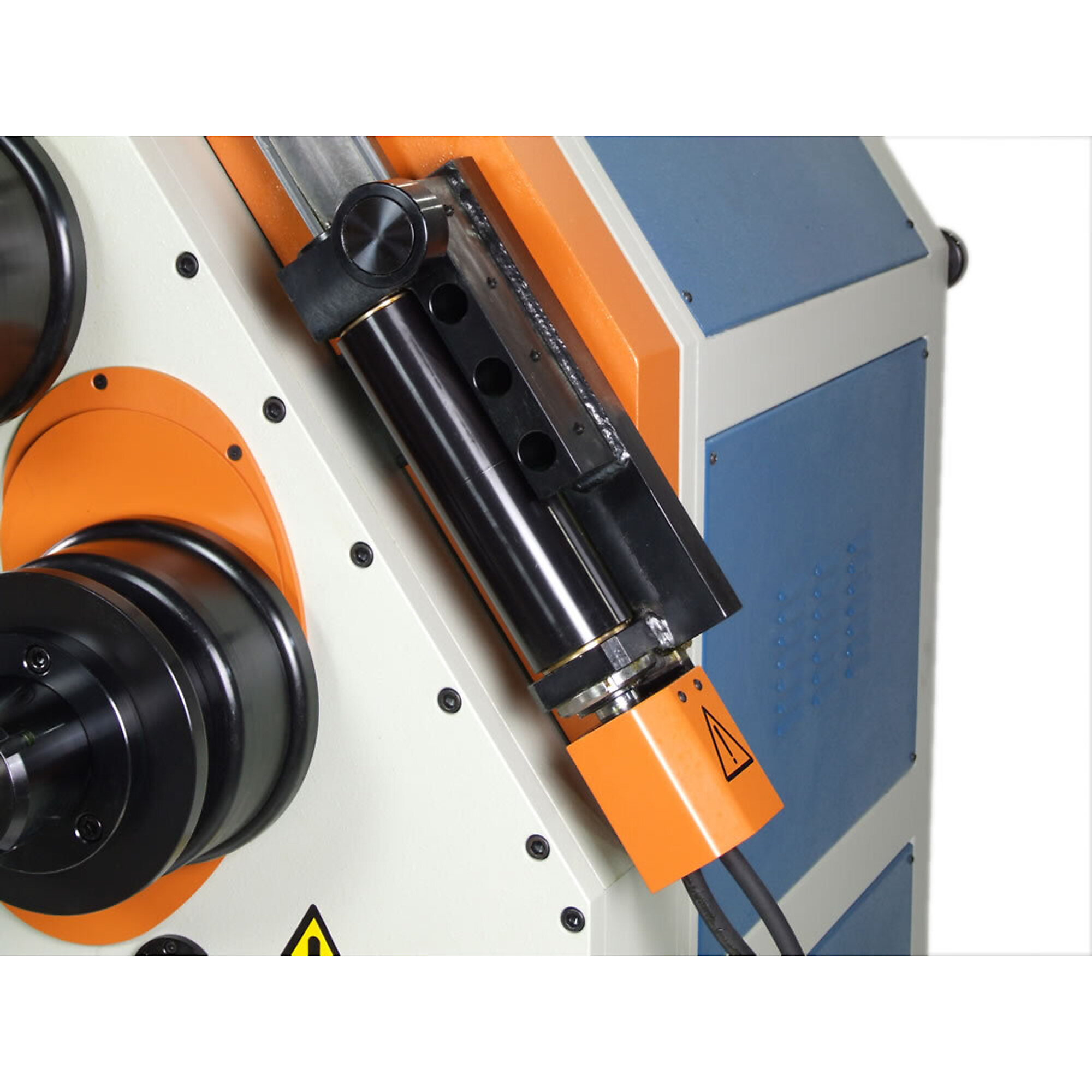

  • Hydraulic lateral guide rolls prevent the material from twisting and correct bend angles.
  • We bolt and weld the heavy steel plate frame for structural strength so that it won’t flex even at full capacity.
  • Baileigh covers this tubing roller with a 1-year parts warranty and lifetime technical support by phone.

Key Specs

AttributeSpecification

item#

4686185

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

37753.0 LB

Max. Bending Capacity - Flat

5 in

Max. Bending Capacity - Round

4 in

Max. Material Gauge

8
AttributeSpecification

Dies Included

No

Max. Depth

9.65 in

Max. Lift Height

9.65 in

Slip Roll Length

0 in

Product Weight

37753.0000 lb

Dimensions L x W x H (in.)

72.0 x 72.0 x 72.0 in
