Baileigh Column Type Non-Mitering Metal Cutting Band Saw, 5 HP, Volts 220, Model# BS-360SA

Item# 4765131
Baileigh Column Type Non-Mitering Metal Cutting Band Saw, 5 HP, Volts 220, Model# BS-360SA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh Column Type Non-Mitering Metal Cutting Band Saw, 5 HP, Volts 220, Model# BS-360SA

Click or Tap image to Zoom

$28,499.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Huge capacity of 14” round and 14” x 22” rectangle.

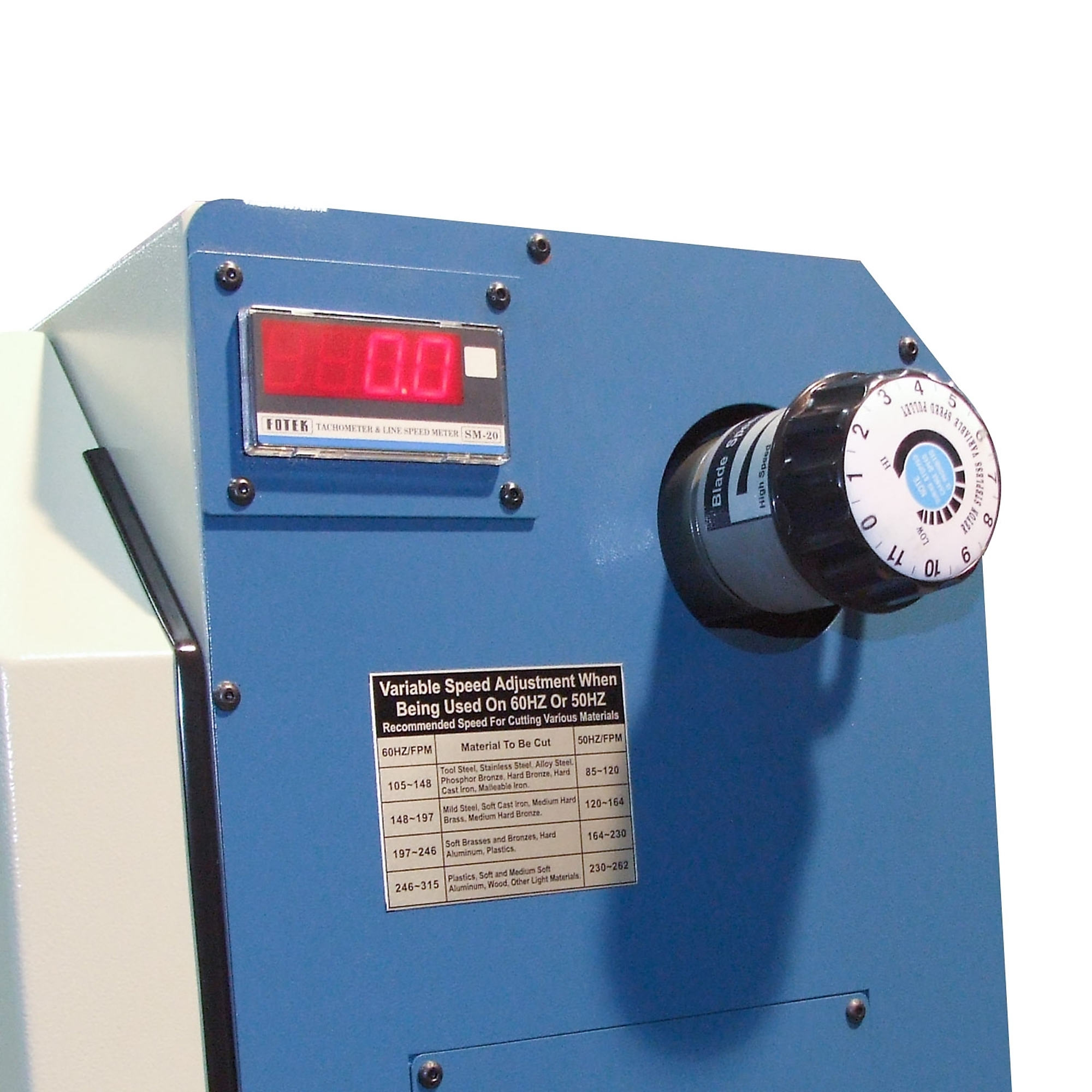

  • 77 to 252 fpm variable blade speed.
  • Accepts a standard 1.25” blade (included) to make straight, accurate cuts.
  • Robust 5 hp motor runs on 220-volt 3-phase power.
  • Cast iron vise and bow, machined to exacting tolerances, ensure that cuts are as precise as possible.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Baileigh Dual Column Bandsaw is a powerful and efficient tool designed for continuous steel cutting applications. With a robust 5 HP motor and operating on 220 volts, this corded bandsaw is built to handle demanding tasks with ease. Its semi-automatic operation is enhanced by an efficient hydraulic system that ensures smooth and precise cutting, saving you valuable time on the job. The cast iron bow and steel frame construction provide exceptional stability and accuracy, maintaining consistent performance even under heavy use. Whether you're in a professional workshop or an industrial setting, the Baileigh Dual Column Bandsaw delivers reliable, high-quality cuts, making it an indispensable addition to your cutting equipment lineup.

What's Included

    (1) BS-360SA

Features + Benefits

  • Huge capacity of 14” round and 14” x 22” rectangle.
  • 77 to 252 fpm variable blade speed.
  • Accepts a standard 1.25” blade (included) to make straight, accurate cuts.
  • Robust 5 hp motor runs on 220-volt 3-phase power.
  • Cast iron vise and bow, machined to exacting tolerances, ensure that cuts are as precise as possible.

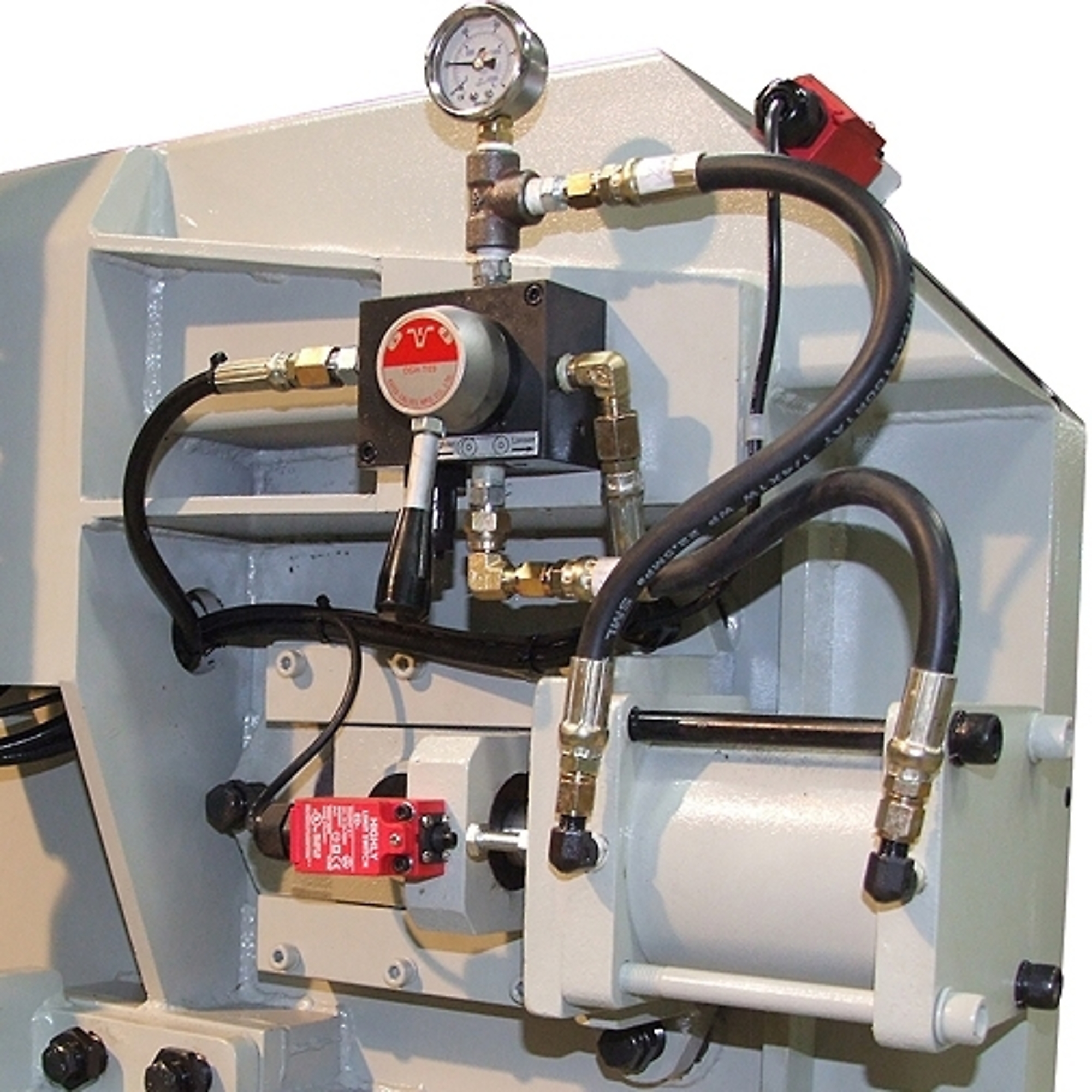

  • Industrial-grade hydraulic system controls the vise and the bow height.

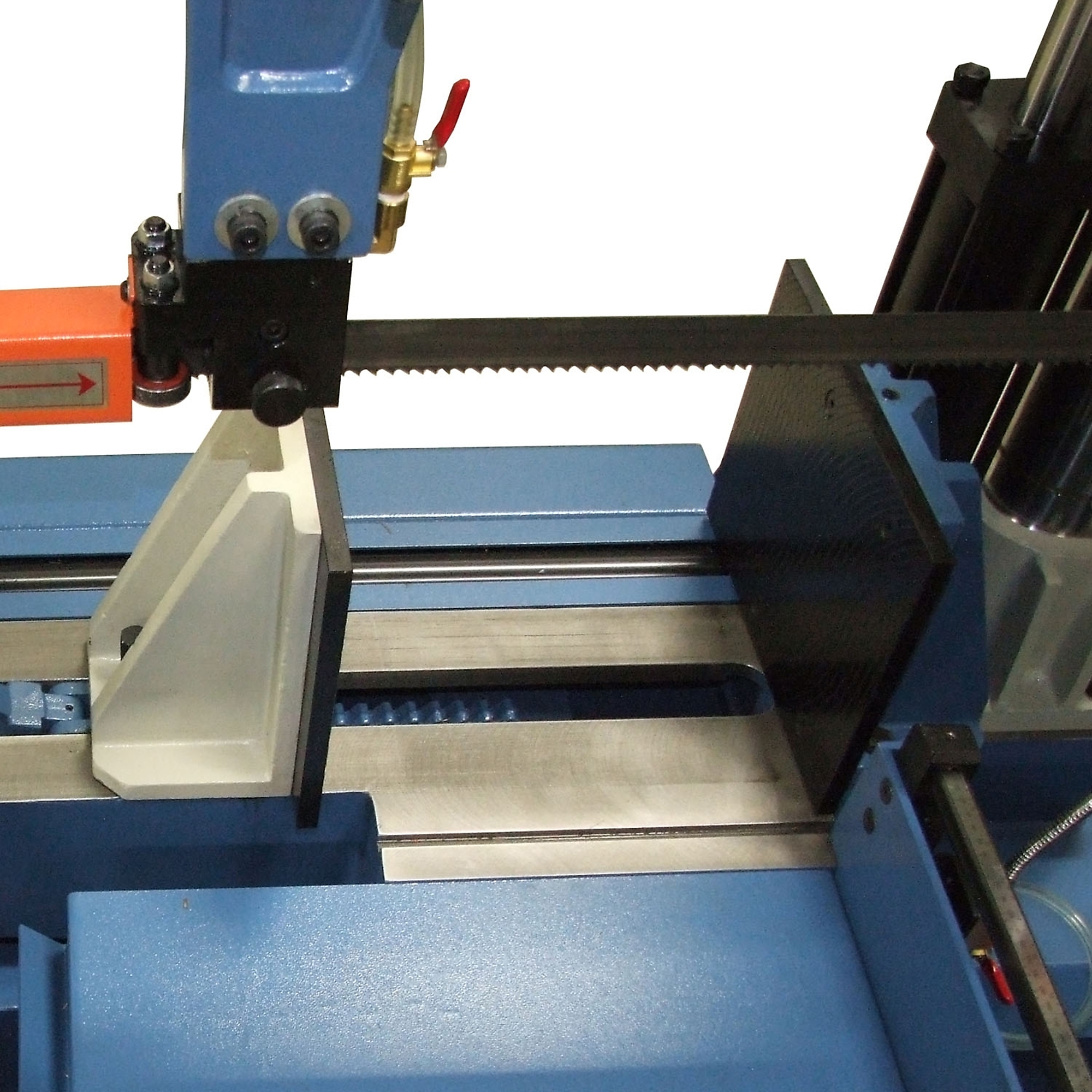

  • Fully-sealed ball bearings used as blade guides track the blade smoothly and properly.

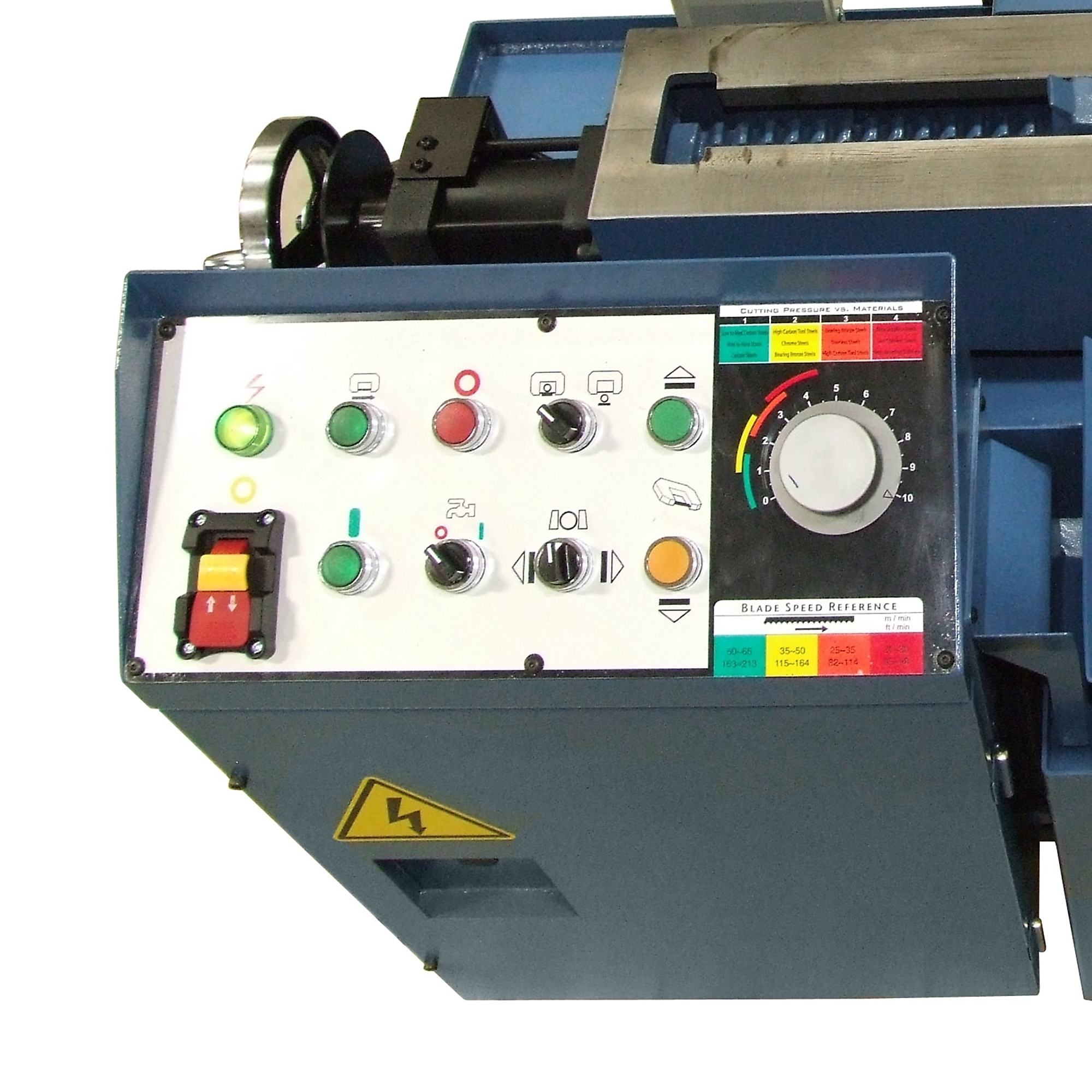

  • Easy-to-use control panel—with labeled buttons and dials for locking the vice, starting the blade, and more—lets you get up and running quickly.
  • Patented hydraulic blade tension device makes it easy to get the right settings. Just line up the arrow with the green fluid-filled gauge.
  • Electro-welded steel frame reduces vibrations and keeps cuts accurate over many years of production.

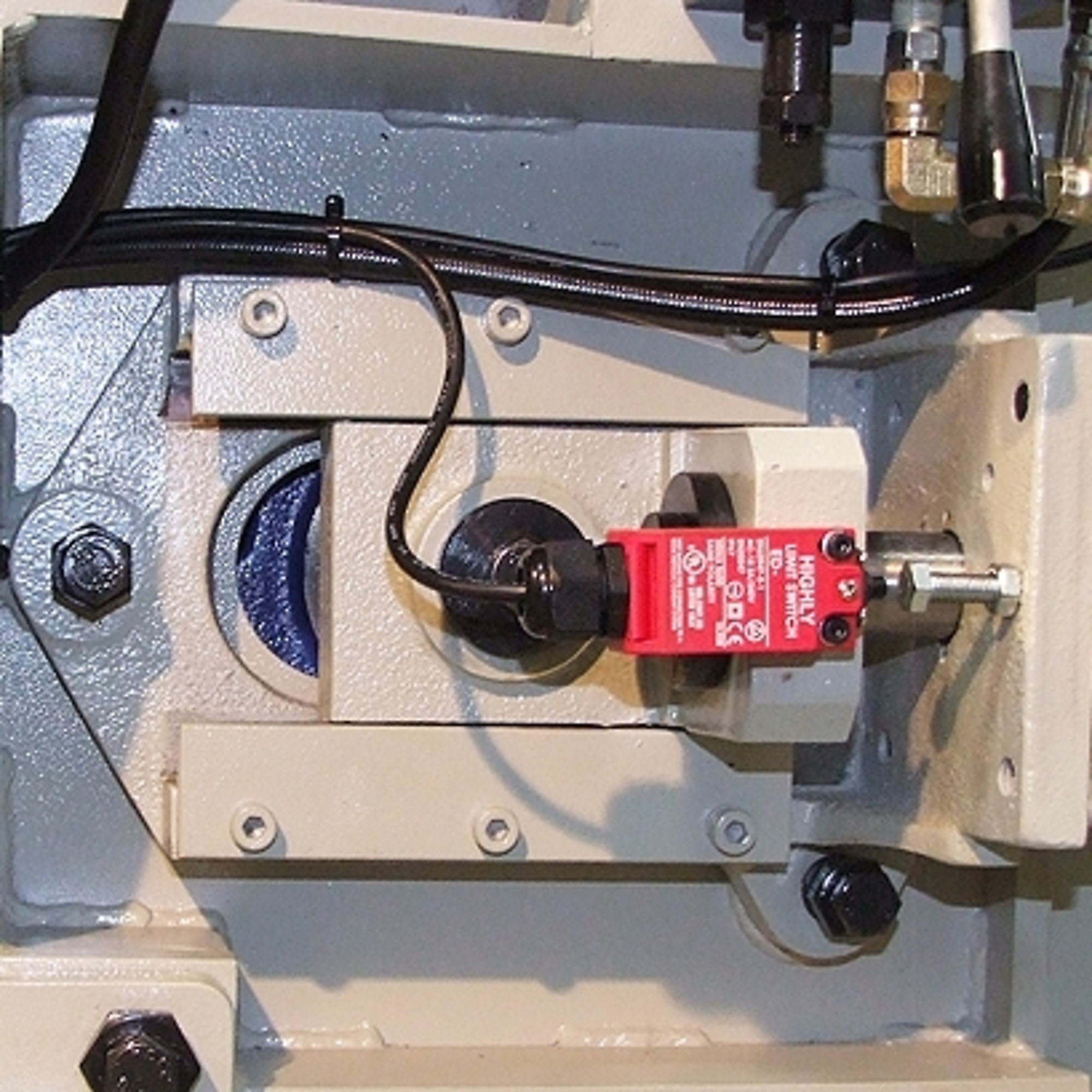

  • Includes blade brake switch for safety.
  • Flood coolant system washes away chips after cutting and helps blades last longer.
  • Comes with a chip removal blade brush.
  • Bright halogen work light gives you a clear view of what you’re cutting.
  • Most replacement parts are in stock at our Wisconsin headquarters for fast shipping.
  • This horizontal band saw is covered by a 1-year parts warranty.
  • Our team of experienced reps provides lifetime technical support by phone. Call us whenever you need machine help or advice on an application.

Key Specs

AttributeSpecification

item#

4765131

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3000.0 LB

Volts

220

Power Type

Corded

Motor Type

Brushed

Phase

Three-phase

Variable Speed

Yes
AttributeSpecification

Max. Cutting Capacity

252 SFPM

Table Tilt Left Max. Degrees

0

Table Tilt Right Max. Degrees

0

Cuts Through

14” round and 14” x 22” rectangle

Case Included

No

No Tool Blade Change

No

Horsepower

5 HP

Product Weight

3000.0000 lb

Dimensions L x W x H (in.)

98.0 x 31.0 x 74.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
