Baileigh, Hydraulic Press, Press Type Hydraulic, Max. Pressure 30 Tons, Model# HSP-30M-C

Item# 4702886
Baileigh, Hydraulic Press, Press Type Hydraulic, Max. Pressure 30 Tons, Model# HSP-30M-C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Hydraulic Press, Press Type Hydraulic, Max. Pressure 30 Tons, Model# HSP-30M-C

Click or Tap image to Zoom

$9517.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 30-ton capacity on main press.

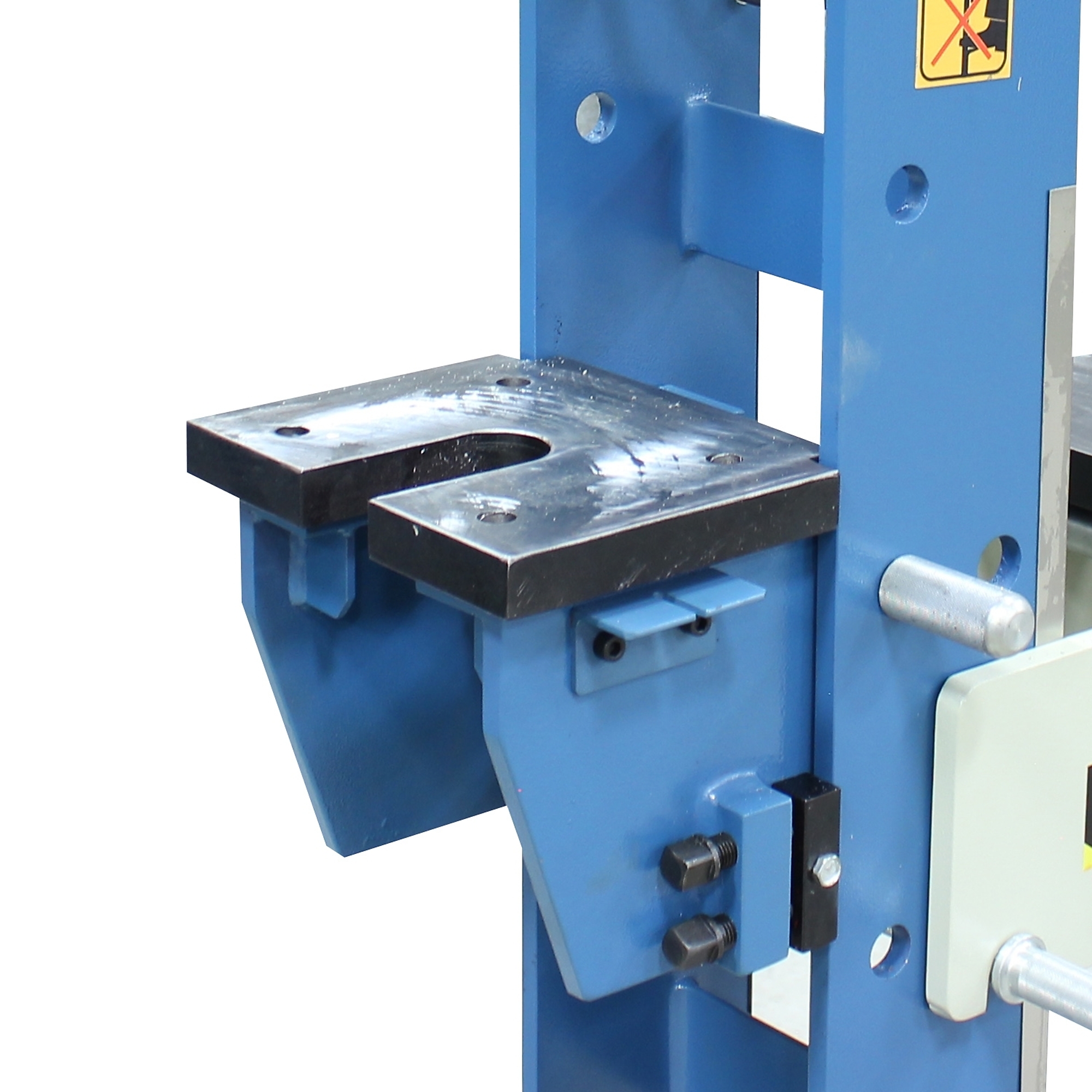

  • 10-ton capacity on side press.
  • 27.5” working width.
  • 5.74” diameter cylinder with 9.8” stroke on main press.
  • 2.76” diameter cylinder with 7.75” stroke on side press .

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Baileigh Hydraulic Press is a robust and versatile tool designed to handle demanding pressing tasks with ease and efficiency. With a maximum pressure capacity of 30 tons, this hydraulic press is built to deliver powerful performance in a variety of applications. Its additional workstation enhances functionality, allowing for increased productivity and flexibility in operations. Constructed from durable plate steel, the press ensures long-lasting strength and reliability, making it suitable for heavy-duty use in industrial settings. The piston-style hydraulic pump provides smooth and consistent pressure, ensuring precise control and optimal results with every use. Whether used for bending, straightening, or pressing, the Baileigh Hydraulic Press stands out as a reliable and efficient solution for professionals seeking quality and performance in their equipment.

What's Included

    (1) 30/15T Hydraul H-Frame Press

Features + Benefits

  • 30-ton capacity on main press.
  • 10-ton capacity on side press.
  • 27.5” working width.
  • 5.74” diameter cylinder with 9.8” stroke on main press.
  • 2.76” diameter cylinder with 7.75” stroke on side press .
  • 3 hp motor runs on 200-volt single-phase power.
  • Main cylinder can move left and right within the frame to deliver pressure at the point where you need it for off-center projects.
  • Comes standard with dual pressure gauges.
  • Includes 2-piece V-block.
  • Fully-welded steel frame
  • enables you to use the machine’s force at full capacity without worrying about flexing.
  • Baileigh covers this hydraulic shop press with a 1-year parts warranty as well as lifetime technical support by phone.

Key Specs

AttributeSpecification

item#

4702886

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1240.0 LB

Press Type

Hydraulic
AttributeSpecification

Max. Pressure

30 Tons

Stroke Length

9.8 in

Working Width

27.5 in

Product Weight

1240.0000 lb

Dimensions L x W x H (in.)

78.0 x 48.0 x 80.0 in

Reviews

Questions & Answers

Questions

  1. Does this unit have hydraulic lift  table?

    1 answer

    1. This press is not equipped with a hydraulic lift table.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
