Ranger Products Commercial-Grade Press, 20-Ton Capacity, Model# RP-20HD

Item# 102874
Ranger Products Commercial-Grade Press, 20-Ton Capacity, Model# RP-20HD

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ranger Products Commercial-Grade Press, 20-Ton Capacity, Model# RP-20HD

Click or Tap image to Zoom

$1000.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Ideal for pressing bearings, U-joints, etc.

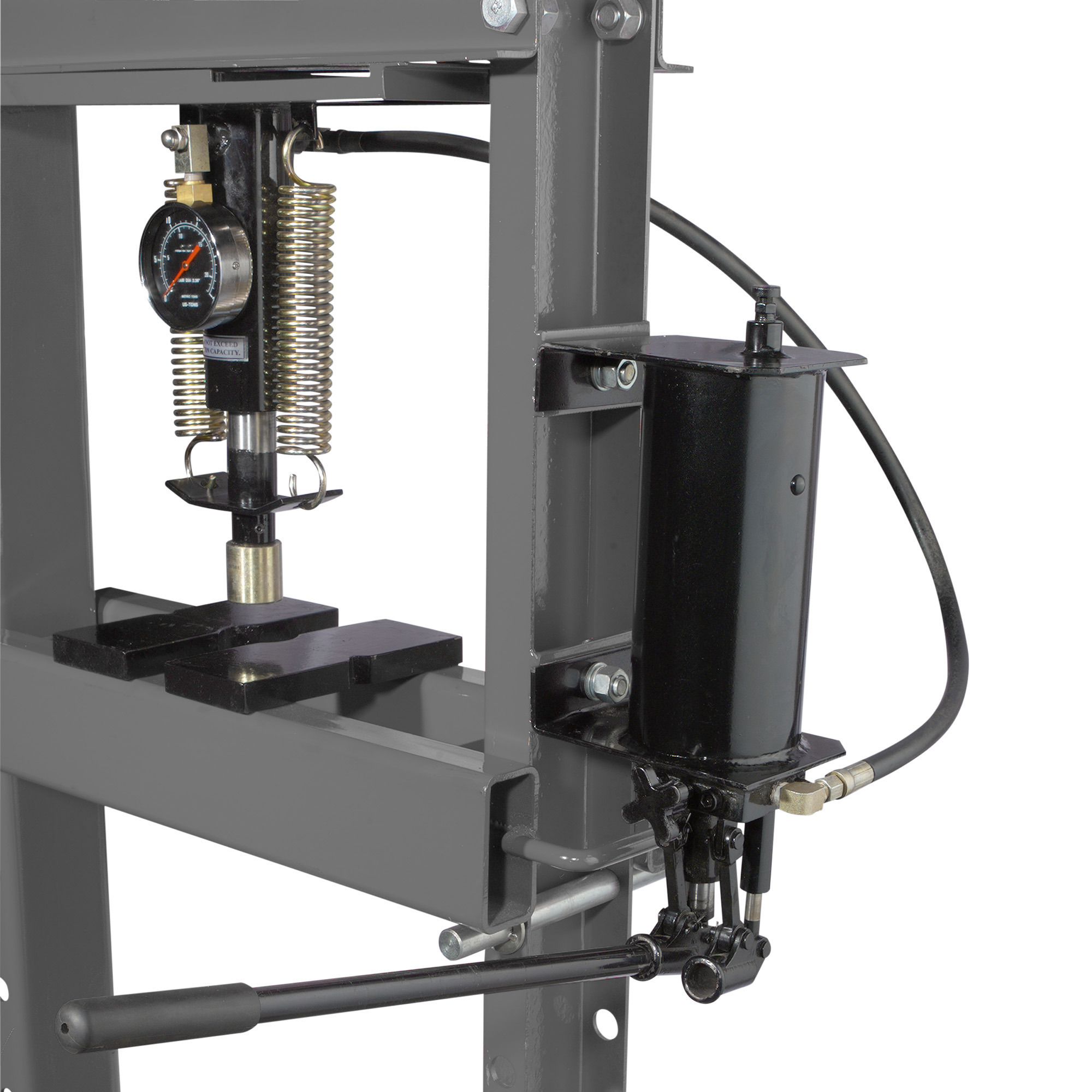

  • Hydraulic cylinder moves laterally for better versatility

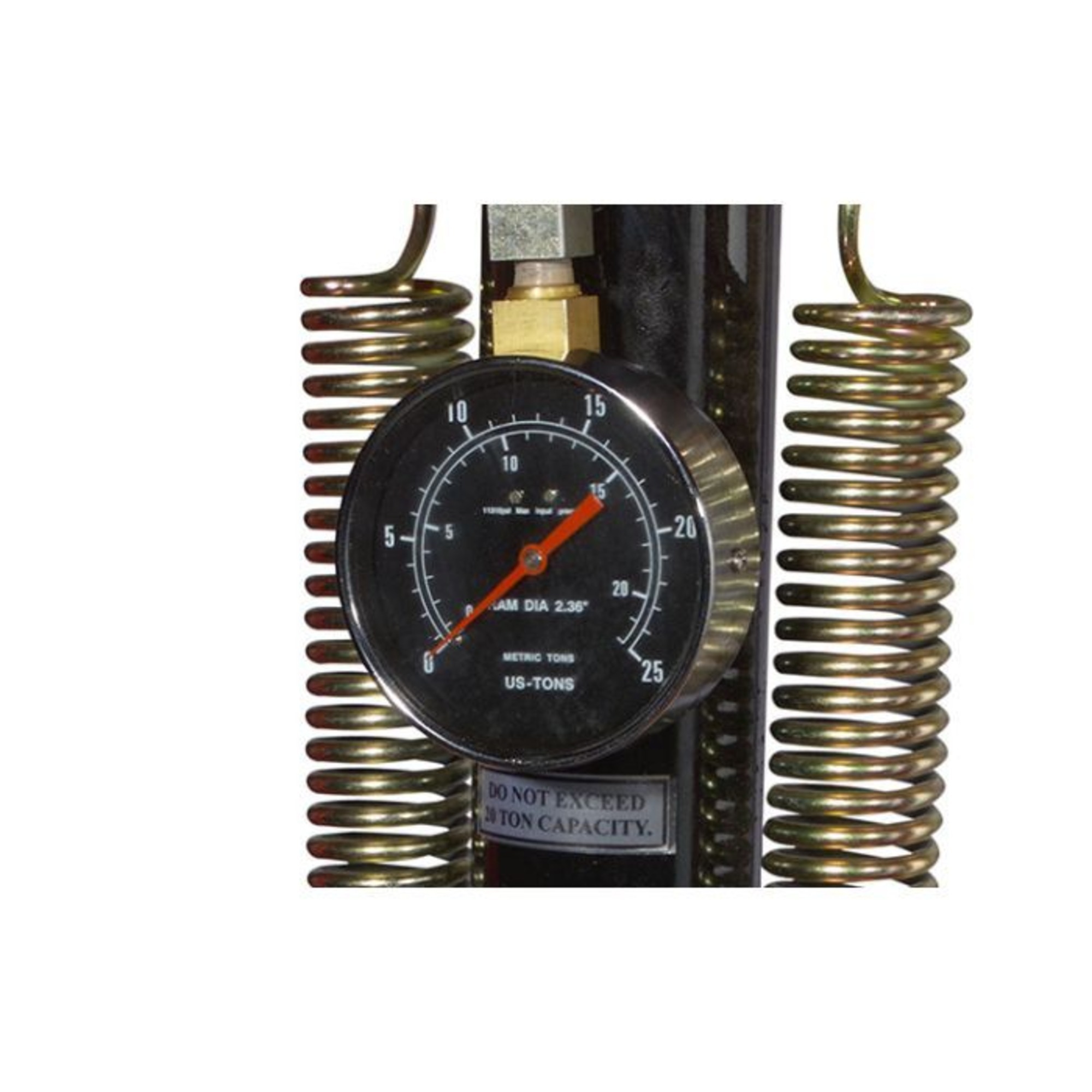

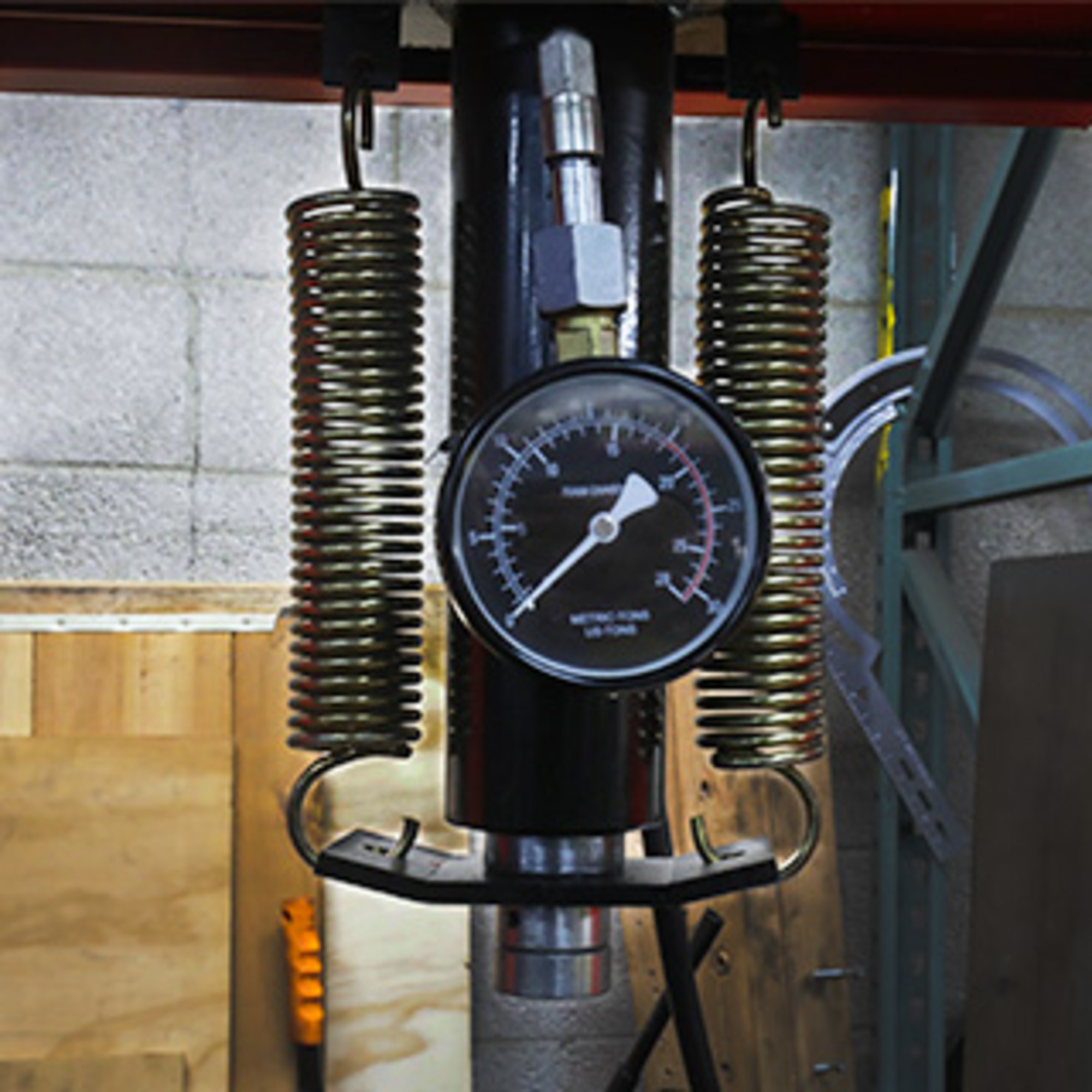

  • Integrated 4in., diameter 20-ton pressure gauge
  • 2-speed hydraulic pump for maximum performance
  • Adjustable table height

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ranger Products Commercial-Grade Press is designed for heavy use in repair shops but works just as well in your garage. Ideal for the removal and installation of gears, bushings and bearings, the RP-20HD also excels at bending, straightening and flattening. This heavy-duty hydraulic shop press features an independent 2-stage hydraulic pump that provides incredible performance for the most rigorous pressing applications. Here are just some of the features exclusive to the RP-20HD shop press: a lateral moving cylinder, an integrated 4in. diameter, 20-ton pressure gauge, an independent 2-speed hydraulic pump--all this on a rugged, heavy steel H-frame for extended durability. Two heavy-duty arbor plates included!

What's Included

    (1) Commercial-grade press

Downloads

Product Manual

Features + Benefits

  • Ideal for pressing bearings, U-joints, etc.
  • Hydraulic cylinder moves laterally for better versatility
  • Integrated 4in., diameter 20-ton pressure gauge
  • 2-speed hydraulic pump for maximum performance
  • Adjustable table height
  • Heavy steel construction
  • Includes 2 heavy-duty press plates

Key Specs

AttributeSpecification

item#

102874

Brand

Ranger Products

Manufacturer's Warranty

1 year limited warranty

Ship Weight

298.0 LB

Press Type

Hydraulic
AttributeSpecification

Max. Pressure

20 Tons

Stroke Length

5.5 in

Product Weight

298.0000 lb

Dimensions L x W x H (in.)

19.0 x 63.0 x 23.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

  1. Width of the working bed area? I need a minimum of a 24" (2 ft.) thank you for your assistance.

    1 answer

    1. The width between the upright rails (working area) is 24".

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
