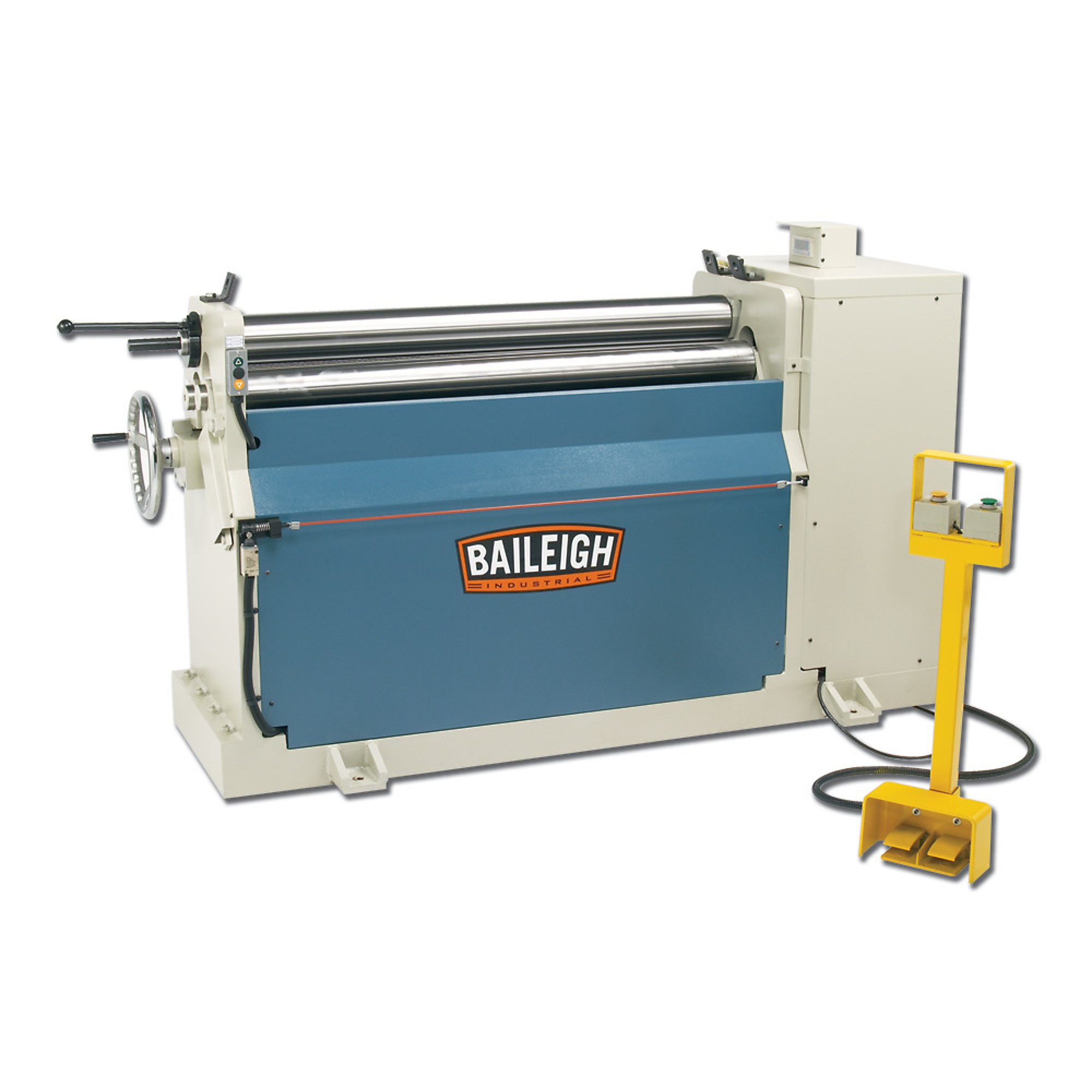

Baileigh, Hydraulic Plate Roller, Max. Material Gauge 9 Model# PR-409

Item# 4685713
Baileigh, Hydraulic Plate Roller, Max. Material Gauge 9 Model# PR-409

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Hydraulic Plate Roller, Max. Material Gauge 9 Model# PR-409

Click or Tap image to Zoom

$23,194.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 4’ forming width.
  • Can bend 9 gauge mild steel into a 7” ring on its full length.

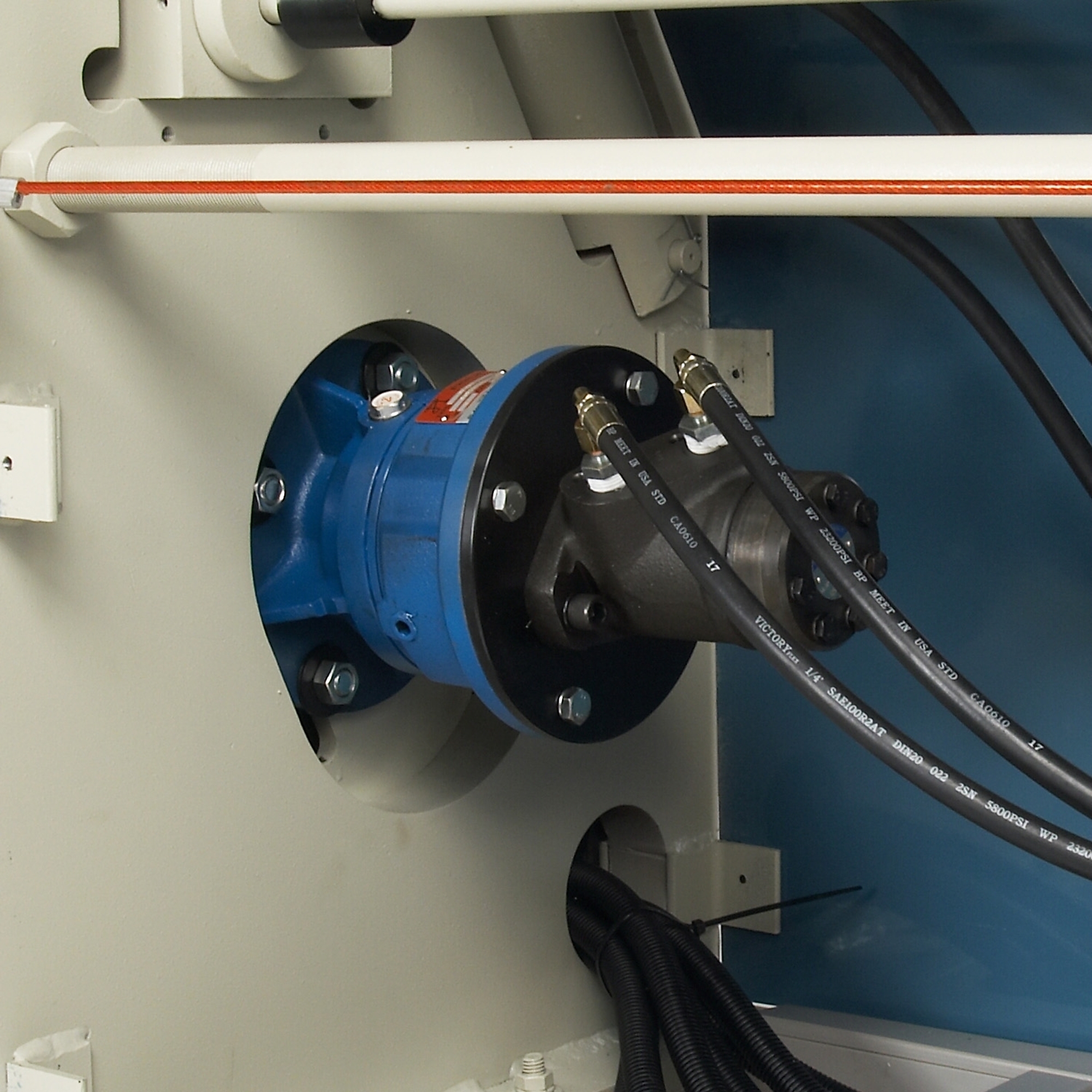

  • Operated entirely by an industrial-grade hydraulic system.
  • 2 hp 220-volt 3-phase motor controls movement of the back roll and the rolling of all 3 forming rolls.

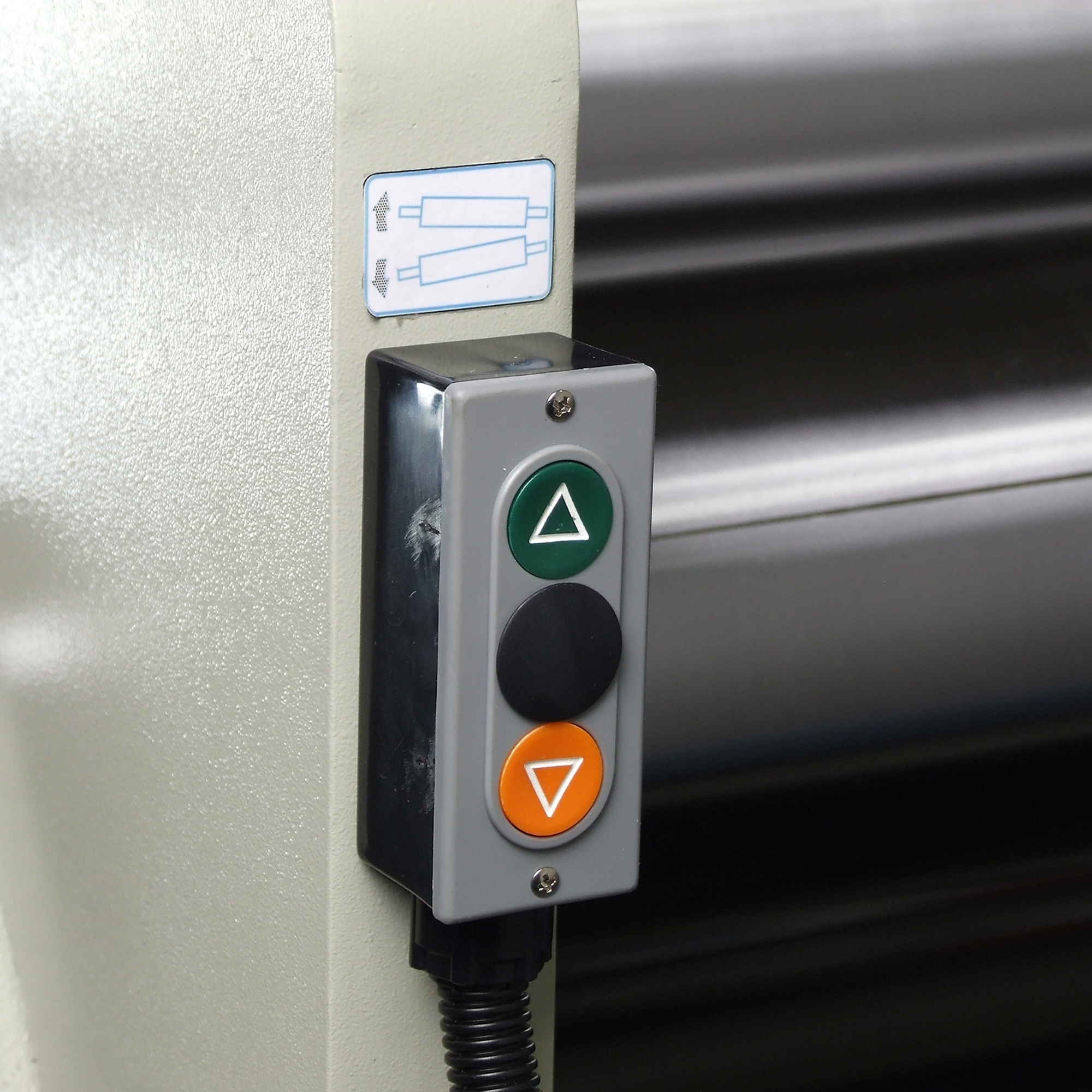

  • Convenient control pedestal includes forward and reverse foot pedal and buttons to control the up and down movement of the back roll.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Baileigh Hydraulic Plate Roller, is engineered to enhance efficiency and precision in metal forming tasks. Equipped with three driven rolls, this single-pinch hydraulic plate roller significantly reduces forming time, allowing you to complete jobs more quickly and effectively. It is capable of handling a maximum material gauge of 9, making it suitable for a variety of applications in metalworking. The robust hydraulic system ensures consistent performance and reliability, providing the power needed to shape and roll metal with ease. Designed for professionals who demand high-quality results, the Baileigh PR-409 combines durability, speed, and accuracy, making it an essential tool for workshops and fabrication facilities. Whether you're working on custom projects or large-scale production, this hydraulic plate roller delivers the performance and dependability you need to achieve superior outcomes.

What's Included

    (1) Hydraulic Plate Roll

Features + Benefits

  • 4’ forming width.
  • Can bend 9 gauge mild steel into a 7” ring on its full length.
  • Operated entirely by an industrial-grade hydraulic system.
  • 2 hp 220-volt 3-phase motor controls movement of the back roll and the rolling of all 3 forming rolls.
  • Convenient control pedestal includes forward and reverse foot pedal and buttons to control the up and down movement of the back roll.

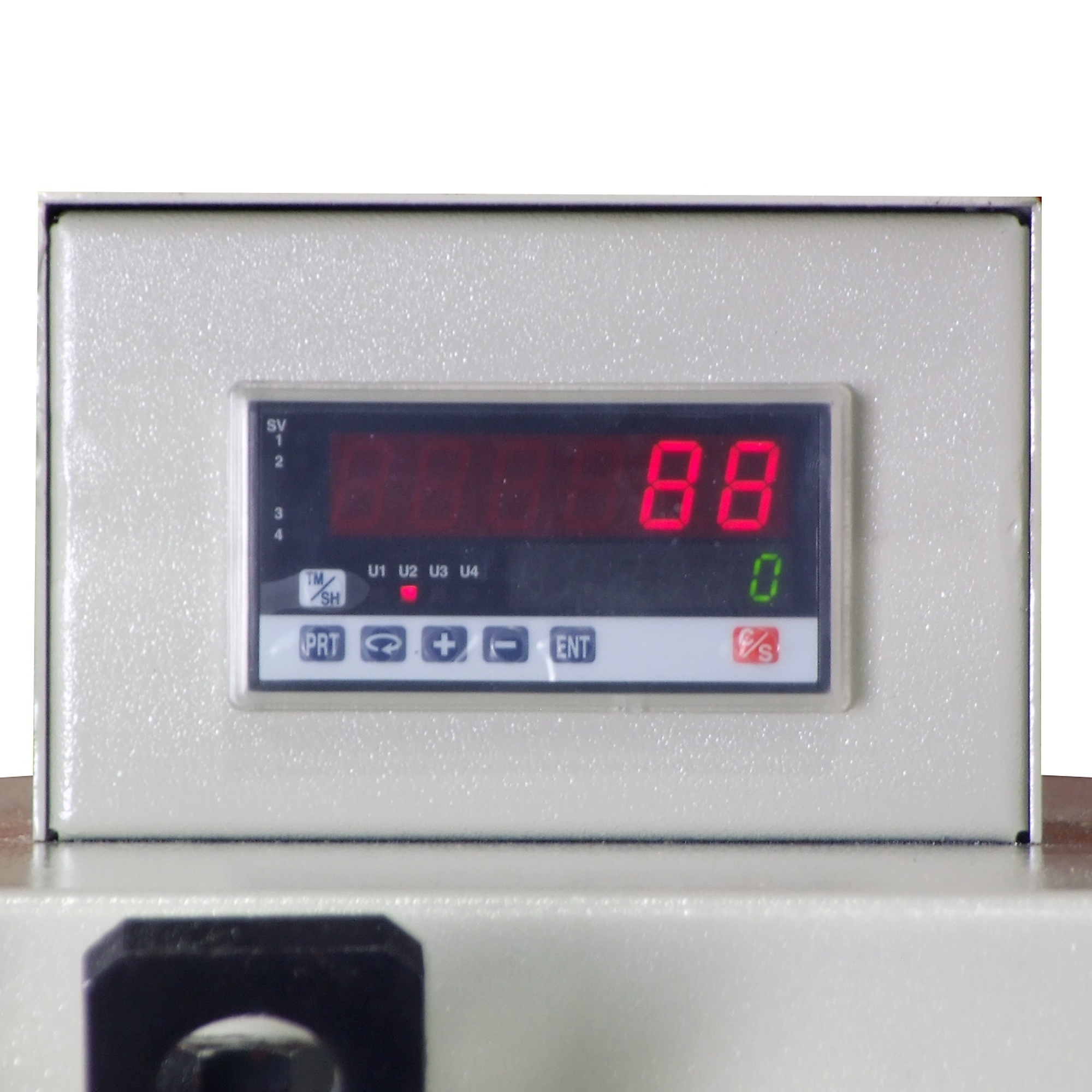

  • Digital readout shows the position of the back roll for easy repeatability.
  • Full steel frame, machined to exacting tolerances, maintains accuracy and prevents deflection.

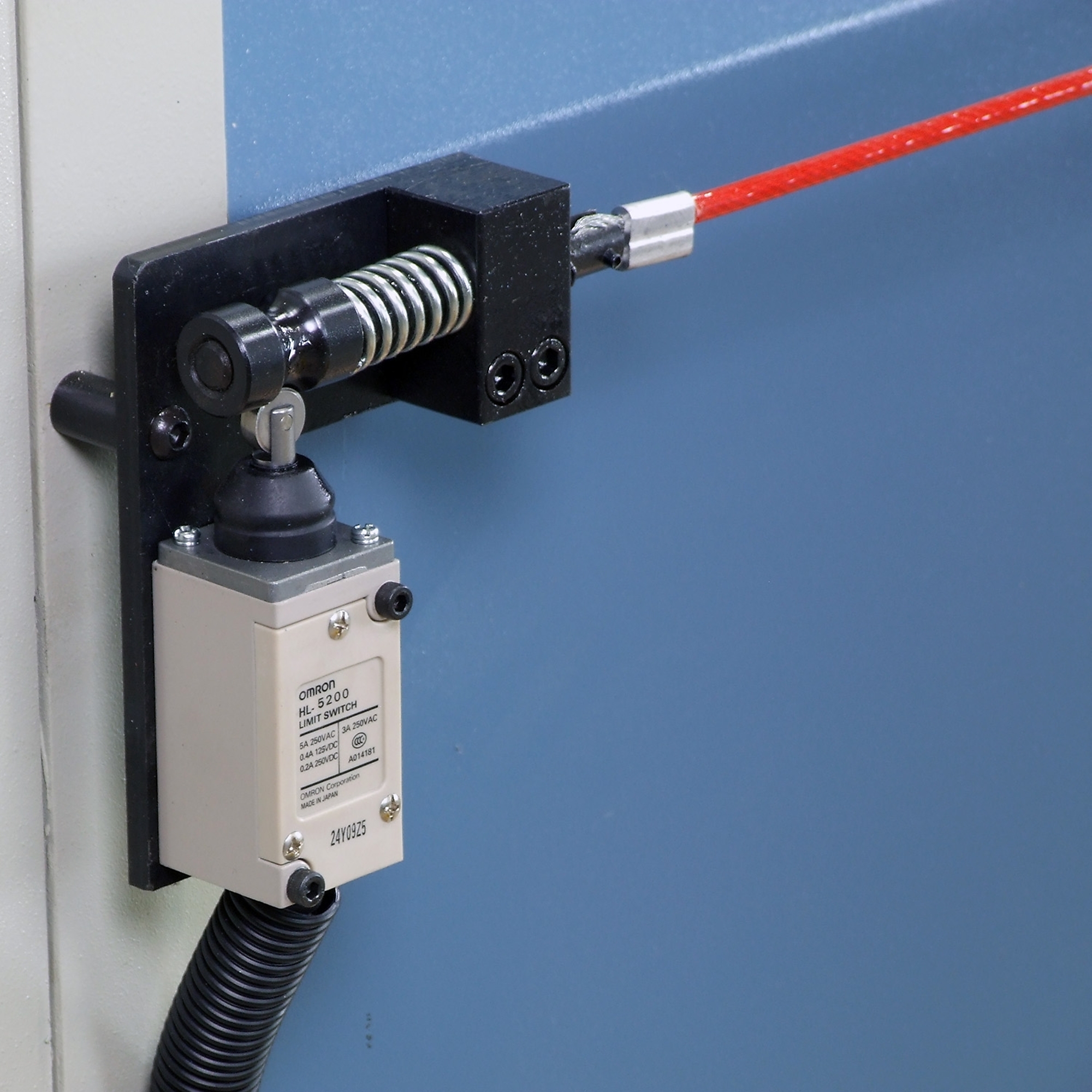

  • Emergency stop cable on the front and back of the machine help to keep your shop safe.
  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support by phone. Call us and talk to a Baileigh rep with hands-on metalworking experience.

Key Specs

AttributeSpecification

item#

4685713

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

15931.0 LB

Max. Material Gauge

9

Dies Included

No
AttributeSpecification

Max. Depth

7 in

Max. Width

48 in

Slip Roll Length

0 in

Product Weight

15931.0000 lb

Dimensions L x W x H (in.)

98.0 x 39.0 x 60.0 in
