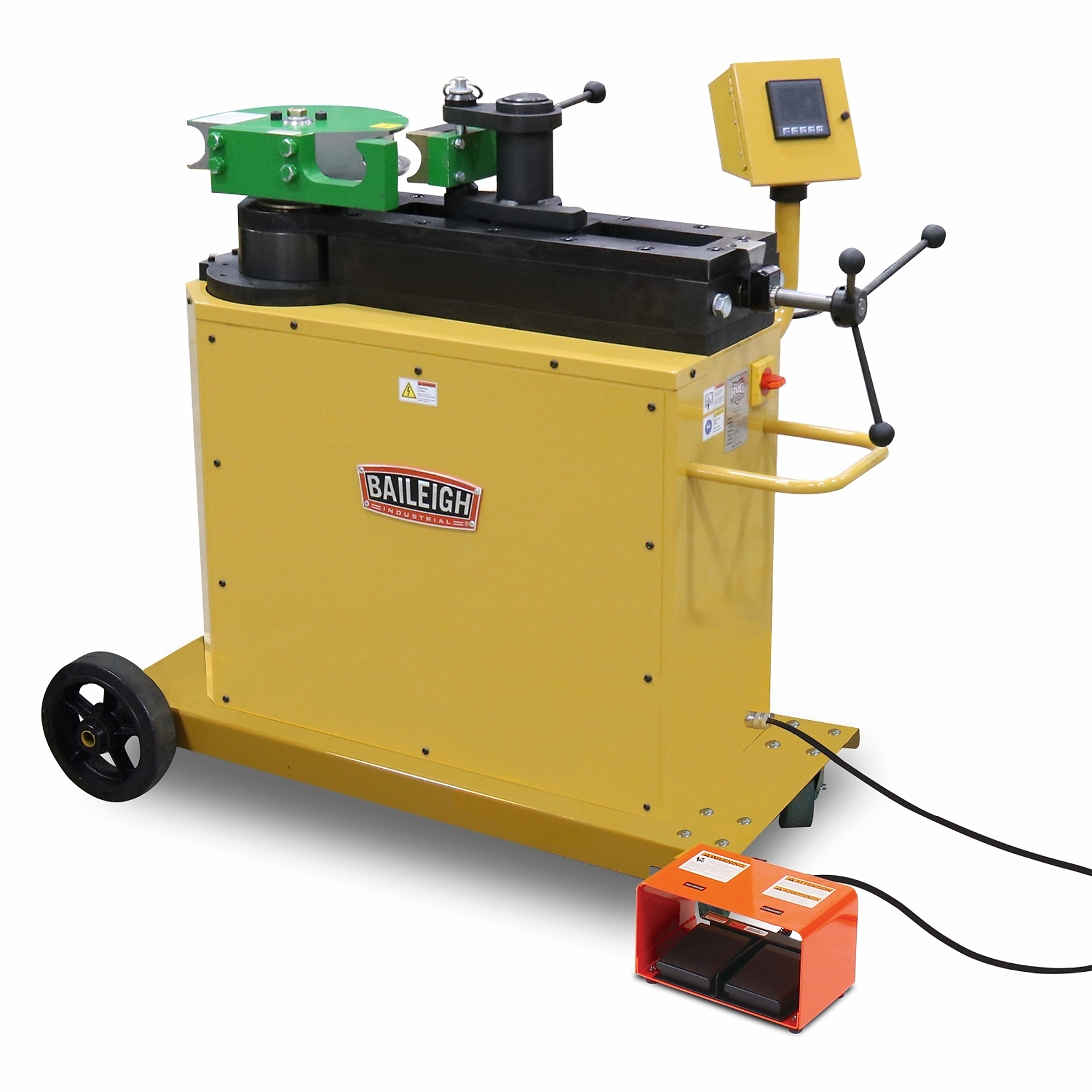

Baileigh, Rotary Draw Bender, Max. Material Gauge 24 Model# RDB-325

Item# 4584015
Baileigh, Rotary Draw Bender, Max. Material Gauge 24 Model# RDB-325

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Rotary Draw Bender, Max. Material Gauge 24 Model# RDB-325

Click or Tap image to Zoom

$20,199.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 16” maximum centerline radius depending on material OD.
  • Runs on 220-volt single-phase power, so it will work in almost any fabrication setting.
  • Rotates up to 360° degrees in either direction, ideal for rod applications if you use our optional universal bending plate.
  • Comes standard with a simple-to-use touchscreen controller.
  • Internal storage holds up to 170 programs of up to 10 bends per program.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Designed to be a workhorse in any shop for decades, this tube and pipe bender can tackle a huge capacity of 2” schedule 80 pipe (mild steel T.S. 64,000 PSI) and 3” round tubing.

What's Included

    (1) Rotary Draw Bender

Features + Benefits

  • 16” maximum centerline radius depending on material OD.
  • Runs on 220-volt single-phase power, so it will work in almost any fabrication setting.
  • Rotates up to 360° degrees in either direction, ideal for rod applications if you use our optional universal bending plate.
  • Comes standard with a simple-to-use touchscreen controller.
  • Internal storage holds up to 170 programs of up to 10 bends per program.
  • Also accepts memory cards (standard 2CB SD card, max) to store programs.
  • Convenient foot pedal controls let you stop and start the machine while leaving your hands free.
  • Swing-away counterdie system helps you save valuable time on tooling changes and increase your production.
  • Compatible with over 5,000 optional die and tooling sets available from Baileigh Industrial. There’s sure to be one that can fit your application!
  • You can add an optional indexing table to bend on varying planes and easily duplicate complex bends.
  • Covered by a 1-year parts warranty.
  • This tube bender includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.

Key Specs

AttributeSpecification

item#

4584015

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

16743.0 LB

Max. Bending Capacity - Round

3 in

Max. Material Gauge

24
AttributeSpecification

Dies Included

No

Max. Depth

16.5 in

Max. Lift Height

16.5 in

Slip Roll Length

0 in

Product Weight

16743.0000 lb

Dimensions L x W x H (in.)

60.0 x 44.0 x 77.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
