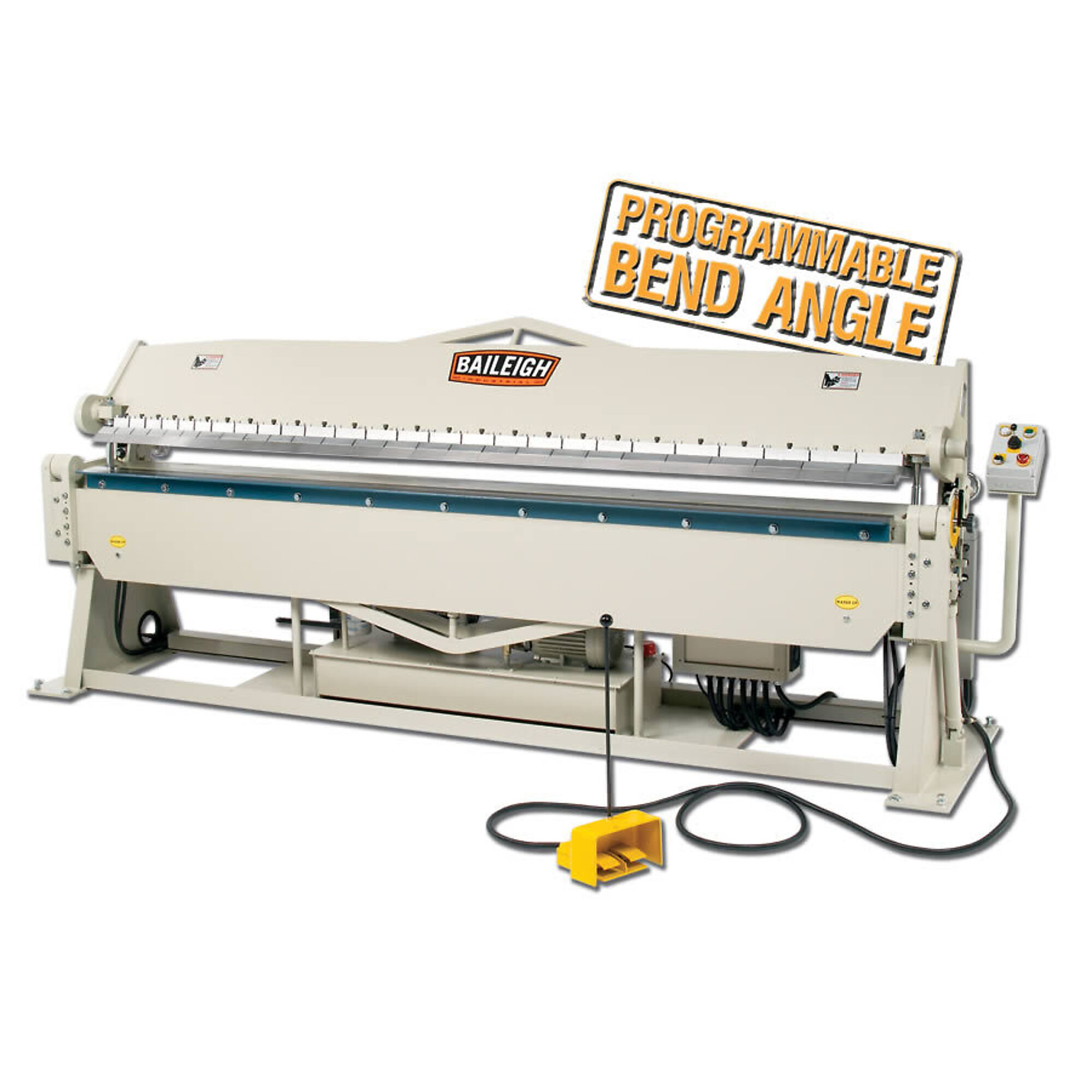

Baileigh, Heavy Duty Manual Box and Pan Brake, Max. Material Gauge 14 Model# BB-12014H

Item# 4685983
Baileigh, Heavy Duty Manual Box and Pan Brake, Max. Material Gauge 14 Model# BB-12014H

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Heavy Duty Manual Box and Pan Brake, Max. Material Gauge 14 Model# BB-12014H

Click or Tap image to Zoom

$32,549.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Maximum capacity of 14 gauge mild steel or 18 gauge stainless steel.
  • 10-foot (120”) working width.
  • Maximum bend angle of 135°.
  • Runs on 220-volt 3-phase power.
  • Industrial-grade hydraulic system cuts down on operator effort for production runs, making your shop more efficient and saving you money.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Baileigh Heavy Duty Manual Box and Pan Brake, is an advanced hydraulic machine designed to enhance the performance and precision of metal bending tasks. This robust brake boasts a maximum material gauge of 14, making it suitable for handling a wide range of materials with ease. The machine features adjustable angle auto-stop bending, which allows for precise control and consistency in each bend, ensuring high-quality results. Its welded steel frame provides exceptional strength and stability, preventing any twisting or distortion during operation. This durability and accuracy make it an ideal choice for professionals in the metalworking industry who require reliable and efficient equipment for their projects.

What's Included

    (1) 220 Volt 3 Phase Heavy Duty Hydraulic Box and Pan

Features + Benefits

  • Maximum capacity of 14 gauge mild steel or 18 gauge stainless steel.
  • 10-foot (120”) working width.
  • Maximum bend angle of 135°.
  • Runs on 220-volt 3-phase power.
  • Industrial-grade hydraulic system cuts down on operator effort for production runs, making your shop more efficient and saving you money.
  • Simple to operate with adjustable angle auto-stop:
  • Dial in the desired bend degree (including springback).
  • Load the machine.
  • Begin the cycle by stepping on the foot pedal controls.
  • Machine clamps the material, and the leaf will lift to the desired angle and return.
  • Upper beam unclamps the material, ready for the next bend.
  • You can operate the machine from the control panel or with the included foot pedal.
  • Includes 26 hardened fingers of various sizes (6 fingers of 3", 4 of 4", 10 of 5", 6 of 6").
  • Fully-welded steel frame and support rods add rigidity to the overall structure to provide years of trouble-free use.
  • Baileigh covers this hydraulic sheet metal brake with a 1-year parts warranty.
  • We carry most replacement parts in stock for fast shipping.
  • Comes with lifetime technical support by phone. Call up our experienced team of reps for troubleshooting and application tips.

Key Specs

AttributeSpecification

item#

4685983

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5830.0 LB

Max. Material Gauge

14

Dies Included

No
AttributeSpecification

Max. Depth

6 in

Max. Bending Radius

135 °

Max. Width

120 in

Slip Roll Length

0 in

Product Weight

5830.0000 lb

Dimensions L x W x H (in.)

154.0 x 46.0 x 68.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
