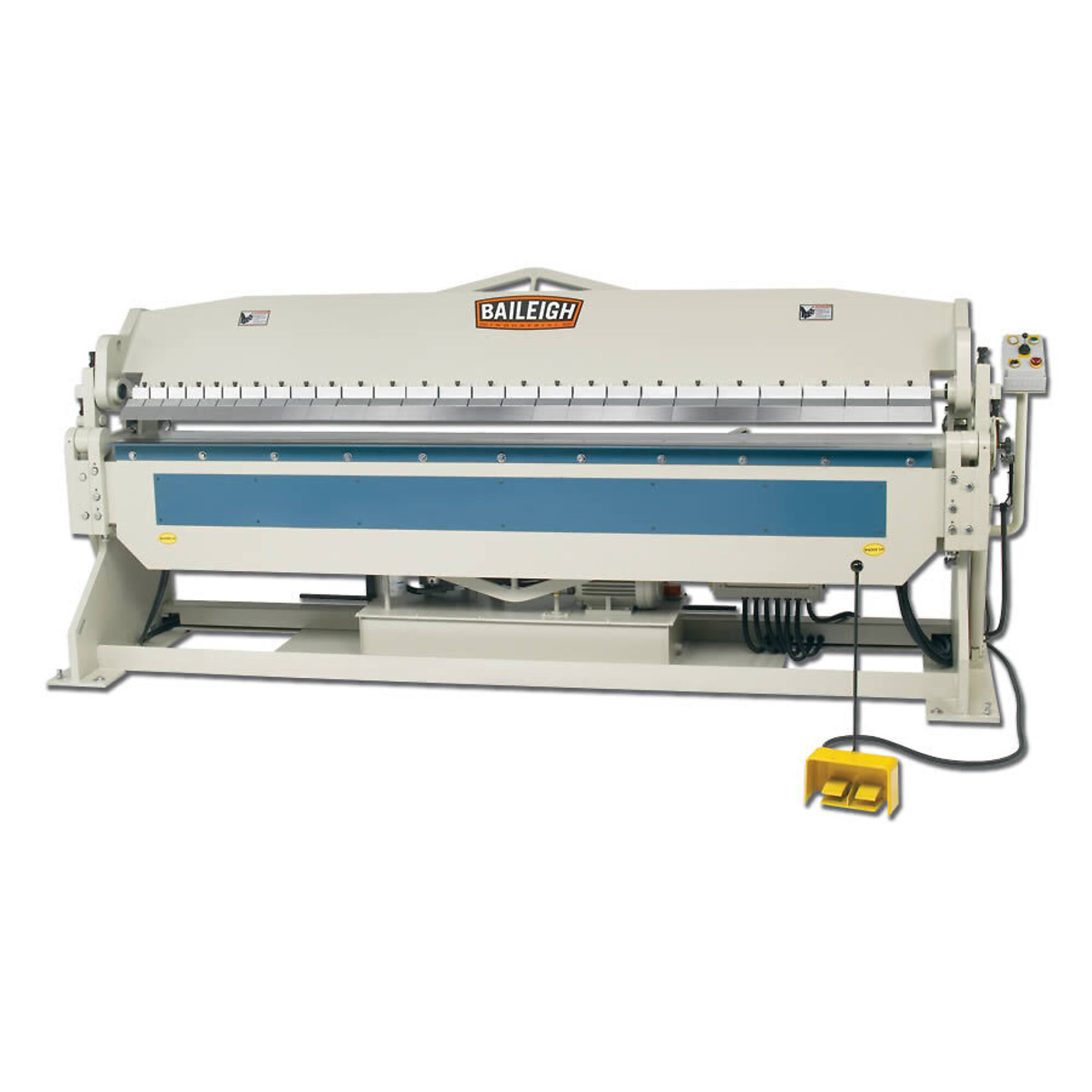

Baileigh, Heavy Duty Manual Box and Pan Brake, Max. Material Gauge 10 Model# BB-12010H

Item# 4686003
Baileigh, Heavy Duty Manual Box and Pan Brake, Max. Material Gauge 10 Model# BB-12010H

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Heavy Duty Manual Box and Pan Brake, Max. Material Gauge 10 Model# BB-12010H

Click or Tap image to Zoom

  • Bends 10 gauge mild steel and 12 gauge stainless steel or lighter.
  • 10 feet (120”) bending length.
  • Maximum bend angle of 135°.
  • Industrial-grade hydraulic systemdoes all of the following:
  • Clamps the material at the fingers,

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This hydraulic box and pan brake will offer years of profitable service in any production shop. A fully-welded steel plate frame ensures accuracy when bending heavy gauges.

What's Included

    (1) 220 Volt 3 Phase Heavy Duty Hydraulic Box and Pan

Features + Benefits

  • Bends 10 gauge mild steel and 12 gauge stainless steel or lighter.
  • 10 feet (120”) bending length.
  • Maximum bend angle of 135°.
  • Industrial-grade hydraulic systemdoes all of the following:
  • Clamps the material at the fingers,
  • Lifts the bend eaf to the pre-set bend angle,
  • Opens the beam when the bend is complete.
  • Hydraulically-driven bend leaf.
  • 5 hp motor runs on 220-volt three-phase power.
  • Made using only the most durable and high-quality electrical components.
  • Includes 26 hardened fingers in assorted sizes (6 of 3", 4 of 4", 10 of 5", and 6 of 6"); adjust them for different box and pan applications.
  • Adjustable auto-stop: just dial in the bend degree when using the hydraulic bending brake in manual or semi-automatic mode.
  • Variable bend speed and clamping pressure adjustment give you control over the material.
  • You can operate the machine by toggle from the console, or by using the foot pedal controls.
  • Semi-automatic bending mode with foot pedal control will increase productivity, reduce operator effort, and streamline production runs.
  • Material thickness adjustment enables you to take on many gauges of sheet metal and easily switch between them.
  • Greaseable joints and filtered hydraulic system enable this sheet metal brake to work smoothly for years.
  • Electro-welded steel frame, with massive truss rods, minimizes deformation when bending at full capacity.
  • Extra-rigid base design supports the weight of heavier materials.

Key Specs

AttributeSpecification

item#

4686003

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

7700.0 LB

Max. Material Gauge

10

Dies Included

No
AttributeSpecification

Max. Depth

6 in

Max. Bending Radius

135 °

Max. Width

120 in

Slip Roll Length

0 in

Product Weight

7700.0000 lb

Dimensions L x W x H (in.)

158.0 x 44.0 x 70.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
