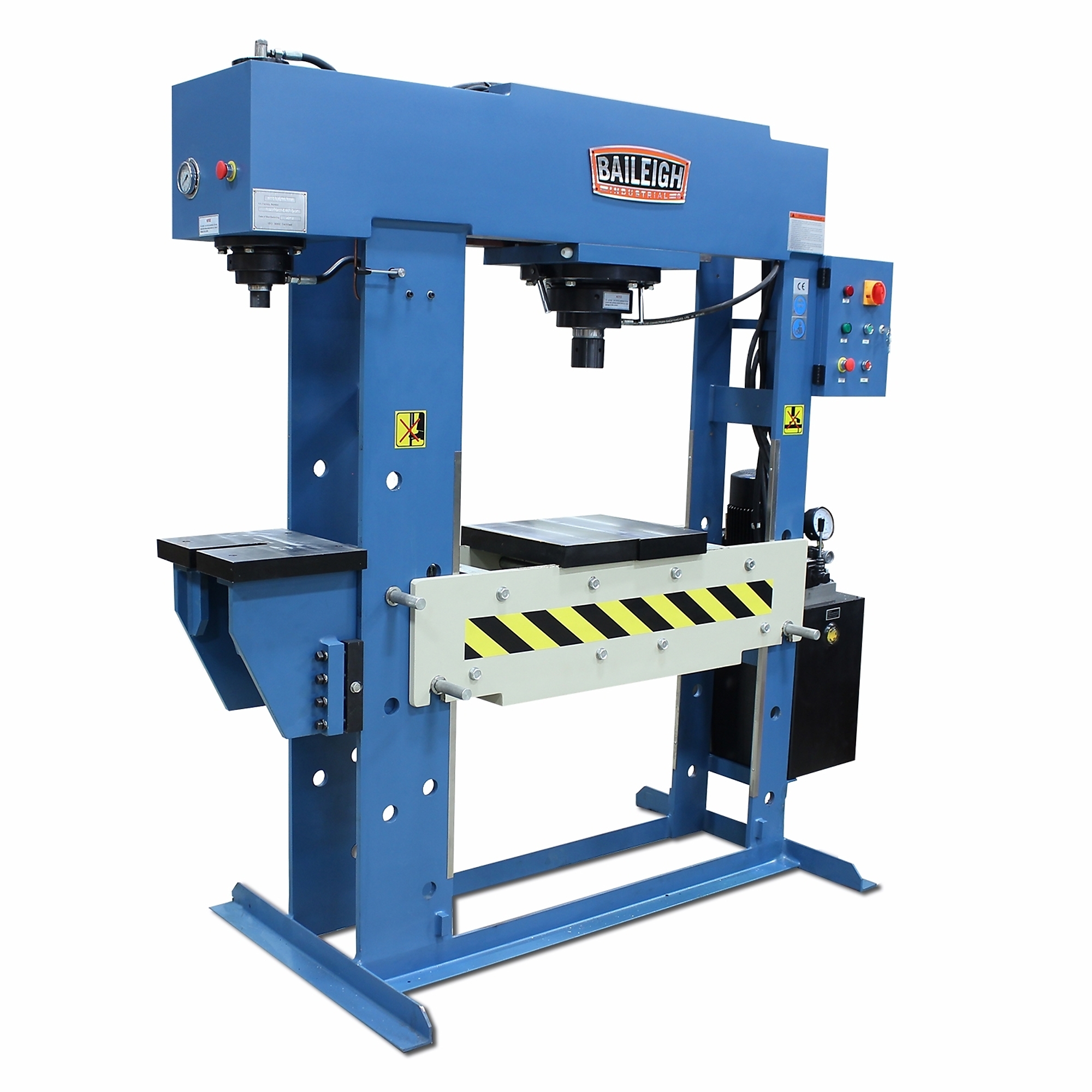

Baileigh, Hydraulic Press, Press Type Hydraulic, Max. Pressure 60 Tons, Model# HSP-60M-C

Item# 4690336
Baileigh, Hydraulic Press, Press Type Hydraulic, Max. Pressure 60 Tons, Model# HSP-60M-C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Hydraulic Press, Press Type Hydraulic, Max. Pressure 60 Tons, Model# HSP-60M-C

Click or Tap image to Zoom

$17,155.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Unique two station design.
  • 60-ton capacity on main press.
  • 24-ton capacity on side press.
  • 41.25” working width on main press

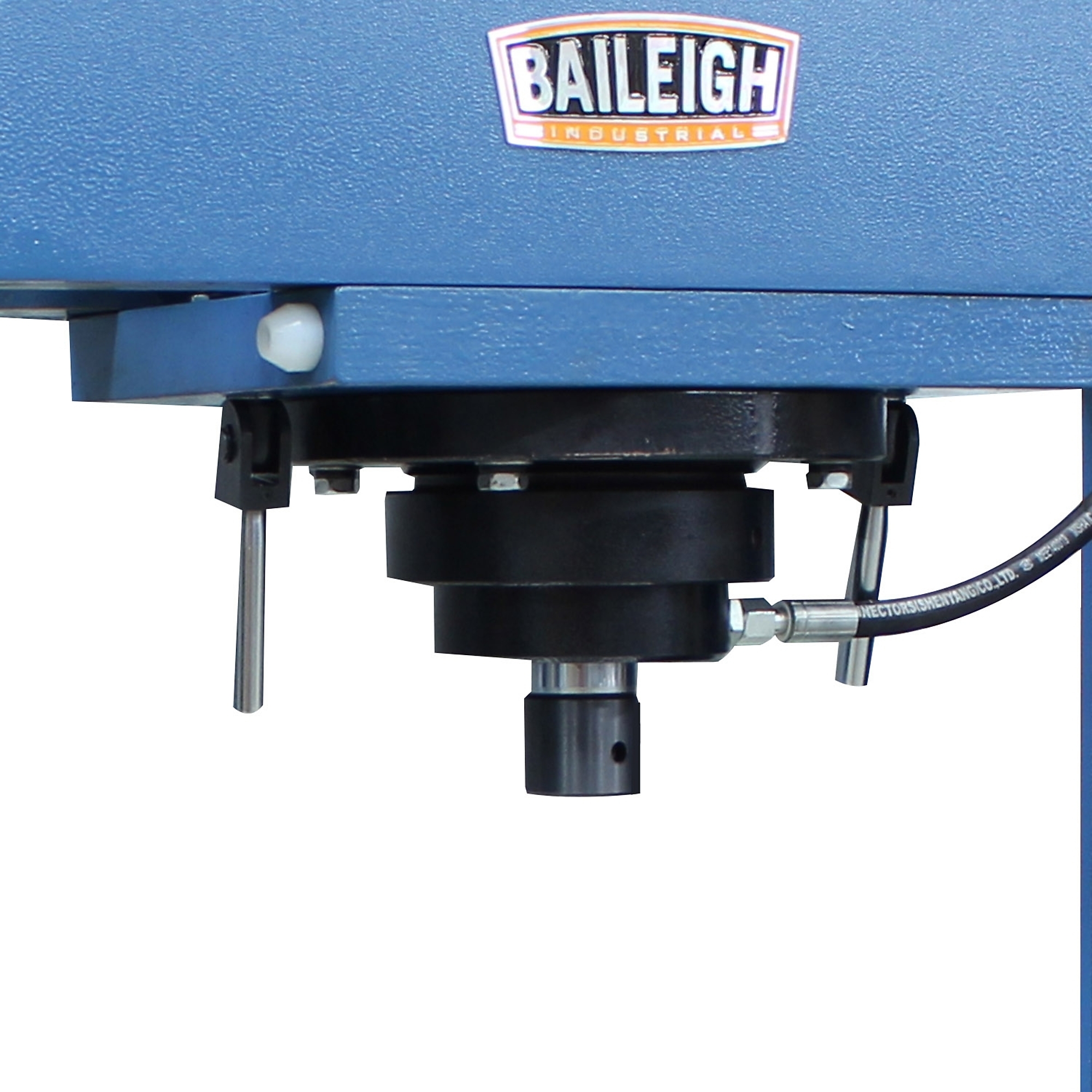

  • 7.5” cylinder moves left and right within the frame, ideal for off-center parts.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

If you’ve outgrown your pneumatic press, this hydraulic workshop press offers gives you the extra power of a 5.25 hp motor and the rigid accuracy of a fully-welded heavy steel plate frame.  Another plus of the HSP-60M-C is the abilty to use a second 24 ton station with an open C-frame design.  Both presses come in one compact design.

What's Included

    (1) 60/15T Hydraul H-Frame Press

Features + Benefits

  • Unique two station design.
  • 60-ton capacity on main press.
  • 24-ton capacity on side press.
  • 41.25” working width on main press
  • 7.5” cylinder moves left and right within the frame, ideal for off-center parts.

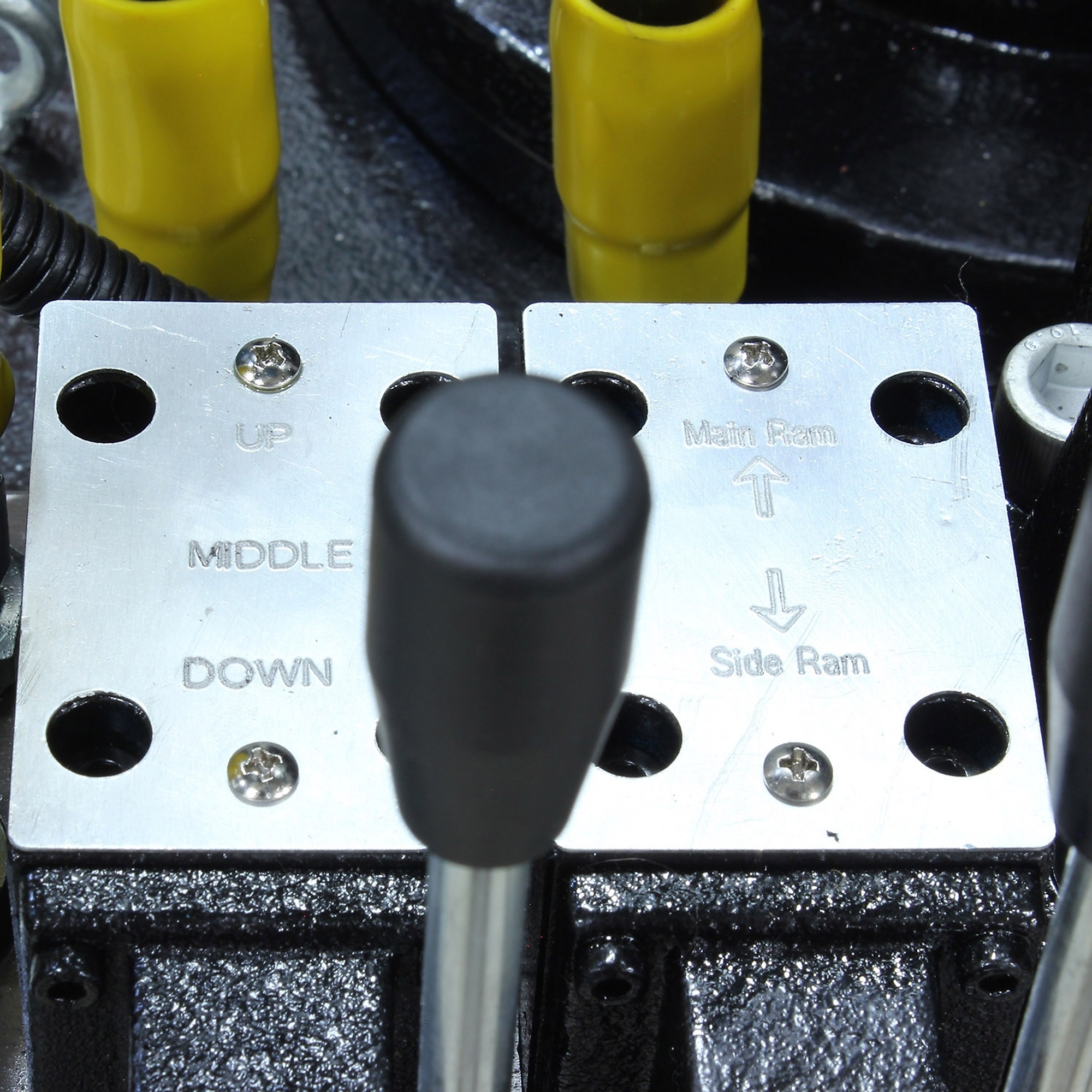

  • Controlled by piston-style hydraulic pump.
  • C Frame Hydraulic Press includes 2-piece V-block set.
  • Pressure gauge comes standard on both presses.
  • Welded steel structure withstands the machine’s full force without flexing.
  • Baileigh covers this hydraulic workshop press with a 1-year parts warranty as well as lifetime technical support by phone.

Key Specs

AttributeSpecification

item#

4690336

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2960.0 LB

Press Type

Hydraulic
AttributeSpecification

Max. Pressure

60 Tons

Stroke Length

7.5 in

Working Width

41.25 in

Product Weight

2960.0000 lb

Dimensions L x W x H (in.)

96.0 x 48.0 x 89.0 in
