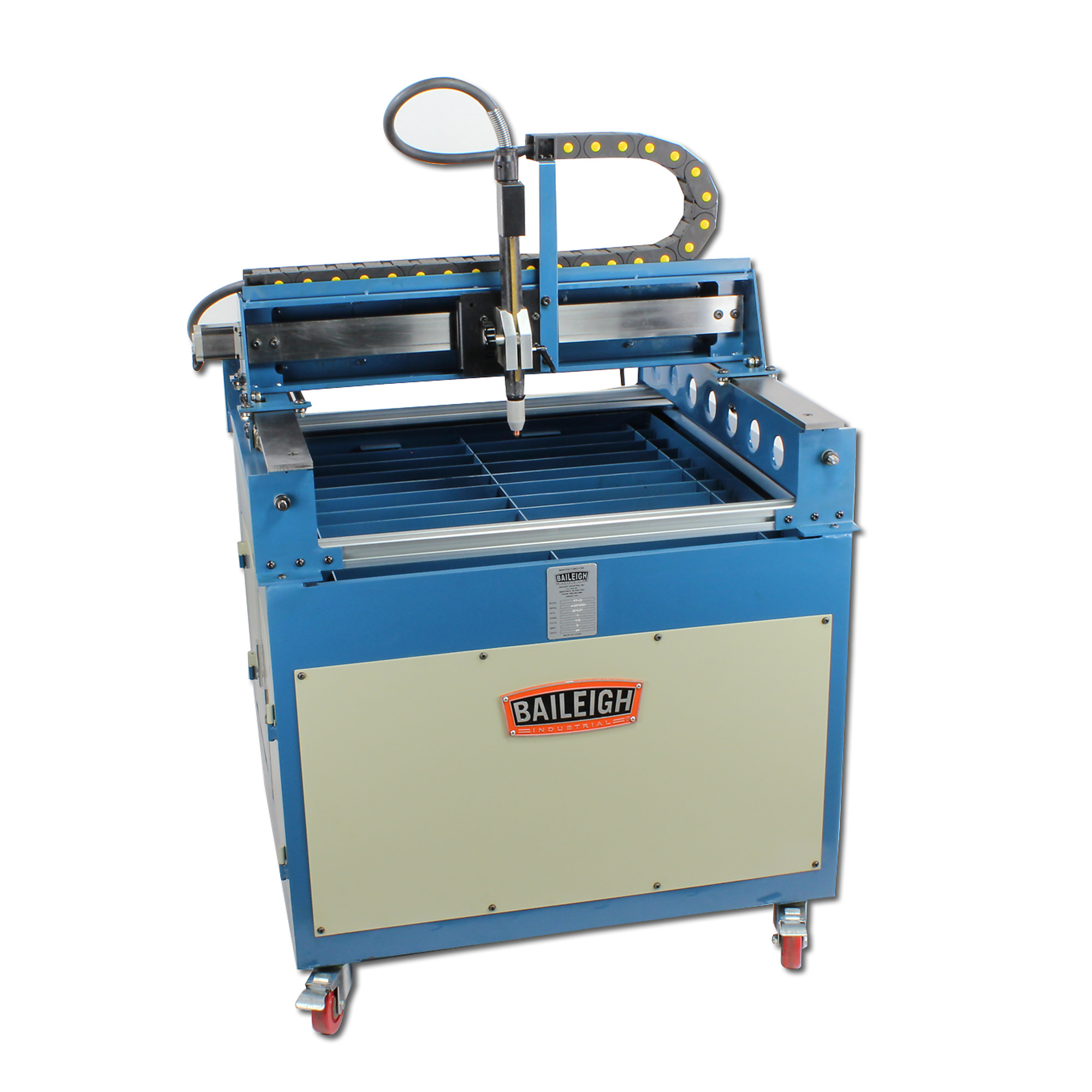

Baileigh, Plasma Cutting Table, Width 44 in, Length 46 in, Table Height 52 in, Model# PT-22

Item# 4765369
Top Seller
Baileigh, Plasma Cutting Table, Width 44 in, Length 46 in, Table Height 52 in, Model# PT-22

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Plasma Cutting Table, Width 44 in, Length 46 in, Table Height 52 in, Model# PT-22

Click or Tap image to Zoom

$7499.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Runs on 110-volt power and will work at almost any fabrication site in North America.
  • 2’ x 2’ (610 x 610mm) cutting area.
  • Comes fully assembled with correct alignment. No need to spend hours building.
  • Most other companies’ plasma tables come in 5 or 6 boxes and cost about as much to ship as Baileigh’s larger single box shipment.
  • Includes user-friendly programming software (see more details below).

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

With a steel frame, this CNC plasma cutting table delivers a lot of value for its price. We include features that other brands consider upgrades, like design software and a water bath. Order this 2x2 plasma table for your application today!

What's Included

    (1) PT-22

Features + Benefits

  • Runs on 110-volt power and will work at almost any fabrication site in North America.
  • 2’ x 2’ (610 x 610mm) cutting area.
  • Comes fully assembled with correct alignment. No need to spend hours building.
  • Most other companies’ plasma tables come in 5 or 6 boxes and cost about as much to ship as Baileigh’s larger single box shipment.
  • Includes user-friendly programming software (see more details below).

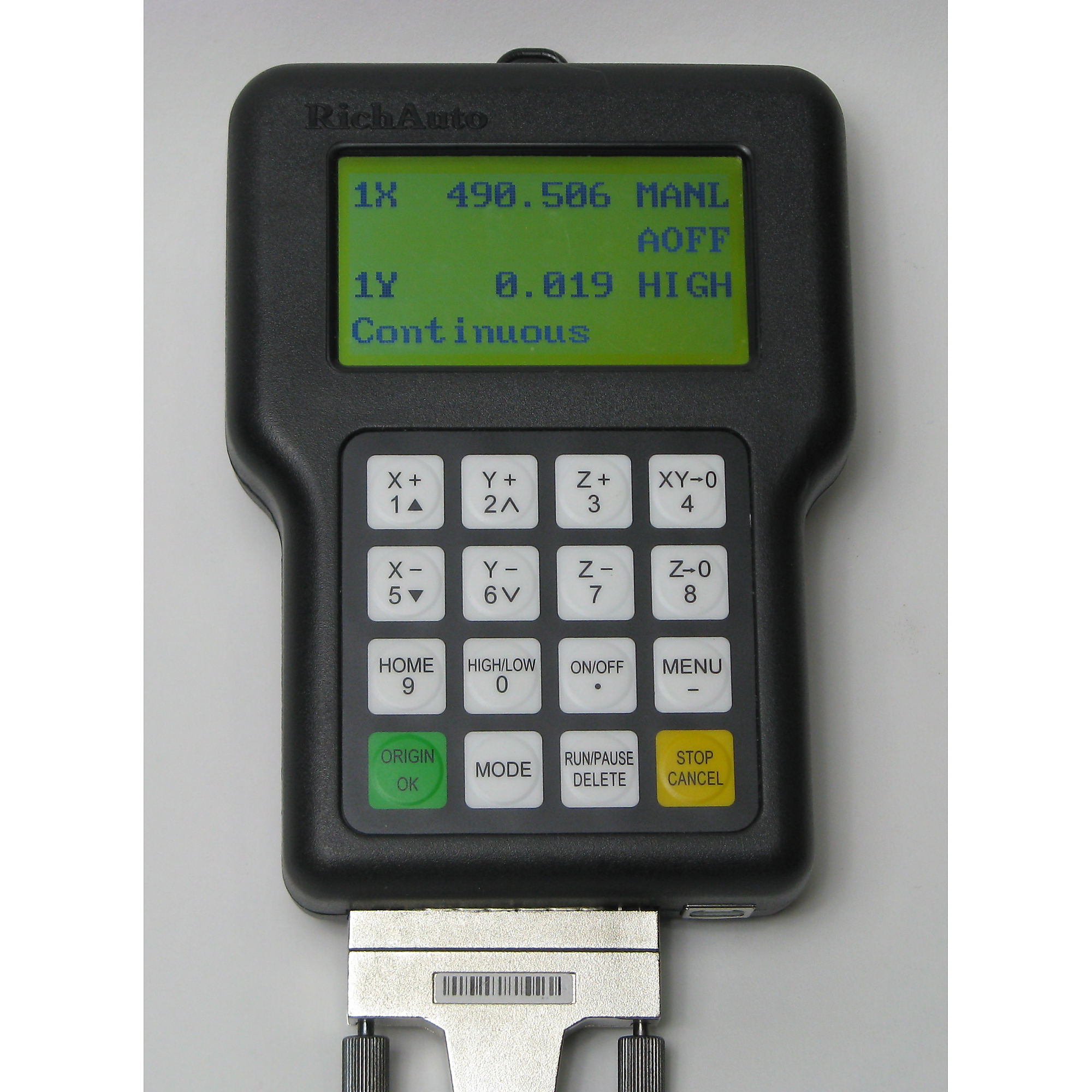

  • You can control the torch using the handheld panel with a jog dial for the X and Y axes and program start and stop buttons.
  • Durable, high-quality stepper motors drive the X axis (single drive) and Y axis (dual drive).
  • All motor controllers and electronics are enclosed. No loose wires to get in your way.

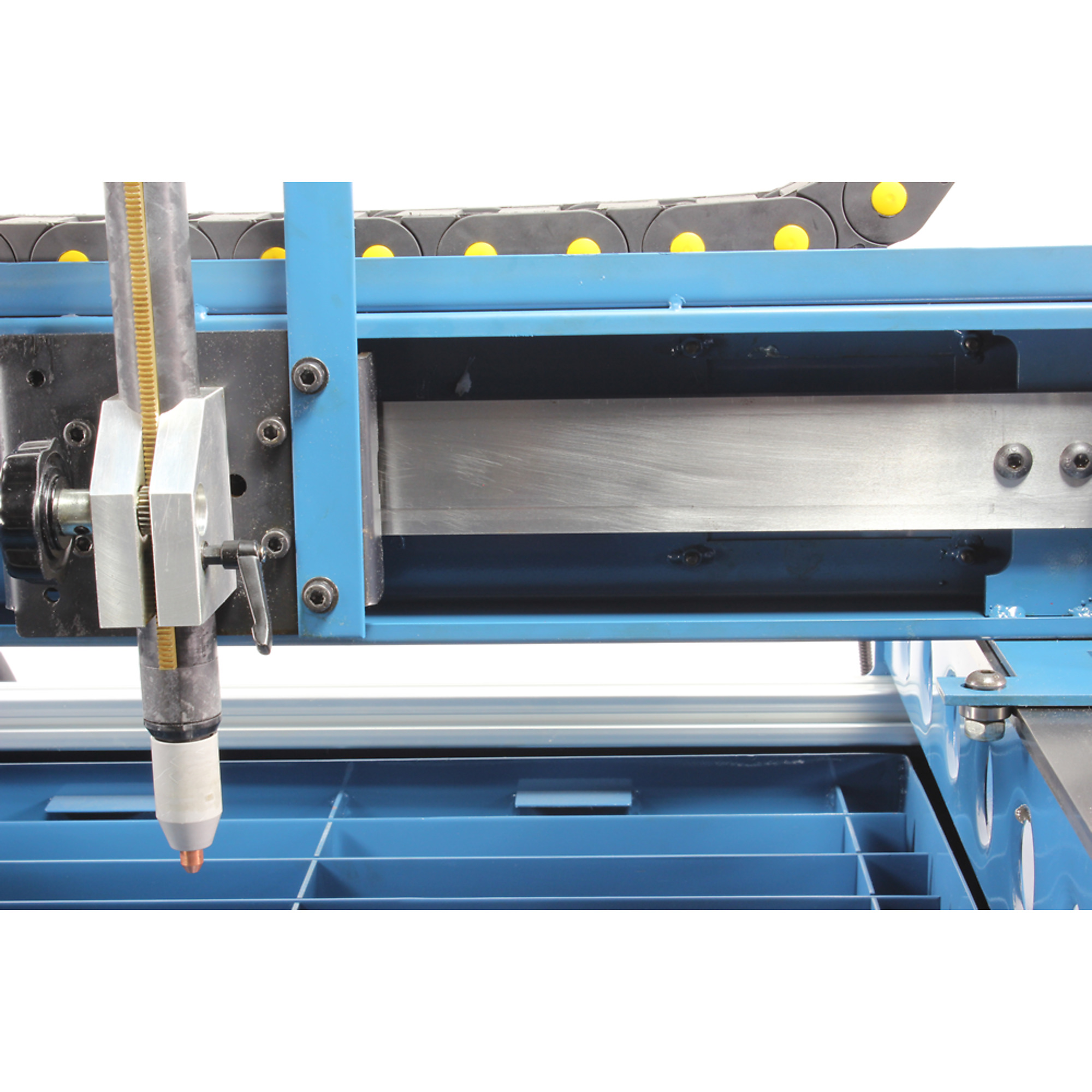

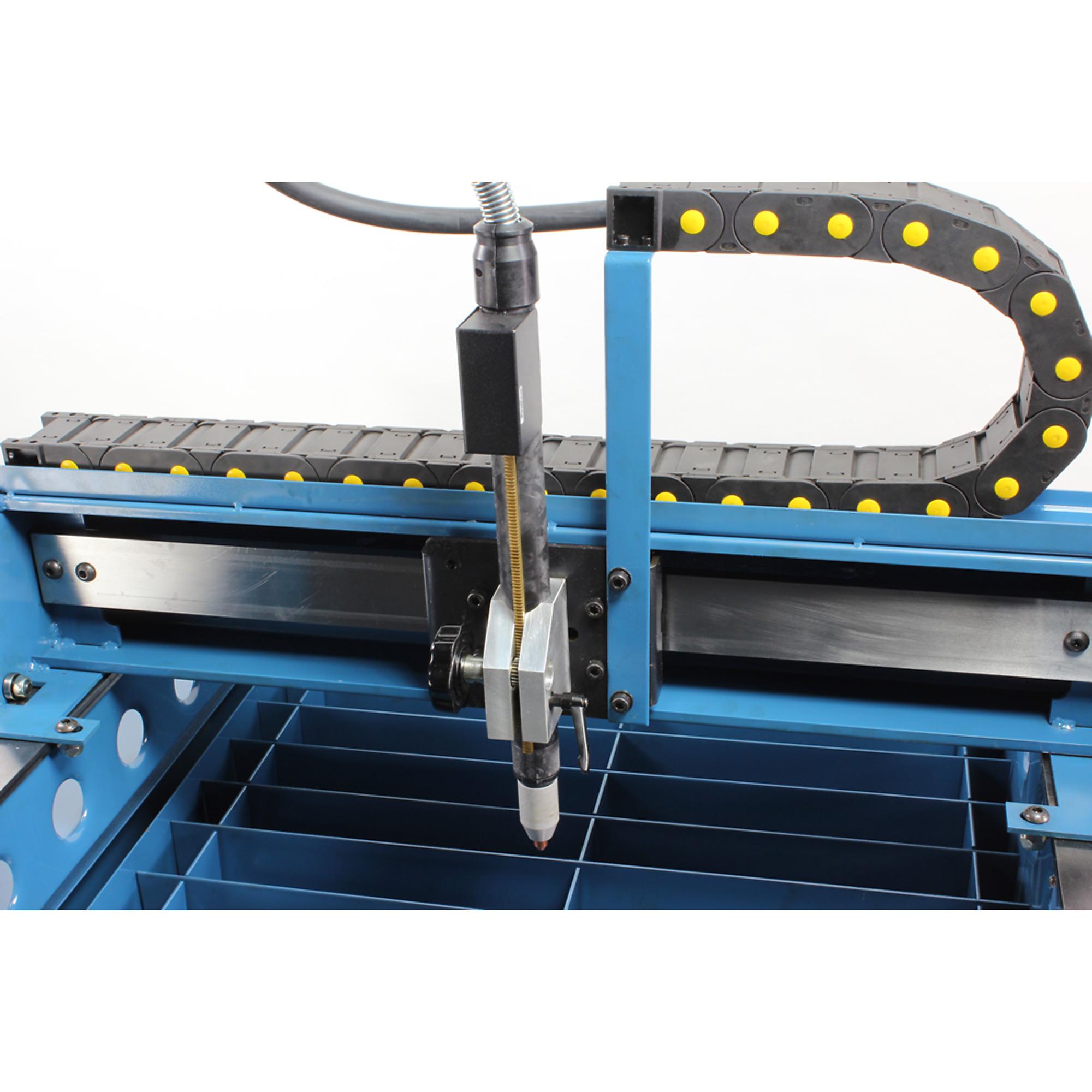

  • Industrial cable track on the X axis ensures smooth cutting movement.

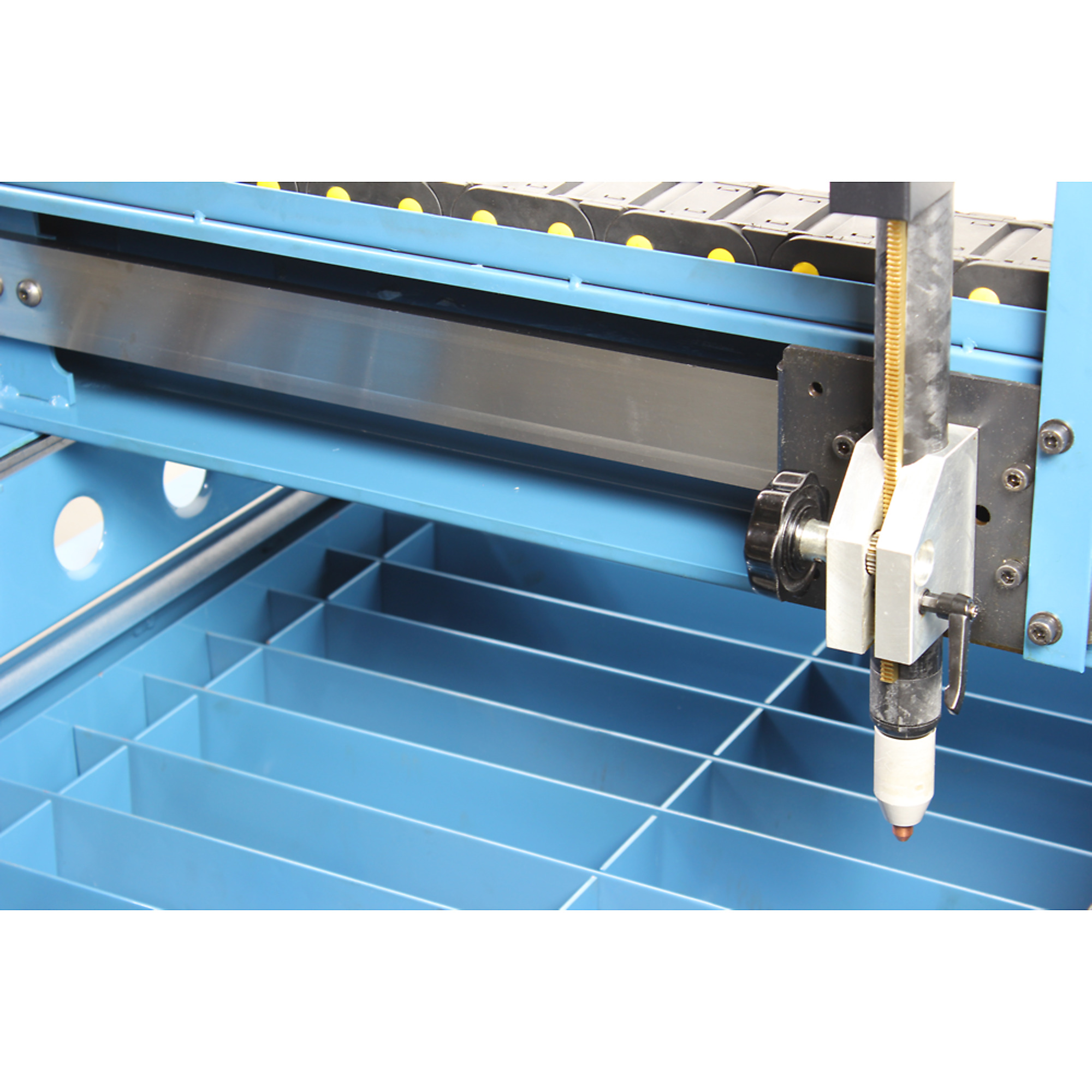

  • 2 different torch-holders to accept both automated torches and handheld torches.
  • Pre-cut flat bar grates support the material.
  • Fully-welded steel frame will stay square for accurate cutting. By contrast, many competitors’ aluminum tables will warp due to heat over time.
  • Small footprint accommodates shops with limited space. You won’t find many competitors that make machines this compact.
  • 5” caster wheels (2 stationary, 2 swiveling) let you move the table easily.
  • Water bath with a ball valve drain collects dirt, debris, and smoke. It also keeps the table cool to prevent material from moving while being cut.
  • Cabinet in the base with latched and hinged access doors.
  • Covered by a 1-year parts warranty.
  • Lifetime technical support by phone means that you can always count on troubleshooting and advice from an experienced Baileigh rep.

Key Specs

AttributeSpecification

item#

4765369

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

590.0 LB

Width

44 in

Length

46 in

Table Height

52 in
AttributeSpecification

Product Type

Plasma Table

Controller Type

Key Pad

Volts

110

Phase

Single-phase

Software

BobCAD-CAM

Product Weight

590.0000 lb

Dimensions L x W x H (in.)

46.0 x 44.0 x 52.0 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. how thick of material will it cut

    1. Thickness is controled by plasma machine capacity type 30 amp will cut 1/4" thk. Note duty cycle of machine and that of the torch will effect cut capacity. Always best to buy a little larger then to burn out plasma machine or torch.

      Helpful?

    2. The maximum table load capacity will be 3/4" mild steel.

      Helpful?

  2. Is the plasma torch system included?

    1 answer

    1. This does not include the torch itself. The automatic or manual Thermal Dynamics Cutmaster model that works best for your application would be purchased separately.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
