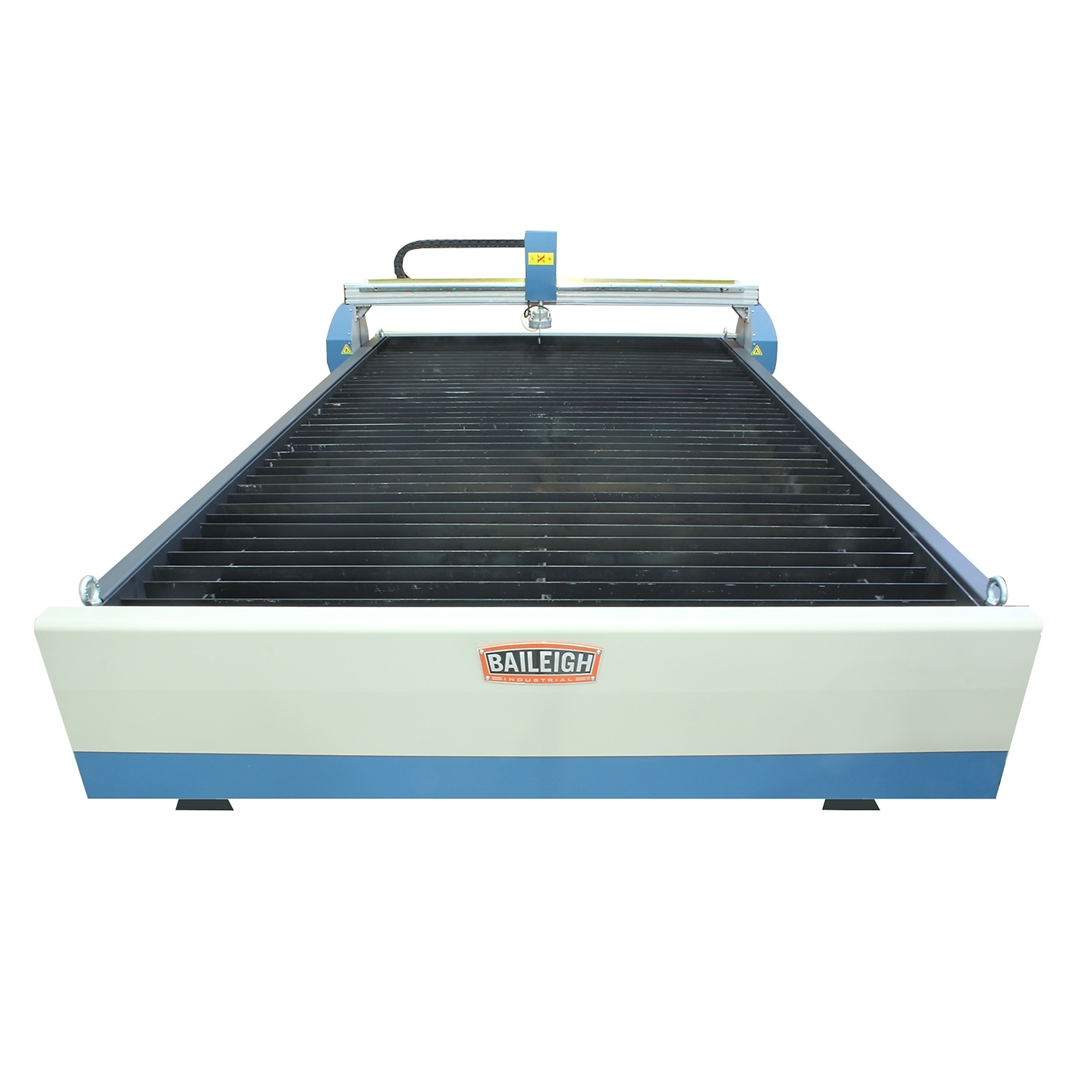

Baileigh, Plasma Table, Width 90.5 in, Length 90.5 in, Table Height 52 in, Model# PT-44AH-W

Item# 4765377
Top Seller
Baileigh, Plasma Table, Width 90.5 in, Length 90.5 in, Table Height 52 in, Model# PT-44AH-W

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Plasma Table, Width 90.5 in, Length 90.5 in, Table Height 52 in, Model# PT-44AH-W

Click or Tap image to Zoom

$19,994.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 59" x 59" working area.
  • Runs on 220-volt single-phase power, so it will work at most sites in North America.
  • Customers love the design software package (more details below), which takes just a few minutes to learn.

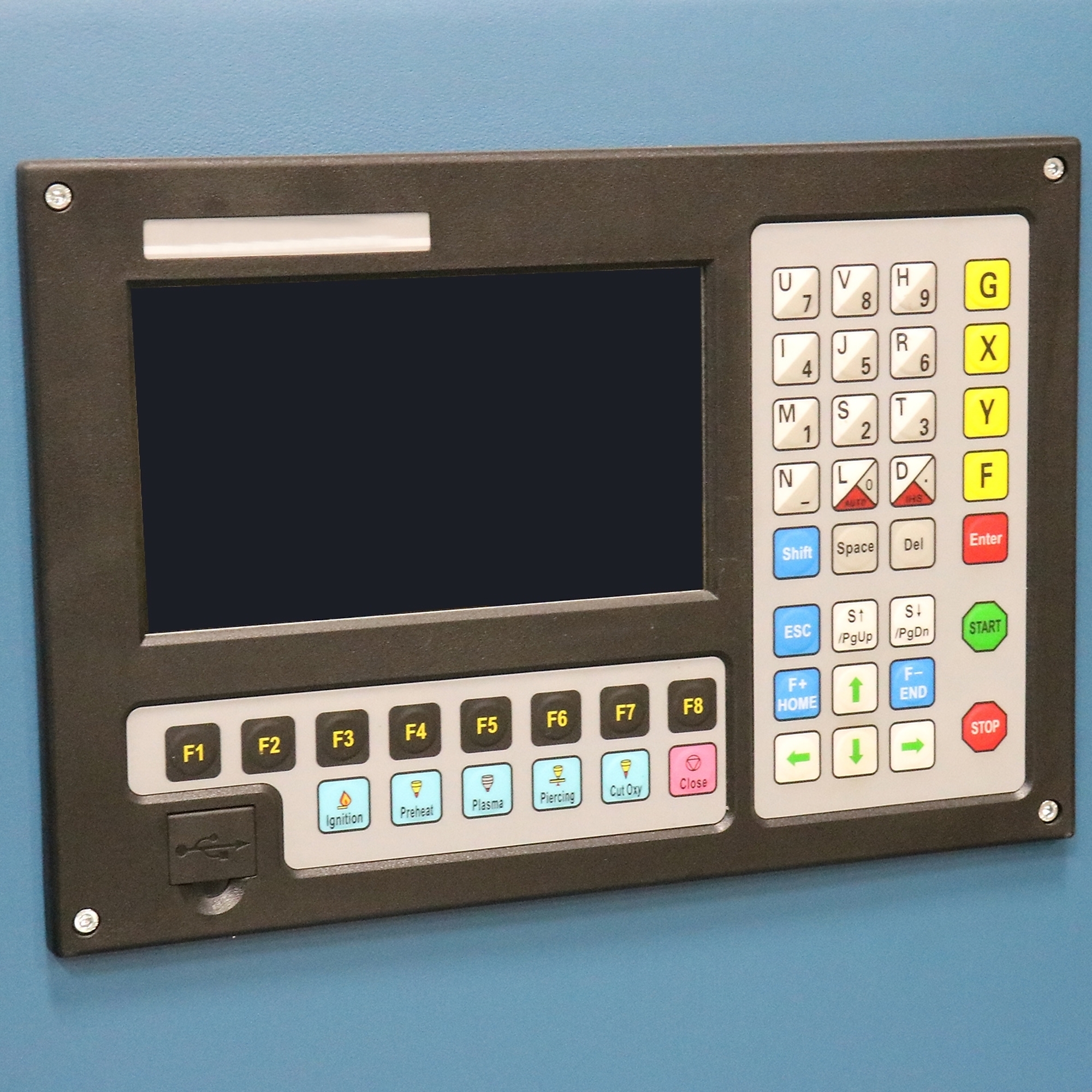

  • You can control the X, Y, and Z axes using the integrated panel on the podium.
  • Automatic height control is integrated into the operator’s panel, eliminating secondary systems found on many other tables.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

With variable height control, the PT-44AH-W makes perfect cuts in uneven material. This CNC plasma table comes assembled with a heavy steel frame and includes design software.

What's Included

    (1) PT-44AH-W

Features + Benefits

  • 59" x 59" working area.
  • Runs on 220-volt single-phase power, so it will work at most sites in North America.
  • Customers love the design software package (more details below), which takes just a few minutes to learn.
  • You can control the X, Y, and Z axes using the integrated panel on the podium.
  • Automatic height control is integrated into the operator’s panel, eliminating secondary systems found on many other tables.

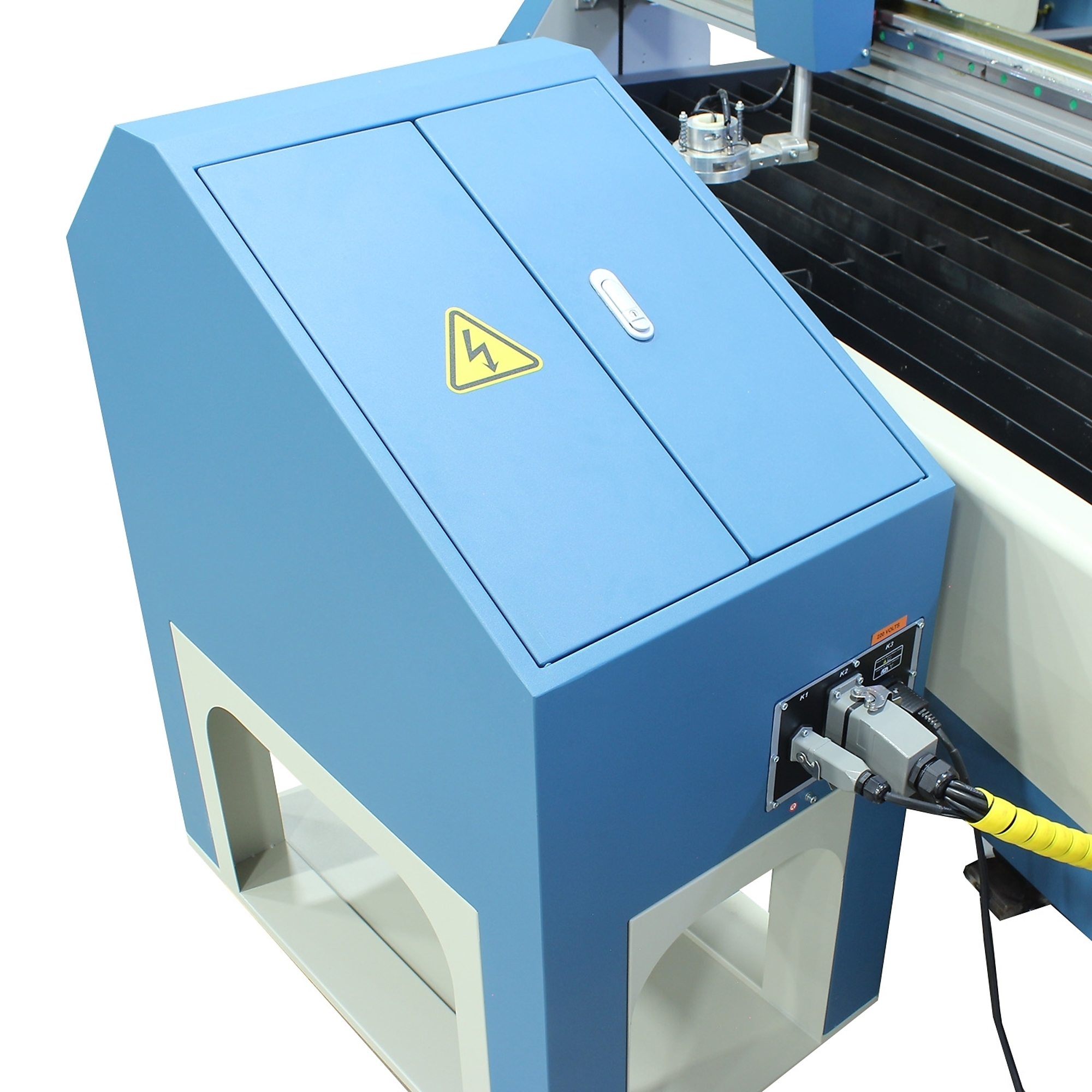

  • Operators podium provides space for plasma power unit even while cutting.

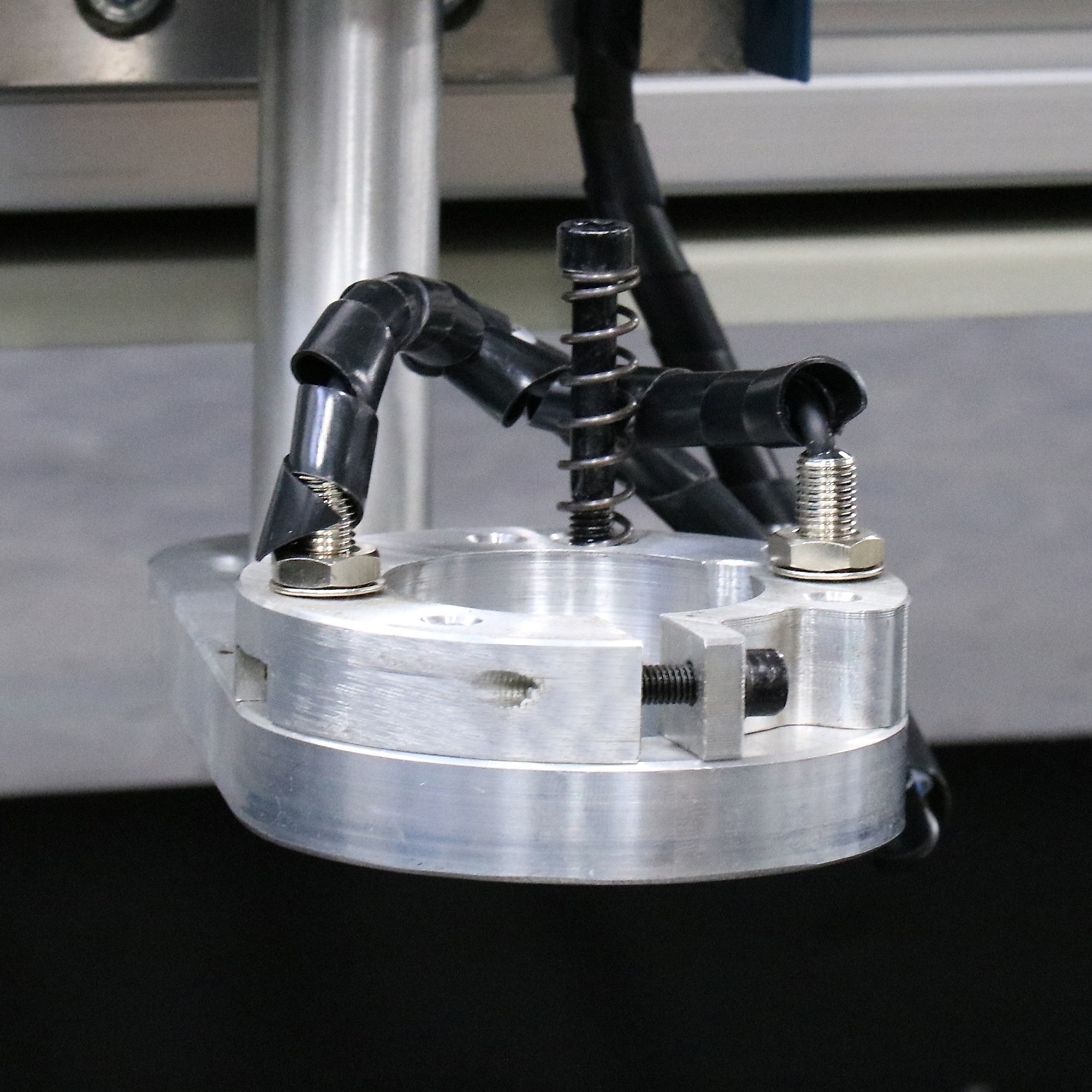

  • If the material is uneven or puckers under the heat of the torch, the variable height control will rise or lower in real time while cutting.
  • X, Y, and Z axes are controlled by quality stepper motors, allowing for fast and fluid movement.
  • Fully enclosed wires and electronics prevent snags and tangles.
  • Made of heavy-gauge boxed steel, this CNC plasma cutting machine can easily support large, thick industrial-sized sheets of metal.
  • Steel frame will remain straight and accurate over the years—unlike competing plasma tables with aluminum frames, which will warp from heat.

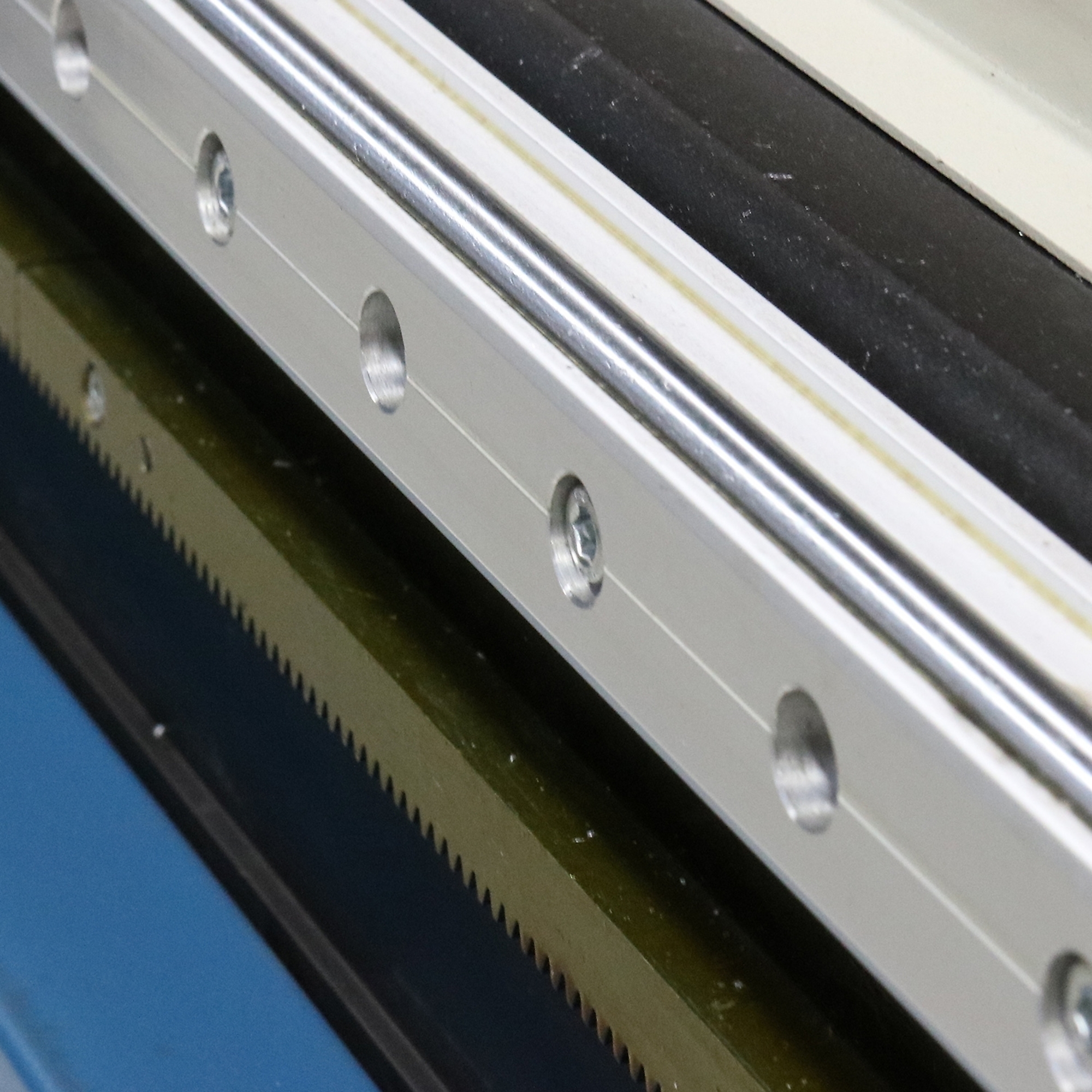

  • Ground, hardened, and polished square rails combined with linear orbital bearings add impressive strength to the machine.
  • Arrives pre-built at your shop, so you don’t have to spend hours putting it together and risk misalignment.
  • Integrated water table helps control smoke and dust created while cutting to help keep your shop clean.
  • To get started just:
  • Uncrate the machine.
  • Add a plasma system, power, and a clean, dry air supply.
  • Fill tank with water.

Key Specs

AttributeSpecification

item#

4765377

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2293.0 LB

Width

90.5 in

Length

90.5 in

Table Height

52 in

Product Type

Plasma Table
AttributeSpecification

Controller Type

Key Pad

Volts

220

Phase

Single-phase

Travel Speed

315 in/min

Software

BobCAD-CAM

Product Weight

2293.0000 lb

Dimensions L x W x H (in.)

90.5 x 90.5 x 52.0 in
