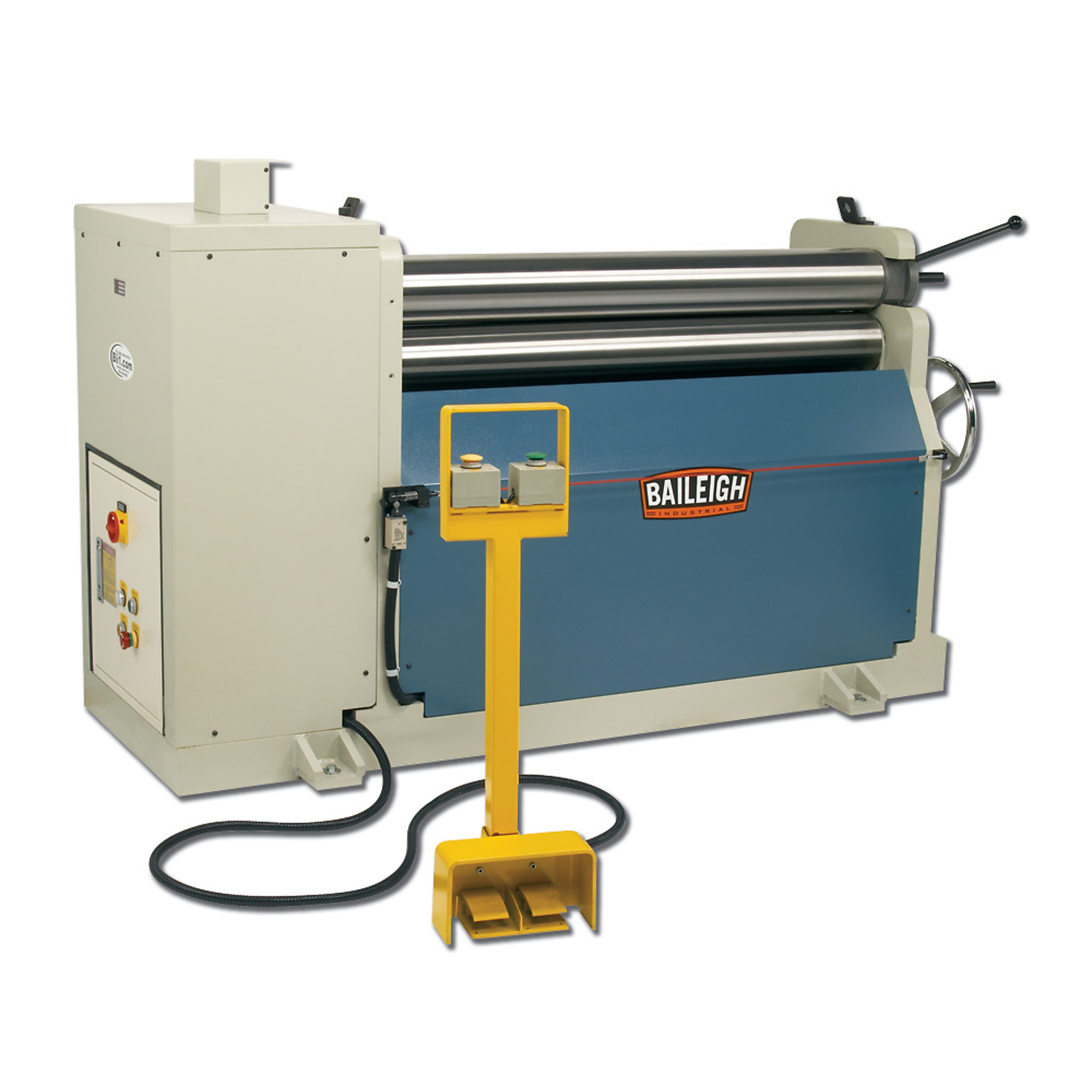

Baileigh, Hydraulic Plate Roller, Max. Material Gauge 3 Model# PR-403

Item# 4685772
Baileigh, Hydraulic Plate Roller, Max. Material Gauge 3 Model# PR-403

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Hydraulic Plate Roller, Max. Material Gauge 3 Model# PR-403

Click or Tap image to Zoom

  • 4’ forming width.
  • 3 gauge (¼”) mild sheet steel capacity.
  • 3 hp motor runs on 220-volt 3-phase power.

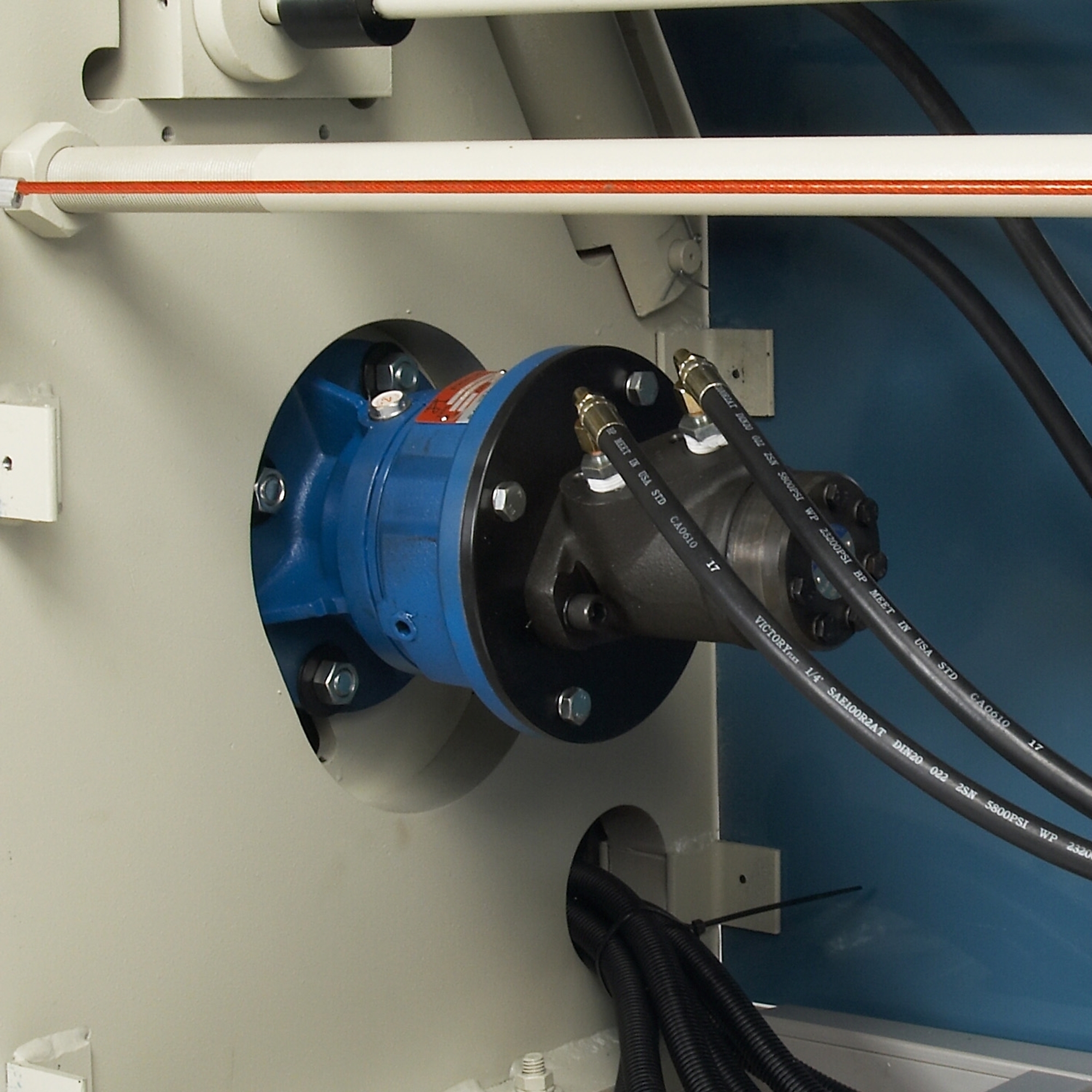

  • Large planetary gearbox, connected to main motor, drives the top and bottom rolls.
  • Industrial-grade hydraulic system drives all 3 rolls.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Baileigh Hydraulic Plate Roller, is a robust and user-friendly tool designed to deliver exceptional performance and longevity in small to medium-sized workshops. Engineered with three hydraulically driven rolls, this plate roller is capable of handling maximum material gauge of 3 with ease, ensuring efficient and precise rolling operations. Its durable construction guarantees years of reliable service, making it an indispensable asset for metalworking professionals seeking to enhance productivity and finish jobs faster. Whether used for bending, forming, or rolling various materials, the Baileigh Hydraulic Plate Roller offers unmatched convenience, strength, and efficiency, setting a high standard for quality and performance in the industry.

What's Included

    (1) 220 Volt Three Phase Hydraulic Plate Roll

Features + Benefits

  • 4’ forming width.
  • 3 gauge (¼”) mild sheet steel capacity.
  • 3 hp motor runs on 220-volt 3-phase power.
  • Large planetary gearbox, connected to main motor, drives the top and bottom rolls.
  • Industrial-grade hydraulic system drives all 3 rolls.

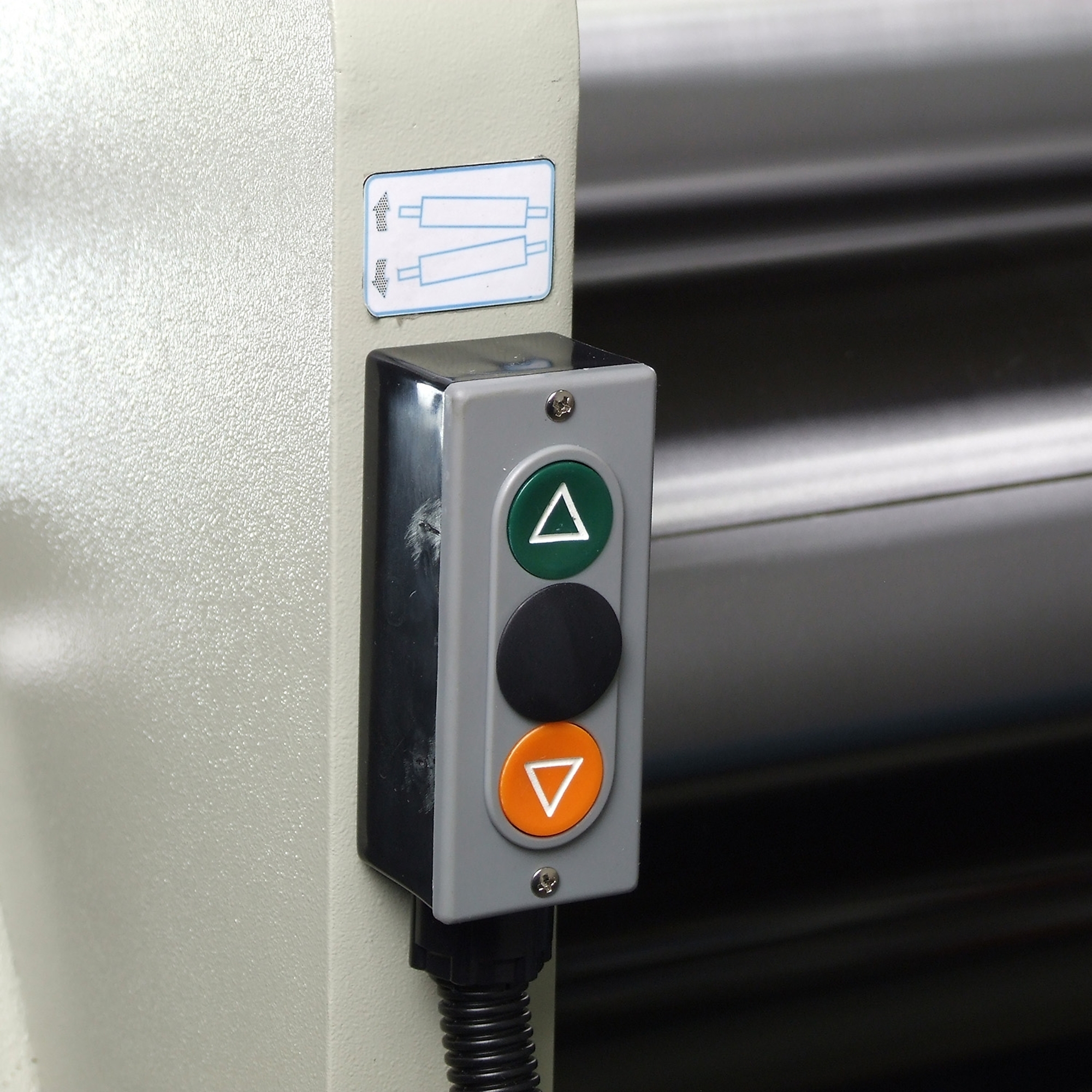

  • Movable control pedestal includes foot pedals to run the rolling and buttons to move the forming roll up and down.
  • Easy to operate: insert material, turn the handwheel to bring up the pinch roll, then use the foot pedals to start rolling.
  • Just flip a switch to bring the back roll up at an angle for coning.
  • Quick-release mechanism on the top roll makes it easy to slide off the finished work.

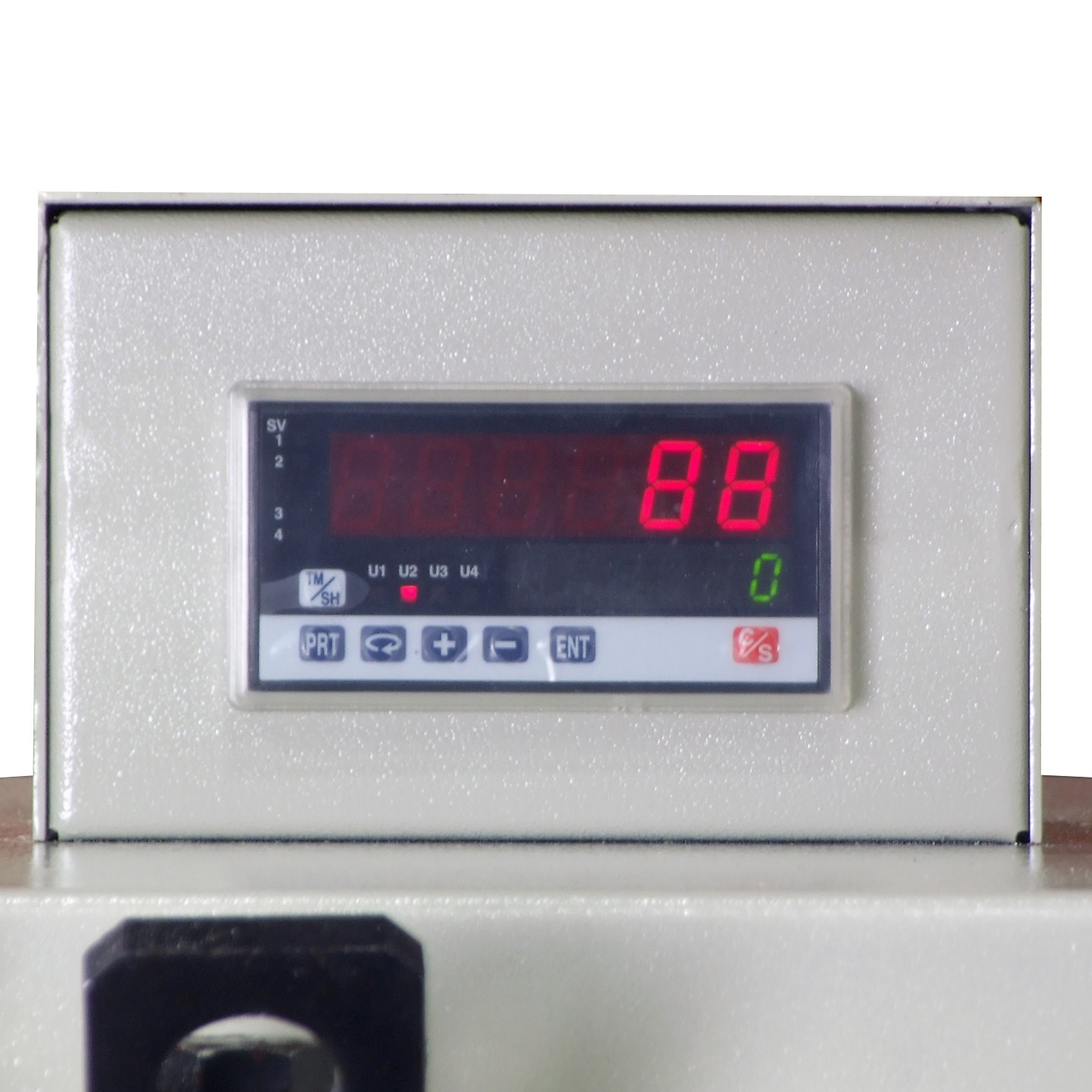

  • Digital readout tracks the position of the back roll so you can make repeatable bends.
  • Robust welded steel frame maintains accuracy and rigidity by keeping the rolls in alignment.

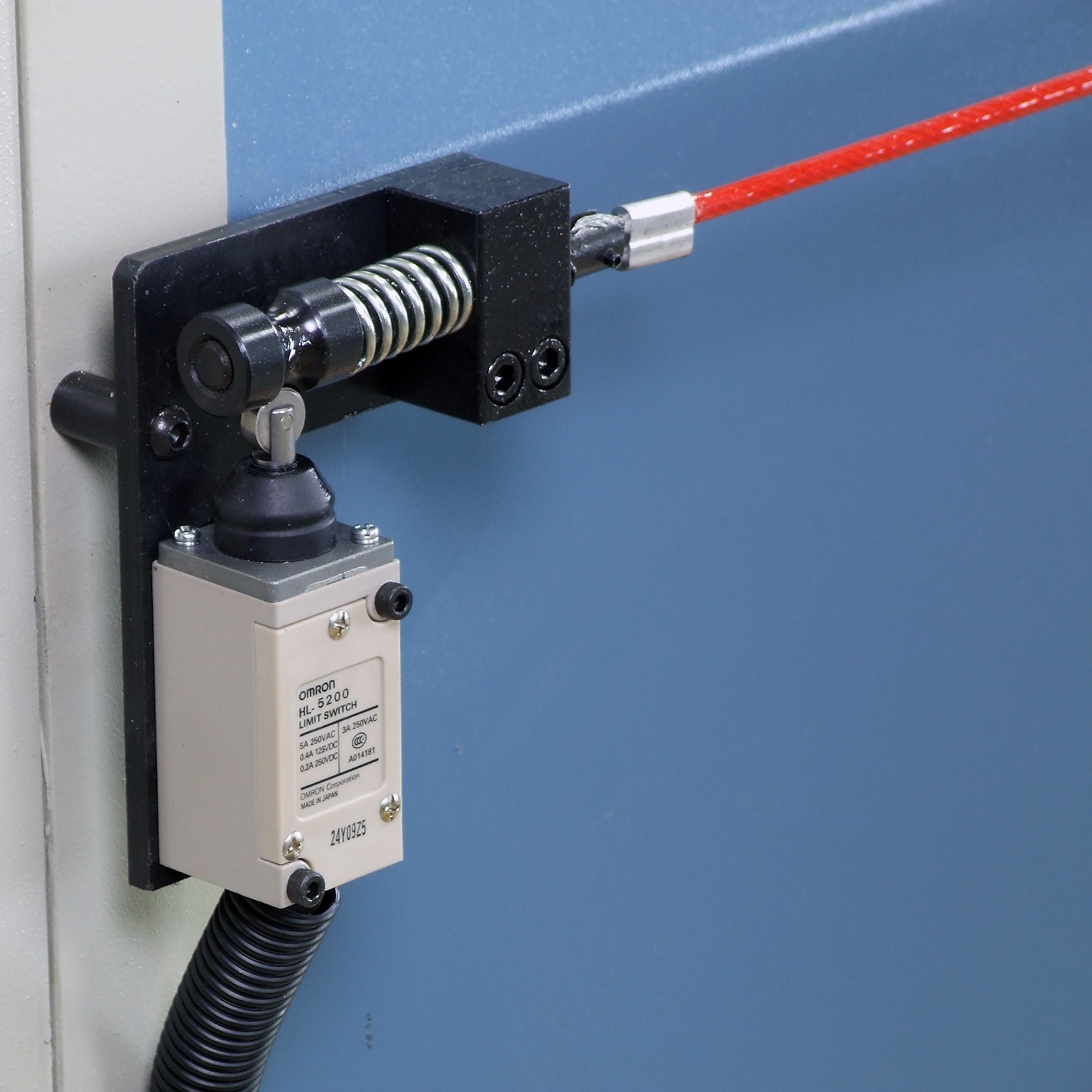

  • Dual emergency stop cables are located on the front and back of the machine for your safety.
  • Covered by a 1-year parts warranty.
  • Includes lifetime technical support by phone from a team with hands-on machine experience.

Key Specs

AttributeSpecification

item#

4685772

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

19382.0 LB

Max. Material Gauge

3

Dies Included

No
AttributeSpecification

Max. Depth

7 in

Max. Width

48 in

Slip Roll Length

0 in

Product Weight

19382.0000 lb

Dimensions L x W x H (in.)

98.0 x 43.0 x 58.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
